Description

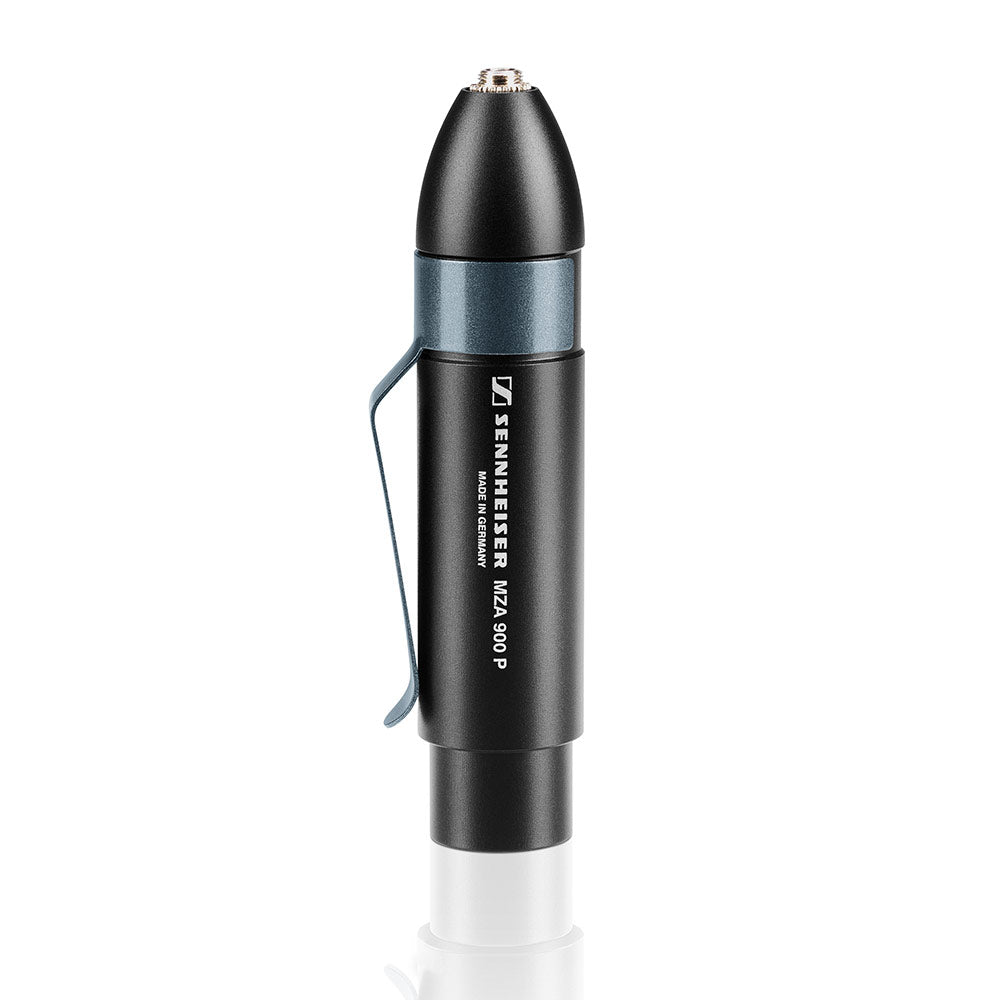

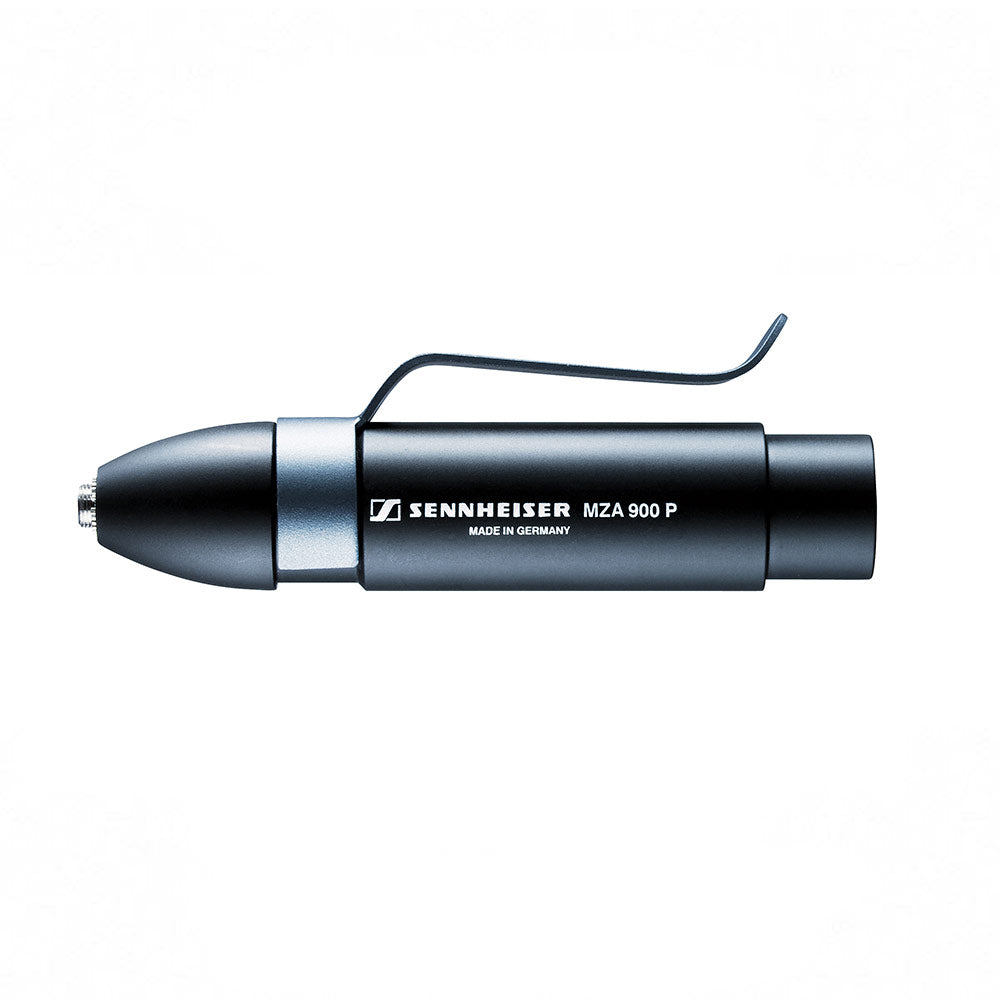

The MZA 900 P phantom power adaptor is used to connect pre-polarized condenser microphones with a 3.5mm jack plug to microphone inputs with 10 – 52 V phantom powering (P12 – P48). The connected microphone is supplied via the adaptor. The phantom power adaptor is available in two different versions MZA 900 P with lockable 3.5 mm jack socket (as evolution wireless) MZA 900 P-4 with lockable 3-pin special socket.
Features- Robust metall chassis
- Switchable gain (0/-12dB)
- Switchable roll-off filter (125 Hz (–3 dB), 12 dB/oct)
- Two-colour control LED (phantom power, audio peak)
- Input 3,5mm stereo jack socket, lockable
- Output XLR-3M
Frequency response | 20 Ð 20000 Hz (Ð1 dB) |
Gain | 0/-12 dB |
Output voltage | 1,8V (P48), 0,6V (P12) @ 0dB gain |
Output impedance | 100 Ohm |
Min. terminating impedance | 5kOhms (P12 - P48) @ 0dB gain 2kOhms (P12 - P48) @ -12dB gain |
Phantom powering | P12 - P48, 10 - 52V, 2,6 - 2,8mA |
Dimensions | ¯ 19/22 mm, L 100 mm |
Weight | 60 g |
Operating temperature | -20.....+60 ¡C |
The MZA 900 P phantom power adaptor is used to connect pre-polarized condenser microphones with a 3.5mm jack plug to microphone inputs with 10 – 52 V phantom powering (P12 – P48). The connected microphone is supplied via the adaptor. The phantom power adaptor is available in two different versions MZA 900 P with lockable 3.5 mm jack socket (as evolution wireless) MZA 900 P-4 with lockable 3-pin special socket.
Features- Robust metall chassis
- Switchable gain (0/-12dB)
- Switchable roll-off filter (125 Hz (–3 dB), 12 dB/oct)
- Two-colour control LED (phantom power, audio peak)
- Input 3,5mm stereo jack socket, lockable
- Output XLR-3M
Frequency response | 20 Ð 20000 Hz (Ð1 dB) |
Gain | 0/-12 dB |
Output voltage | 1,8V (P48), 0,6V (P12) @ 0dB gain |
Output impedance | 100 Ohm |
Min. terminating impedance | 5kOhms (P12 - P48) @ 0dB gain 2kOhms (P12 - P48) @ -12dB gain |
Phantom powering | P12 - P48, 10 - 52V, 2,6 - 2,8mA |
Dimensions | ¯ 19/22 mm, L 100 mm |
Weight | 60 g |
Operating temperature | -20.....+60 ¡C |
