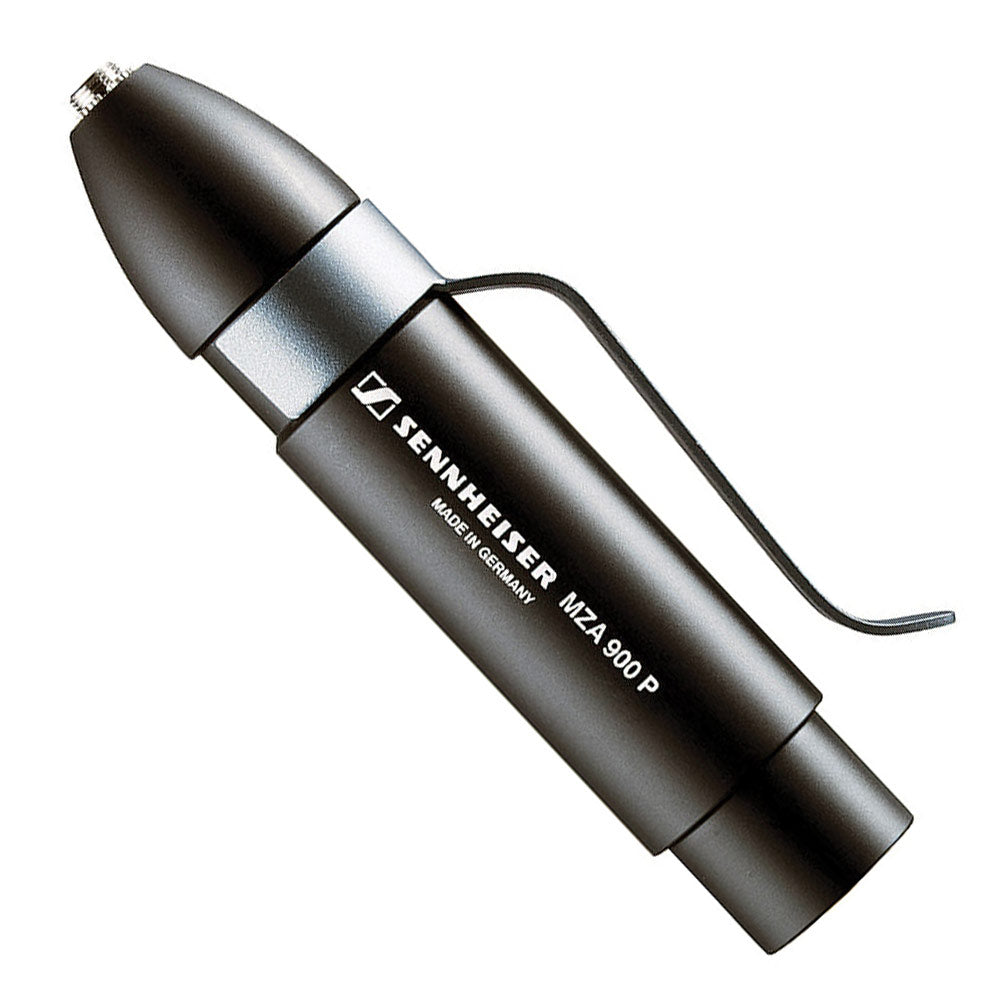

Sennheiser MZA900-P4 Phantom Power XLR Adapter for 2000/3000/5000 Wireless Microphones
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The MZA 900 P-4 phantom power adaptor is used to connect pre-polarized condenser microphones with a special connector (as also used for 3000 and 5000 series bodypack transmitters) to microphone inputs with 10 – 52 V phantom powering (P12 – P48). The connected microphone is supplied via the adaptor.
The adaptor is also a quick and flexible solution if a microphone is to be used for both wired and wireless applications. One and the same microphone can be used together with the MZA 900 P(-4) for wired applications (e.g. in the studio) or with a transmitter of the evolution series for wireless applications.Features
- Robust metall chassis
- Switchable gain (0/-12dB)
- Switchable roll-off filter (125 Hz (–3 dB), 12 dB/oct)
- Two-colour control LED (phantom power, audio peak)
- Input 3,5mm stereo jack socket, lockable
- Output XLR-3M
| Frequency response | 20 Ð 20000 Hz (Ð1 dB) |
| Gain | 0/-12 dB |
| Output voltage | 1,8V (P48), 0,6V (P12) @ 0dB gain |
| Output impedance | 100 Ohm |
| Min. terminating impedance | 5kOhms (P12 - P48) @ 0dB gain; 2kOhms (P12 - P48) @ -12dB gain |
| Phantom powering | P12 - P48, 10 - 52V, 2,6 - 2,8mA |
| Dimensions | ¯ 19/22 mm, L 100 mm |
| Operating temperature | -20.....+60 ¡C |
The MZA 900 P-4 phantom power adaptor is used to connect pre-polarized condenser microphones with a special connector (as also used for 3000 and 5000 series bodypack transmitters) to microphone inputs with 10 – 52 V phantom powering (P12 – P48). The connected microphone is supplied via the adaptor.
The adaptor is also a quick and flexible solution if a microphone is to be used for both wired and wireless applications. One and the same microphone can be used together with the MZA 900 P(-4) for wired applications (e.g. in the studio) or with a transmitter of the evolution series for wireless applications.Features
- Robust metall chassis
- Switchable gain (0/-12dB)
- Switchable roll-off filter (125 Hz (–3 dB), 12 dB/oct)
- Two-colour control LED (phantom power, audio peak)
- Input 3,5mm stereo jack socket, lockable
- Output XLR-3M
| Frequency response | 20 Ð 20000 Hz (Ð1 dB) |
| Gain | 0/-12 dB |
| Output voltage | 1,8V (P48), 0,6V (P12) @ 0dB gain |
| Output impedance | 100 Ohm |
| Min. terminating impedance | 5kOhms (P12 - P48) @ 0dB gain; 2kOhms (P12 - P48) @ -12dB gain |
| Phantom powering | P12 - P48, 10 - 52V, 2,6 - 2,8mA |
| Dimensions | ¯ 19/22 mm, L 100 mm |
| Operating temperature | -20.....+60 ¡C |
