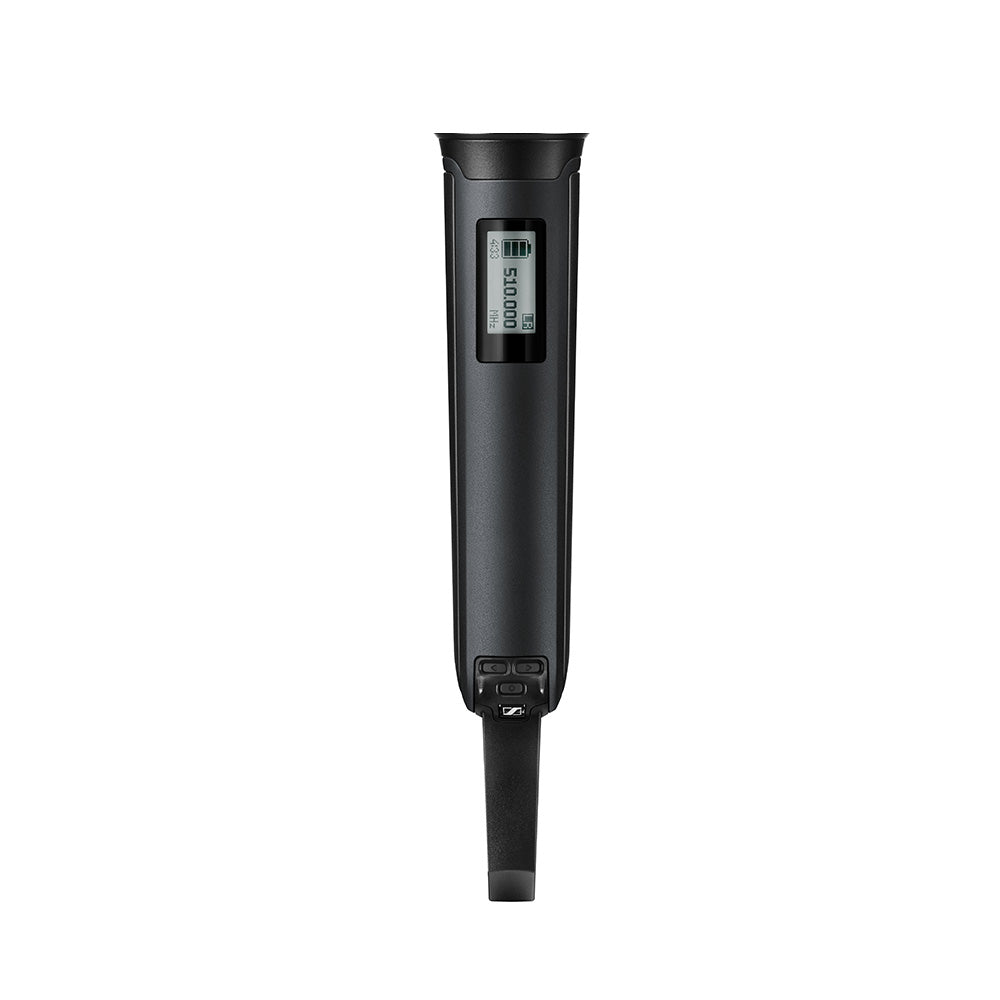

Sennheiser SKM 6000 BK Handheld Transmitter for Digital 6000 (A5-A8 Band / 550-638 MHz)
Contact us
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Contact us
Description
The SKM 6000 digital handheld transmitter is equipped for every voice, every song and every demand on the world’s live stages. Maximum transmission reliability is delivered by the renowned Long Range mode superior audio quality by the proprietary Sennheiser Audio Codec (SeDAC) from the wireless masterpiece, Digital 9000. Sophisticated electronics prevent disturbing intermodulation, even with numerous transmitters in the most confined spaces. This allows operation in an equidistant frequency grid and efficiently utilizes the available frequency spectrum.
Via Sennheiser’s standard capsule interface, the SKM 6000 transmitter is compatible with microphone heads from evolution wireless G3, 2000, Digital 9000, and the Neumann KK 204 / 205 series. Note that this item does not ship with a capsule.
A special magnesium housing offers the perfect balance between low weight and roadworthy construction.
The BA 60 lithium-ion battery pack ensures up to 5.5 hours of operation. Alternatively, operation is also possible with batteries from the B 60 battery set.
The transmitter is fully compatible with the EK 6042 and EM 9046 in Long Range mode.
Features:
- Three frequency variations (470-558 MHz, 550-638 MHz, 630-718 MHz)
- Sennheiser standard capsule interface, compatible with microphone heads from evolution wireless G3, 2000, Digital 9000, Neumann KK 204 and KK 205 series
- Highly effective intermodulation protection
- AES 256 encryption and Digital 9000 encryption
- Compatible with EK 6042 and EM 9046 in Long Range mode
- Li-ion battery packs with 5.5 hours run time
- Magnesium housing
What's In The Box:
- 1 SKM 6000
- 1 Microphone clamp MZQ 9000
- Safety Guide
- Quick Guide
Note: This unit requires either a B 60 sled (with 2 x AA batteries) or a BA 60 rechargeable battery pack for operation. Both are sold separately.
| Dimensions | 270 x 40 mm |
| Weight | Approx. 350 g (with BA 60 battery pack and ME 9005 microphone module) |
| Power consumption | Max. 960 mW |
| RF output power | 25 mW rms, 50 mW peak |
| Switching bandwidth | 88 MHz |
| Operating time | 5.5 h (with BA 60 battery pack) |
| Frequency range | 470 to 718 MHz, subdivided into 3 ranges: SKM 6000 A1 - A4: 470 - 558 MHz SKM 6000 A5 - A8: 550 - 638 MHz SKM 6000 B1 - B4: 630 - 718 MHz |
| Audio codec | SeDAC (Sennheiser Digital Audio Codec) |
| Frequency stability | < 5 ppm |
| Tunability | 25 kHz steps |
| Lower cut-off-frequency | Adjustable: 80 Hz, 100 Hz, 120 Hz |
| Encryption | AES 256 and Digital 9000 encryption |
| Audio frequency response | 30 Hz - 20 kHz (3 dB) |
| Audio Gain | Can be set in 3 dB steps from 0 dB to +62 dB (for each capsule) |
| Modulation scheme | Digital modulation long range mode |
The SKM 6000 digital handheld transmitter is equipped for every voice, every song and every demand on the world’s live stages. Maximum transmission reliability is delivered by the renowned Long Range mode superior audio quality by the proprietary Sennheiser Audio Codec (SeDAC) from the wireless masterpiece, Digital 9000. Sophisticated electronics prevent disturbing intermodulation, even with numerous transmitters in the most confined spaces. This allows operation in an equidistant frequency grid and efficiently utilizes the available frequency spectrum.
Via Sennheiser’s standard capsule interface, the SKM 6000 transmitter is compatible with microphone heads from evolution wireless G3, 2000, Digital 9000, and the Neumann KK 204 / 205 series. Note that this item does not ship with a capsule.
A special magnesium housing offers the perfect balance between low weight and roadworthy construction.
The BA 60 lithium-ion battery pack ensures up to 5.5 hours of operation. Alternatively, operation is also possible with batteries from the B 60 battery set.
The transmitter is fully compatible with the EK 6042 and EM 9046 in Long Range mode.
Features:
- Three frequency variations (470-558 MHz, 550-638 MHz, 630-718 MHz)
- Sennheiser standard capsule interface, compatible with microphone heads from evolution wireless G3, 2000, Digital 9000, Neumann KK 204 and KK 205 series
- Highly effective intermodulation protection
- AES 256 encryption and Digital 9000 encryption
- Compatible with EK 6042 and EM 9046 in Long Range mode
- Li-ion battery packs with 5.5 hours run time
- Magnesium housing
What's In The Box:
- 1 SKM 6000
- 1 Microphone clamp MZQ 9000
- Safety Guide
- Quick Guide
Note: This unit requires either a B 60 sled (with 2 x AA batteries) or a BA 60 rechargeable battery pack for operation. Both are sold separately.
| Dimensions | 270 x 40 mm |
| Weight | Approx. 350 g (with BA 60 battery pack and ME 9005 microphone module) |
| Power consumption | Max. 960 mW |
| RF output power | 25 mW rms, 50 mW peak |
| Switching bandwidth | 88 MHz |
| Operating time | 5.5 h (with BA 60 battery pack) |
| Frequency range | 470 to 718 MHz, subdivided into 3 ranges: SKM 6000 A1 - A4: 470 - 558 MHz SKM 6000 A5 - A8: 550 - 638 MHz SKM 6000 B1 - B4: 630 - 718 MHz |
| Audio codec | SeDAC (Sennheiser Digital Audio Codec) |
| Frequency stability | < 5 ppm |
| Tunability | 25 kHz steps |
| Lower cut-off-frequency | Adjustable: 80 Hz, 100 Hz, 120 Hz |
| Encryption | AES 256 and Digital 9000 encryption |
| Audio frequency response | 30 Hz - 20 kHz (3 dB) |
| Audio Gain | Can be set in 3 dB steps from 0 dB to +62 dB (for each capsule) |
| Modulation scheme | Digital modulation long range mode |
