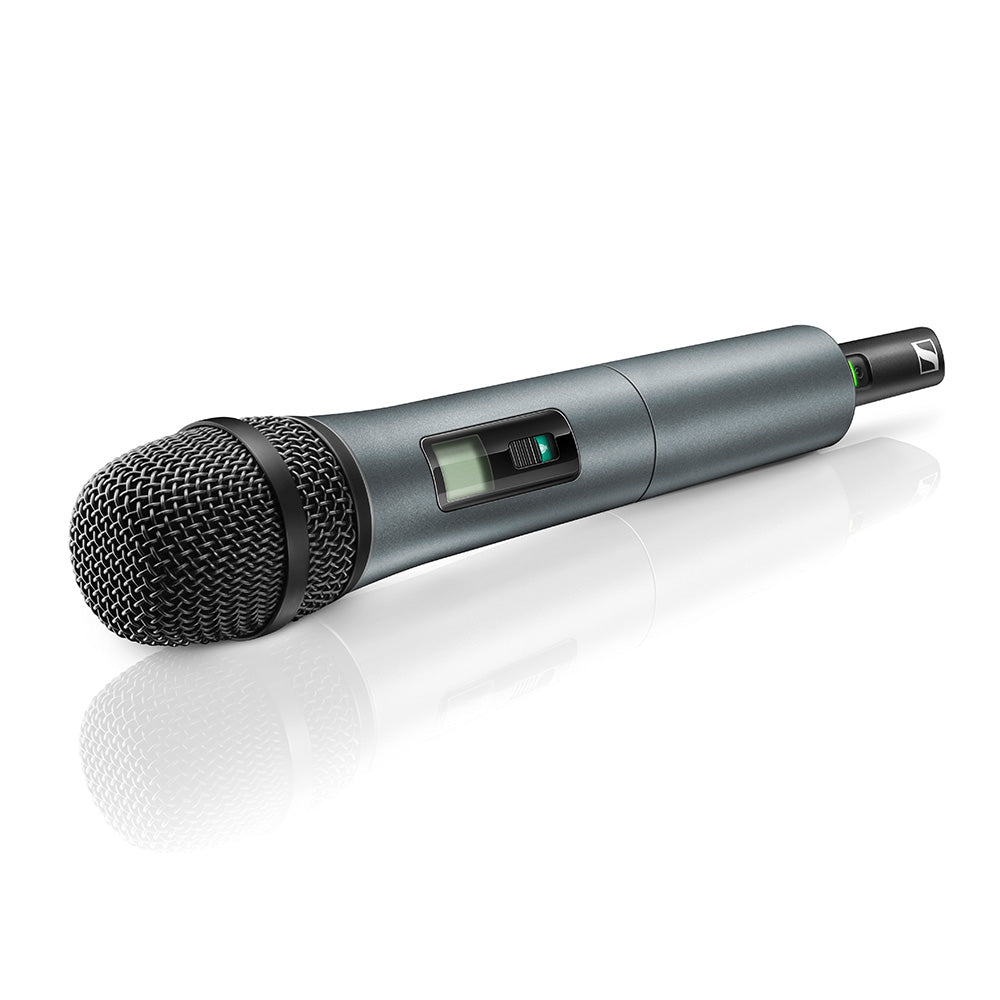

Sennheiser SKM 835-XSW-A Handheld Transmitter for XS Wireless with e835 Capsule


  • Dale #:

    SENN-SKM835XSWA
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

Raise your voice. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. Features: Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules Antenna-switching diversity reception Integrated antennas Aut... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Raise your voice. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band.

Features:

  • Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules
  • Antenna-switching diversity reception
  • Integrated antennas
  • Automatic frequency management and synchronization via remote channel for easy setup
  • Selectable UHF frequencies within a large bandwidth
  • Up to 10 compatible channels

What's In The Box:

  • 1 handheld transmitter
  • 1 microphone clamp MZQ 1
  • 2 AA batteries

More +

Product Specs

THD, total harmonic distortion ≤ 0.9%
Pick-up pattern cardioid or supercardioid (capsule dependent)
Signal-to-noise ratio ≥ 103 dBA
RF output power 10 mW
Switching bandwidth up to 24 MHz
Operating time approx. 10 hrs
Modulation wideband FM
Output voltage 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Housing rugged ABS housing
Dynamic range dynamic
Frequency 8 frequency banks, each with up to 10 factory-preset channels
Frequency range A: 548-572 MHz
Sensitivity < 3 μV at 52 dB(A)rms S/N
Squelch adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization)
Input sensitivity 1.5 mV / Pa
Transmitter Adjustment Range 0 to -30 dB, adjustable in 10 dB steps
Audio adjustment range 45 dB, adjustable in 5-dB steps
Line / Mic level 20 dB, switchable
Temperature Range operation: 0°C to +40°C, storage: –20°C to +70°C
