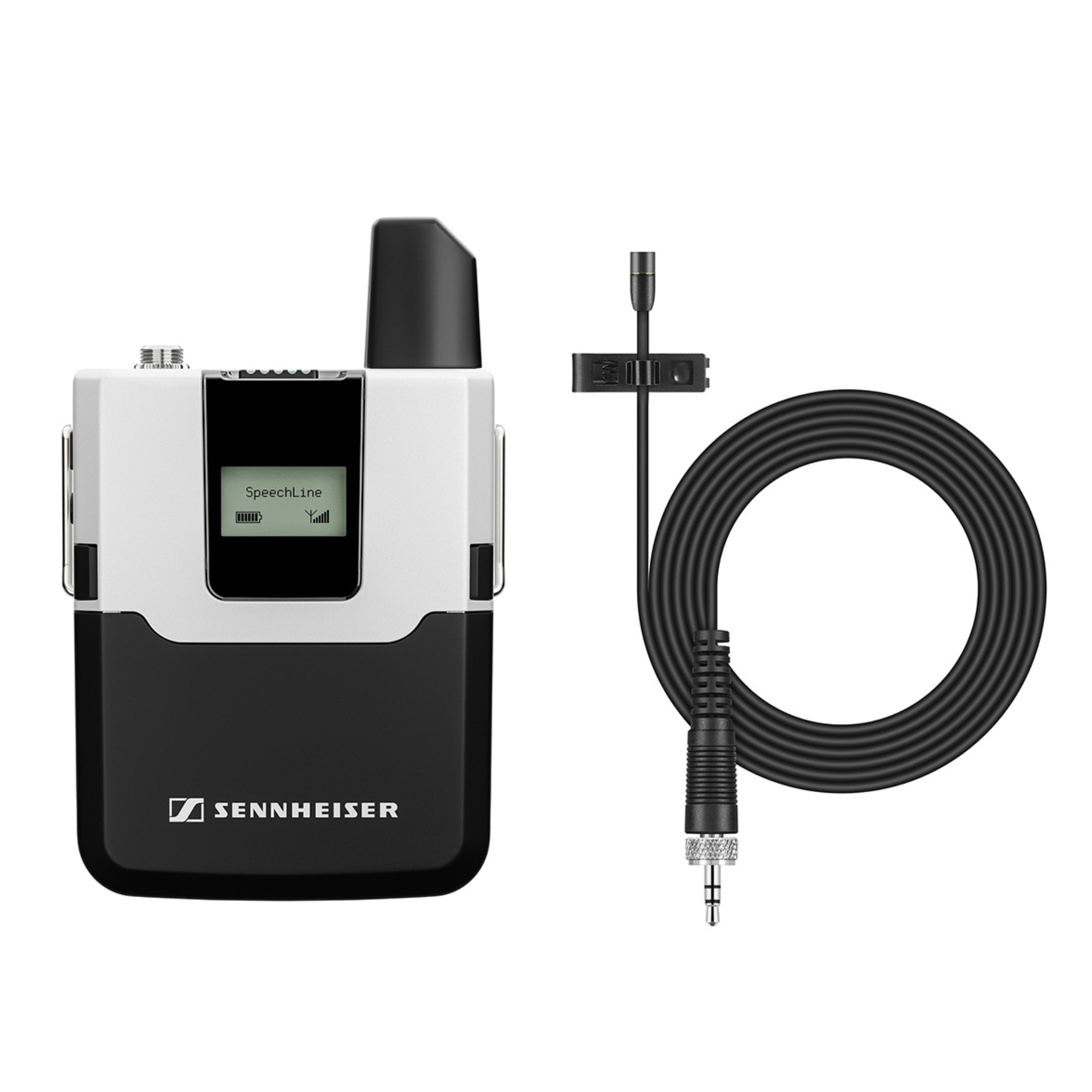

Sennheiser SL Bodypack MKE 2 KIT - SpeechLine Digital Lavalier Wireless System
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The SL Bodypack KITs DW are the perfect complement to the new SL Multi-Channel Receiver DW.
This KIT contains the compact and robust SL Bodypack DW bodypack transmitter, which is specially designed to transmit the spoken word and is compatible with all Sennheiser neckband and lavalier microphones (e.g. SL Headmic 1 or MKE 1). Thanks to the bi-directional communication between transmitter and receiver, no adjustments need to be made at the transmitter and the automatic frequency and interference management ensures easy setup and maximum transmission reliability. The transmitter's LC display shows the name of the radio link, the charge level of the battery pack(s) and the reception quality. With the easily accessible mute switch, the transmitter can be muted if necessary. The SL Bodypack DW is equipped with a rechargeable lithium-ion battery pack with external charging contacts for easy charging in the chargers and a USB socket for charging via USB.
Also included in the kit is the MKE 2 ew Gold, a high-quality, sub-miniature clip-on lavalier microphone which is suitable for all areas of live work. It fulfils the most stringent demands on sound quality and is extremely rugged. A special Umbrella Diaphragm™ and a welded housing protect the MKE 2 ew Gold against sweat and moisture. Colour: matte black.
Features:
- Lockable 3.5 mm jack socket
- Clear and easy focused user interface
- Long operation time (up to 15 hours)
- Advanced power management and Li-Ion rechargeables
- Secure 256 bit AES encryption
- Remote controllable
- New Umbrella Diaphragm™ protects the mic against sweat
- Very high sound pressure handling capability
- Versatile attachment due to an extensive range of accessories
What's In The Box:
- SL Bodypack DW
- MKE 2 ew Gold
- BA 30
| SL Bodypack DW | |
| Frequency response | 20 to 20,000 Hz |
| Operating time | Accupack: typ. 15 h Batteries: typ. 10 h |
| Input voltage range | Mic: 2.2 V RMS Line: 3.3 V RMS |
| Dynamic range | > 120 dB(A) |
| Input impedance | 1 M½ |
| Sampling rates | 24 bit/48 kHz |
| THD, total harmonic distortion | typ. 0.1 % |
| Weight | approx. 88 g |
| Audio input | 3,5 mm socket, lockable |
| Signal-to-noise ratio | > 90 dB(A) |
| RF output power | adaptive, up to 250 mW (country-specific) |
| MKE 2 | |
| Sensitivity in free field, no load (1kHz) | 5 mV/Pa +- 3 dB |
| Nominal impedance | 1000 ½ |
| Min. terminating impedance | 4700 ½ |
| Equivalent noise level | 26 dB |
| Equivalent noise level weighted as per CCIR 468-3 | 39 dB |
| Maximum sound pressure level (passive) | 142 dB |
| Current consumption | ca. 250 µA |
| Operating voltage (stand alone) | 7,5 V |
| Dimensions | d 4,8 mm |
| Frequency response (Microphone) | 20 - 20000 Hz +- 3 dB |
| Transducer principle (Microphone) | Dauerpolarisiertes Kondensatormikrofon |
| Connection cable | 3.5 mm Jack Plug |
| Weight | 17 g |
| Pick-up pattern | omni-directional |
The SL Bodypack KITs DW are the perfect complement to the new SL Multi-Channel Receiver DW.
This KIT contains the compact and robust SL Bodypack DW bodypack transmitter, which is specially designed to transmit the spoken word and is compatible with all Sennheiser neckband and lavalier microphones (e.g. SL Headmic 1 or MKE 1). Thanks to the bi-directional communication between transmitter and receiver, no adjustments need to be made at the transmitter and the automatic frequency and interference management ensures easy setup and maximum transmission reliability. The transmitter's LC display shows the name of the radio link, the charge level of the battery pack(s) and the reception quality. With the easily accessible mute switch, the transmitter can be muted if necessary. The SL Bodypack DW is equipped with a rechargeable lithium-ion battery pack with external charging contacts for easy charging in the chargers and a USB socket for charging via USB.
Also included in the kit is the MKE 2 ew Gold, a high-quality, sub-miniature clip-on lavalier microphone which is suitable for all areas of live work. It fulfils the most stringent demands on sound quality and is extremely rugged. A special Umbrella Diaphragm™ and a welded housing protect the MKE 2 ew Gold against sweat and moisture. Colour: matte black.
Features:
- Lockable 3.5 mm jack socket
- Clear and easy focused user interface
- Long operation time (up to 15 hours)
- Advanced power management and Li-Ion rechargeables
- Secure 256 bit AES encryption
- Remote controllable
- New Umbrella Diaphragm™ protects the mic against sweat
- Very high sound pressure handling capability
- Versatile attachment due to an extensive range of accessories
What's In The Box:
- SL Bodypack DW
- MKE 2 ew Gold
- BA 30
| SL Bodypack DW | |
| Frequency response | 20 to 20,000 Hz |
| Operating time | Accupack: typ. 15 h Batteries: typ. 10 h |
| Input voltage range | Mic: 2.2 V RMS Line: 3.3 V RMS |
| Dynamic range | > 120 dB(A) |
| Input impedance | 1 M½ |
| Sampling rates | 24 bit/48 kHz |
| THD, total harmonic distortion | typ. 0.1 % |
| Weight | approx. 88 g |
| Audio input | 3,5 mm socket, lockable |
| Signal-to-noise ratio | > 90 dB(A) |
| RF output power | adaptive, up to 250 mW (country-specific) |
| MKE 2 | |
| Sensitivity in free field, no load (1kHz) | 5 mV/Pa +- 3 dB |
| Nominal impedance | 1000 ½ |
| Min. terminating impedance | 4700 ½ |
| Equivalent noise level | 26 dB |
| Equivalent noise level weighted as per CCIR 468-3 | 39 dB |
| Maximum sound pressure level (passive) | 142 dB |
| Current consumption | ca. 250 µA |
| Operating voltage (stand alone) | 7,5 V |
| Dimensions | d 4,8 mm |
| Frequency response (Microphone) | 20 - 20000 Hz +- 3 dB |
| Transducer principle (Microphone) | Dauerpolarisiertes Kondensatormikrofon |
| Connection cable | 3.5 mm Jack Plug |
| Weight | 17 g |
| Pick-up pattern | omni-directional |
