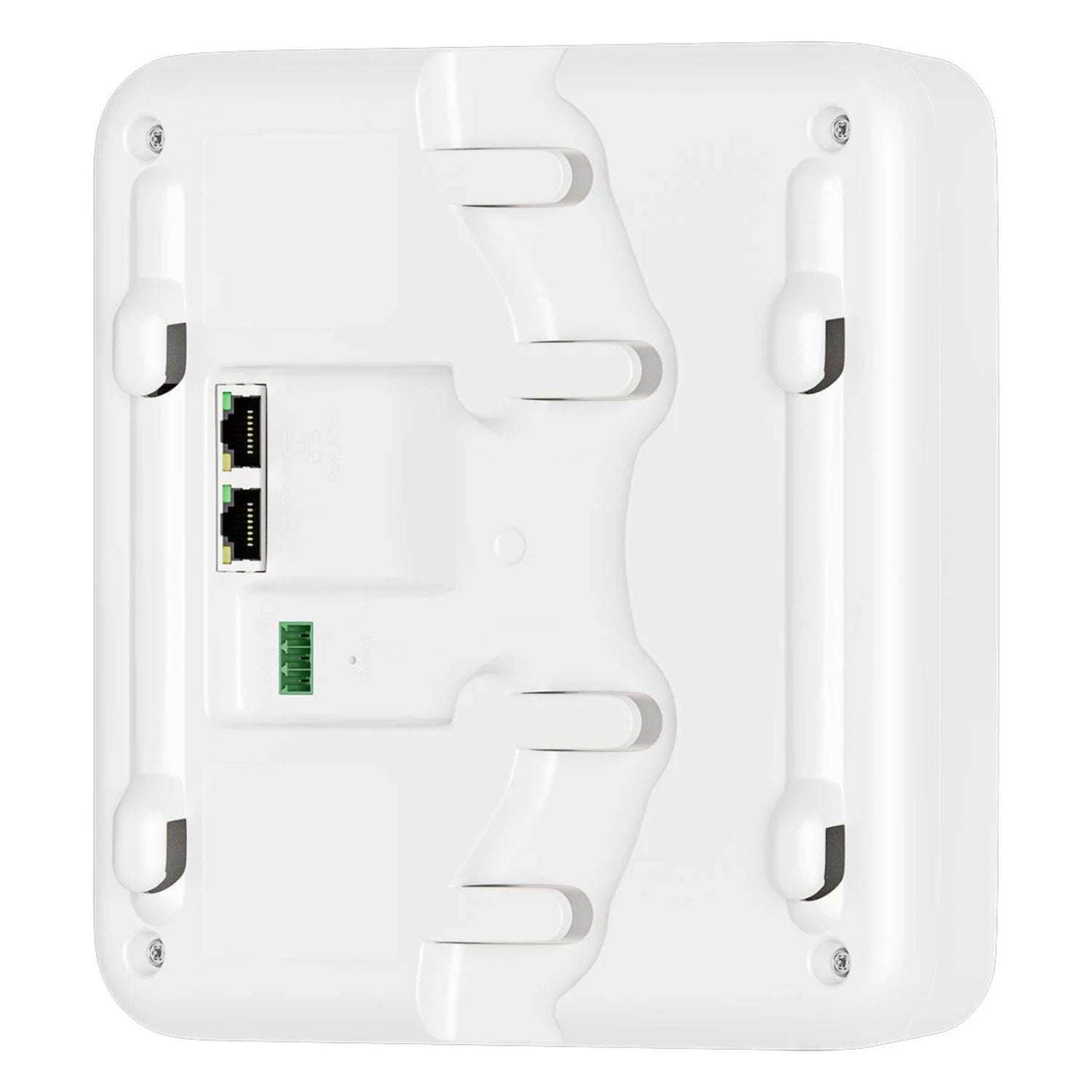

Sennheiser SL MCR 2 DW-4 - 2-Channel Receiver for SpeechLine Digital Wireless System
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The SpeechLine Multi-Channel Receiver with its 2 or 4 channels is the perfect addition to the SpeechLine series. Thanks to its unobtrusive design, the Multi-Channel Receiver can be installed quickly and easily in any room, whether on the wall or ceiling. The device can be operated with a single network cable, thanks to PoE and Dante. Complex analog audio cabling is a thing of the past. The Multi-Channel Receiver also offers a convenient solution for existing installations. Thanks to an integrated auto mixer and the analog mix output, all audio channels can be used simply as a sum signal. The audio mix is also available digitally via Dante, which allows an extension of the existing setup without exchanging the DSP.
Due to the bidirectional communication between receiver and transmitter, all settings of the mobile transmitters can easily be made in the Sennheiser Control Cockpit. The receiver's automatic frequency management eliminates the need for manual frequency settings and the automatic interference management guarantees maximum transmission reliability. The user-friendly pairing function ensures a reliable connection between transmitter and receiver. Network integration also makes it possible to remotely control and monitor the receiver via a media control system (e.g. AMX, Crestron, Q-SYS Control). Due to the integrated antennas, a complex antenna installation is no longer necessary.
Features:
- Automatic Gain Control
- Automatic Frequency management
- AES 256 encryption
- 2-port Dante
- PoE
- Analog Mix Output
- One status LED per Link
- Remote control via Control Cockpit or media control
- Wall, ceiling or mic stand mounting
- Integrated Automixer
What's In The Box:
- SL MCR DW
- Wall mounting plate
- Drilling template
- Quick Guide
| Dimensions | 180 x 180 x 45 mm (incl. wallmount) |
| Connector | 2x RJ-45 Network (Dante and Control) |
| Weight | 650 g (incl. wallmount) 560 g (without wallmount) |
| Power consumption | < 15 W |
| Audio output | 3- pin Phoenix 3.81.mm |
| Operating temperature | -10¡C to +45¡C (14¡F to 113¡F) |
| Number of channels | 2 |
| Color | white RAL 9016 |
| Frequency | 1880 - 1930 MHz |
| Frequency band | DECT |
| Frequency range | 20 Hz - 20 kHz |
| Mains voltage | 44 Ð 57 V DC via PoE IEEE 802.3af Class 3 |
| Firmware update | yes |
| Latency | 23 ms |
| Equalizer | Via Sennheiser Control Cockpit |
| Automatic gain control (AGC) | yes |
| Diversity principle | Antenna Diversity |
| Encryption | AES 256 |
| Danteª | Primary and Secondary |
The SpeechLine Multi-Channel Receiver with its 2 or 4 channels is the perfect addition to the SpeechLine series. Thanks to its unobtrusive design, the Multi-Channel Receiver can be installed quickly and easily in any room, whether on the wall or ceiling. The device can be operated with a single network cable, thanks to PoE and Dante. Complex analog audio cabling is a thing of the past. The Multi-Channel Receiver also offers a convenient solution for existing installations. Thanks to an integrated auto mixer and the analog mix output, all audio channels can be used simply as a sum signal. The audio mix is also available digitally via Dante, which allows an extension of the existing setup without exchanging the DSP.
Due to the bidirectional communication between receiver and transmitter, all settings of the mobile transmitters can easily be made in the Sennheiser Control Cockpit. The receiver's automatic frequency management eliminates the need for manual frequency settings and the automatic interference management guarantees maximum transmission reliability. The user-friendly pairing function ensures a reliable connection between transmitter and receiver. Network integration also makes it possible to remotely control and monitor the receiver via a media control system (e.g. AMX, Crestron, Q-SYS Control). Due to the integrated antennas, a complex antenna installation is no longer necessary.
Features:
- Automatic Gain Control
- Automatic Frequency management
- AES 256 encryption
- 2-port Dante
- PoE
- Analog Mix Output
- One status LED per Link
- Remote control via Control Cockpit or media control
- Wall, ceiling or mic stand mounting
- Integrated Automixer
What's In The Box:
- SL MCR DW
- Wall mounting plate
- Drilling template
- Quick Guide
| Dimensions | 180 x 180 x 45 mm (incl. wallmount) |
| Connector | 2x RJ-45 Network (Dante and Control) |
| Weight | 650 g (incl. wallmount) 560 g (without wallmount) |
| Power consumption | < 15 W |
| Audio output | 3- pin Phoenix 3.81.mm |
| Operating temperature | -10¡C to +45¡C (14¡F to 113¡F) |
| Number of channels | 2 |
| Color | white RAL 9016 |
| Frequency | 1880 - 1930 MHz |
| Frequency band | DECT |
| Frequency range | 20 Hz - 20 kHz |
| Mains voltage | 44 Ð 57 V DC via PoE IEEE 802.3af Class 3 |
| Firmware update | yes |
| Latency | 23 ms |
| Equalizer | Via Sennheiser Control Cockpit |
| Automatic gain control (AGC) | yes |
| Diversity principle | Antenna Diversity |
| Encryption | AES 256 |
| Danteª | Primary and Secondary |
