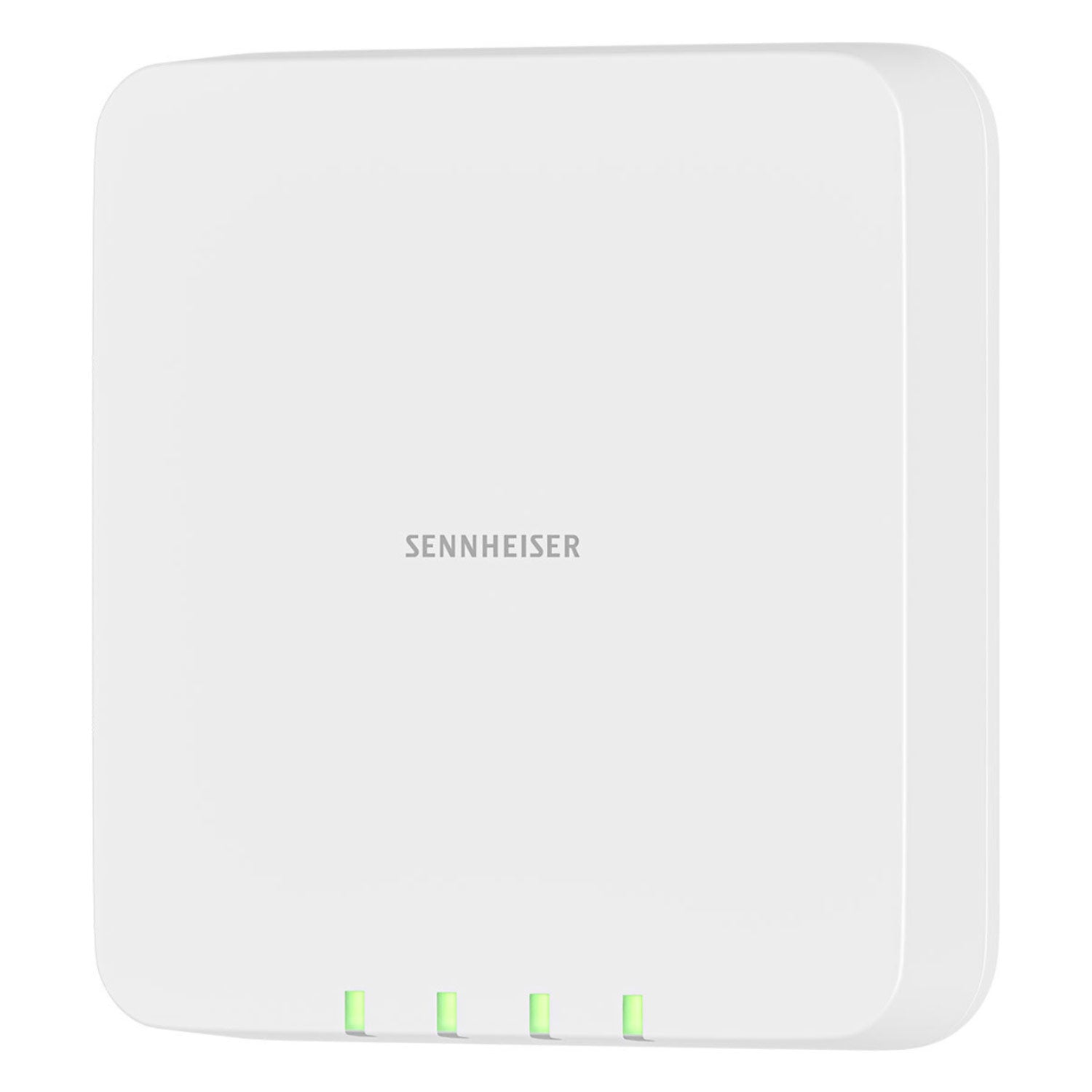

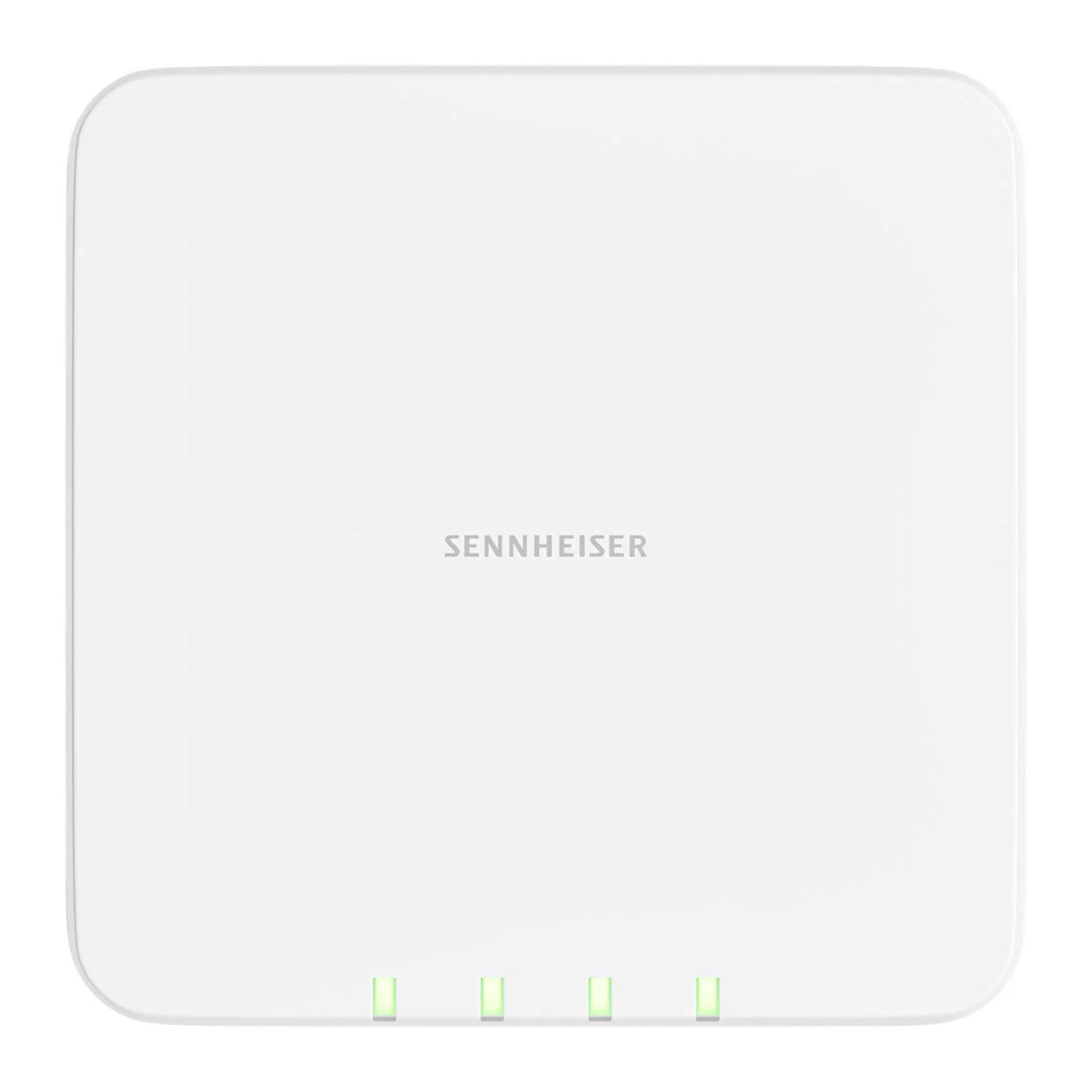

Sennheiser SL MCR 4 DW-4 - 4-Channel Receiver for SpeechLine Digital Wireless System

  • Dale #:

    SENN-SLMCR4DW4
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The SpeechLine Multi-Channel Receiver with its 2 or 4 channels is the perfect addition to the SpeechLine series. Thanks to its unobtrusive design, the Multi-Channel Receiver can be installed quickly and easily in any room, whether on the wall or ceiling. The device can be operated with a single n... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The SpeechLine Multi-Channel Receiver with its 2 or 4 channels is the perfect addition to the SpeechLine series. Thanks to its unobtrusive design, the Multi-Channel Receiver can be installed quickly and easily in any room, whether on the wall or ceiling. The device can be operated with a single network cable, thanks to PoE and Dante. Complex analog audio cabling is a thing of the past. The Multi-Channel Receiver also offers a convenient solution for existing installations. Thanks to an integrated auto mixer and the analog mix output, all audio channels can be used simply as a sum signal. The audio mix is also available digitally via Dante, which allows an extension of the existing setup without exchanging the DSP.

Due to the bidirectional communication between receiver and transmitter, all settings of the mobile transmitters can easily be made in the Sennheiser Control Cockpit. The receiver's automatic frequency management eliminates the need for manual frequency settings and the automatic interference management guarantees maximum transmission reliability. The user-friendly pairing function ensures a reliable connection between transmitter and receiver. Network integration also makes it possible to remotely control and monitor the receiver via a media control system (e.g. AMX, Crestron, Q-SYS Control). Due to the integrated antennas, a complex antenna installation is no longer necessary.

Features:

  • Automatic Gain Control
  • Automatic Frequency management
  • AES 256 encryption
  • 2-port Dante
  • PoE
  • Analog Mix Output
  • One status LED per Link
  • Remote control via Control Cockpit or media control
  • Wall, ceiling or mic stand mounting
  • Integrated Automixer

What's In The Box:

  • SL MCR DW
  • Wall mounting plate
  • Drilling template
  • Quick Guide

More +

Product Specs

Dimensions 180 x 180 x 45 mm (incl. wallmount)
Connector 2x RJ-45 Network (Dante and Control)
Weight 650 g (incl. wallmount)
560 g (without wallmount)
Power consumption < 15 W
Audio output 3- pin Phoenix 3.81.mm
Operating temperature -10°C to +45°C (14°F to 113°F)
Number of channels 4
Color white RAL 9016
Frequency 1880 - 1930 MHz
Frequency band DECT
Frequency range 20 Hz - 20 kHz
Mains voltage 44 – 57 V DC via PoE IEEE 802.3af Class 3
Firmware update yes
Latency 23 ms
Equalizer Via Sennheiser Control Cockpit
Automatic gain control (AGC) yes
Diversity principle Antenna Diversity
Encryption AES 256
Dante™ Primary and Secondary
