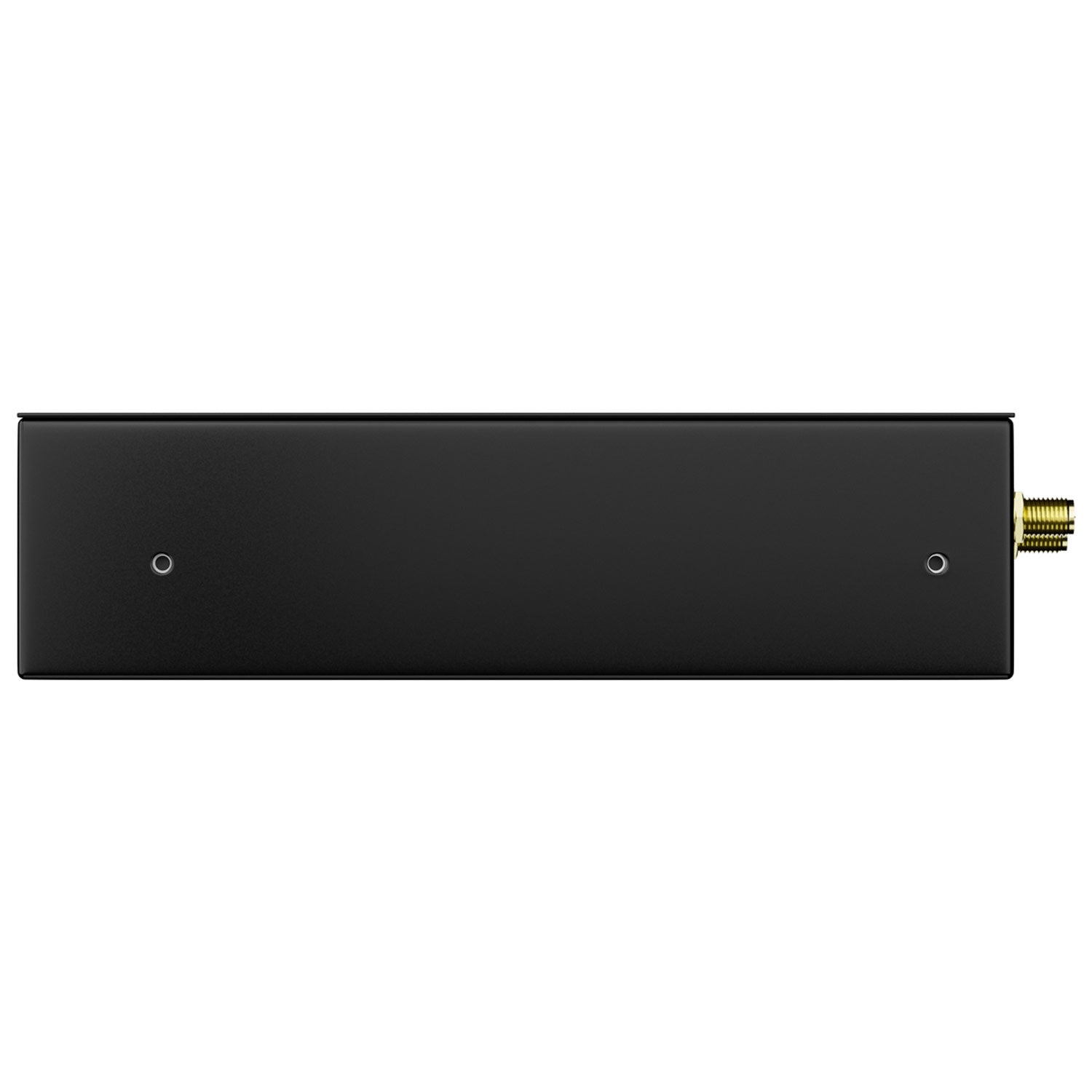

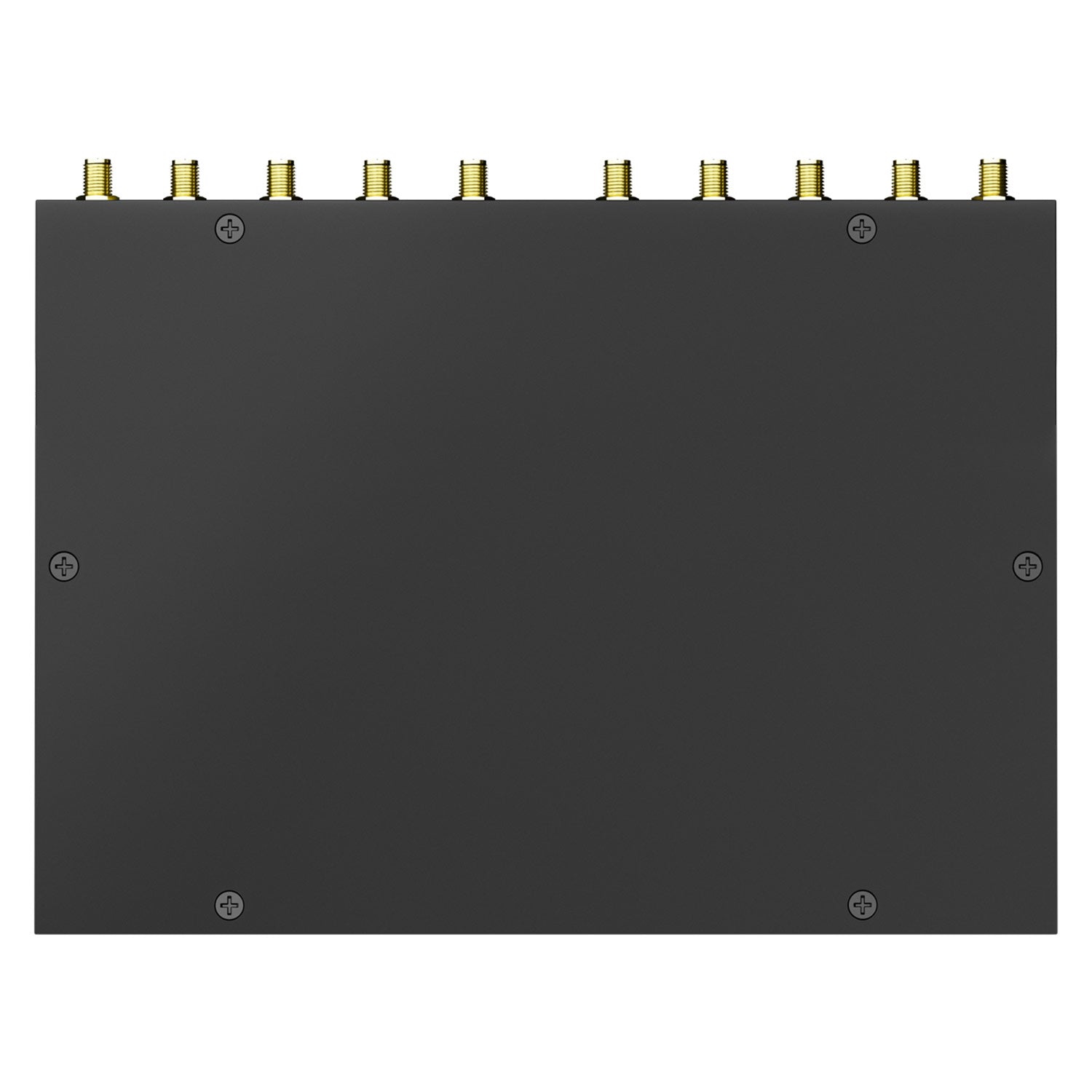

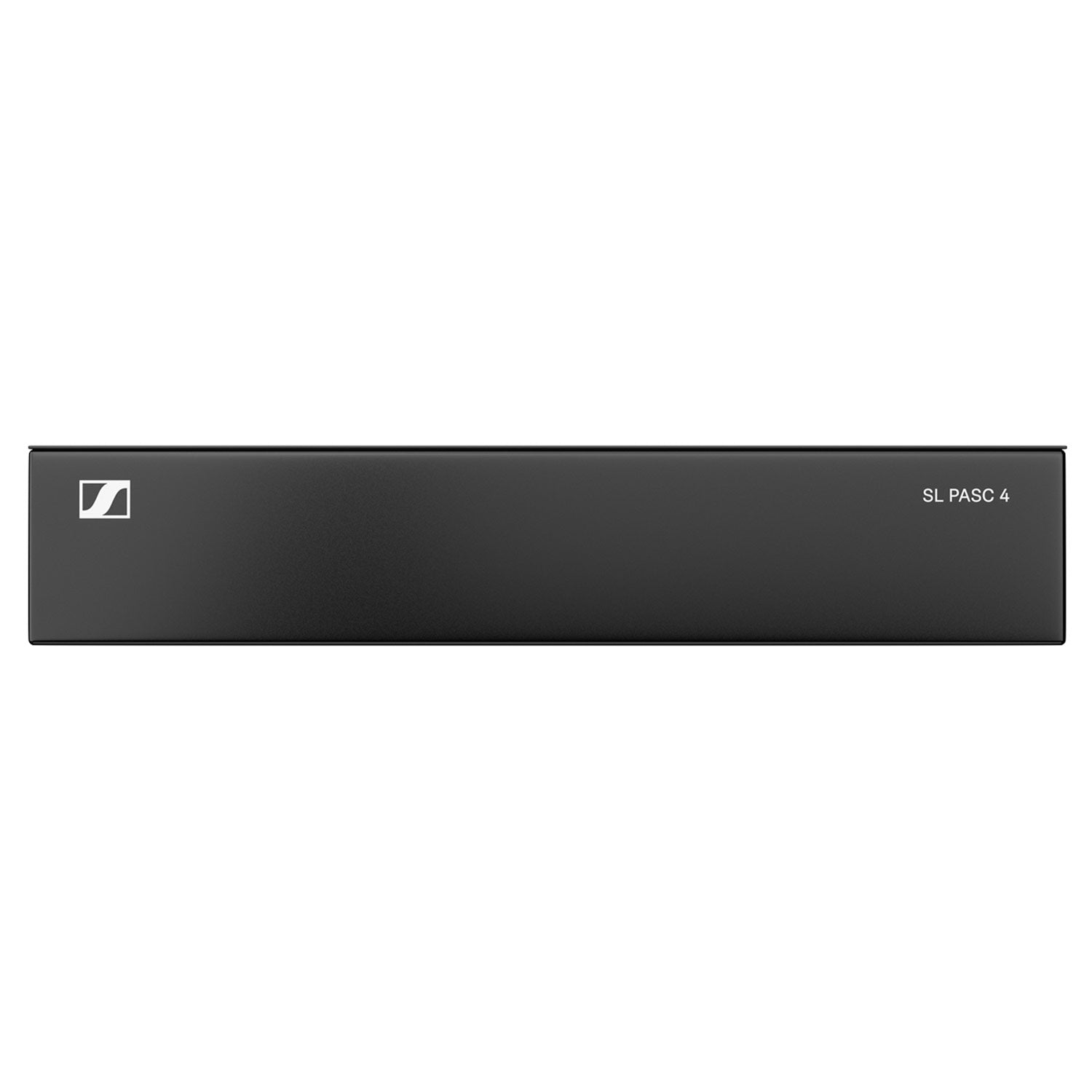

Sennheiser SL PASC 4 - Passive 4-Way Antenna Splitter/Combiner for SpeechLine Digital Wireless
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The SL PASC 4 is a passive 4-way Diversity antenna splitter / combiner for the SpeechLine Digital Wireless microphone series. It is used to distribute the antenna signals of up to 4 SpeechLine Digital Wireless links. This reduces the number of required antenna cables to a minimum when the AWM 2 or AWM 4 remote antennas are used. The rack receivers are connected to the SL PASC 4 using the supplied SMA-R cables.
Features:
- 1880 - 1930 MHz (DECT range)

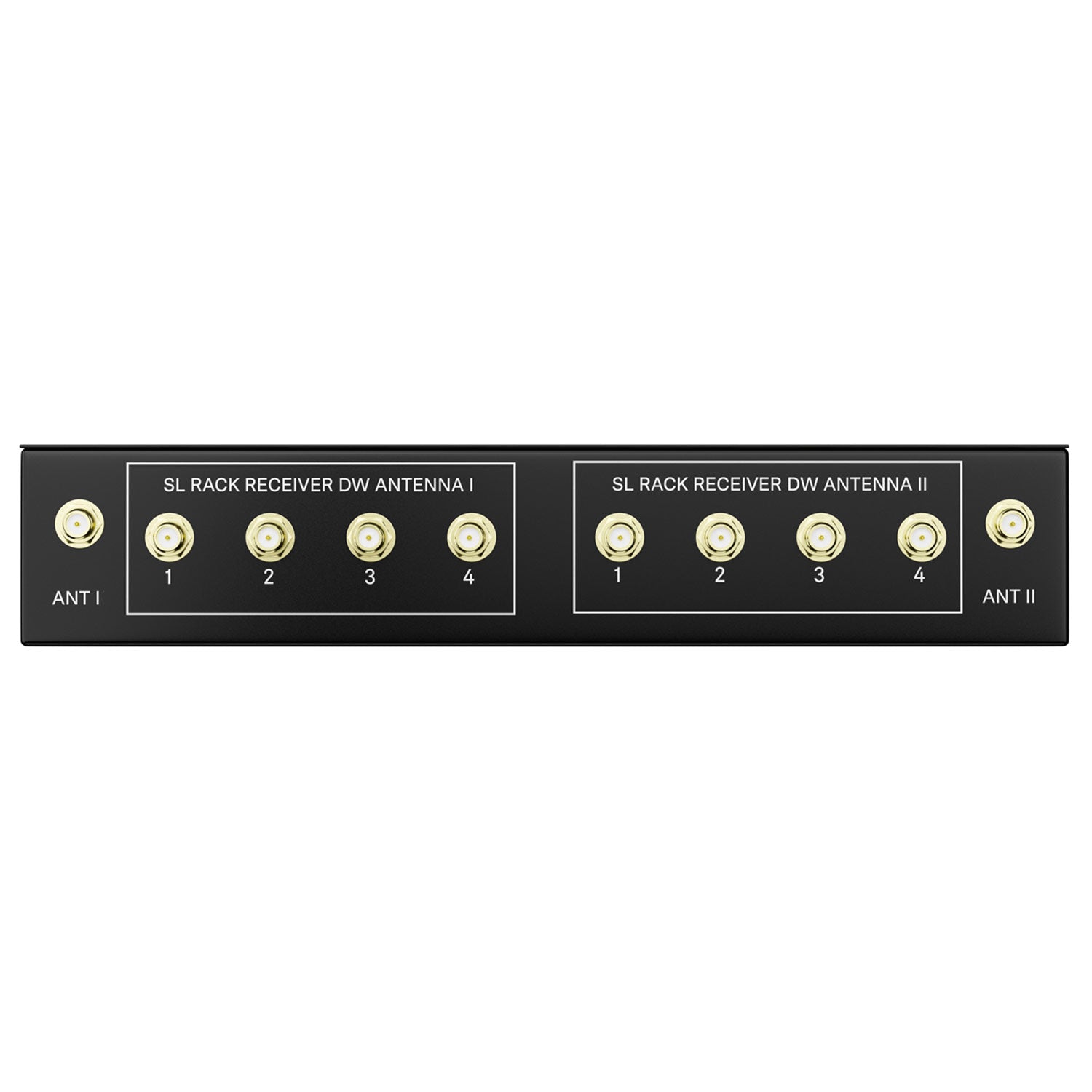

- 8 RF outputs for connecting up to 4 SL Rack Receiver DW units
- 2 RF inputs to connect AWM 2 or AWM 4
- SMA-RP connectors
- Passive antenna combiner / splitter
What's in The Box:
- SL PASC 4
- 8x SMA-RP cable (length 60 cm)
- Quickguide
- Safety guide
| Dimensions | 210 x 160 x 41 mm |
| Weight | 663g |
| Attenuation | 8 dB typ. |
| Operating temperature | -40 to 85¡C |
| Color | black |
| Frequency | 1880 - 1930 MHz |
| Frequency band | DECT |
| Antenna Connector | 10x RP-SMA (AC coupled) |
| Input power | 1.5 W max |
| Maximum number of connected receivers | 4 |
