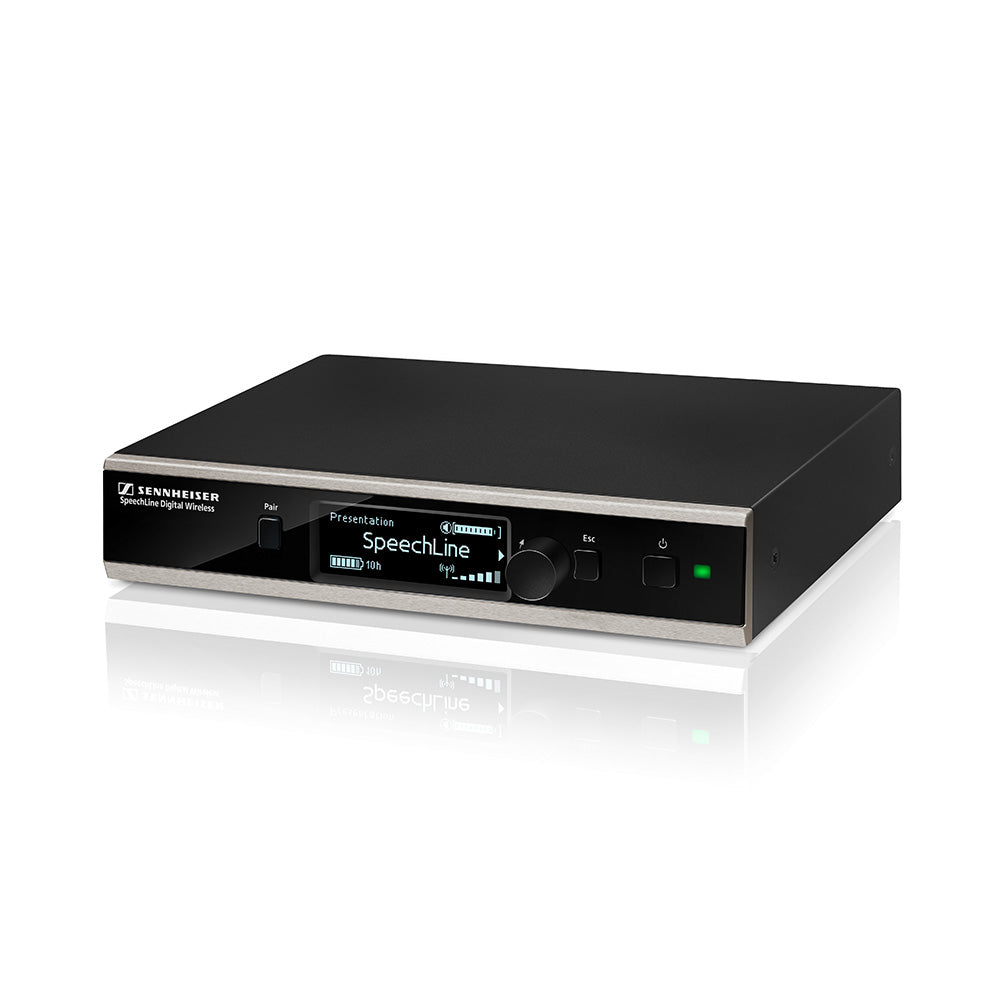

Sennheiser SL RACK RECEIEVER DW Digital Receiver for SpeechLine Wireless
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The half 19" stationary SL Rack Receiver DW is the easy-to-integrate core of the SpeechLine Digital Wireless System. It features a clear visible OLED display for easy setup and operation. Thanks to the bi-directional communication all settings of the mobile transmitters can be adjusted from the receiver side. The automatic frequency and interference management allows convenient and reliable operation. Thanks to the easy-to-handle pairing process, the transmitter and receiver are securely linked. Via network integration all settings and statuses are also accessible via AMX/Crestron media control protocol and the dedicated Sennheiser iOS Apps. The antennas can be either back or front-mounted. Furthermore, extension cables for wall mounting are available.
Features:
- Automatic frequency and interference management
- Speech optimized automatics and sound profiles
- Clear and easy focused user interface with OLED display
- Ethernet connectivity (IPv4 and IPv6)
- Media control protocol integration
- Secure 256 bit AES encryption
- Remote controllable
- Quick setup pairing process
- SL Reveiver DW - Rack Receiver
- Power Supply
- Antennas
| Frequency range | 1,880 to 1,900 MHz 1,920 to 1,930 MHz 1,893 to 1,906 MHz 1,880 to 1,895 MHz 1,910 to 1,920 MHz |
| Power supply | EU UK AU US BR 12 V DC |
| Frequency response | 20 to 20,000 Hz |
| THD, total harmonic distortion | typ. 0.1 % |
| Weight | approx. 828 g |
| Power consumption | 350 mA |
| Signal-to-noise ratio | > 90 dB(A) |
| RF output power | adaptive, up to 250 mW (country-specific) |
| Antenna connector | 2 x reverse SMA |
| Audio output level (balanced) | max. -18 dBu, typ. -24 dBu |
| Audio output level (unbalanced) | max. +6 dBu |
| Dynamic range | > 120 dB(A) |
| RF sensitivity | < -90 dBm |
| Sampling rates | 24 bit/48 kHz |
| Connection | Audio Out: XLR 3M Audio Out: 2 x RCA Network: RJ 45 |
