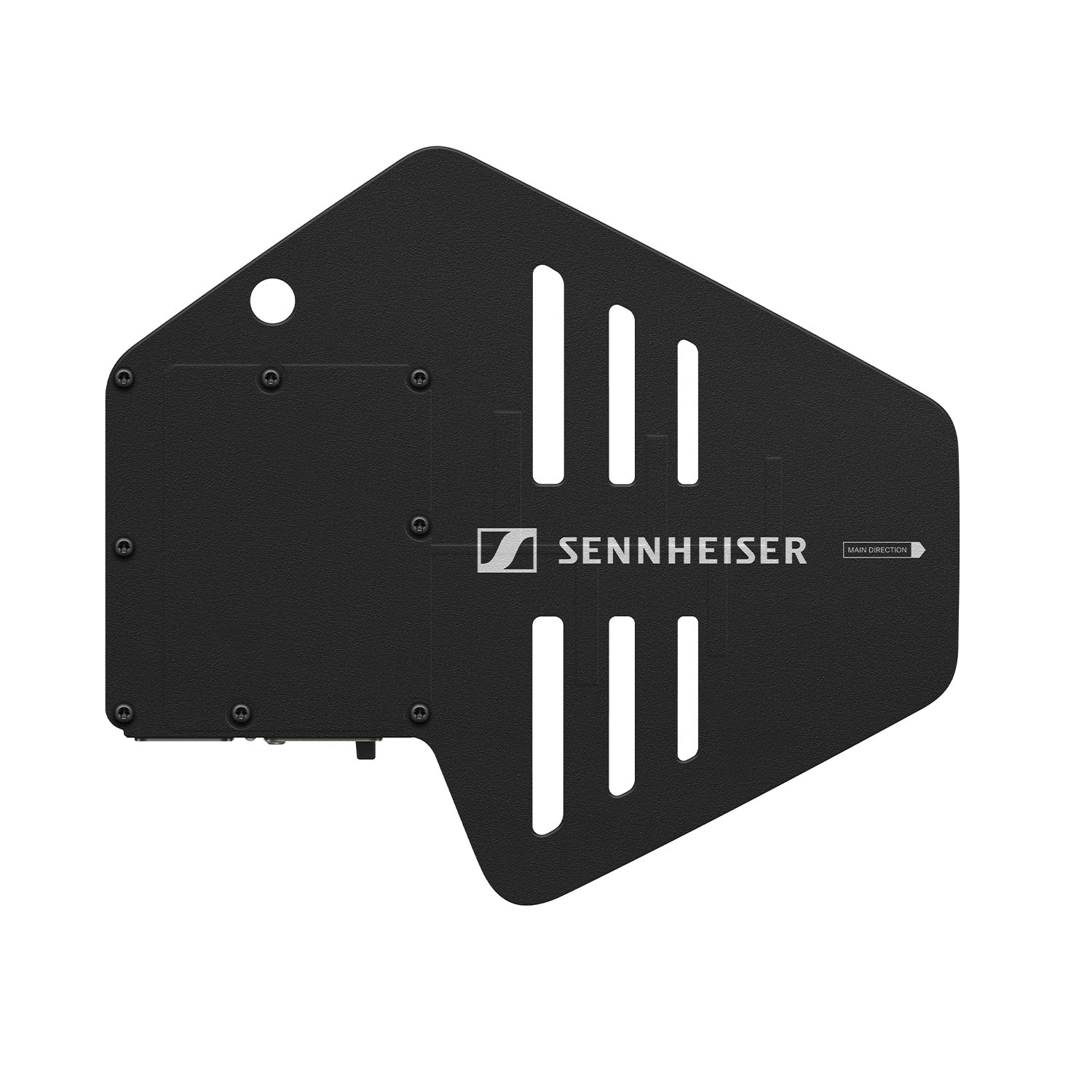

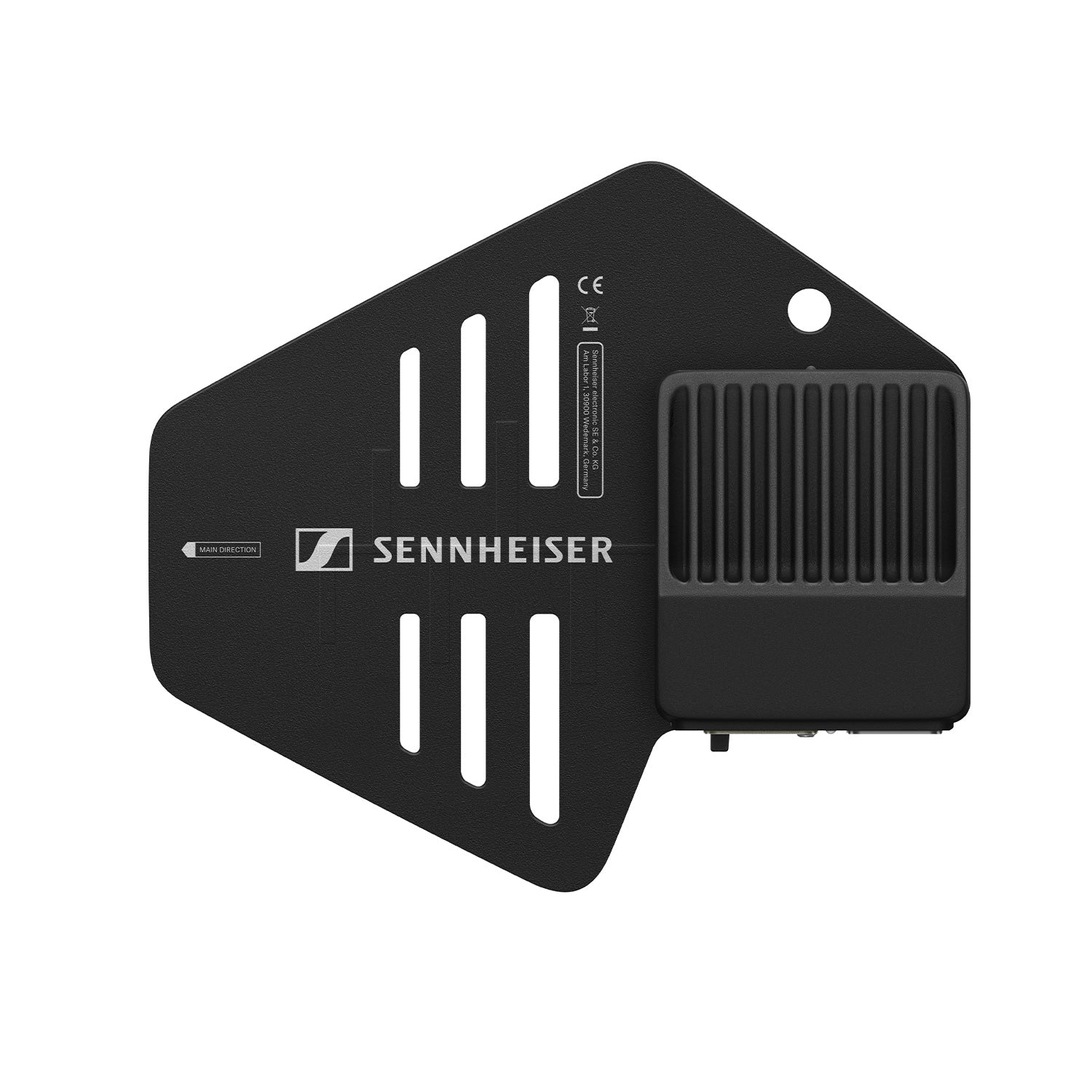

Sennheiser Spectera DAD 1G4 - Directional Antenna for Spectera System (1435-1525 MHz)

The transceiving Spectera Digital Antenna Directional (DAD) manages IEM signals, mic/line signals and data simultaneously. It provides continuous interference management and remote control, and is equipped with a rugged RJ45 connector, IP54 protection and PoE.

Variants include UHF (470–608 MHz and 630–698 MHz) or 1G4 (1350–1400 MHz and 1435–1525 MHz).

Features:

• Transceiving antenna manages IEM signals, mic/line signals and data simultaneously
• Available variants: UHF (470–608 MHz and 630–698 MHz) or 1G4 (1350–1400 MHz and 1435–1525 MHz)
• Integrated RF components eliminate the need for additional dedicated RF gear such as combiners, splitters or boosters
• Directional antenna

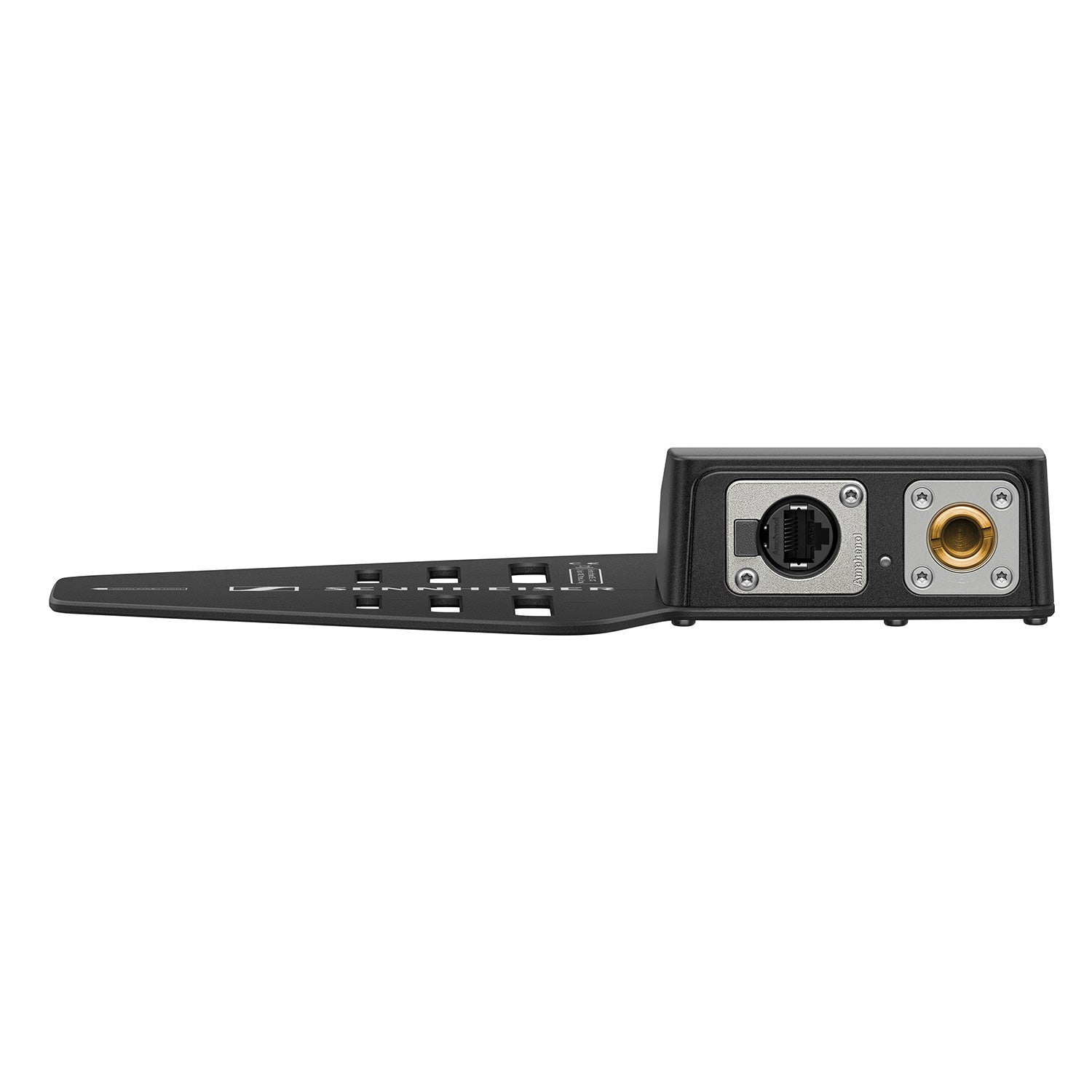

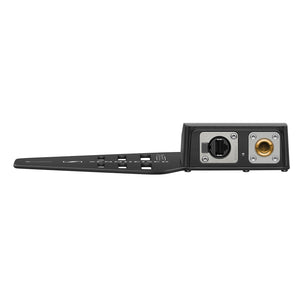

• Rugged RJ45 connector for standard network cable CAT 5e or higher (point-to-point)
• Continuous interference management and remote control
• IP54 protection
• Fiber extension capabilities (supported converters in technical documentation)
• Optional use as dedicated fast and high-quality scanning device
• Powered over ethernet (standard POE)
