Sennheiser SR IEM G4 Evolution Wireless IEM Transmitter (A1 Band/470-516 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Sennheiser SR IEM G4 Evolution Wireless IEM Transmitter (A1 Band/470-516 MHz)
Sale price$649.00
Regular price$779.00
Description

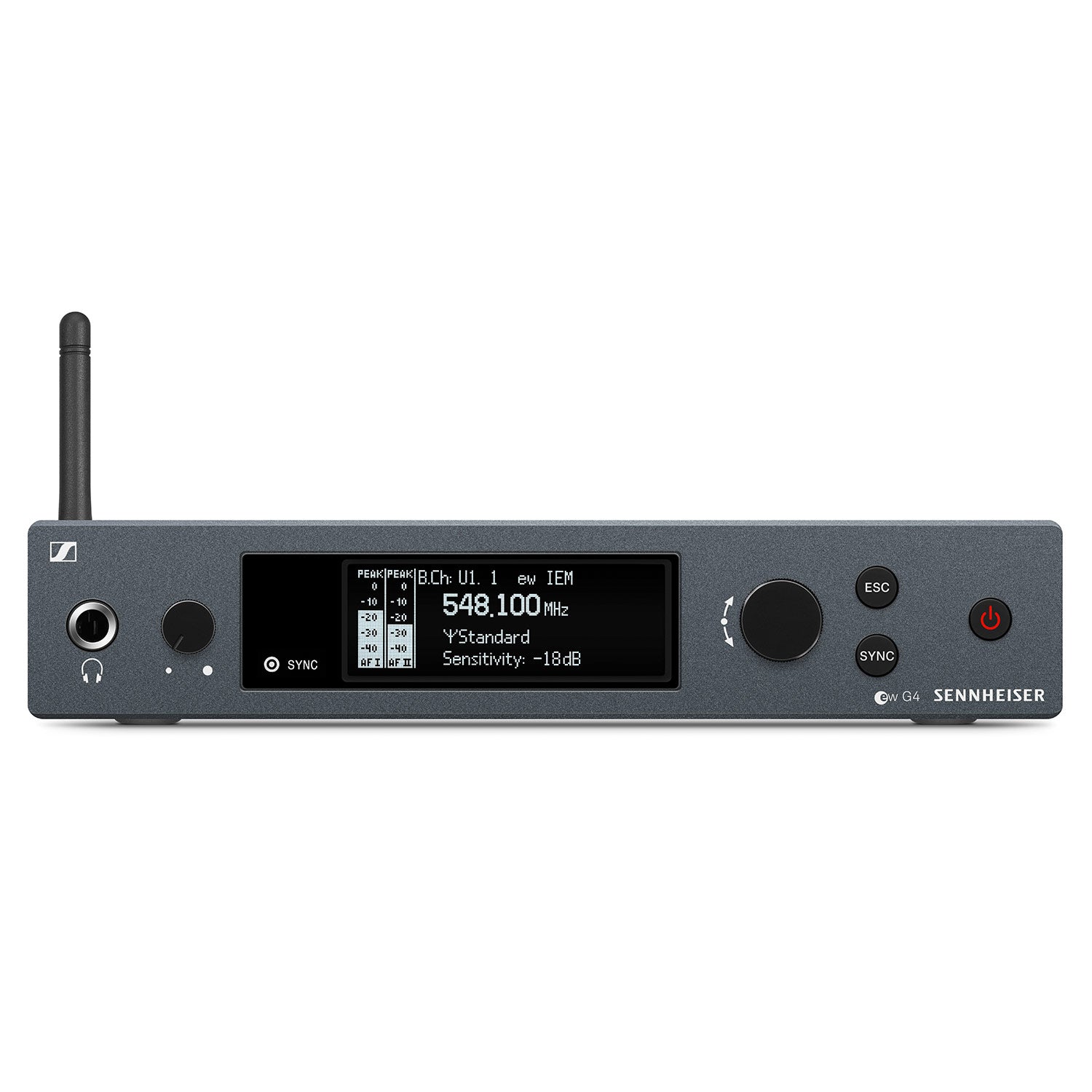

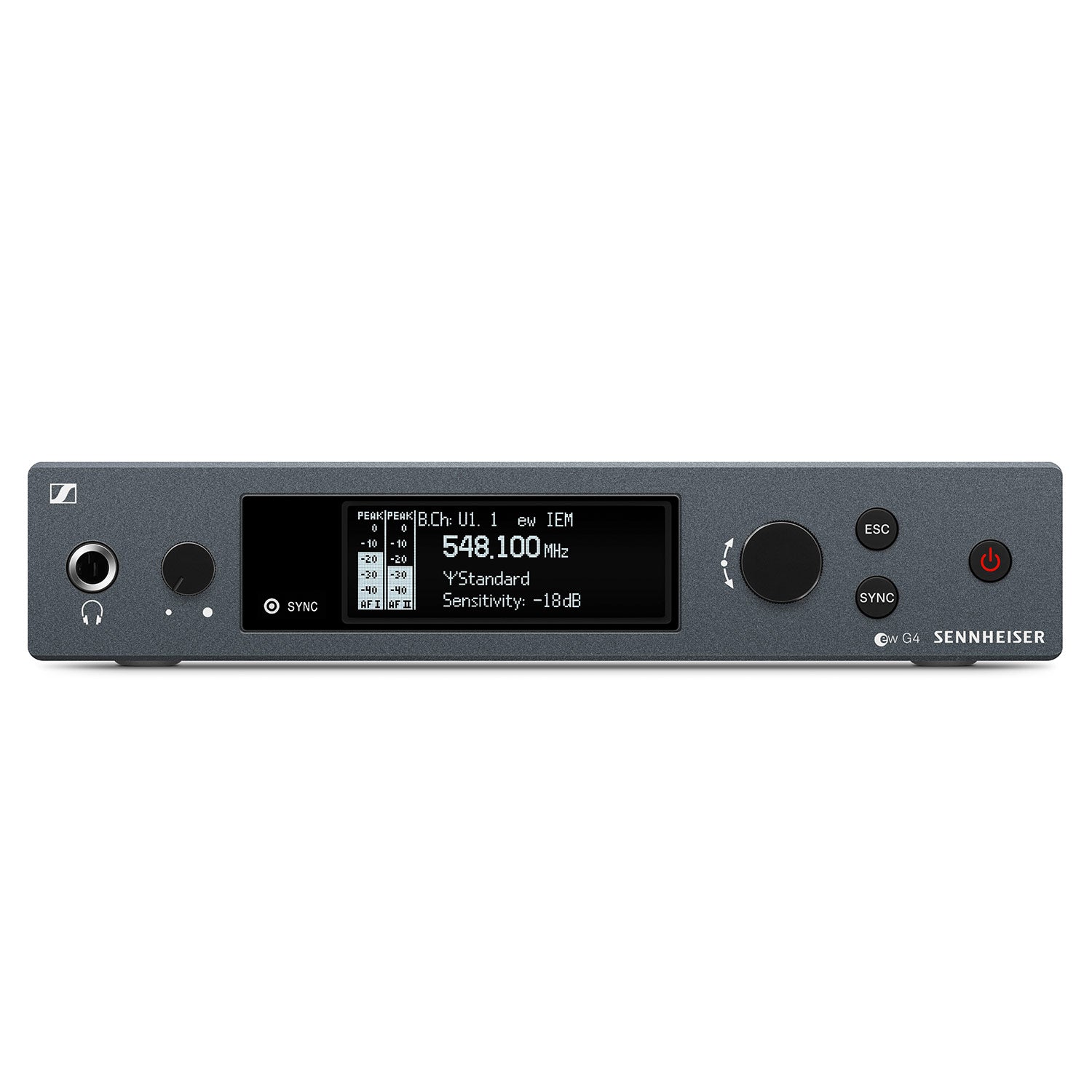

The Sennheiser SR IEM G4 is a half-rack stereo transmitter in a full-metal housing with OLED display for full control delivering clarity along the whole frequency spectrum for daily use on stage with evolution wireless G4 In Ear Monitoring systems.
Features:
- Half-rack stereo transmitter in a full-metal housing with OLED display for full control
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Compatible with Sennheiser WSM control software for exible frequency allocation
- Up to 16 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequen- cies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 30 mW) depending on country regulations
What's In The Box:
- SR IEM G4 stereo transmitter
- Rod antenna
- Power supply
- GA 3 rackmount set
- Quick guide
- Safety guide
- Manufacturer declaration sheet
| RF characteristics | |
| Modulation | Wideband FM stereo (MPX pilot tone) |
| Frequency ranges | A1: 470 - 516 MHz A: 516 - 558 MHz G: 566 - 608 MHz |
| Receiving frequencies | Max. 1680 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 16 factory-preset channels, no intermodula- tion 6 frequency banks with up to 16 programmable channels |
| Switching bandwidth | up to 42 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| MPX pilot tone (frequency/deviation) | 19 kHz/±5 kHz |
| Frequency stability | ±10 ppm |
| Antenna output | BNC socket, 50 |
| RF output power at 50 | switchable: Low: typ. 10 mW Standard: typ. 30 mW High: typ. 50 mW |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| AF frequency response | 25 Hz to 15 kHz |

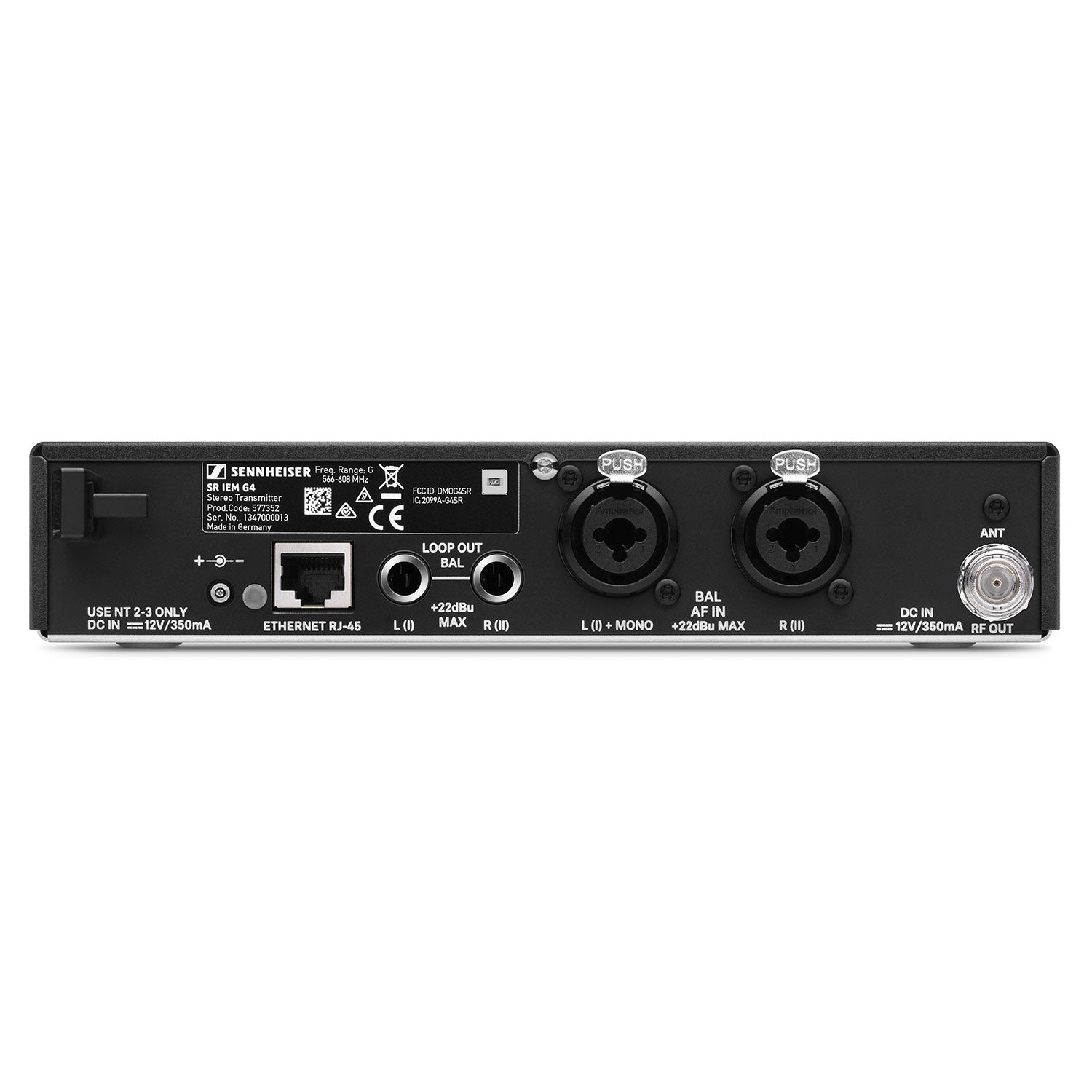

| AF input | BAL AF IN L (I) + MONO/ BAL AF IN R (II) 2x XLR-3/1 4" (6.3 mm) jack combo socket, electronically balanced |
| Max. input level | +22 dBu |
| Total harmonic distortion (THD) | <0.9 % |
| Signal-to-noise ratio (at nominal load and peak deviation) | >90 dB |
| AF output | LOOP OUT BAL L (I)/ LOOP OUT BAL R (II) 1 4" (6.3 mm) stereo jack socket, balanced |
| Overall device | |
| Temperature range | -10 ¡C to +55 ¡C |
| Power supply | 12 V DC |
| Current consumption | max. 350 mA |
| Dimensions | Approx. 202 x 212 x 43 mm |
| Weight | Approx. 980 g |
The Sennheiser SR IEM G4 is a half-rack stereo transmitter in a full-metal housing with OLED display for full control delivering clarity along the whole frequency spectrum for daily use on stage with evolution wireless G4 In Ear Monitoring systems.
Features:
- Half-rack stereo transmitter in a full-metal housing with OLED display for full control
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Compatible with Sennheiser WSM control software for exible frequency allocation
- Up to 16 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequen- cies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 30 mW) depending on country regulations
What's In The Box:
- SR IEM G4 stereo transmitter
- Rod antenna
- Power supply
- GA 3 rackmount set
- Quick guide
- Safety guide
- Manufacturer declaration sheet
| RF characteristics | |
| Modulation | Wideband FM stereo (MPX pilot tone) |
| Frequency ranges | A1: 470 - 516 MHz A: 516 - 558 MHz G: 566 - 608 MHz |
| Receiving frequencies | Max. 1680 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 16 factory-preset channels, no intermodula- tion 6 frequency banks with up to 16 programmable channels |
| Switching bandwidth | up to 42 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| MPX pilot tone (frequency/deviation) | 19 kHz/±5 kHz |
| Frequency stability | ±10 ppm |
| Antenna output | BNC socket, 50 |
| RF output power at 50 | switchable: Low: typ. 10 mW Standard: typ. 30 mW High: typ. 50 mW |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| AF frequency response | 25 Hz to 15 kHz |
| AF input | BAL AF IN L (I) + MONO/ BAL AF IN R (II) 2x XLR-3/1 4" (6.3 mm) jack combo socket, electronically balanced |
| Max. input level | +22 dBu |
| Total harmonic distortion (THD) | <0.9 % |
| Signal-to-noise ratio (at nominal load and peak deviation) | >90 dB |
| AF output | LOOP OUT BAL L (I)/ LOOP OUT BAL R (II) 1 4" (6.3 mm) stereo jack socket, balanced |
| Overall device | |
| Temperature range | -10 ¡C to +55 ¡C |
| Power supply | 12 V DC |
| Current consumption | max. 350 mA |
| Dimensions | Approx. 202 x 212 x 43 mm |
| Weight | Approx. 980 g |
