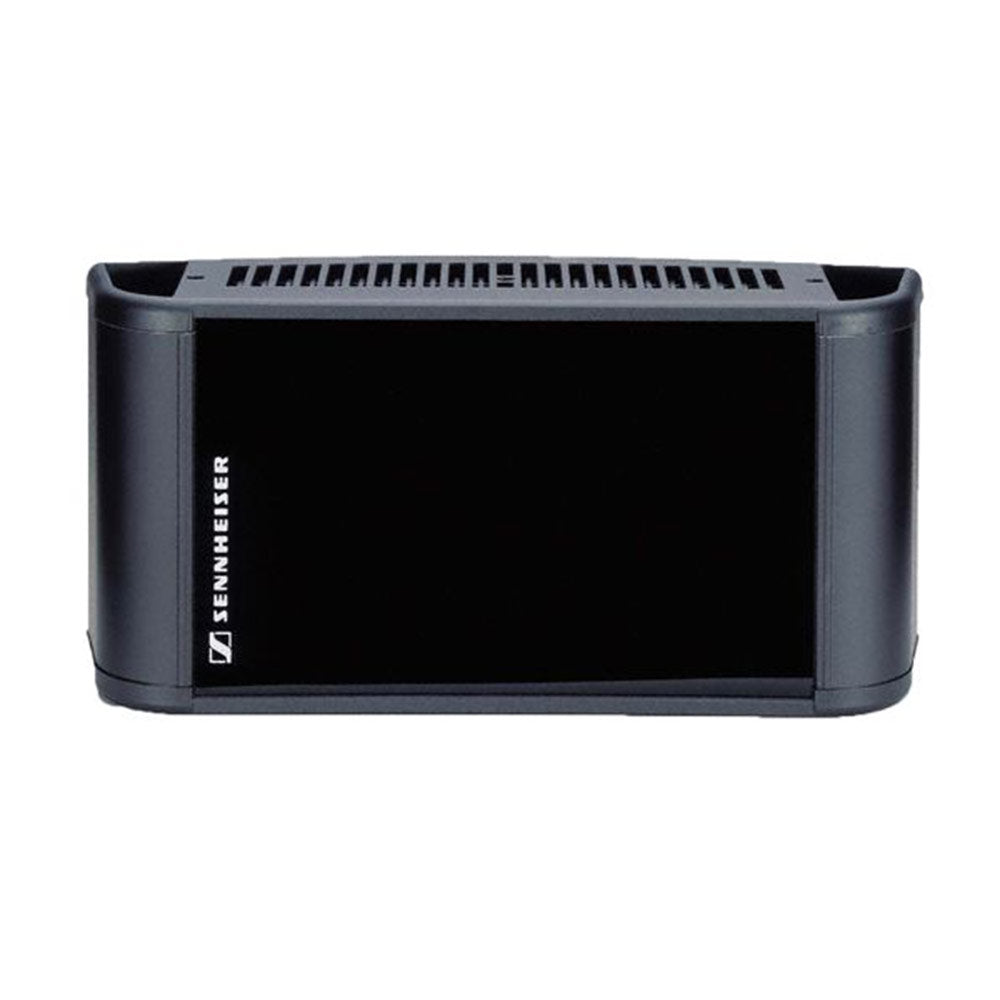

Sennheiser SZI 1015-T - 2-Watt Radiator Transmitter for IR Series Systems
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The SZI 1015 is a 2-Watt radiator with a coverage area of up to 400 m². The radiator is switched on and off automatically by the modulator’s RF carrier. The RF signal from the modulator can be daisy-chained via BNC sockets. A barrier strip with RF and DC inputs and outputs is connected in parallel. The radiator has a 5/8” thread and comes with a 3/8” and 1/2” adapter, it can therefore easily be mounted to various attachments.
Features:
- 2-Watt radiator and modulator for the new carrier frequencies 2.3 and 2.8 MHz
- 2-Watt radiator with a maximum coverage area of 400 m²
- Chaining the signal to additional radiators
- Modulator for single-channel, two-channel or stereo operation, features monitoring diodes and a separate barrier strip with RF and DC outputs for connecting radiators
- Wide range of mounting accessories for the radiator, modulator comes complete with rack-mount ears
What's In The Box:
- SZI 1015
| Color | white black |
| Dimensions | 250 x 100 x 80 mm |
| Audio-XLR connector | BNC - Socket |
| Weight | 1,3 kg |
| Carrier frequencies | 30 kHz - 6 MHz |
| Current consumption | 0,7 A bei 25 V |
| Operating voltage (mains) | 25-30 V DC |
| Input voltage range | 50 mV - 3 V |
| Effective radiated power | 2 W |
| IR Diodes | 72 |
| Max. coverage area | 400 m_ |
| Threshold for automatic on/off function | 50 mV |
The SZI 1015 is a 2-Watt radiator with a coverage area of up to 400 m². The radiator is switched on and off automatically by the modulator’s RF carrier. The RF signal from the modulator can be daisy-chained via BNC sockets. A barrier strip with RF and DC inputs and outputs is connected in parallel. The radiator has a 5/8” thread and comes with a 3/8” and 1/2” adapter, it can therefore easily be mounted to various attachments.
Features:
- 2-Watt radiator and modulator for the new carrier frequencies 2.3 and 2.8 MHz
- 2-Watt radiator with a maximum coverage area of 400 m²
- Chaining the signal to additional radiators
- Modulator for single-channel, two-channel or stereo operation, features monitoring diodes and a separate barrier strip with RF and DC outputs for connecting radiators
- Wide range of mounting accessories for the radiator, modulator comes complete with rack-mount ears
What's In The Box:
- SZI 1015
| Color | white black |
| Dimensions | 250 x 100 x 80 mm |
| Audio-XLR connector | BNC - Socket |
| Weight | 1,3 kg |
| Carrier frequencies | 30 kHz - 6 MHz |
| Current consumption | 0,7 A bei 25 V |
| Operating voltage (mains) | 25-30 V DC |
| Input voltage range | 50 mV - 3 V |
| Effective radiated power | 2 W |
| IR Diodes | 72 |
| Max. coverage area | 400 m_ |
| Threshold for automatic on/off function | 50 mV |
