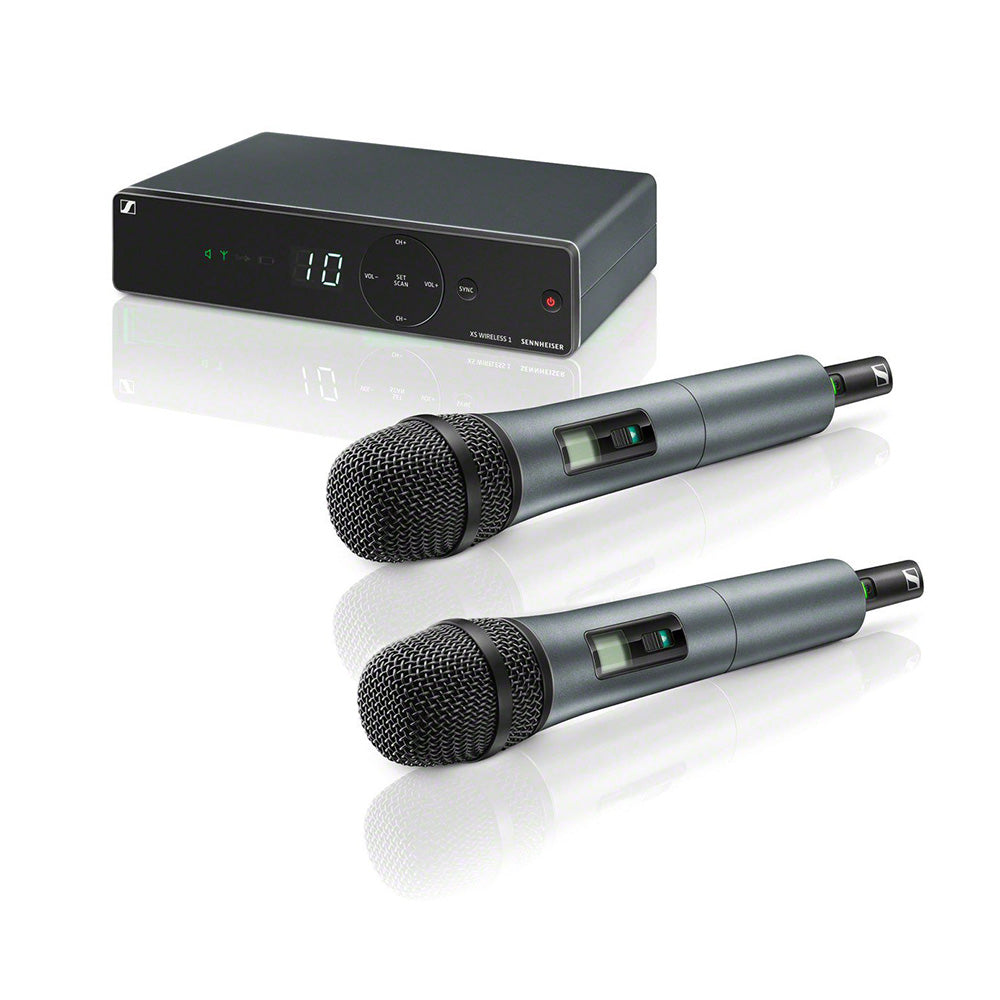

Sennheiser XSW 1-825 DUAL 2-Channel Handheld Wireless System (A Band/548-572 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
XS Wireless 1 DUAL is a 2-channel wireless system for singers and presenters. Designed with ease of use in mind, these analog UHF systems feature a sleek dual-channel receiver with built-in antennas and the streamlined interface from Sennheiser's popular XS Wireless 1 series.
Features:
- evolution e 825 dynamic cardioid microphone element
- Excellent live sound featuring Sennheiser's renowned evolution microphone capsules
- Antenna-switching 2-channel diversity reception
- Integrated antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels
Raise your voice. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound featuring Sennheiser’s renowned evolution microphone capsules, e825 (dynamic, cardioid) or e835 (superior dynamic, cardioid) to get started. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a vocal microphone and microphone clamp.
| Dimensions | approx. 200 x 42 x 127 mm |
| THD, total harmonic distortion | ² 0.9% |
| Pick-up pattern | cardioid |
| Signal-to-noise ratio | ³ 103 dBA |
| RF output power | 10 mW |
| Switching bandwidth | up to 24 MHz |
| Operating time | approx. 10 hrs |
| Modulation | wideband FM |
| Output voltage | 1/4Ò (6.3 mm) jack socket (unbalanced): +6 dBu XLR socket (balanced): +12 dBu |
| Housing | rugged ABS housing |
| Dynamic range | TBA |
| Frequency | 8 frequency banks, each with up to 10 factory-preset channels |
| Frequency range | A: 548-572 MHz |
| Sensitivity | < 3 _V at 52 dB(A)rms S/N |
| Squelch | adjustable from 3 dB_V to 28 dB_V (combined with pilot tone) |
| Synchronization | 2.4 GHz, Low Power OQPSK (only active during synchronization) |
| Input sensitivity | 1.5 mV / Pa |
| Adjustment Range | Transmitter 0 to -30 dB, adjustable in 10 dB steps |
| Audio adjustment range | 45 dB, adjustable in 5-dB steps |
| Line / Mic level | 20 dB, switchable |
| Temperature Range | operation: 0¡C to +40¡C, storage: Ð20¡C to +70¡C |
| Receiver Principle | double superheterodyne |
| Diversity principle | Antenna switching diversity via internal antennas |
| Receiver Weight | approx. 340g |
| Power supply | Receiver: 12 V DC nom. / 300 mA |
| AF frequency response | Receiver: 50 to 16,000 Hz (Ð3 dB) |
| Microphone Weight | approx. 245g |
| Power supply | Microphone: 2 AA size batteries, 1.5 V |
| AF frequency response | SKM 825: 80-14,000 Hz SKM 835: 80-16,000 Hz |
