Sennheiser XSW 1-825 Handheld Wireless System (A Band - 548-572 MHz)



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:SENN-XSW1825A

Availability: In Stock

Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 8:30 am to 5:30 pm
Free Shipping (Continental US)

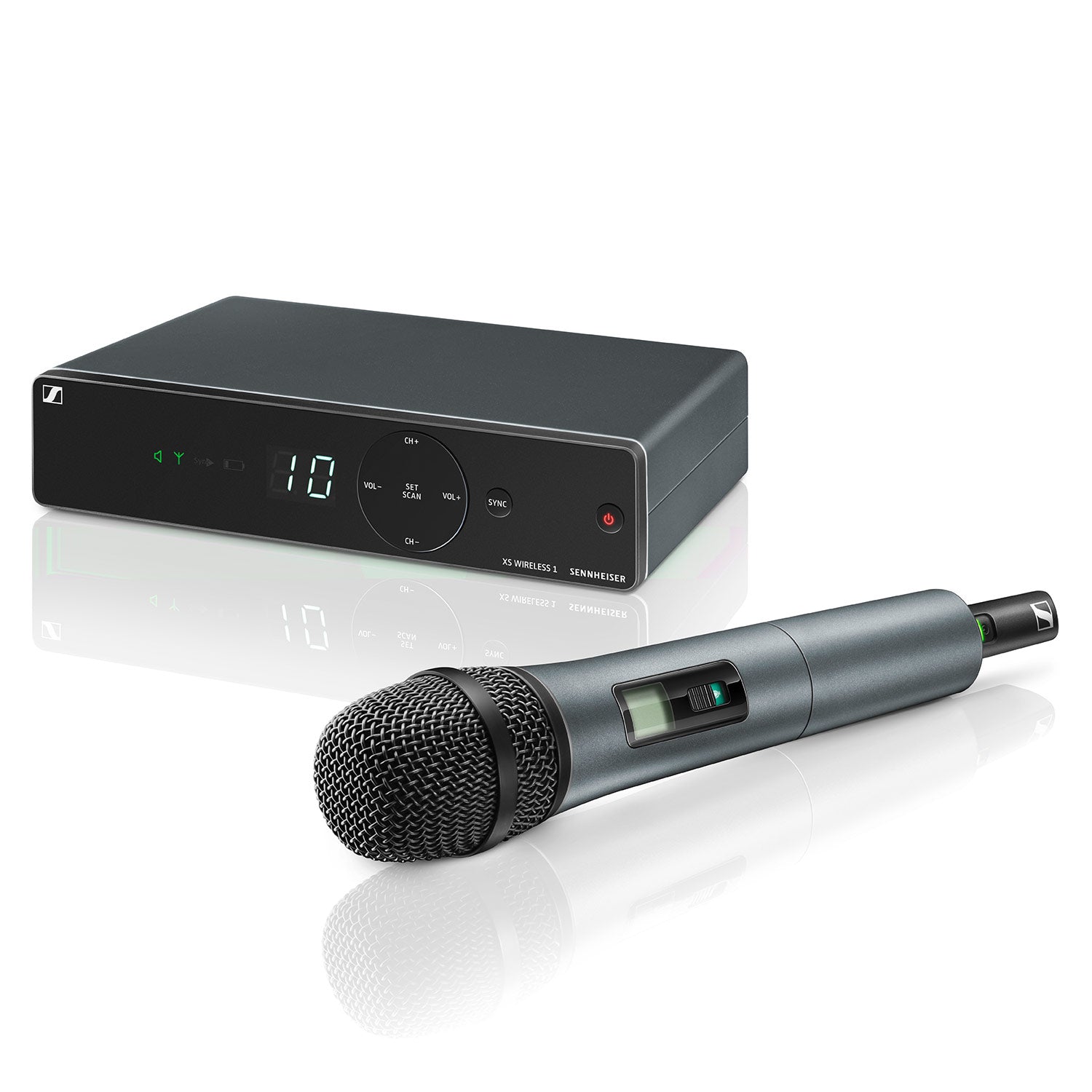

  • Raise Your Voice. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound featuring Sennheiser’s renowned evolution microphone capsules, e825 (dynamic, cardioid) to get started, or e835 (superior dynamic, cardioid) to perform under pressure. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a vocal microphone and microphone clamp.

    Features:

    • Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules (e825 or e835)
    • Antenna-switching diversity reception
    • Integrated antennas
    • Automatic frequency management and synchronization via remote channel for easy setup
    • Selectable UHF frequencies within a large bandwidth
    • Up to 10 compatible channels

    What's In The Box:

    • 1 receiver EM-XSW 1
    • 1 handheld transmitter SKM 825-XSW
    • 1 microphone clamp MZQ 1
    • 1 power supply NT 12-5 CW
    • 2 AA batteries
  • Modulation wideband FM
    Frequency ranges A: 548-572 MHz
    Switching bandwidth up to 24 MHz
    Frequencies 8 frequency banks, each with up to 10 factory-preset channels
    Signal-to-noise ratio ≥ 103 dBA
    THD ≤ 0.9%
    Temperature range operation: 0°C to +40°C
    storage: –20°C to +70°C
    Transmitter sychronization 2.4 GHz, Low Power OQPSK (only active during synchronization)

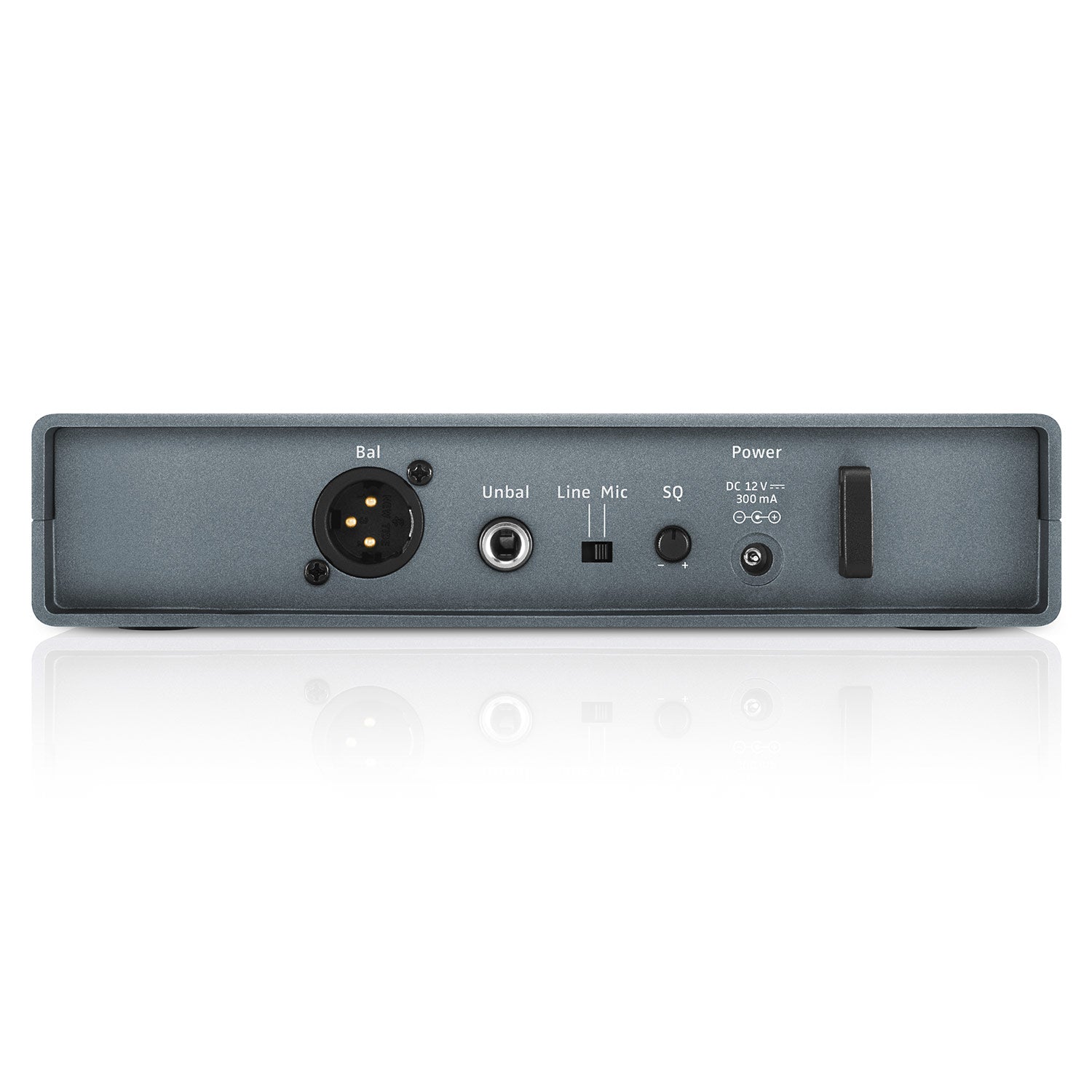

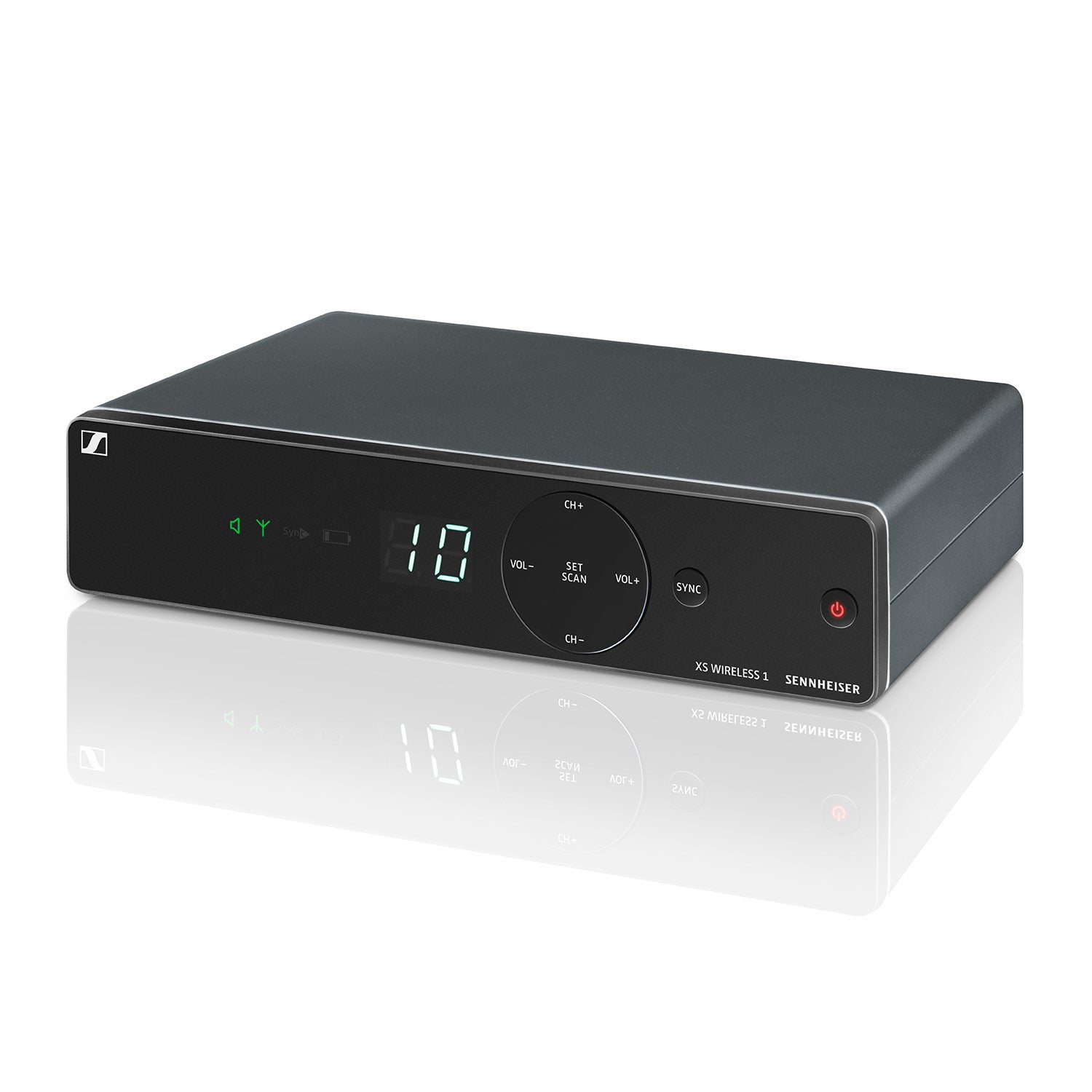

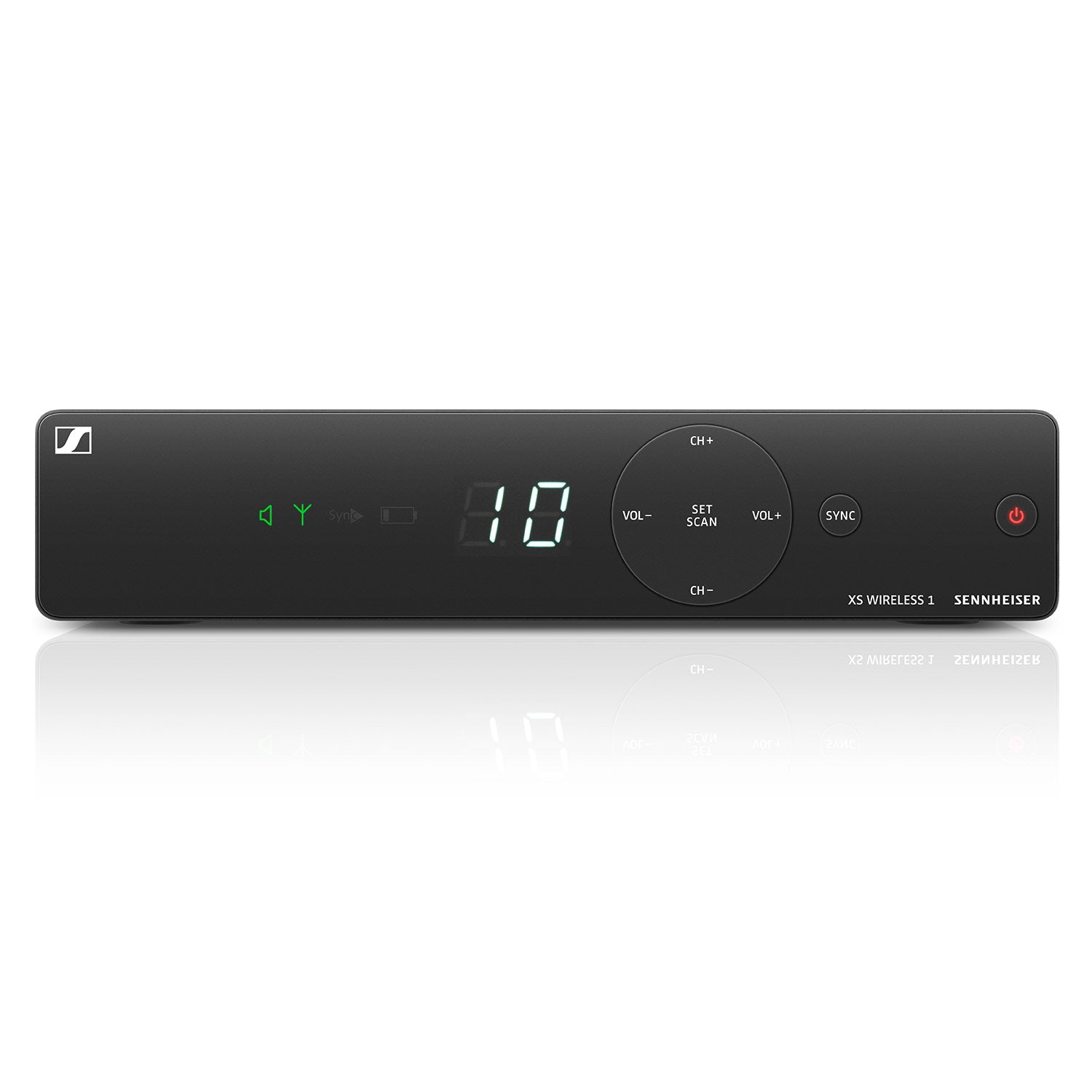

    RECEIVER (EM-XSW 1)
    Receiver principle double superheterodyne
    Diversity principle antenna switching diversity via internal antennas
    Sensitivity (at peak deviation) < 3 μV at 52 dB(A)rms S/N
    AF frequency response 50 to 14,000 Hz (–3 dB)
    Max. AF output voltage
    (at peak deviation, 1 kHz AF)
    1/4“ (6.3 mm) jack socket (unbalanced):
    +6 dBu, XLR socket (balanced): +12 dBu
    Audio adjustment range 45 dB, adjustable in 5-dB steps
    Power supply 12 V DC nom. / 300 mA
    Squelch adjustable from 3 dBμV to 28 dBμV
    (combined with pilot tone)
    Line/Mic level 20 dB, switchable
    Housing material rugged ABS housing
    Dimensions (W x H x D) approx. 200 x 42 x 127 mm
    Weight approx. 340 g

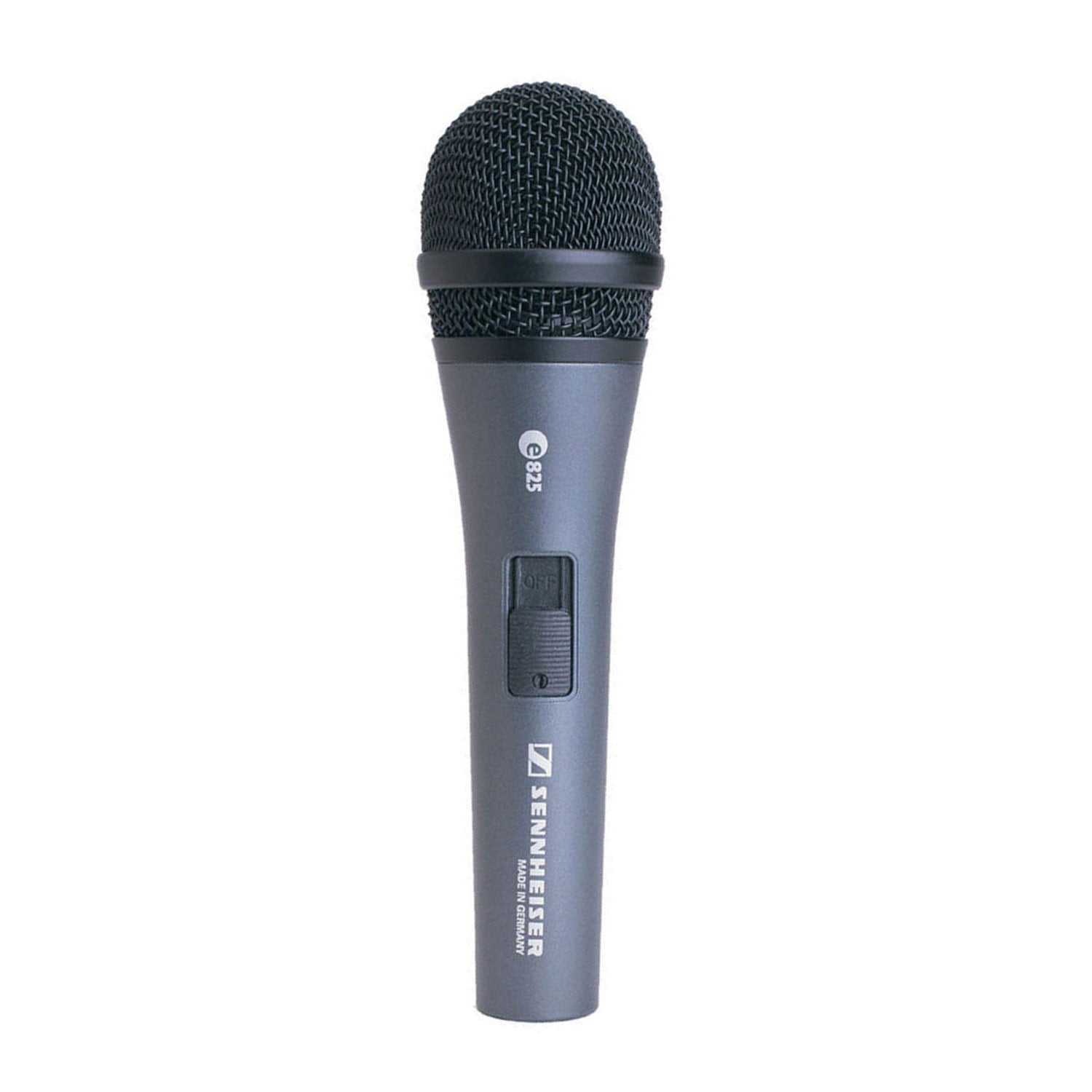

    MICROPHONES (SKM 825-XSW 1, SKM 835-XSW 1)
    RF output power 10 mW
    AF frequency response 80-14,000 Hz
    Power supply 2 AA size batteries, 1.5 V
    Operating time approx. 10 hrs
    Microphone type dynamic
    Pick-up pattern cardioid
    Input sensitivity (caspsule) 1.5 mV / Pa
    Adjustment range of transmitter sensitivity 0 to -30 dB, adjustable in 10 dB steps
    Housing material rugged ABS housing
    Dimensions (L x Ø) approx. 260 x 50 mm
    Weight approx. 245 g
