Sennheiser XSW 1-ME2 LAVALIER SET Lavalier Wireless System (A Band - 548-572 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

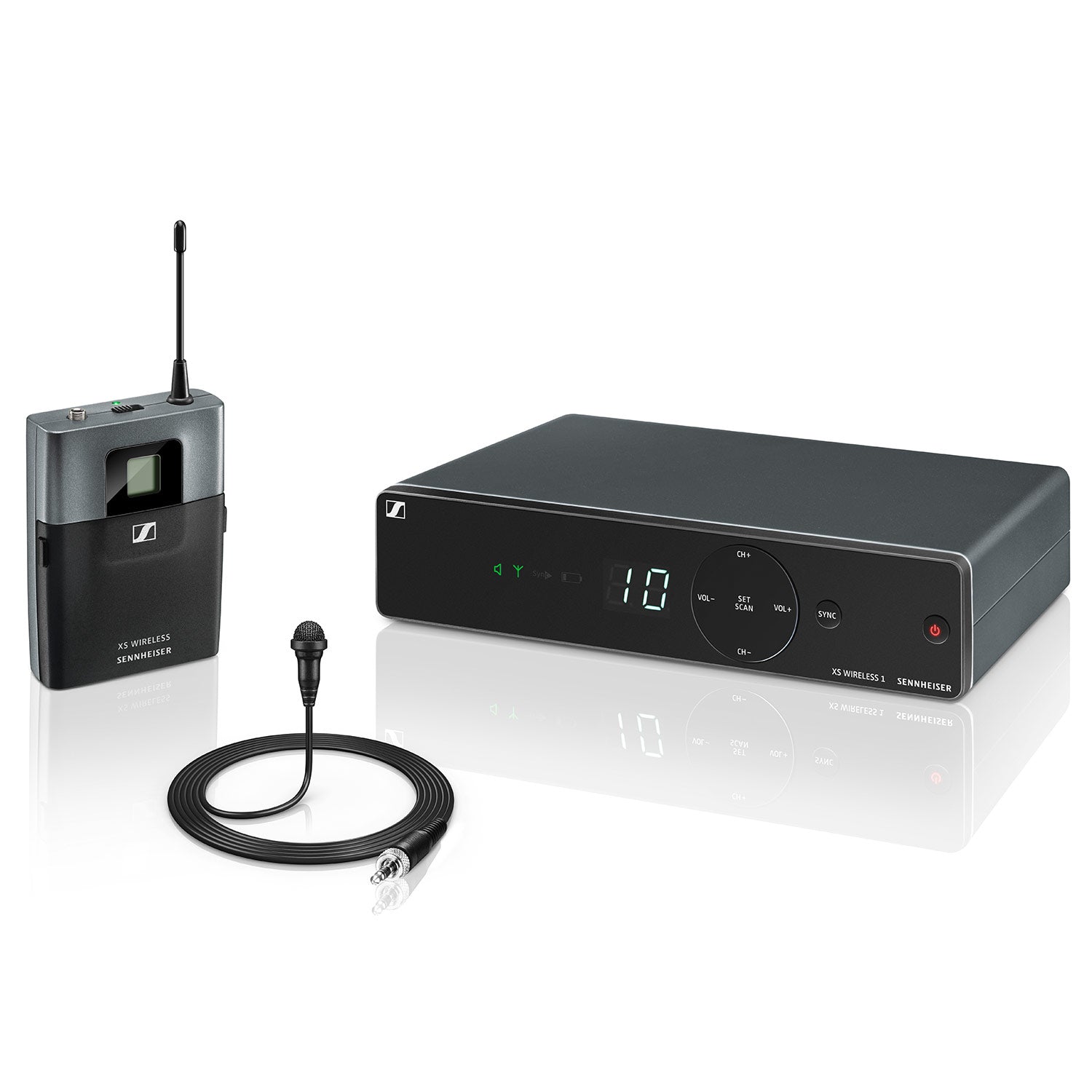

Inspire your audience. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 LAVALIER MIC SET is an easy to use all-in one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobstrusive clip-on microphone.
Features:
- Lightweight lavalier microphone and compact bodypack transmitter
- Antenna-switching diversity reception
- Integrated antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels
What's In The Box:

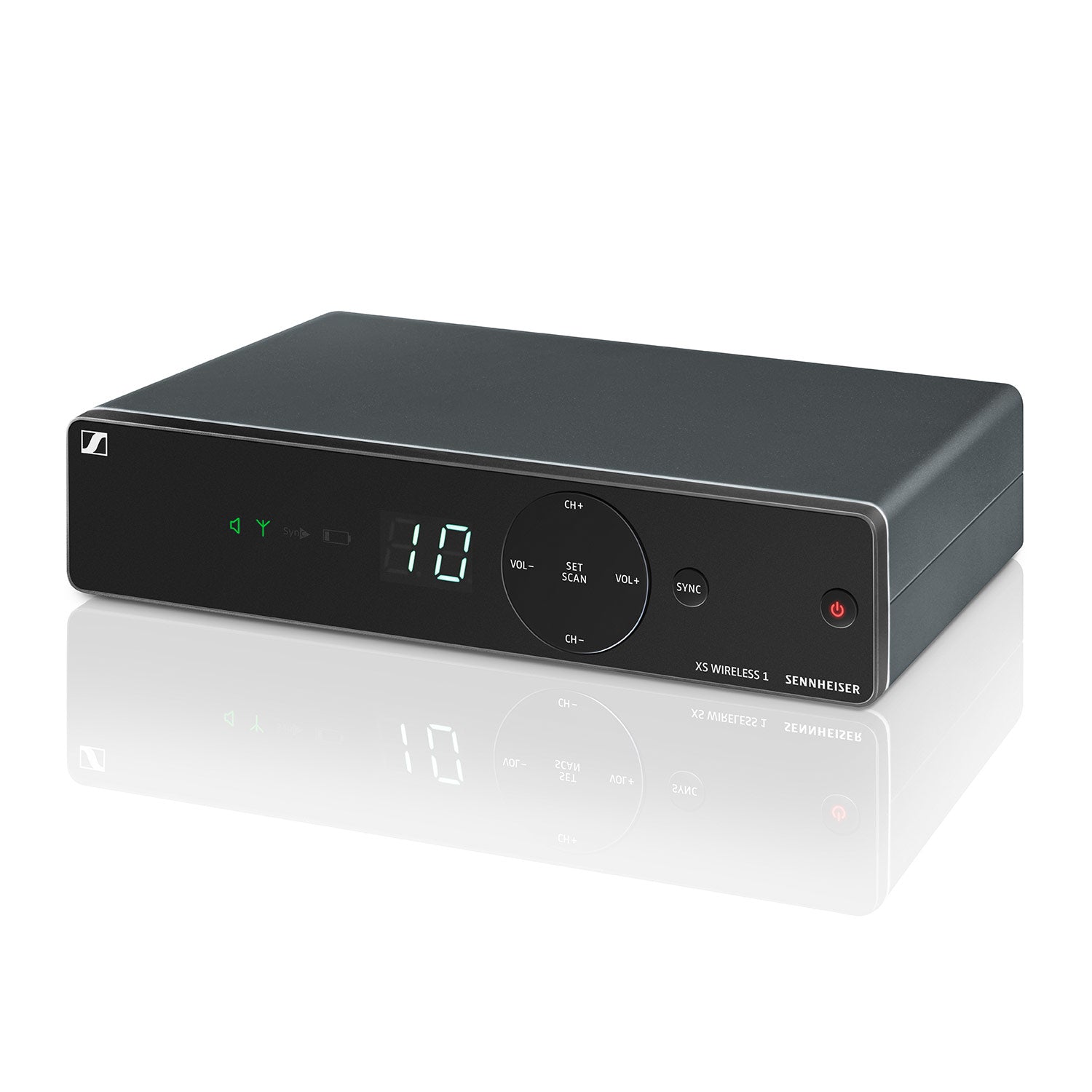

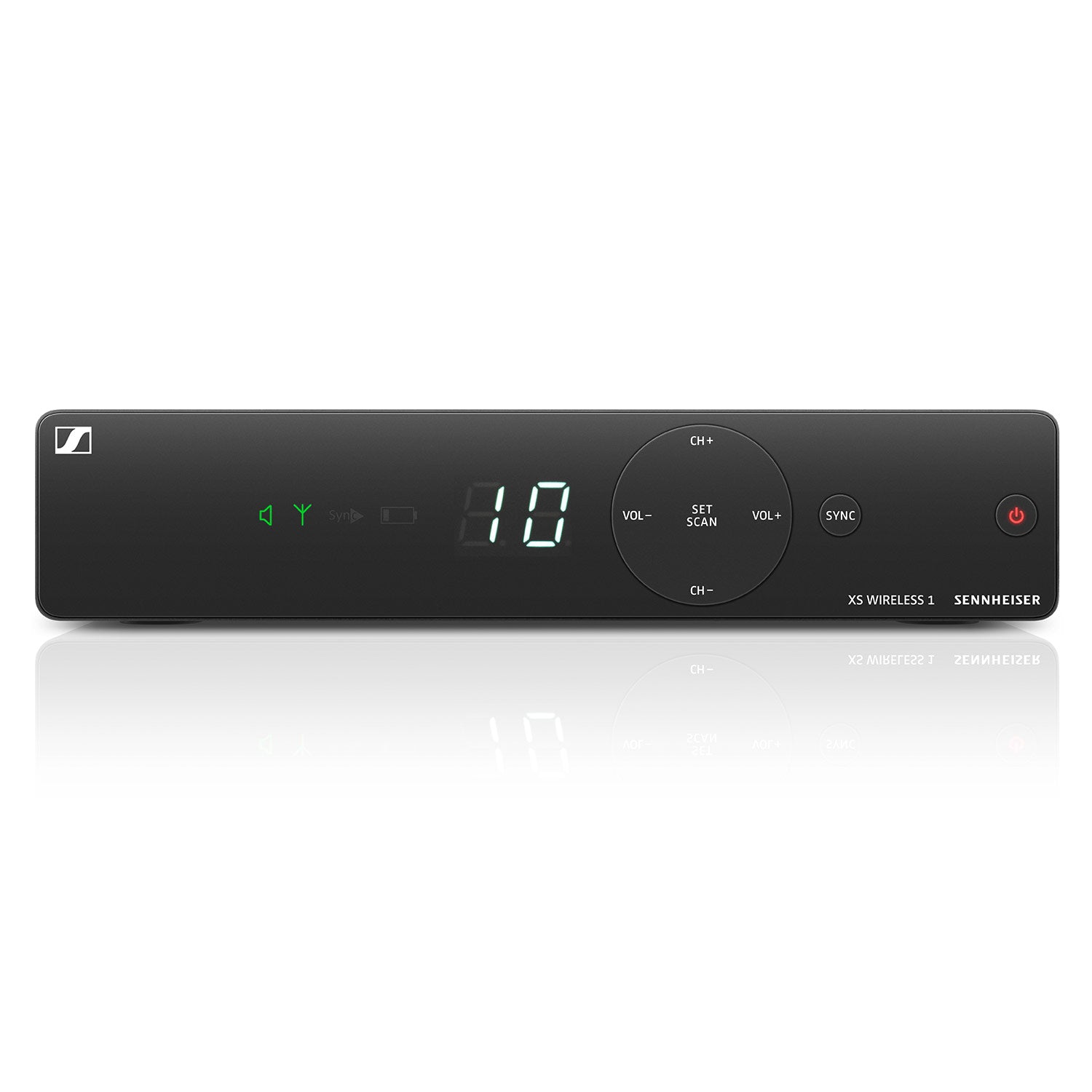

- 1 receiver EM-XSW 1

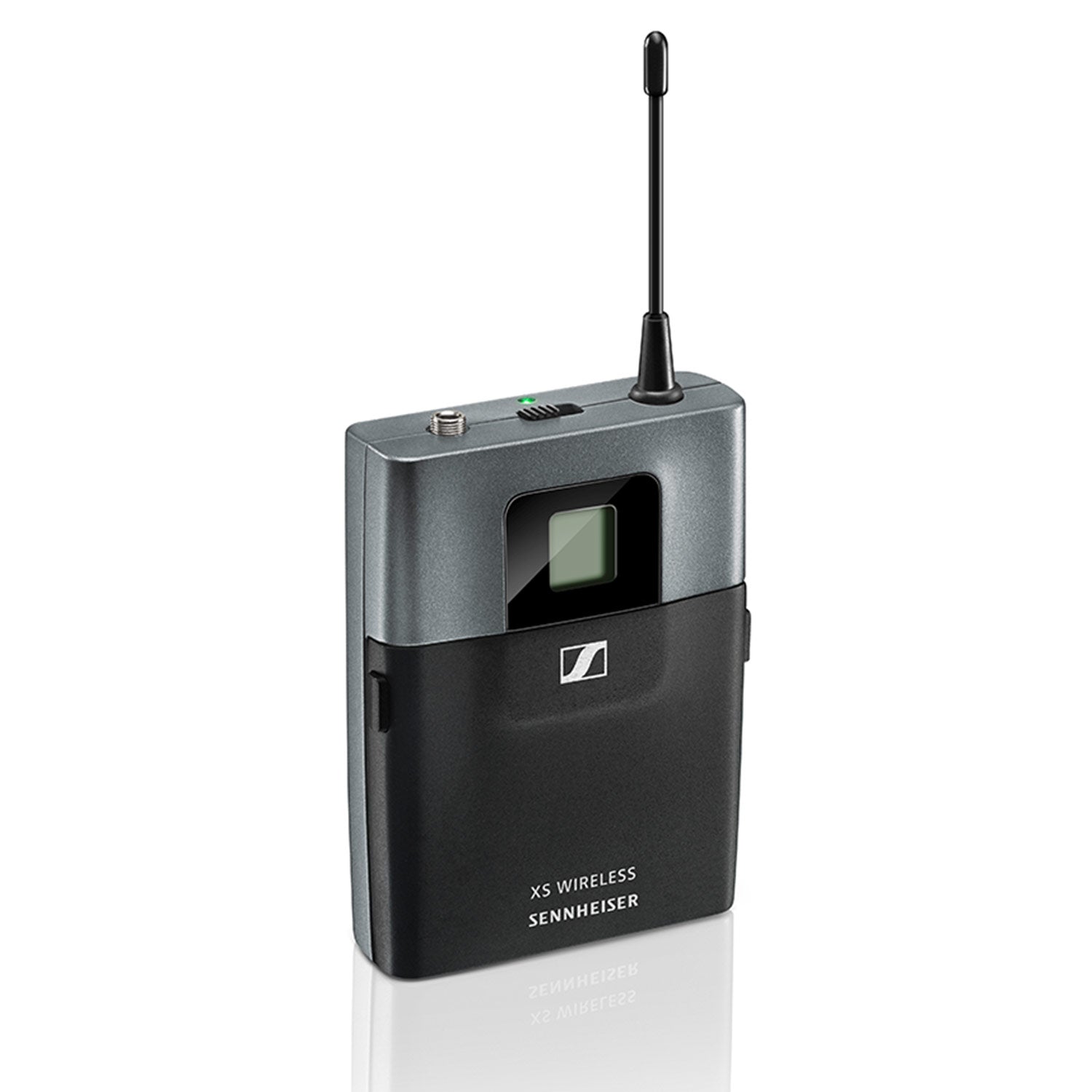

- 1 bodypack transmitter SK-XSW
- 1 lavalier microphone ME 2-2
- 1 power supply NT 12-5 CW
- 2 AA batteries
| Modulation | wideband FM |
| Frequency ranges | A: 548-572 MHz |
| Switching bandwidth | up to 24 MHz |
| Frequencies | 8 frequency banks, each with up to 10 factory-preset channels |
| Signal-to-noise ratio | ³ 103 dBA |
| THD | ² 0.9% |
| Temperature range | operation: 0¡C to +40¡C storage: Ð20¡C to +70¡C |
| Transmitter sychronization | 2.4 GHz, Low Power OQPSK (only active during synchronization) |

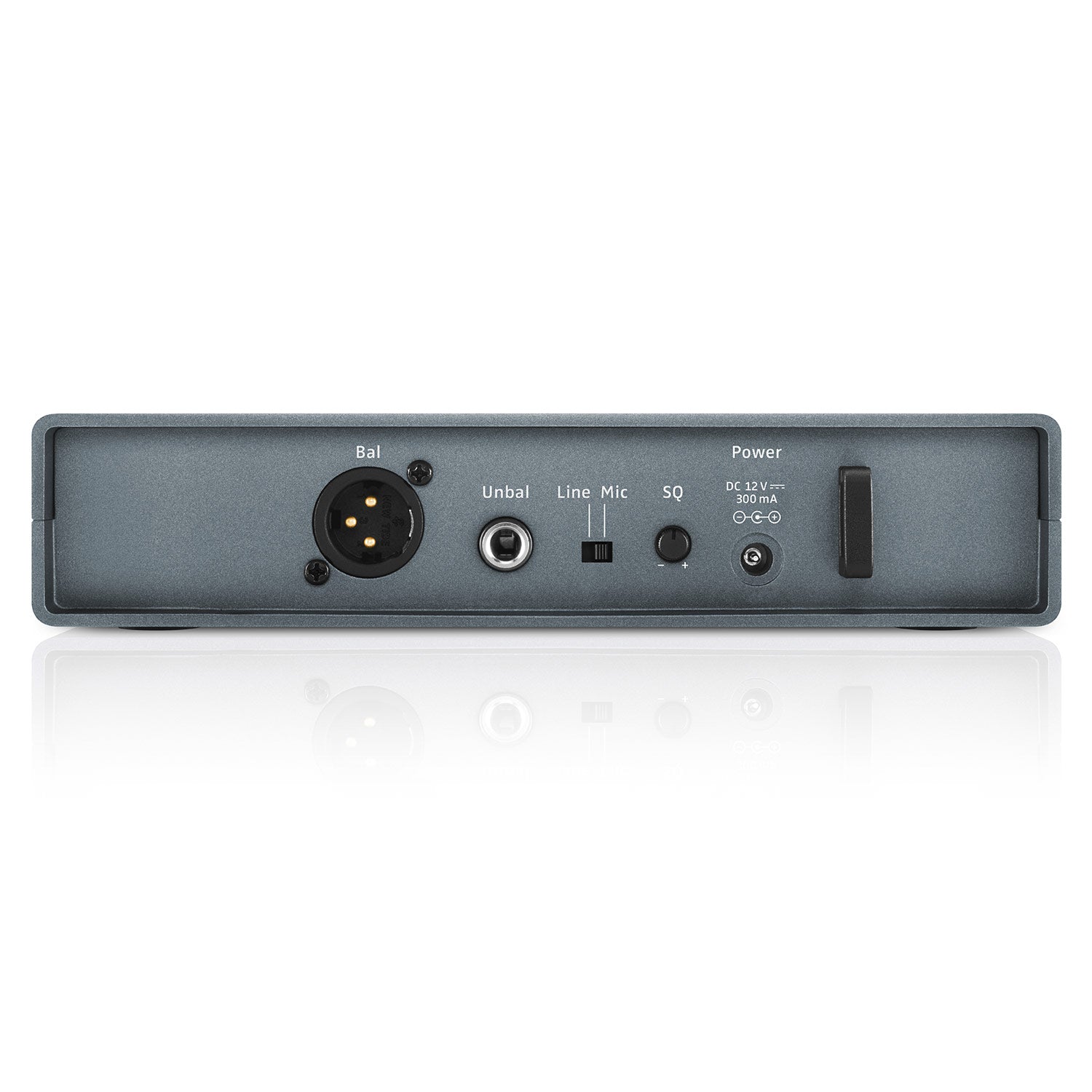

| RECEIVER (EM-XSW 1) | |
| Receiver principle | double superheterodyne |
| Diversity principle | antenna switching diversity via internal antennas |
| Sensitivity (at peak deviation) | < 3 _V at 52 dB(A)rms S/N |
| AF frequency response | 50 to 16,000 Hz (Ð3 dB) |
| Max. AF output voltage (at peak deviation, 1 kHz AF) | 1/4Ò (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu |
| Audio adjustment range | 45 dB, adjustable in 5-dB steps |
| Power supply | 12 V DC nom. / 300 mA |
| Squelch | adjustable from 3 dB_V to 28 dB_V (combined with pilot tone) |
| Line/Mic level | 20 dB, switchable |
| Housing material | rugged ABS housing |
| Dimensions (W x H x D) | approx. 200 x 42 x 127 mm |
| Weight | approx. 340 g |
| BODYPACK TRANSMITTER (SK-XSW) | |
| RF output power | 10 mW |
| AF frequency response | Line: 50-16,000 Hz Mic: 50-16,000 Hz |
| Audio Input | 3.5 mm jack socket |
| Max. input voltage (Mic/LIne) at 3% THD | typ. 1.V rms Mic / typ. 2.6 V rms Line at -30 dB gain |
| Power supply | 2 AA size batteries, 1.5 V |
| Operating time | approx. 10 hrs |
| Adjustment range of transmitter sensitivity | 0 to -30 dB, adjustable in 10 dB steps |
| Housing material | rugged ABS housing |
| Dimensions (W x H x D) | approx. 71 x 96 x 28 mm |
| Weight | approx. 95 g |
| LAVALIER MICROPHONE (ME 2-2) | |
| Transducer principle | condenser, pre-polarized |
| Sensitivity | 20 mV/Pa |
| Pick-up pattern | omni-directional |
| Max. SPL | 130 dB |
