Sennheiser XSW 2-ME2 PRESENTATION SET Lavalier Wireless System (A Band - 548-572 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

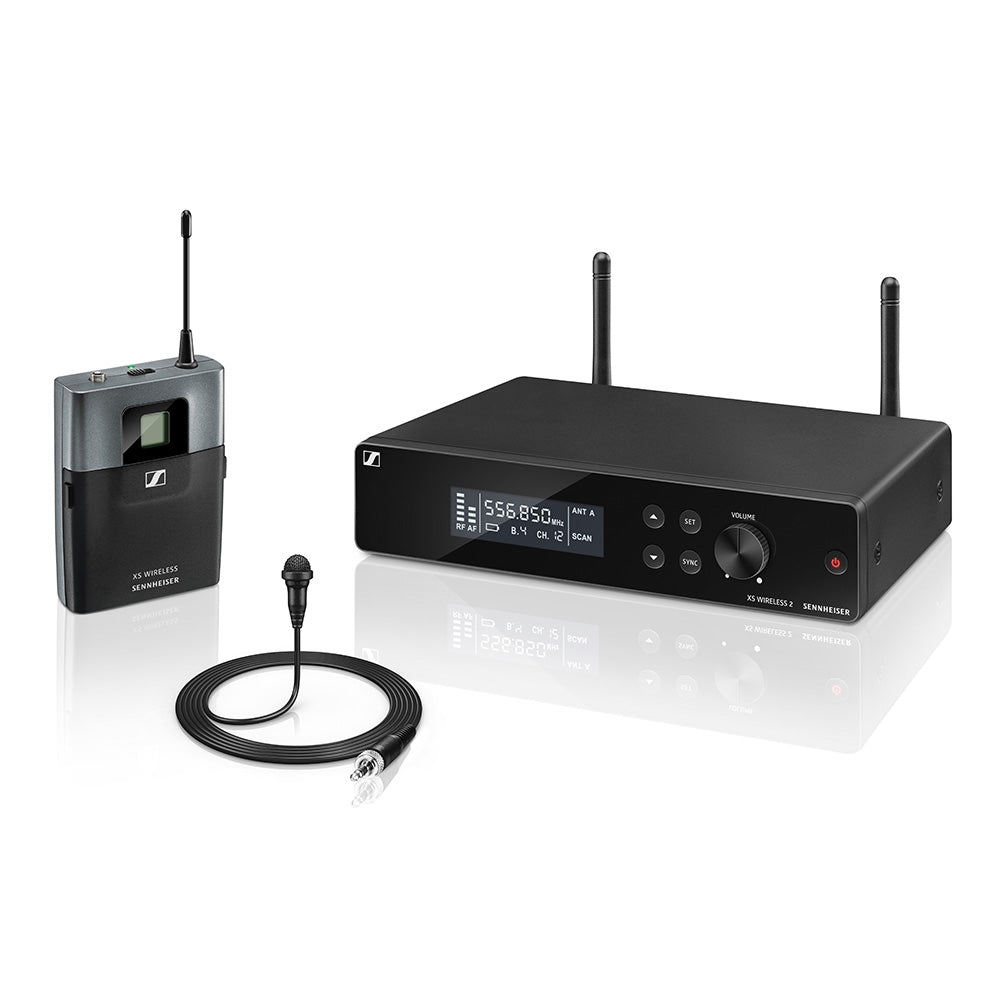

Inspire your audience. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions. The XS WIRELESS 2 LAVALIER MIC SET is an easy to use all-in-one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes a stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobstrusive clip-on microphone. Metal receiver housing and rackmount kit included.
Features:
- Unobstrusive clip-on microphone for hands-free operation and compact bodypack transmitter
- True diversity receiver with metal housing
- External antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Fully tunable over a wide range of UHF frequencies
- Rackmount kit included
- Up to 12 compatible channels
What's In The Box:
- 1 receiver EM-XSW 2
- 1 bodypack transmitter SK-XSW
- 1 lavalier microphone ME 2-2
- 1 power supply NT 12-5 CW
- 2 AA batteries
- 1 rackmount kit
- 1 pouch
- user manual
| Receiver | |
| Dimensions | approx. 200 x 42 x 127 mm |
| Weight | approx. 680g |
| Power supply | 12 V DC nom. / 300 mA |
| Housing | Metal |
| AF frequency response | 50 to 16,000 Hz |
| Transmitter | |
| Dimensions | approx. 71 x 96 x 28 mm |
| Weight | approx. 95g |
| Operating time | approx. 10 hrs |
| Power supply | 2 AA size batteries, 1.5 V |
| Housing | Robust ABS |
| AF frequency response | 50 to 16,000 Hz (Ð3 dB) |
| Microphone | Condenser |
| Frequency response | 50 to 16,000 Hz (Ð3 dB) |
| THD, total harmonic distortion | ² 0.9% |
| Pick-up pattern | Omni-directional |
| Signal-to-noise ratio | ³ 103 dBA |
| RF output power | 10 mW |
| Switching bandwidth | up to 24 MHz |
| Modulation | Wideband FM |
| Output voltage | 1/4Ò (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu |
| Diversity reception | True Diversity |
| Frequency | 8 frequency banks, each with up to 12 factory-preset channels |
| Frequency range | A: 548-572 MHz, GB: 606-630 MHz, B: 614-638 MHz, C: 766-790 MHz, D: 794-806 MHz, E: 821-832 MHz, 863-865 MHz, K: 925-937.5 MHz |
| Sensitivity | < 3 _V at 52 dB(A)rms S/N |
| Squelch | switchable from 3 dB_V to 28 dB_V (via Pilot Tone) |
| Synchronization | 2.4 GHz, Low Power OQPSK (only active during synchronization) |
| Adjustment Range | Transmitter 0 to -30 dB, adjustable in 10 dB steps |
| Audio adjustment range | 40 dB, adjustable in 5-dB steps |
| Line / Mic level | 20 dB, switchable |
| Temperature Range | operation: 0¡C to +40¡C, storage: Ð20¡C to +70¡C |
| Receiver Principle | double superheterodyne |
Inspire your audience. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions. The XS WIRELESS 2 LAVALIER MIC SET is an easy to use all-in-one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes a stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobstrusive clip-on microphone. Metal receiver housing and rackmount kit included.
Features:
- Unobstrusive clip-on microphone for hands-free operation and compact bodypack transmitter
- True diversity receiver with metal housing
- External antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Fully tunable over a wide range of UHF frequencies
- Rackmount kit included
- Up to 12 compatible channels
What's In The Box:
- 1 receiver EM-XSW 2
- 1 bodypack transmitter SK-XSW
- 1 lavalier microphone ME 2-2
- 1 power supply NT 12-5 CW
- 2 AA batteries
- 1 rackmount kit
- 1 pouch
- user manual
| Receiver | |
| Dimensions | approx. 200 x 42 x 127 mm |
| Weight | approx. 680g |
| Power supply | 12 V DC nom. / 300 mA |
| Housing | Metal |
| AF frequency response | 50 to 16,000 Hz |
| Transmitter | |
| Dimensions | approx. 71 x 96 x 28 mm |
| Weight | approx. 95g |
| Operating time | approx. 10 hrs |
| Power supply | 2 AA size batteries, 1.5 V |
| Housing | Robust ABS |
| AF frequency response | 50 to 16,000 Hz (Ð3 dB) |
| Microphone | Condenser |
| Frequency response | 50 to 16,000 Hz (Ð3 dB) |
| THD, total harmonic distortion | ² 0.9% |
| Pick-up pattern | Omni-directional |
| Signal-to-noise ratio | ³ 103 dBA |
| RF output power | 10 mW |
| Switching bandwidth | up to 24 MHz |
| Modulation | Wideband FM |
| Output voltage | 1/4Ò (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu |
| Diversity reception | True Diversity |
| Frequency | 8 frequency banks, each with up to 12 factory-preset channels |
| Frequency range | A: 548-572 MHz, GB: 606-630 MHz, B: 614-638 MHz, C: 766-790 MHz, D: 794-806 MHz, E: 821-832 MHz, 863-865 MHz, K: 925-937.5 MHz |
| Sensitivity | < 3 _V at 52 dB(A)rms S/N |
| Squelch | switchable from 3 dB_V to 28 dB_V (via Pilot Tone) |
| Synchronization | 2.4 GHz, Low Power OQPSK (only active during synchronization) |
| Adjustment Range | Transmitter 0 to -30 dB, adjustable in 10 dB steps |
| Audio adjustment range | 40 dB, adjustable in 5-dB steps |
| Line / Mic level | 20 dB, switchable |
| Temperature Range | operation: 0¡C to +40¡C, storage: Ð20¡C to +70¡C |
| Receiver Principle | double superheterodyne |
