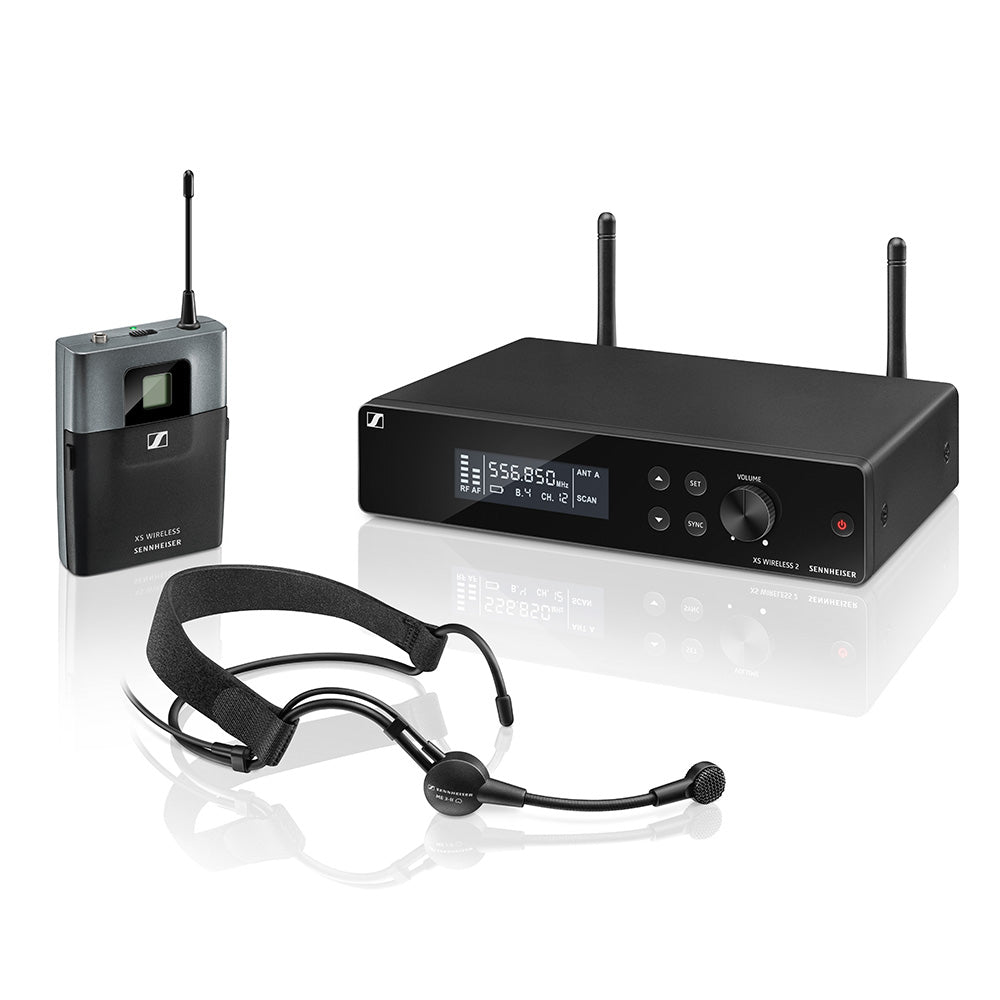

Sennheiser XSW 2-ME3 HEADMIC SET Headset Wireless System (A Band - 548-572 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Hands-free performance. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions. The XS WIRELESS 2 HEADMIC SET is an easy to use all-in-one wireless system for singers and performers, excellent for live sound that involves dancing and singing all at the same time. Metal receiver housing and rackmount kit included.
Features:
- Lightweight headmic for hands-free operation and compact bodypack transmitter
- True diversity receiver with metal housing
- External antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Fully tunable over a wide range of UHF frequencies
- Rackmount kit included
- Up to 12 compatible channels
What's In The Box:
- 1 receiver EM-XSW 2
- 1 bodypack transmitter SK-XSW
- 1 headset microphone ME 3-II
- 1 power supply NT 12-5 CW
- 2 AA batteries
- 1 rackmount kit
- 1 pouch
- user manual
| Receiver | |
| Dimensions | approx. 200 x 42 x 127 mm |
| Weight | approx. 680g |
| Power supply | 12 V DC nom. / 300 mA |
| Housing | Metal |
| AF frequency response | 50 to 16,000 Hz |
| Transmitter | |
| Dimensions | approx. 71 x 96 x 28 mm |
| Weight | approx. 95g |
| Operating time | approx. 10 hrs |
| Power supply | 2 AA size batteries, 1.5 V |
| Housing | Robust ABS |
| AF frequency response | 50 to 16,000 Hz (Ð3 dB) |
| Microphone | Condenser |
| Frequency response | 50 to 16,000 Hz (Ð3 dB) |
| THD, total harmonic distortion | ² 0.9% |
| Pick-up pattern | cardioid |
| Signal-to-noise ratio | ³ 103 dBA |
| RF output power | 10 mW |
| Switching bandwidth | up to 24 MHz |
| Modulation | Wideband FM |
| Output voltage | 1/4Ò (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu |
| Diversity reception | True Diversity |
| Frequency | 8 frequency banks, each with up to 12 factory-preset channels |
| Frequency range | A: 548-572 MHz, GB: 606-630 MHz, B: 614-638 MHz, C: 766-790 MHz, D: 794-806 MHz, E: 821-832 MHz, 863-865 MHz, K: 925-937.5 MHz |
| Sensitivity | < 3 _V at 52 dB(A)rms S/N |
| Squelch | switchable from 3 dB_V to 28 dB_V (via Pilot Tone) |
| Synchronization | 2.4 GHz, Low Power OQPSK (only active during synchronization) |
| Adjustment Range | Transmitter 0 to -30 dB, adjustable in 10 dB steps |
| Audio adjustment range | 40 dB, adjustable in 5-dB steps |
| Line / Mic level | 20 dB, switchable |
| Temperature Range | operation: 0¡C to +40¡C, storage: Ð20¡C to +70¡C |
| Receiver Principle | double superheterodyne |
Hands-free performance. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions. The XS WIRELESS 2 HEADMIC SET is an easy to use all-in-one wireless system for singers and performers, excellent for live sound that involves dancing and singing all at the same time. Metal receiver housing and rackmount kit included.
Features:
- Lightweight headmic for hands-free operation and compact bodypack transmitter
- True diversity receiver with metal housing
- External antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Fully tunable over a wide range of UHF frequencies
- Rackmount kit included
- Up to 12 compatible channels
What's In The Box:
- 1 receiver EM-XSW 2
- 1 bodypack transmitter SK-XSW
- 1 headset microphone ME 3-II
- 1 power supply NT 12-5 CW
- 2 AA batteries
- 1 rackmount kit
- 1 pouch
- user manual
| Receiver | |
| Dimensions | approx. 200 x 42 x 127 mm |
| Weight | approx. 680g |
| Power supply | 12 V DC nom. / 300 mA |
| Housing | Metal |
| AF frequency response | 50 to 16,000 Hz |
| Transmitter | |
| Dimensions | approx. 71 x 96 x 28 mm |
| Weight | approx. 95g |
| Operating time | approx. 10 hrs |
| Power supply | 2 AA size batteries, 1.5 V |
| Housing | Robust ABS |
| AF frequency response | 50 to 16,000 Hz (Ð3 dB) |
| Microphone | Condenser |
| Frequency response | 50 to 16,000 Hz (Ð3 dB) |
| THD, total harmonic distortion | ² 0.9% |
| Pick-up pattern | cardioid |
| Signal-to-noise ratio | ³ 103 dBA |
| RF output power | 10 mW |
| Switching bandwidth | up to 24 MHz |
| Modulation | Wideband FM |
| Output voltage | 1/4Ò (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu |
| Diversity reception | True Diversity |
| Frequency | 8 frequency banks, each with up to 12 factory-preset channels |
| Frequency range | A: 548-572 MHz, GB: 606-630 MHz, B: 614-638 MHz, C: 766-790 MHz, D: 794-806 MHz, E: 821-832 MHz, 863-865 MHz, K: 925-937.5 MHz |
| Sensitivity | < 3 _V at 52 dB(A)rms S/N |
| Squelch | switchable from 3 dB_V to 28 dB_V (via Pilot Tone) |
| Synchronization | 2.4 GHz, Low Power OQPSK (only active during synchronization) |
| Adjustment Range | Transmitter 0 to -30 dB, adjustable in 10 dB steps |
| Audio adjustment range | 40 dB, adjustable in 5-dB steps |
| Line / Mic level | 20 dB, switchable |
| Temperature Range | operation: 0¡C to +40¡C, storage: Ð20¡C to +70¡C |
| Receiver Principle | double superheterodyne |
