Sennheiser XSW-D Portable ENG Set
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
One-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources. Equipped with XLR and 3.5mm (1/8") transmitters, this elegant solution makes capturing dialogue on a DSLR easier than ever before while maintaining a reliable connection.
Features:
- One touch ease-of-use
- 2.4 GHz digital transmission for worldwide operation
- 75 m range (250 ft) in optimal conditions
- Up to 5 hours battery life on a single charge
- Switch between multiple transmitters linked to one receiver
- Mix and match different connector types
- Mute from either transmitter or receiver

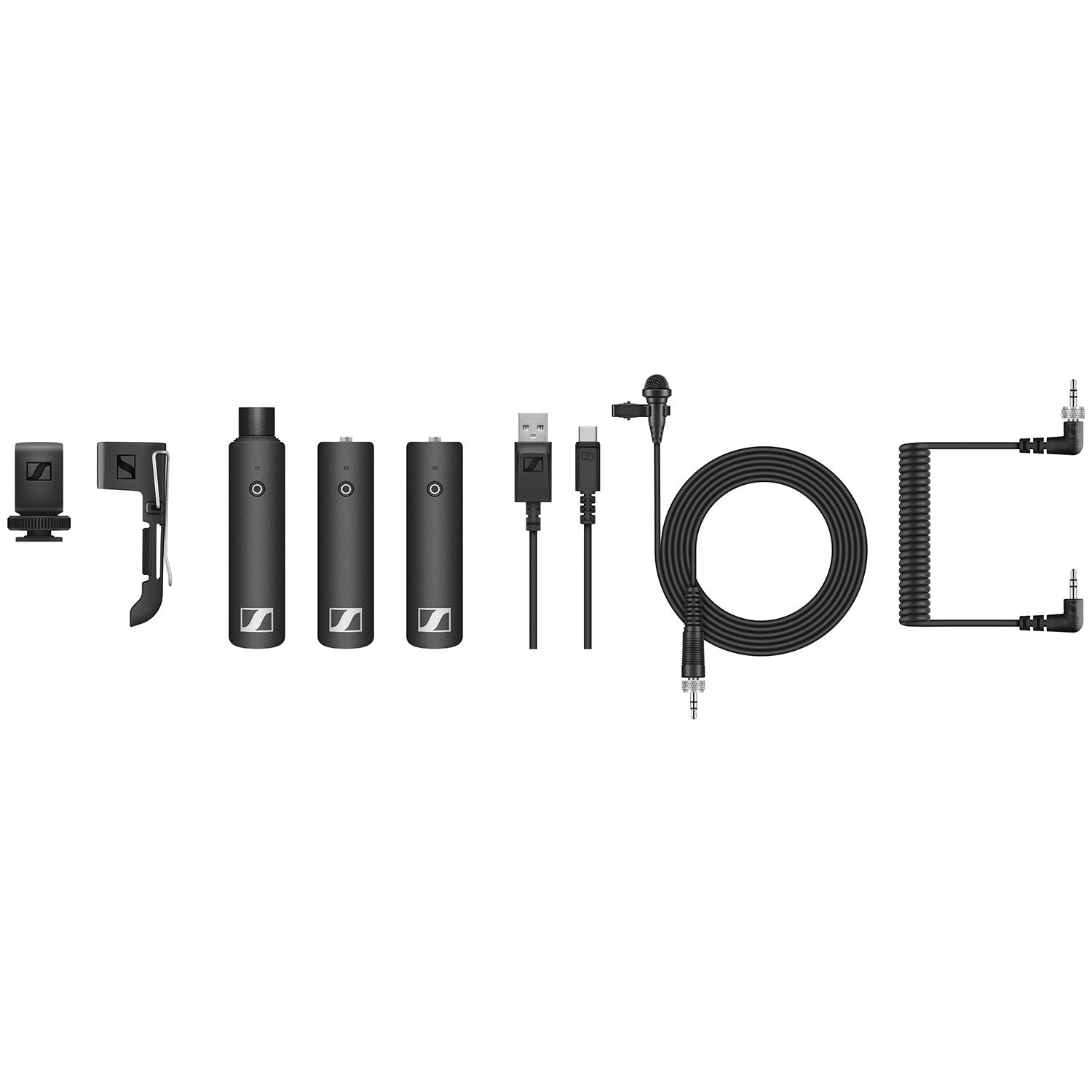

Package Includes:

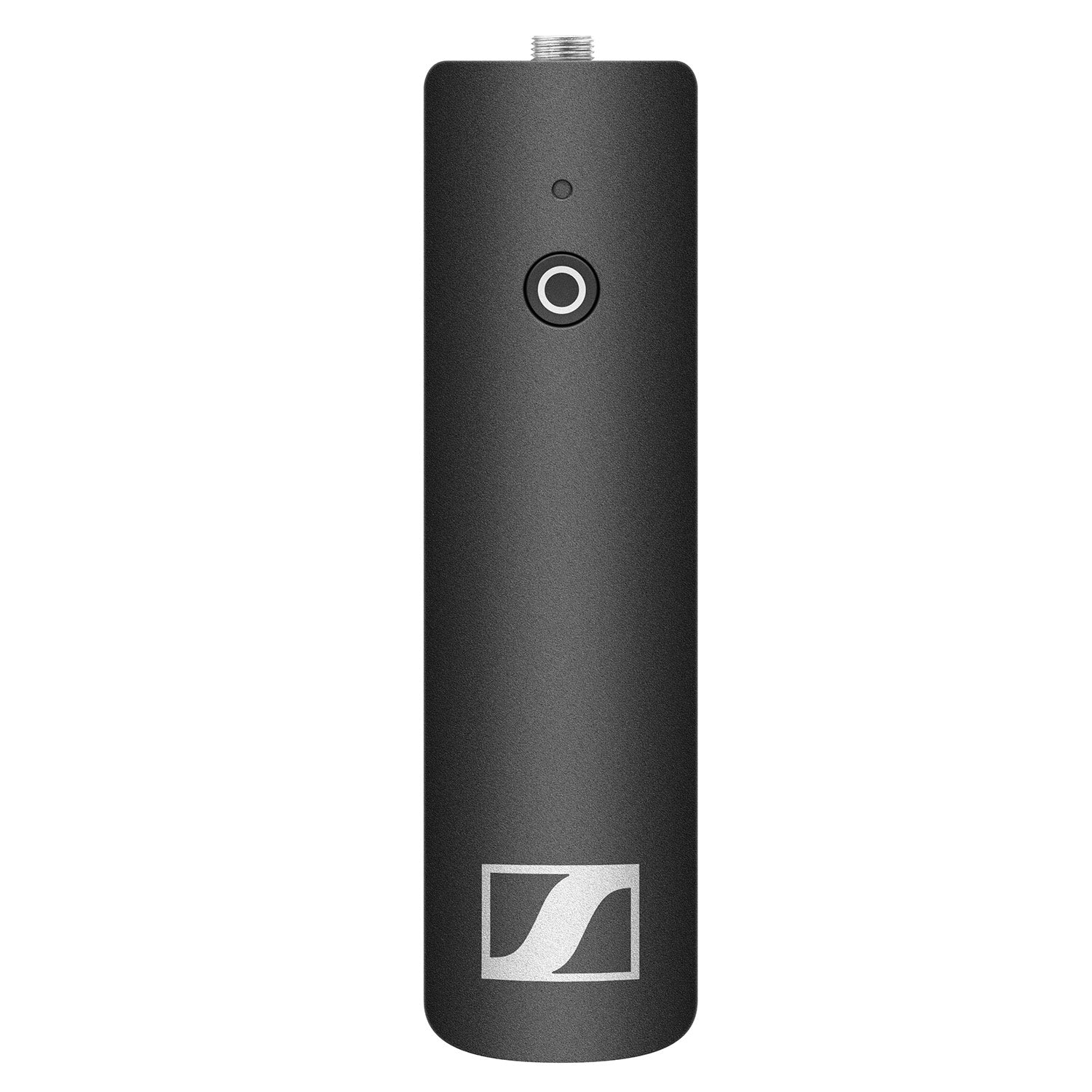

- XSW-D 3.5 mm (1/8") transmitter

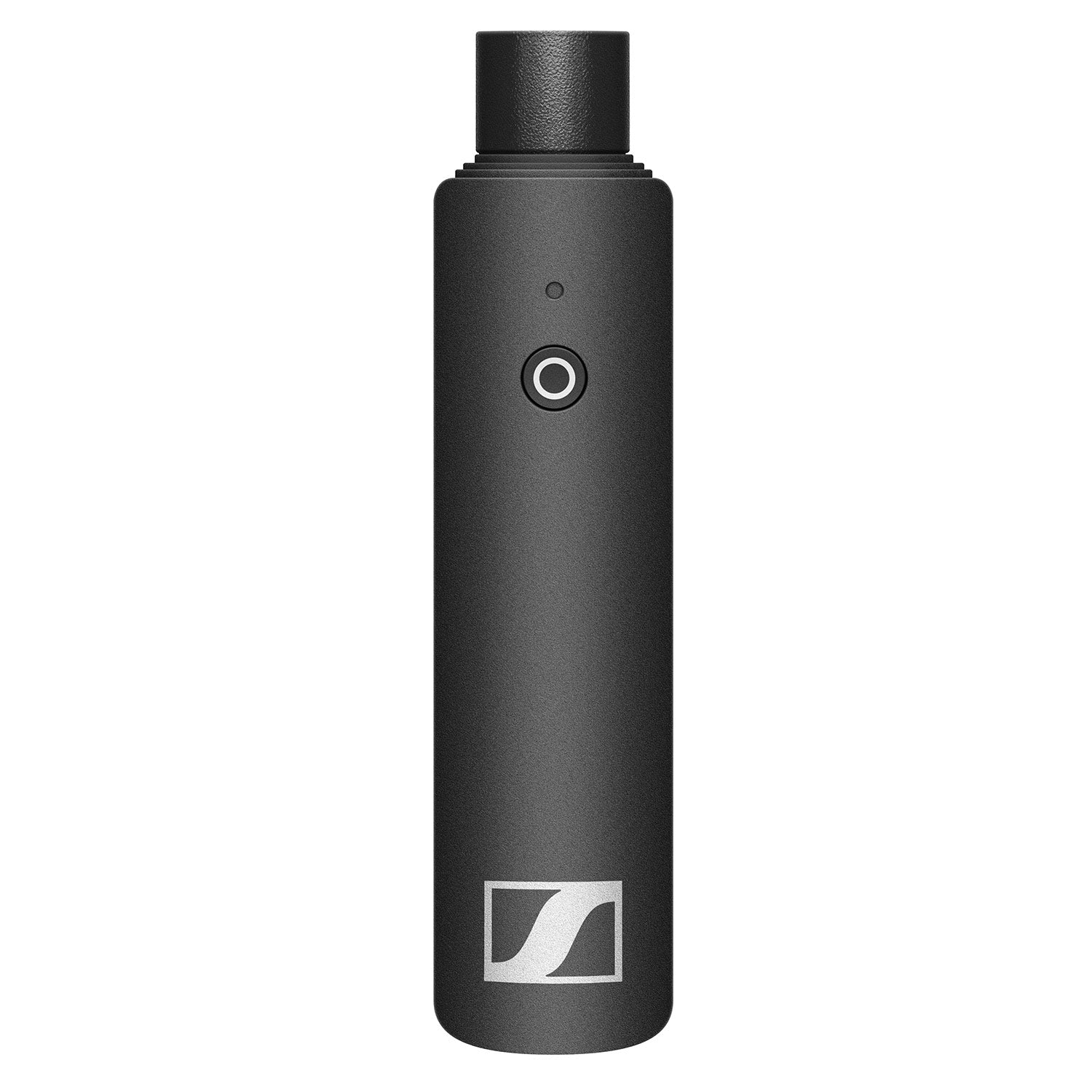

- XSW-D female XLR transmitter
- XSW-D 3.5 mm (1/8") receiver

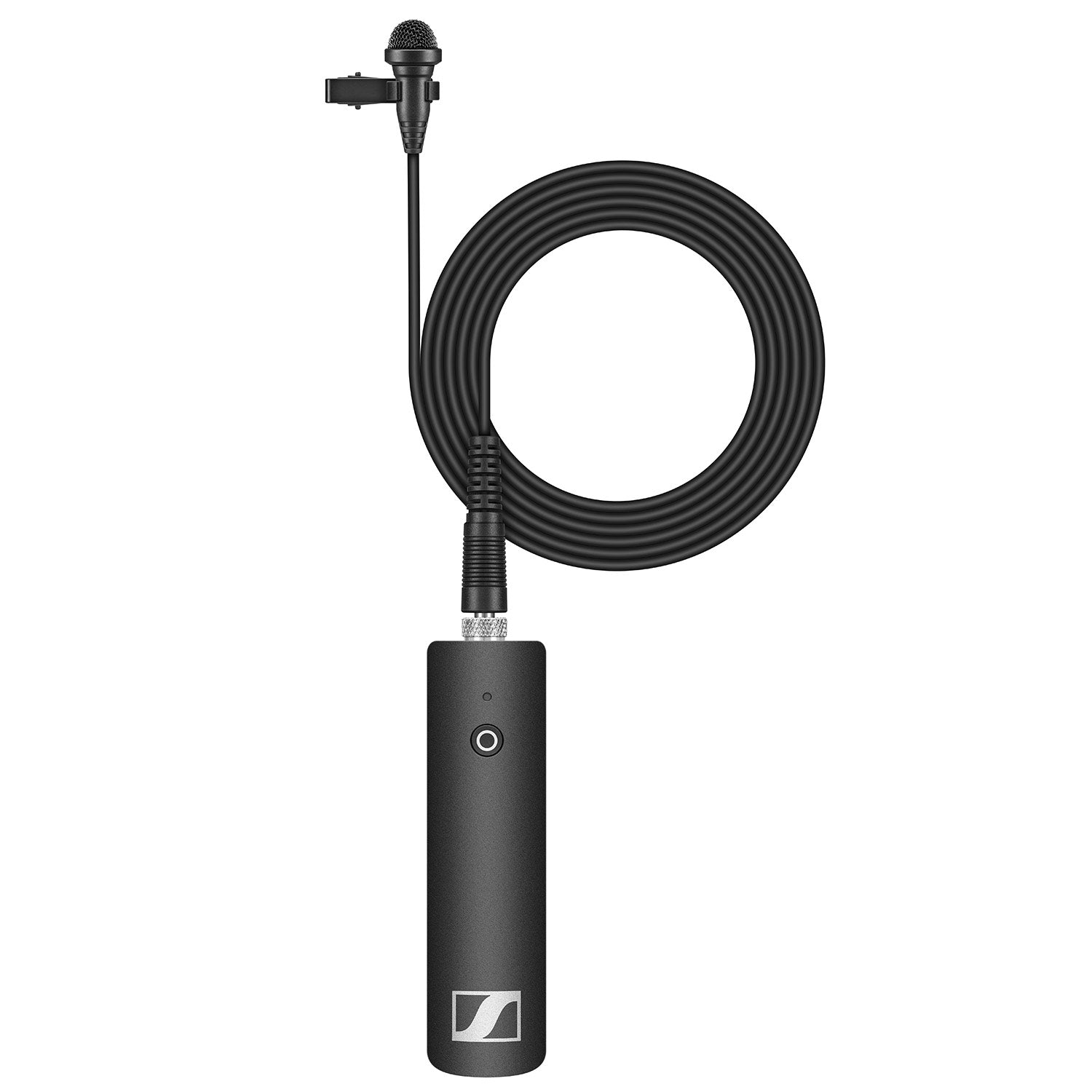

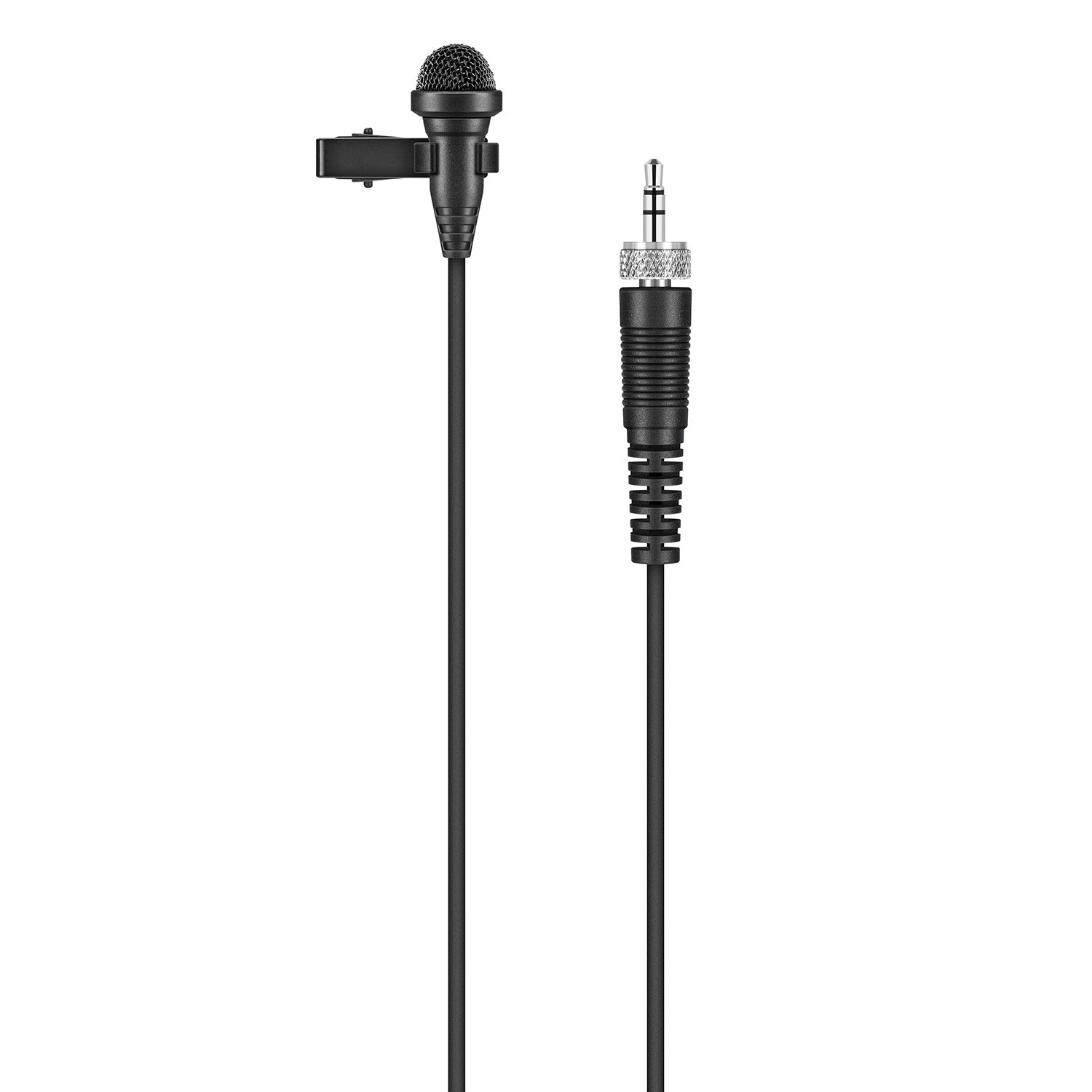

- ME 2-II clip-on lavalier mic

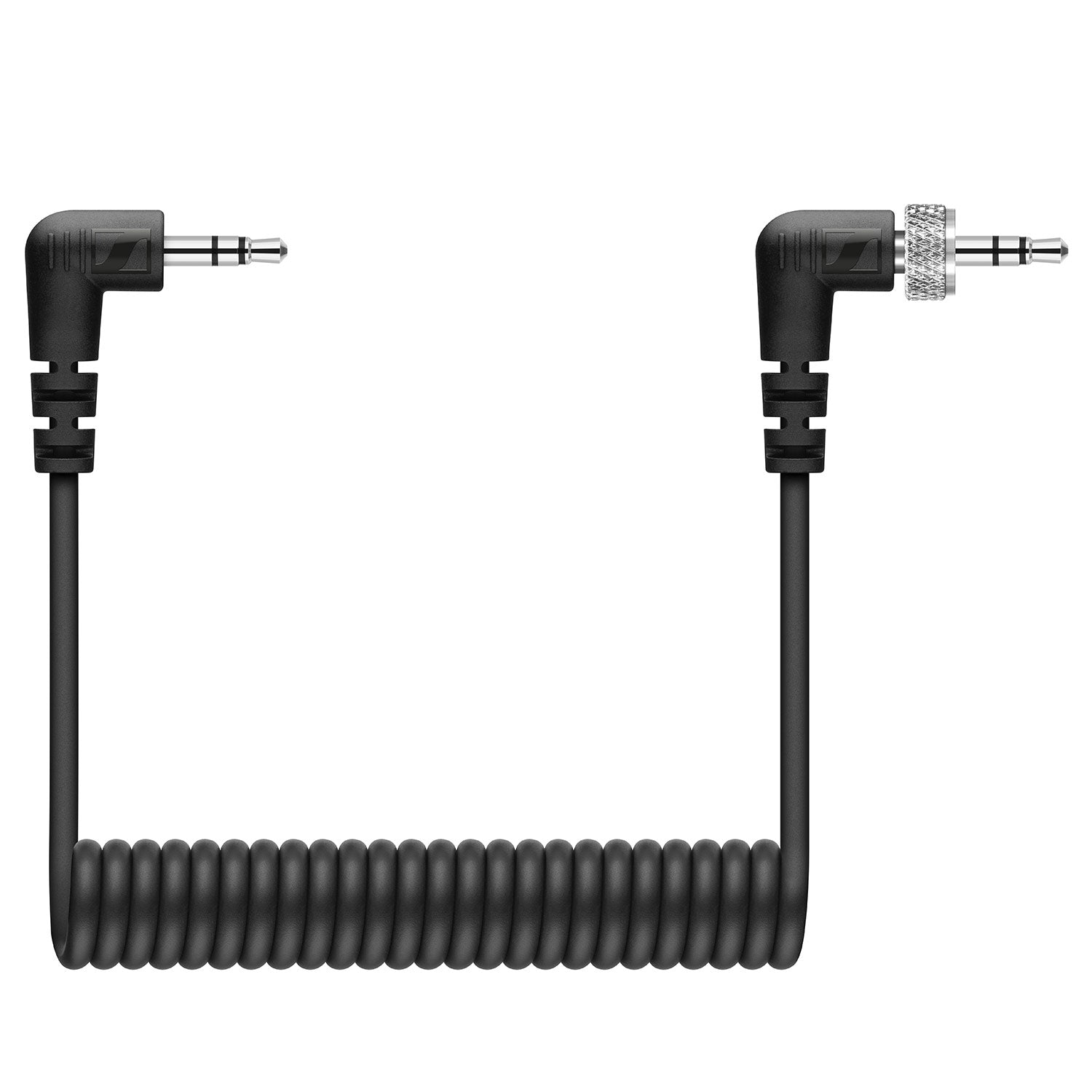

- 3.5 mm (1/8") coiled cable

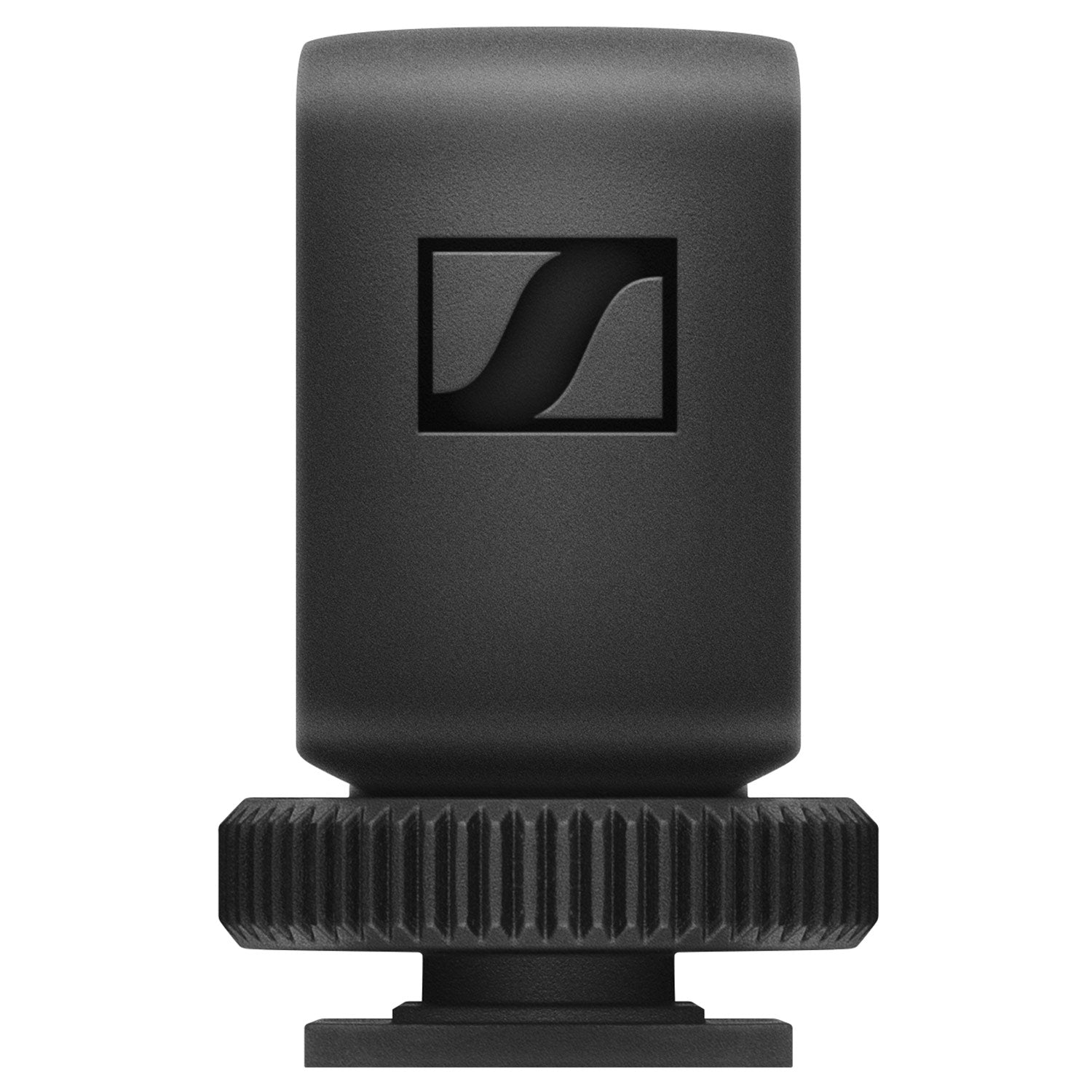

- Cold Shoe mount

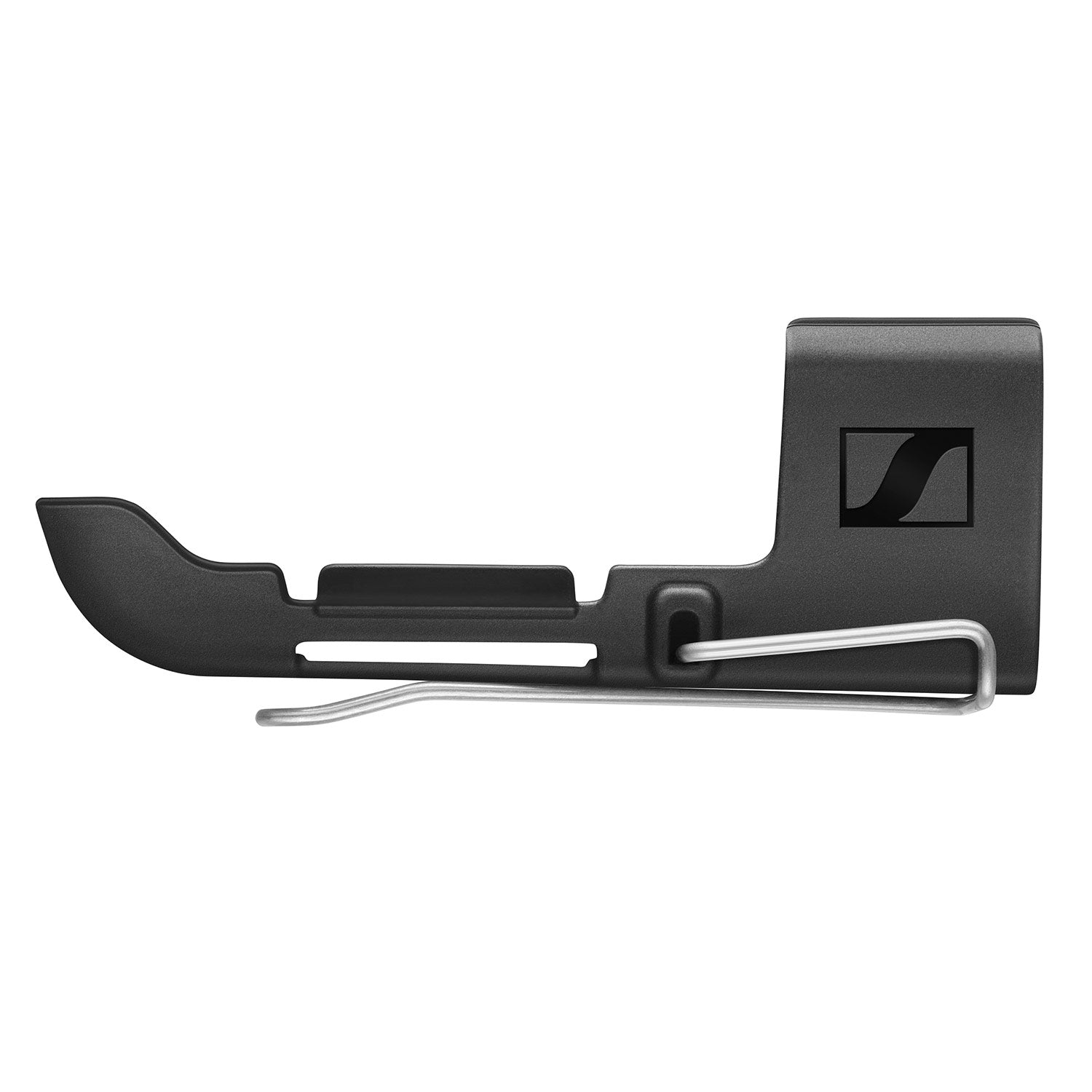

- Belt clip

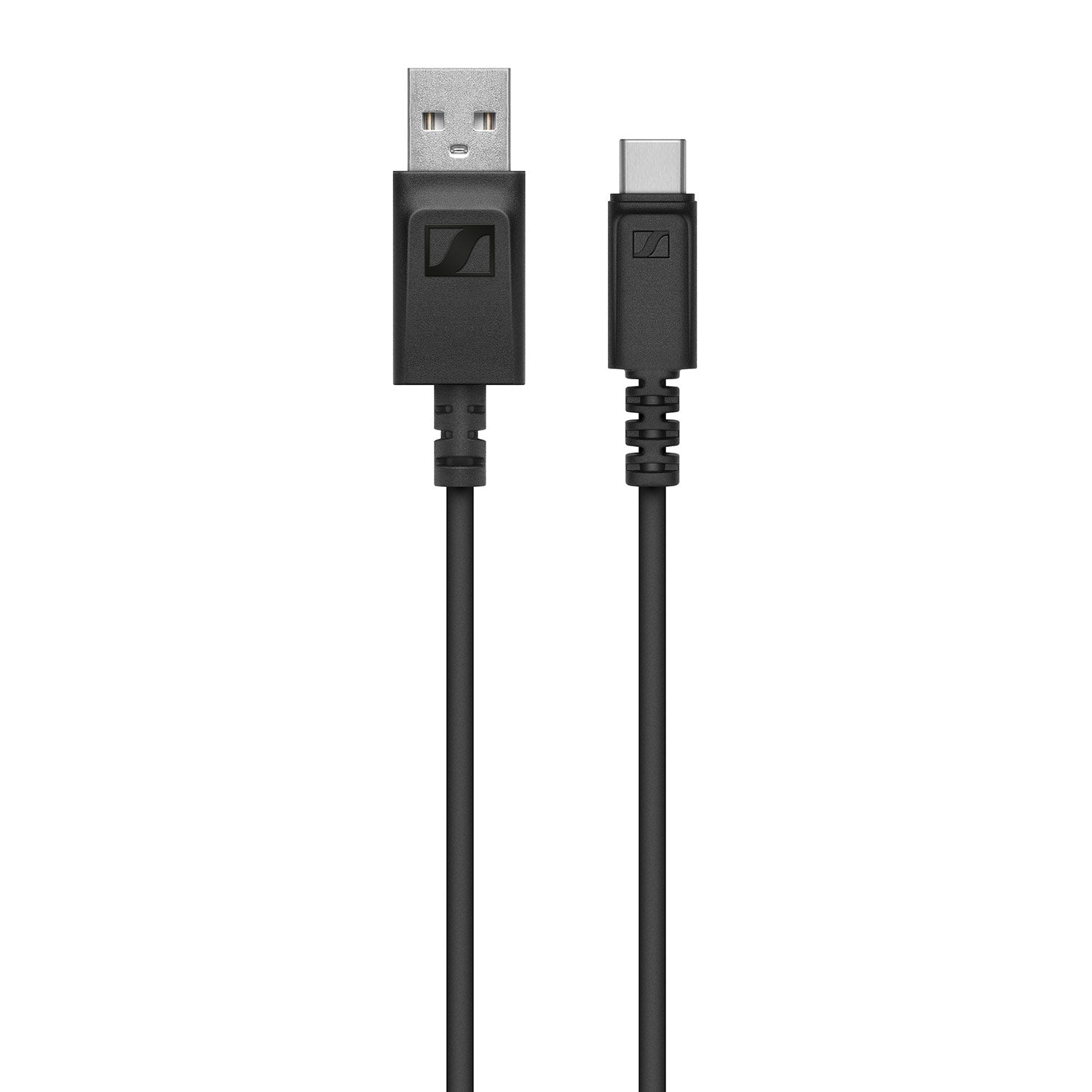

- USB-A to USB-C charging cable
- Colored stickers for labelling
- Quick guide
- Safety guide
| USB C interface for charging | |
| Input voltage | typ. 5.0 V |
| Charging temperature | 0 ¡C - 60 ¡C (32 ¡F - 140 ¡F) |
| Charging time | typ. 3 h |
| Battery pack | |
| Cell type | Li-Ion |
| Nominal voltage | 3.7 V |
| Cell capacity | 850 mAh |
| Operating time | up to 5 h |
| AF characteristics | |
| Codec | aptX¨ Live |
| Audio frequency response | 3.5 mm Jack/XLR - 80 - 18,000 Hz 6.3 mm Jack - 10 - 18,000 Hz |
| Audio output | max. 12 dBu |
| Signal-to-noise ratio | ³106 dB |
| THD | < 0.1 % |
| Audio latency | < 4 ms |
| Product properties | |
| XSW-D XLR FEMALE TX | approx. 102 x 24 x 28 mm |
| XSW-D MINI JACK TX | approx. 86 x 24 x 28 mm |
| XSW-D INSTRUMENT TX | approx. 122 x 24 x 28 mm |
| XSW-D XLR MALE RX | approx. 109 x 24 x 28 mm |
| XSW-D MINI JACK RX | approx. 86 x 24 x 28 mm |
| XSW-D INSTRUMENT RX | approx. 122 x 24 x 28 mm |
| XSW-D PEDALBOARD RX | approx. 130 x 82 x 51 mm |
| Frequency range | 2,400 - 2,483.5MHz |
| Transmission power (EIRP) | max. 10 mW |
| Modulation | GFSK with TDMA |
| Environmental conditions | |
| Operating temperature | -10 ¡C to +55 ¡C (14 ¡F to 131 ¡F) |
| Relative humidity | 95% (non-condensing) |
