Description
One-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources. This elegant solution makes going wireless with a dynamic vocal microphone easier than ever before while maintaining a reliable connection.
Features:
- One touch ease-of-use
- 2.4 GHz digital transmission for worldwide operation
- 75m range (250ft) in optimal conditions
- Up to 5 hours battery life on a single charge
- Switch between multiple transmitters linked to one receiver
- Configure any combination of transmitters and receivers
- Mute from either transmitter or receiver

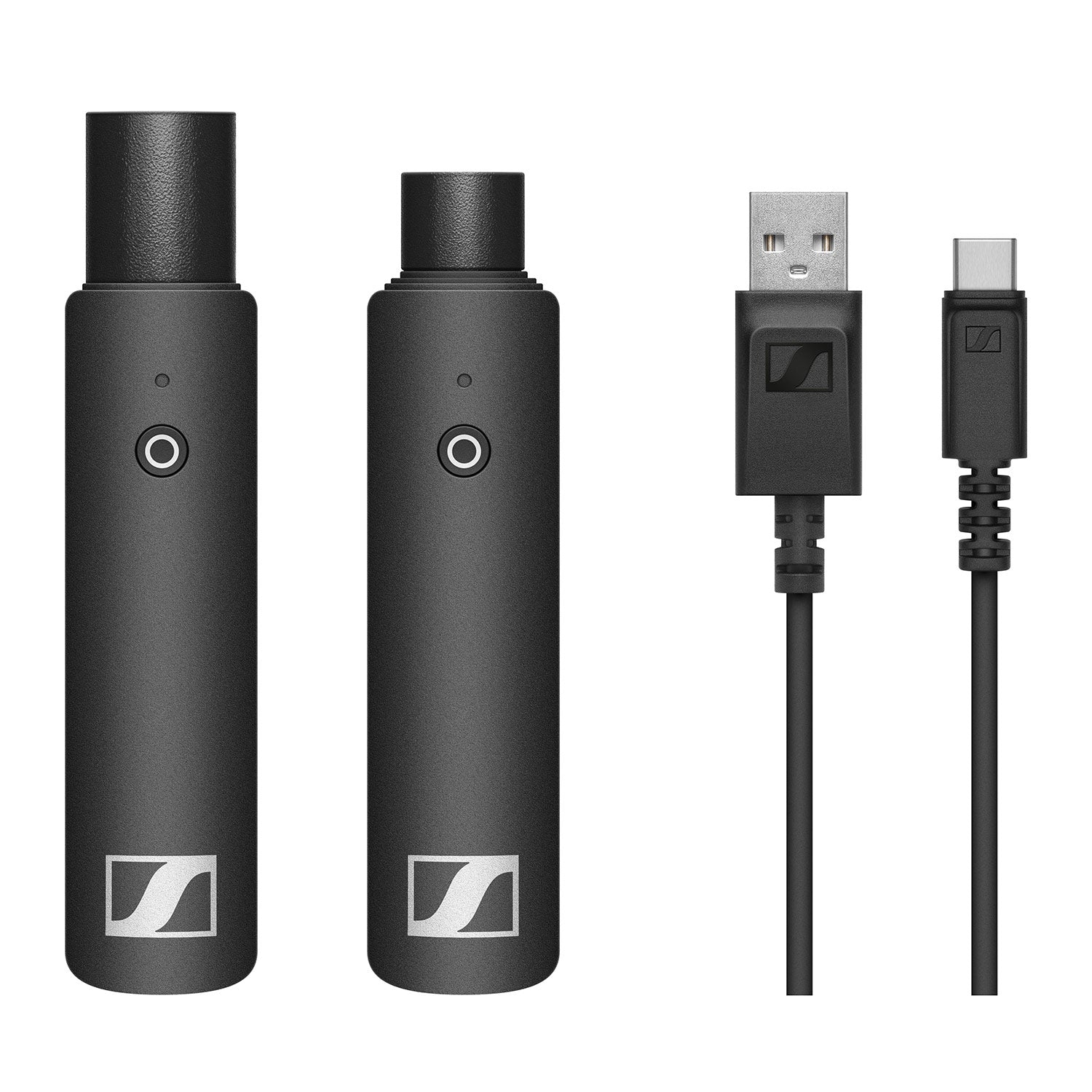

Package Includes:

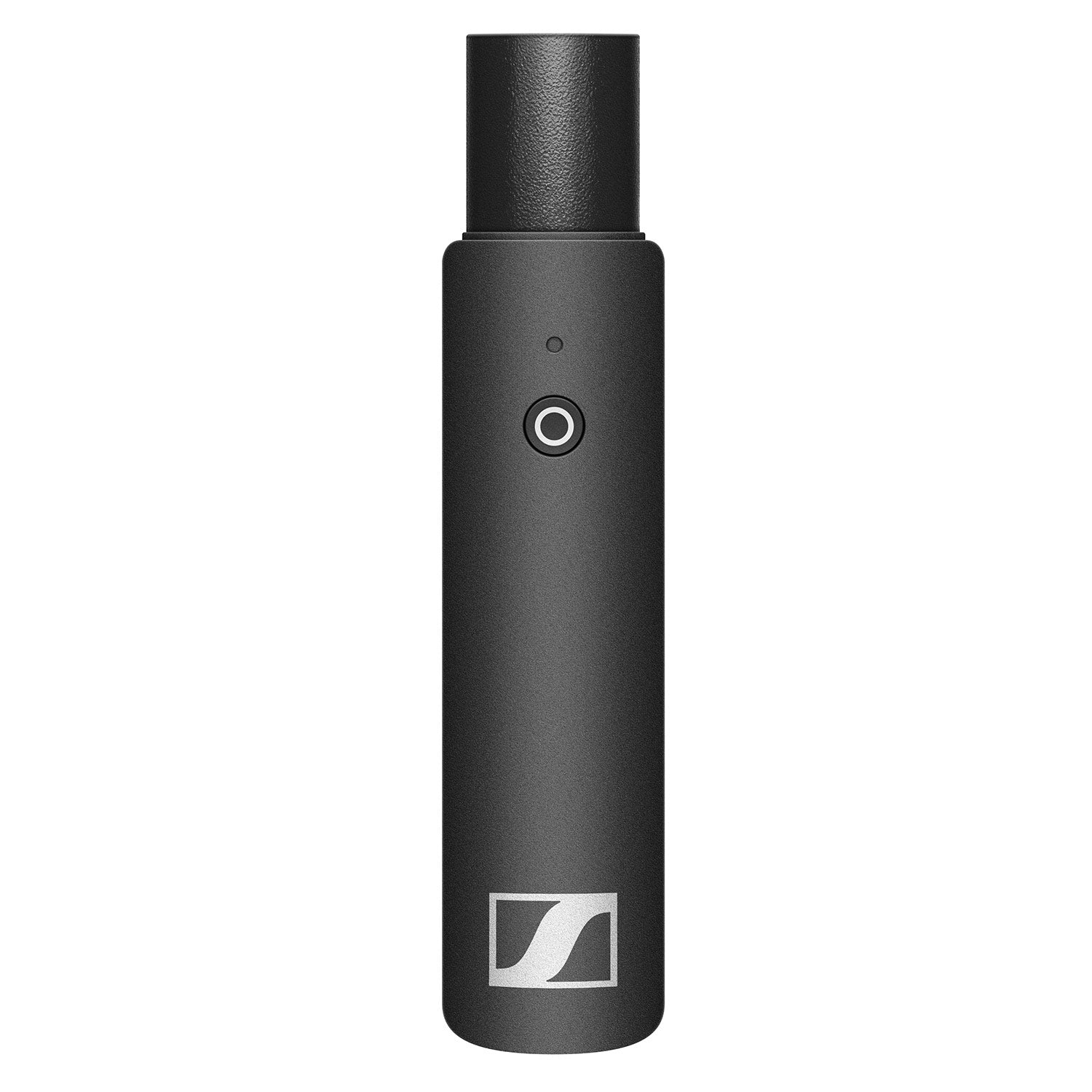

- XSW-D XLR female transmitter
- XSW-D XLR male receiver

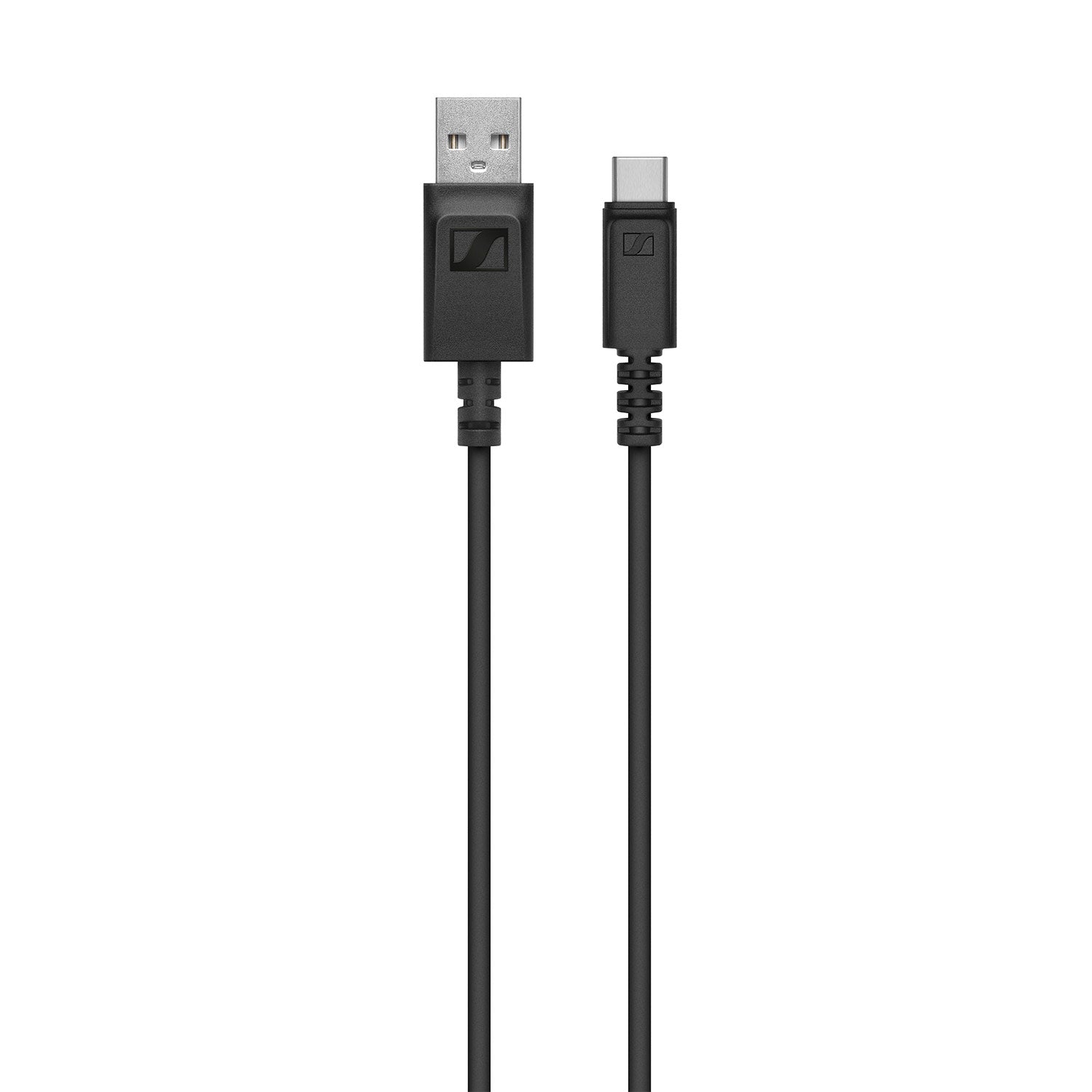

- USB-A to USB-C charging cable
- Colored stickers for labelling
- Quick guide
- Safety guide
USB C interface for charging | |
Input voltage | typ. 5.0 V |
Charging temperature | 0 ¡C - 60 ¡C (32 ¡F - 140 ¡F) |
Charging time | typ. 3 h |
Battery pack | |
Cell type | Li-Ion |
Nominal voltage | 3.7 V |
Cell capacity | 850 mAh |
Operating time | up to 5 h |
AF characteristics | |
Codec | aptX¨ Live |
Audio frequency response | 3.5 mm Jack/XLR- 80 - 18,000 Hz6.3 mm Jack10 - 18,000 Hz |
Audio output | max. 12 dBu |
Signal-to-noise ratio | ? 106 dB |
THD | < 0.1 % |
Audio latency | < 4 ms |
Product properties | |
XSW-D XLR FEMALE TX | approx. 102 x 24 x 28 mm |
XSW-D MINI JACK TX | approx. 86 x 24 x 28 mm |
XSW-D INSTRUMENT TX | approx. 122 x 24 x 28 mm |
XSW-D XLR MALE RX | approx. 109 x 24 x 28 mm |
XSW-D MINI JACK RX | approx. 86 x 24 x 28 mm |
XSW-D INSTRUMENT RX | approx. 122 x 24 x 28 mm |
XSW-D PEDALBOARD RX | approx. 130 x 82 x 51 mm |
Frequency range | 2,400 - 2,483.5MHz |
Transmission power (EIRP) | max. 10 mW |
Modulation | GFSK with TDMA |
Environmental conditions | |
Operating temperature | -10 ¡C to +55 ¡C, (14 ¡F to 131 ¡F) |
Relative humidity | 95 % (non-condensing) |
One-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources. This elegant solution makes going wireless with a dynamic vocal microphone easier than ever before while maintaining a reliable connection.
Features:
- One touch ease-of-use
- 2.4 GHz digital transmission for worldwide operation
- 75m range (250ft) in optimal conditions
- Up to 5 hours battery life on a single charge
- Switch between multiple transmitters linked to one receiver
- Configure any combination of transmitters and receivers
- Mute from either transmitter or receiver
Package Includes:
- XSW-D XLR female transmitter
- XSW-D XLR male receiver
- USB-A to USB-C charging cable
- Colored stickers for labelling
- Quick guide
- Safety guide
USB C interface for charging | |
Input voltage | typ. 5.0 V |
Charging temperature | 0 ¡C - 60 ¡C (32 ¡F - 140 ¡F) |
Charging time | typ. 3 h |
Battery pack | |
Cell type | Li-Ion |
Nominal voltage | 3.7 V |
Cell capacity | 850 mAh |
Operating time | up to 5 h |
AF characteristics | |
Codec | aptX¨ Live |
Audio frequency response | 3.5 mm Jack/XLR- 80 - 18,000 Hz6.3 mm Jack10 - 18,000 Hz |
Audio output | max. 12 dBu |
Signal-to-noise ratio | ? 106 dB |
THD | < 0.1 % |
Audio latency | < 4 ms |
Product properties | |
XSW-D XLR FEMALE TX | approx. 102 x 24 x 28 mm |
XSW-D MINI JACK TX | approx. 86 x 24 x 28 mm |
XSW-D INSTRUMENT TX | approx. 122 x 24 x 28 mm |
XSW-D XLR MALE RX | approx. 109 x 24 x 28 mm |
XSW-D MINI JACK RX | approx. 86 x 24 x 28 mm |
XSW-D INSTRUMENT RX | approx. 122 x 24 x 28 mm |
XSW-D PEDALBOARD RX | approx. 130 x 82 x 51 mm |
Frequency range | 2,400 - 2,483.5MHz |
Transmission power (EIRP) | max. 10 mW |
Modulation | GFSK with TDMA |
Environmental conditions | |
Operating temperature | -10 ¡C to +55 ¡C, (14 ¡F to 131 ¡F) |
Relative humidity | 95 % (non-condensing) |
