Sennheiser XSW IEM EK - Lightweight Beltpack Receiver for XSW IEM System (A Band / 476-500 MHz)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description

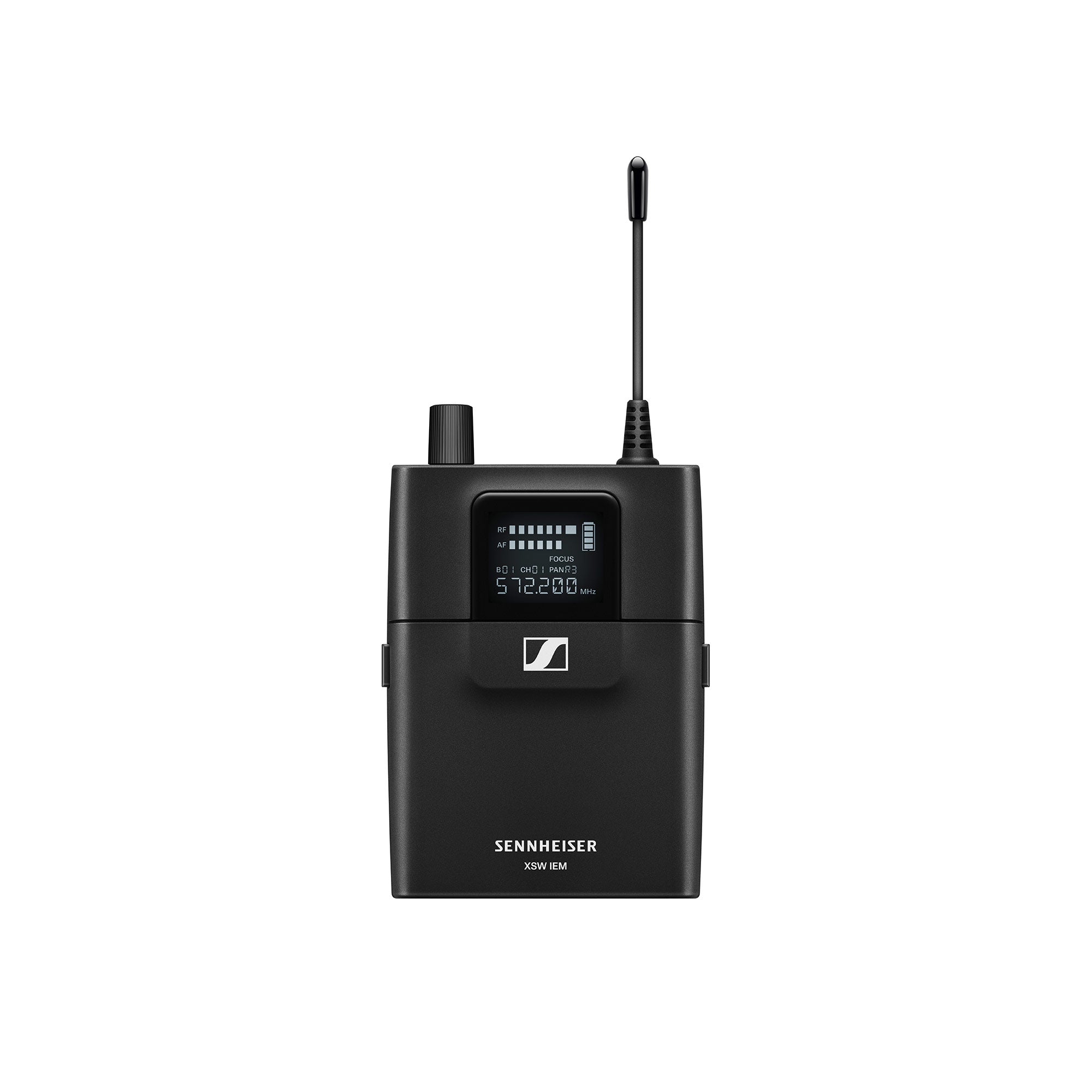

Lightweight in-ear monitoring bodypack – part of the XS Wireless IEM series. With XS Wireless IEM, you can easily link additional receivers to one transmitter – connecting more band members to a new level of detail. The lightweight bodypack remains unnoticed once clipped on your clothing or belt.
You can plug in the included IE 4 headphones or upgrade to the IE PRO series with the 3.5 mm output. The status LED shows battery and link status at a glance – while the front panel allows for individual fine-tuning, from balance to focus modes to EQ to Limiter, so you can design your individual mix.
Features:
- UHF bodypack receiver to expand existing XS Wireless IEM setups

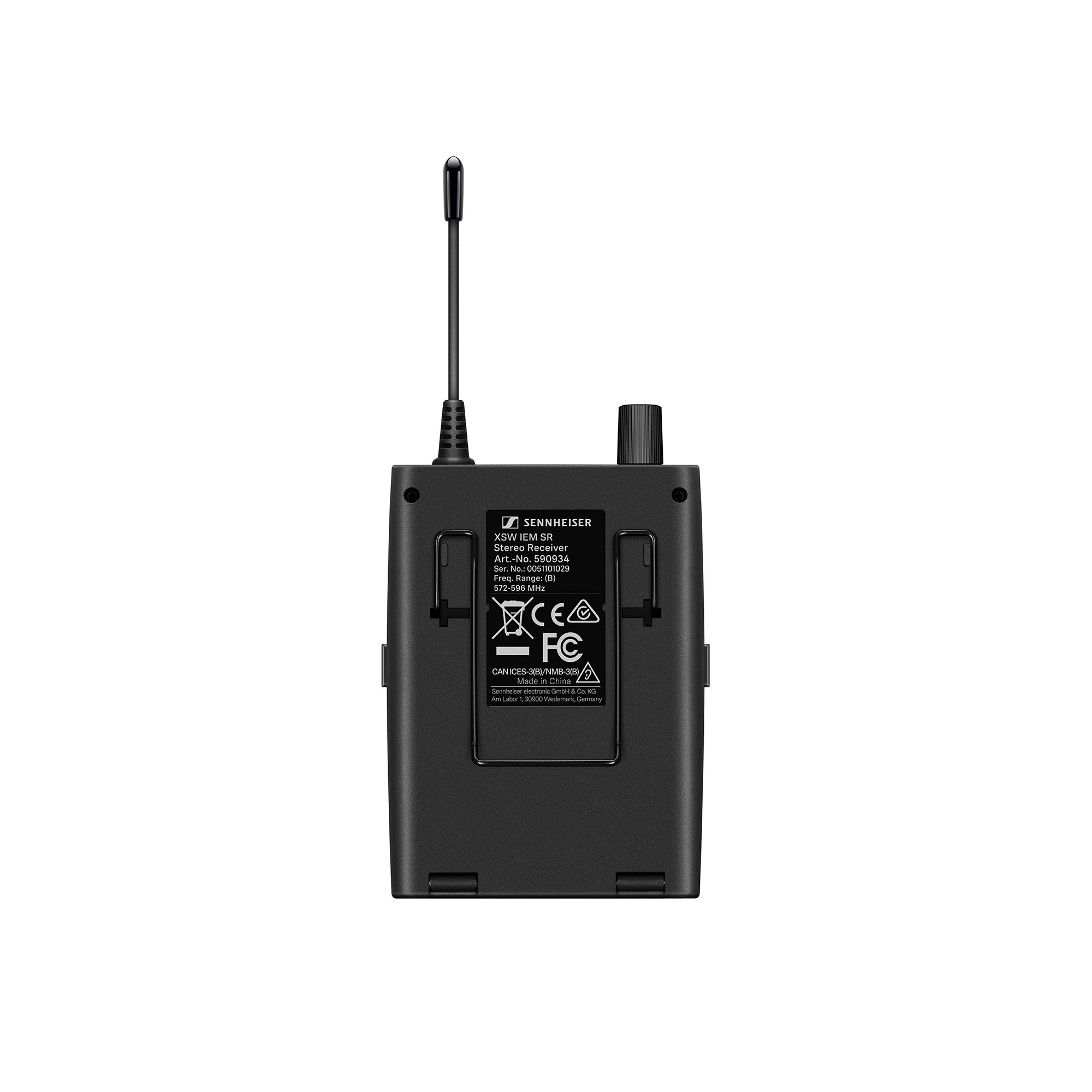

- Lightweight bodypack with rear clamp and stage-proof control panel
- Standard 3.5 mm jack plug for supplied IE 4 headphones or optional in-ear sets

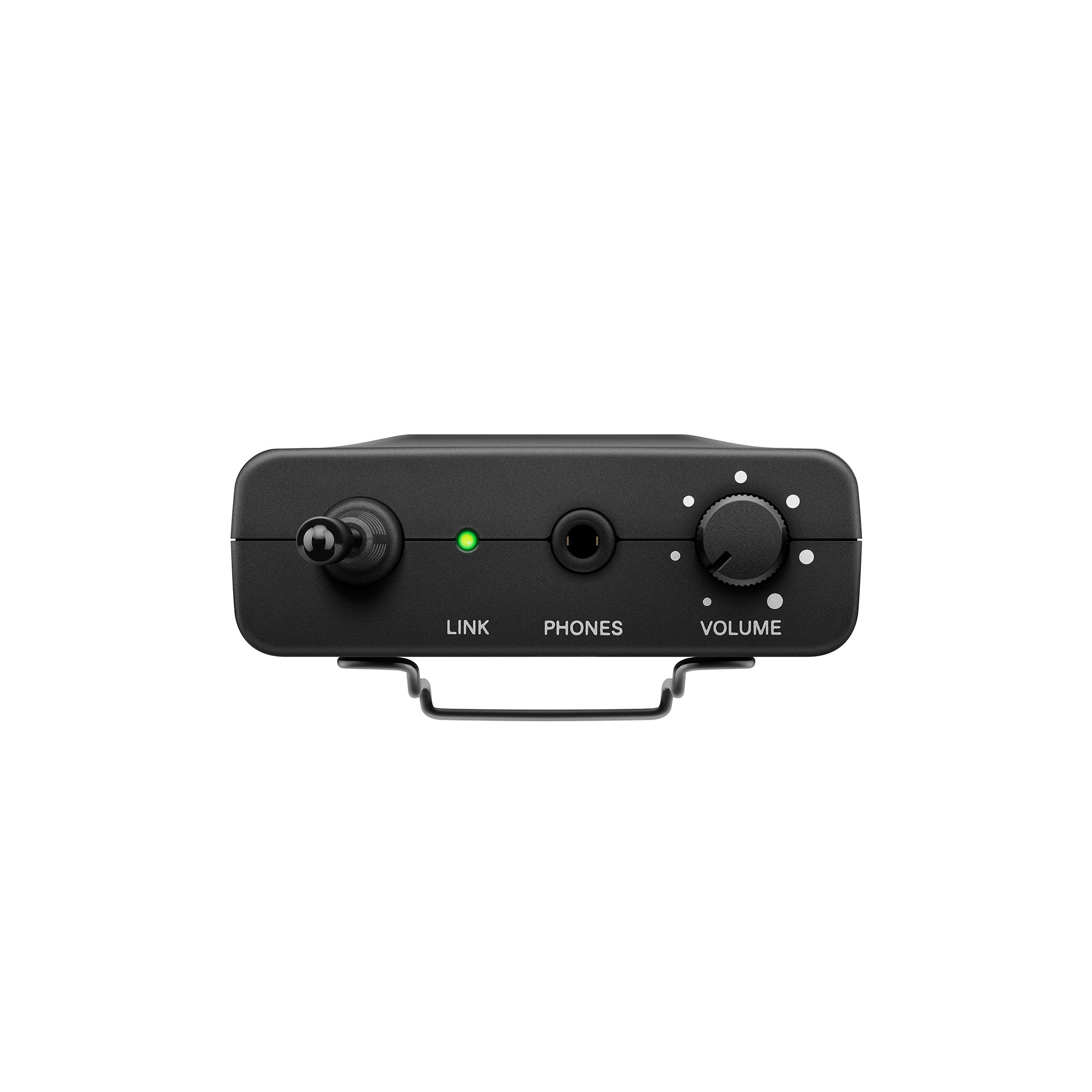

- Backlit front panel and status LED for battery and link status
- Menu access to receiver sound settings like focus modes, volume control, limiter, and EQ
- Pan control for individual balance of the input channels
- Operates with 2x AA primary cells or rechargeable batteries
What's In The Box:
- XSW IEM EK Stereo Receiver
- IE 4 In-ear headphones
- 2 AA batteries
- Quick Guide
- Safety Guide
- Compliance Sheet
- Frequency Table
| XSW IEM EK - Stereo Receiver | |
| RF characteristics | |
| Modulation | Wideband FM |
| Frequency ranges | A: 476 - 500 MHz B: 572 - 596 MHz C: 662 - 686 MHz E: 823.2 - 831.8 MHz K: 925.2 - 937.3 MHz |
| Switching bandwidth | up to 24 MHz |
| Nominal/peak deviation | ±15 kHz / ±24 kHz |
| Squelch | 10 µV, fixed |
| AF characteristics | |
| Signal-to-noise ratio (1 mV, peak deviation) | ³88 dB |
| Total harmonic distortion (THD) | ² 1 % |
| AF output level at 3.5 mm | 2 x 1,25 Veff at 16 ½ |
| High Boost (EQ) | +10 dB at 13 kHz |
| Limiter | -10 dB |
| AF frequency response | 45 Hz to 15 kHz |
| Cross talk (50 Hz - 10 kHz) | typically 45 dB |
| Overall device | |
| Temperature range | 0 ¡C to +40 ¡C |
| Power supply | 2 AA batteries, 1.5 V |
| Nominal voltage | 3 V battery |
| Operating time | Approx. 6 hrs (depending on volume level) |
| Dimensions | Approx. 95 x 70 x 26 mm |
| Weight (incl. batteries) | Approx. 110 g |
| IE 4 - In-ear headphones | |
| Transducer | dynamic |
| Frequency response | 40-20.000 Hz |
| SPL (1 kHz, 1 mW) | 106 dB |
| Nominal impedance | 6 ½ |
| Cable length | 1.4 m |
| Connector | 3.5 mm (1/8Ò) stereo plug, gold-plated |
| Temperature | Ð5 ¡C (23 ¡F) to +50 ¡C (122 ¡F) |
