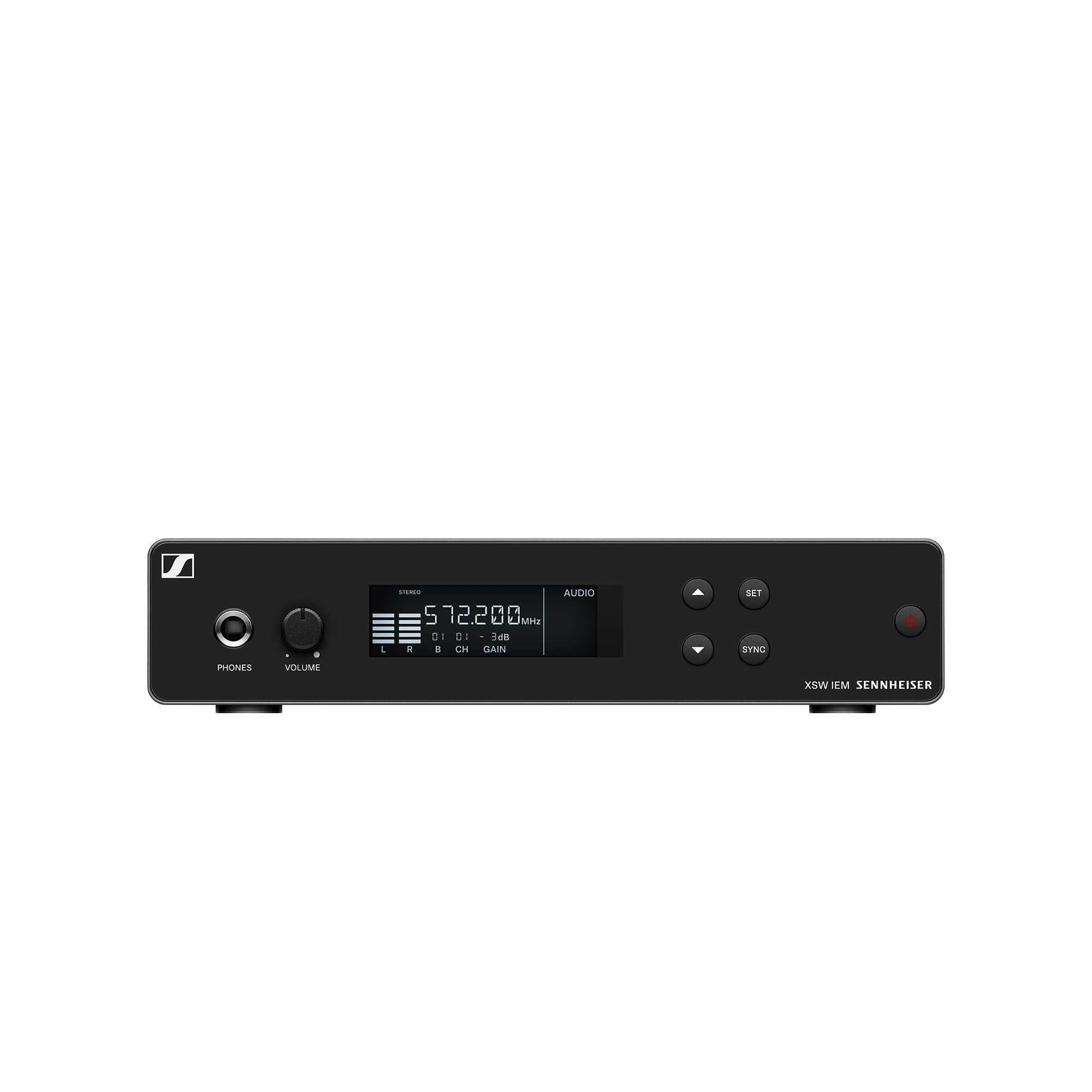

Sennheiser XSW IEM SR - Transmitter for XSW IEM Systems (A Band / 476-500 MHz)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
Single half-rack stereo UHF transmitter, rugged metal housing – part of the XS Wireless IEM series. The XS Wireless IEM transmitter features metal housing designed for durability and can be used as part of a rack-mounted system or stand-alone.
The clear, backlit menu allows for easy setups even on dark stages. The XLR combo inputs provide flexible cabling options – you can connect anything with a XLR or 6.3 mm (1/4 inch) plug. You can preview your in-ear mix locally with the headphone output on the front. Setting up gain, mono or stereo options, input sensitivity, or frequency channels takes just a matter of seconds thanks to the clear, simple menu.
Features:
- Single-stereo UHF transmitter for XS Wireless IEM systems
- Rugged metal housing in a standard half-rack size
- Backlit front panel to access all key settings
- 2x XLR and 6.3 mm (1/4 inch) TRS combo inputs
- Additional headphone output (6.3 mm / ¼ inch) on front
- Removeable BNC antenna for optimal positioning options
- 8 frequency banks with 12 precalculated channels each
What's In The Box:
- XSW IEM SR Stereo Transmitter
- XSW BNC Antenna
- NT 12-5CW Power Supply + Country Adapter
- Quick Guide
- Safety Guide
- Compliance Sheet
- Frequency Table
| XSW IEM SR - Stereo Transmitter | |
| RF characteristics | |
| Modulation | FM stereo |
| Frequency ranges (max. RF output power) | A: 476 - 500 MHz (30 mW) B: 572 - 596 MHz (30 mW) C: 662 - 686 MHz (30 mW) E: 823.2 - 831.8 MHz (30 mW) K: 925.2 - 937.3 MHz (10 mW) |
| Switching bandwidth | up to 24 MHz |
| Nominal/peak deviation | ±15 kHz / ±24 kHz |
| Antenna output | BNC socket, 50 ½ |
| AF characteristics | |
| AF frequency response | 45 Hz to 15 kHz |
| AF input | BAL AF IN L (I) + MONO/ BAL AF IN R (II) 2x XLR-3/_" (6.3 mm) jack combo socket, electronically balanced |
| Total harmonic distortion (THD) | <0.9 % |
| Signal-to-noise ratio (at nominal load and peak deviation) | ³88 dB |
| Overall device | |
| Temperature range | 0 ¡C to +40 ¡C |
| Input rating | +12 V DC |
| Current consumption | Approx. 400mA (depending on volume level) |
| Dimensions | Approx. 200 x 128 x 42 mm |
| Weight | Approx. 700 g |
