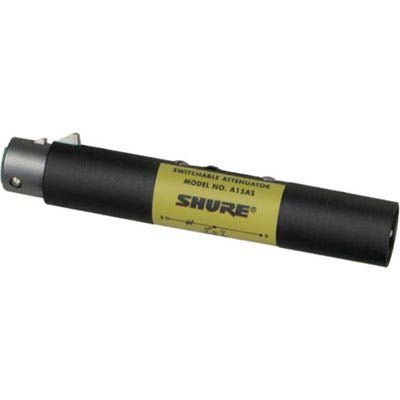

Shure A15AS Switchable Microphone Attenuator 15 20 25 DB
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
Use the A15AS balanced-line attenuator to prevent low-impedance microphones (rated at 150 or 600 ohms) and high-output condenser microphones from overloading low impedance inputs in high sound pressure level applications. The values of attenuation can be switch selected for 15, 20, or 25 dB.
Use with any low-impedance microphone, including phantom-powered condenser microphones, such as the Shure SM81. It can be used in line between the microphone and its power supply. (This model is not suitable for use with the condenser powering system called "A-B Powering.")
The A15AS attenuator bridges the microphone output and allows maximum signal handling with a minimum of loading-caused distortion or reduction in clipping level.
| Frequency Response | Flat, 20 to 20,000 Hz +- 0.5 dB |
| Impedance | Input (XLR Female): 1,000 ohms Output (XLR Male): 150 ohms |
| Attenuation (switch selectable) | 15 dB, 20 dB, or 25 dB |
| Case | Full magnetic shield; steel with gray enamel finish |
| Dimensions | 19 mm (3/4 in.) diameter; 114 mm (4 1/2 in.) long |
Note: The equivalent single series simplex-powering resistance is 215 ohms; this resistance should be considered in addition to any existing circuit resistance when using the attenuator.
Use the A15AS balanced-line attenuator to prevent low-impedance microphones (rated at 150 or 600 ohms) and high-output condenser microphones from overloading low impedance inputs in high sound pressure level applications. The values of attenuation can be switch selected for 15, 20, or 25 dB.
Use with any low-impedance microphone, including phantom-powered condenser microphones, such as the Shure SM81. It can be used in line between the microphone and its power supply. (This model is not suitable for use with the condenser powering system called "A-B Powering.")
The A15AS attenuator bridges the microphone output and allows maximum signal handling with a minimum of loading-caused distortion or reduction in clipping level.
| Frequency Response | Flat, 20 to 20,000 Hz +- 0.5 dB |
| Impedance | Input (XLR Female): 1,000 ohms Output (XLR Male): 150 ohms |
| Attenuation (switch selectable) | 15 dB, 20 dB, or 25 dB |
| Case | Full magnetic shield; steel with gray enamel finish |
| Dimensions | 19 mm (3/4 in.) diameter; 114 mm (4 1/2 in.) long |
Note: The equivalent single series simplex-powering resistance is 215 ohms; this resistance should be considered in addition to any existing circuit resistance when using the attenuator.
