Description

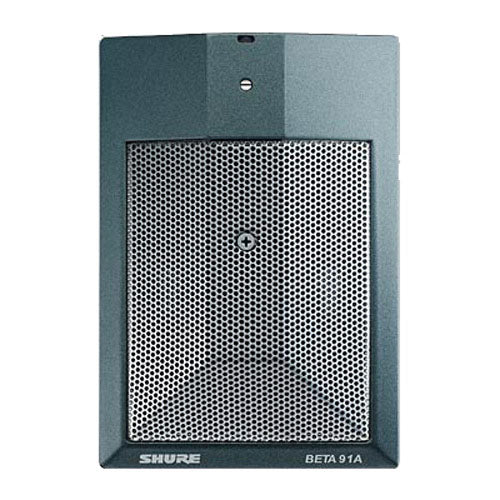

The Shure Beta 91A is designed for use with kick drums, piano and other traditional low frequency applications. An updated microphone capsule is tailored for bass-heavy environments to produce a powerful low frequency response, and a new design integrates the preamplifier and XLR connection for easy setup and minimal stage clutter. The Beta 91A combines superior attack and punch for studio-quality sound, even at extremely high sound pressure levels (SPLs).
Features:
- Premier live performance microphone with Shure quality, ruggedness, and reliability
- Uniform half-cardioid polar pattern (in the hemisphere above mounting surface) for maximum gain before feedback and rejection of off-axis sound
- Tailored frequency response for kick drums and bass-heavy instruments
- Wide dynamic range for use in high SPL environments
- Two-position contour switch enhances attack and clarity
- Integrated preamp and XLR connector reduce stage clutter and provide a quick, secure setup
- Low profile design requires no external mounting hardware
- Steel grille and die-cast metal construction resist wear and abuse
- Exceptional low-frequency reproduction
- Extremely high SPL handling
- High output level
- No crossover distortion
Type | Electret Condenser |
Frequency Response | 20 to 20,000 Hz |
Polar Pattern | Half-cardioid (cardioidÊin hemisphere above mounting surface) |
Impedance | 146 Ohms |
SensitivityÊ(at 1 kHz, open circuit voltage) | -48.5 dBV/Pa (3.8mV) 1 Pascal=94 dB SPL |
Maximum SPLÊ(1 kHz at 1% THD) | 1000 Ohm load: 151 dB, 2500 Ohm load: 155 dB |
Signal-to-Noise RatioÊ(referenced at 94 dB SPL at 1 kHz) | 64 dB S/N ratio is difference between 94 dB SPL and equivalent SPL of self noise, A-weighted |
Dynamic RangeÊ(at 1 kHz) | 1000 Ohm load: 121.5 dB 2500 Ohm load: 125.5 dB |
Common Mode RejectionÊ(20 Hz to 20 kHz) | > 55 dB |
Clipping LevelÊ(20Hz-20 kHz at 1% THD) | 1000 Ohm load: 7.50 dBV, 2500 Ohm load: 12.5 dBV THD of microphone preamplifier when applied input signal is equivalent to cartridge output at specified SPL |
Self NoiseÊ(typical, equivalent SPL, A-weighted) | 29.5 dB SPL-A |
Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 |
Weight | Net: 470 g (16.6 oz.) |
Frequency Contour Switch | 7 dB of attenuation centered at 400 kHzÊ |
Connector | Three-pin professional audio (XLR), male, balanced |
Power Requirements | 11-52ÊVdc phantom power, 5.6 mA |
The Shure Beta 91A is designed for use with kick drums, piano and other traditional low frequency applications. An updated microphone capsule is tailored for bass-heavy environments to produce a powerful low frequency response, and a new design integrates the preamplifier and XLR connection for easy setup and minimal stage clutter. The Beta 91A combines superior attack and punch for studio-quality sound, even at extremely high sound pressure levels (SPLs).
Features:
- Premier live performance microphone with Shure quality, ruggedness, and reliability
- Uniform half-cardioid polar pattern (in the hemisphere above mounting surface) for maximum gain before feedback and rejection of off-axis sound
- Tailored frequency response for kick drums and bass-heavy instruments
- Wide dynamic range for use in high SPL environments
- Two-position contour switch enhances attack and clarity
- Integrated preamp and XLR connector reduce stage clutter and provide a quick, secure setup
- Low profile design requires no external mounting hardware
- Steel grille and die-cast metal construction resist wear and abuse
- Exceptional low-frequency reproduction
- Extremely high SPL handling
- High output level
- No crossover distortion
Type | Electret Condenser |
Frequency Response | 20 to 20,000 Hz |
Polar Pattern | Half-cardioid (cardioidÊin hemisphere above mounting surface) |
Impedance | 146 Ohms |
SensitivityÊ(at 1 kHz, open circuit voltage) | -48.5 dBV/Pa (3.8mV) 1 Pascal=94 dB SPL |
Maximum SPLÊ(1 kHz at 1% THD) | 1000 Ohm load: 151 dB, 2500 Ohm load: 155 dB |
Signal-to-Noise RatioÊ(referenced at 94 dB SPL at 1 kHz) | 64 dB S/N ratio is difference between 94 dB SPL and equivalent SPL of self noise, A-weighted |
Dynamic RangeÊ(at 1 kHz) | 1000 Ohm load: 121.5 dB 2500 Ohm load: 125.5 dB |
Common Mode RejectionÊ(20 Hz to 20 kHz) | > 55 dB |
Clipping LevelÊ(20Hz-20 kHz at 1% THD) | 1000 Ohm load: 7.50 dBV, 2500 Ohm load: 12.5 dBV THD of microphone preamplifier when applied input signal is equivalent to cartridge output at specified SPL |
Self NoiseÊ(typical, equivalent SPL, A-weighted) | 29.5 dB SPL-A |
Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 |
Weight | Net: 470 g (16.6 oz.) |
Frequency Contour Switch | 7 dB of attenuation centered at 400 kHzÊ |
Connector | Three-pin professional audio (XLR), male, balanced |
Power Requirements | 11-52ÊVdc phantom power, 5.6 mA |
