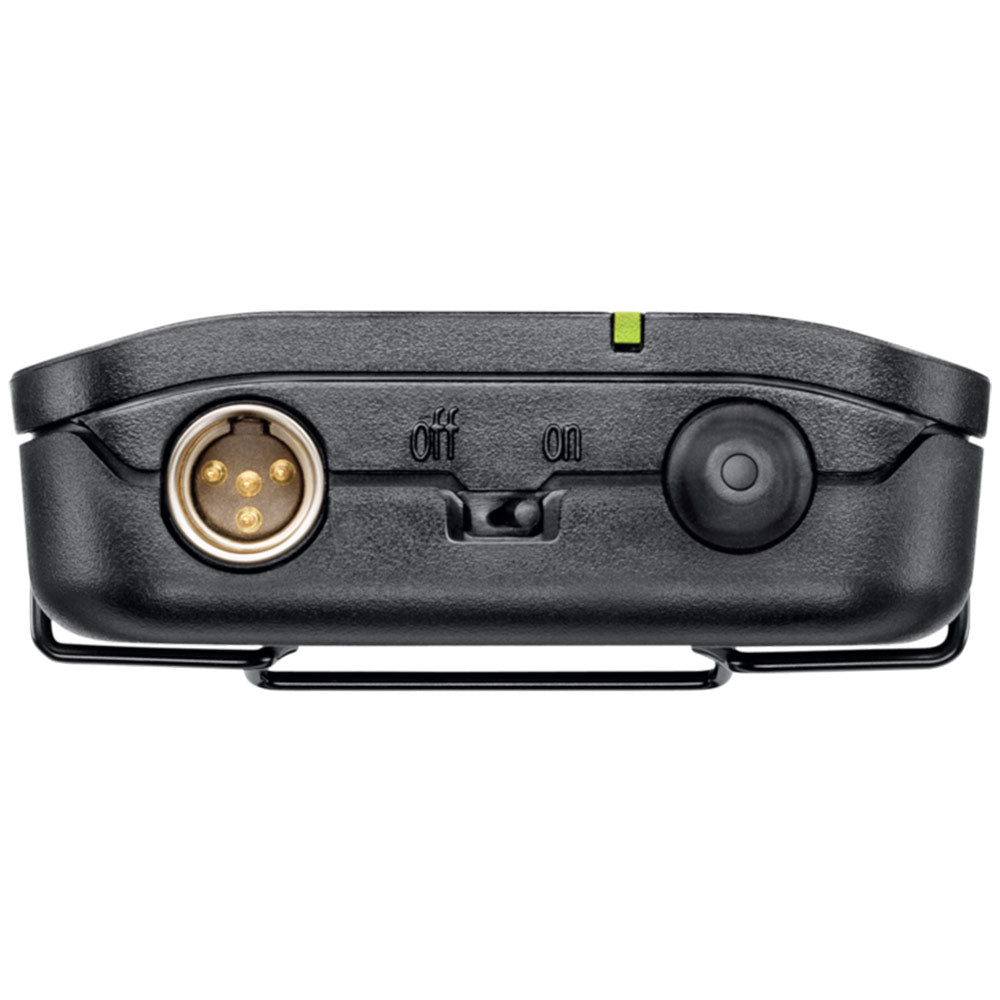

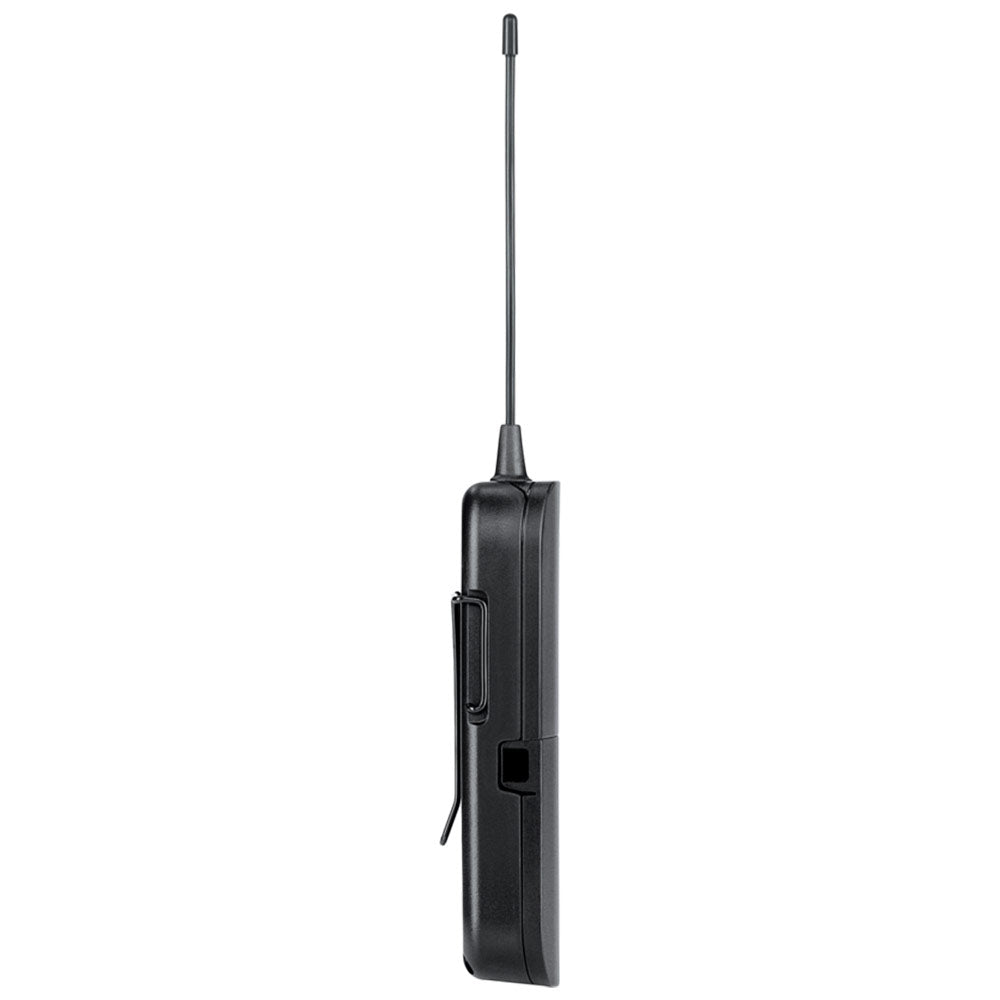

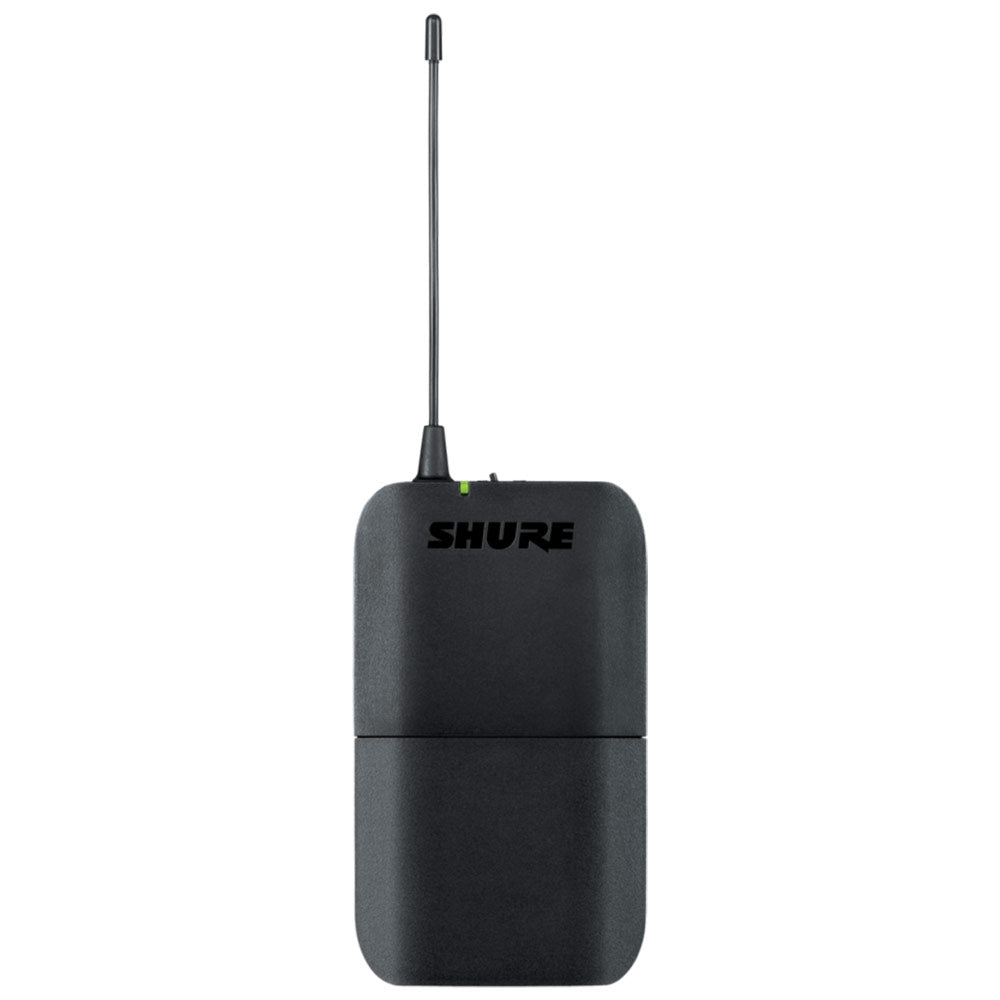

Shure BLX1 Wireless Bodypack Transmitter (H11 Band - 572-596 MHz)

  • Dale #:

    SHUR-BLX1H11
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

Making the jump to wireless should be liberating, not challenging. Shure BLX Wireless systems combine professional quality sound with simple setup and an intuitive interface, for performance you can trust right out of the box. Precision built and available in a variety of handheld, lavalier, inst... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Making the jump to wireless should be liberating, not challenging. Shure BLX Wireless systems combine professional quality sound with simple setup and an intuitive interface, for performance you can trust right out of the box. Precision built and available in a variety of handheld, lavalier, instrument and headset configurations, it's the most accessible way to own the stage.

Features:

  • Power and battery status LED
  • Adjustable gain control
  • Quick & easy frequency matching
  • 2 AA batteries (included) provide up to 14 hours of continuous use
  • 300 feet (91 m) operating range (line of sight)
  • TA4 connector for many Shure cables and microphones

Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it's the most accessible way to own the stage.

BLX System General Features:

  • Up to 12 compatible systems per frequency band (region dependent)
  • One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference
  • Up to 14 hours of continuous use from 2 AA batteries (included)
  • Up to 300 ft (91 m) operating range for total wireless freedom
  • XLR and 1/4" output connectors
  • Rugged and reliable Shure construction
  • Legendary Shure microphones options featuring integrated microphone capsule design

More +

Product Specs

Working Range91 m (300 ft) Line of Sight
Note: Actual range depends on RF signal absorption, reflection and interference.
Audio Frequency Response50 to 15,000 Hz
Note: Dependent on microphone type
Total Harmonic DistortionRef. ±33 kHz deviation with 1 kHz tone
0.5%, typical
Dynamic Range100 dB, A-weighted, typical
Operating Temperature-18°C (0°F) to 57°C (135°F)
Note: Battery characteristics may limit this range.
PolarityPositive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the 1/4-inch output.
Gain Adjustment Range26 dB
Input Impedance1 M
RF Transmitter Output10 mW, typical varies by region
Output ConnectorTA4
Dimensions110 mm x 64 mm x 21 mm (H x W x D)
Weight75 g (2.6 oz.), without batteries
HousingMolded ABS
Power Requirements2 LR6 AA batteries, 1.5 V, alkaline
Battery Lifeup to 14 hours (alkaline)
