DALE SKU # SHUR-GLXD16PLUSZ3

Shure GLXD16+ - Digital Wireless Guitar Pedal System

Sale price$599.00 Regular price$749.00
Save $150.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

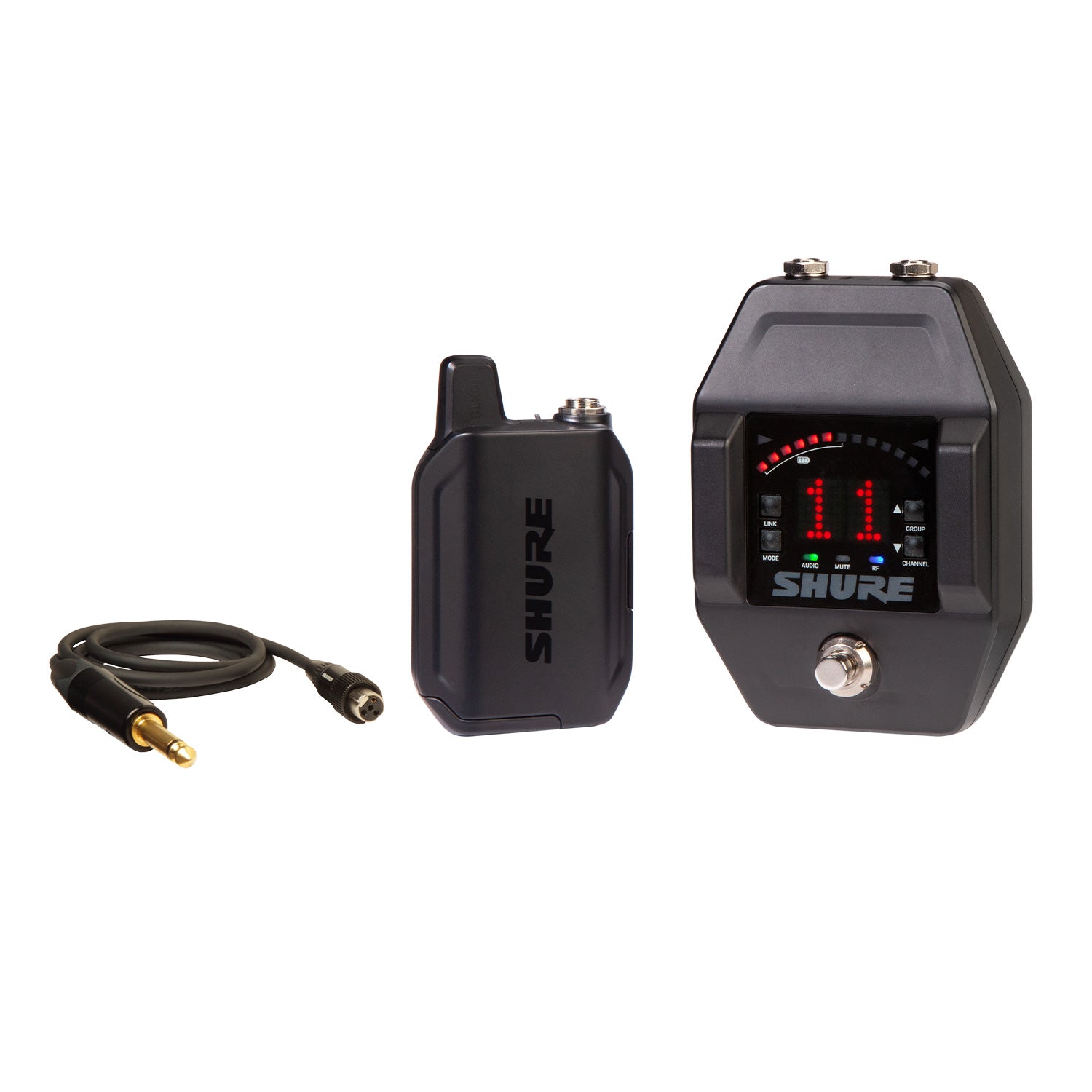

    The new GLX-D+ Wireless Guitar Pedal System features the WA305 Premium Guitar Cable, the GLXD1+ Digital Wireless Bodypack transmitter, and the GLXD6+ Guitar Pedal receiver. Go wireless without compromising your tone or complicating your rig. The new GLXD6+ Dual Band Guitar Pedal receiver is engineered in a rugged metal design that can be completely integrated into your pedalboard (9V DC power). The included tuner with a new ¼" guitar input makes it easy to go from practice to live performance, whether you choose to plug directly into the pedal or go wireless. Easily switch between two or more transmitters linked to a single receiver.

    Features:

    • Exceptional, Digital Wireless Audio: Always come through clear and captivate the audience with superior, transparent audio. GLX-D+ Dual Band intelligently avoids interference to give you total, reliable wireless freedom. Available in rack-mount, tabletop and guitar pedal receiver options with a wide selection of lavalier, headset and handheld microphone choices - including the legendary SM58®.
    • New Dual Band Wireless Technology provides reliable and consistent signal by automatically scanning both 2.4 and 5.8GHz bands and selecting the cleanest channel. More than double the bandwidth ensures that dropouts won't stop the show.
    • Easy, Worry-free Setup and Management: Transmitters and receivers pair up automatically making setup as simple as possible - plug in and you're ready to go. Smart frequency management continuously monitors the spectrum and seamlessly moves to a clean channel in case any interference appears. Go wireless without complication.
    • Smart Rechargeability: End battery life uncertainty with GLX-D+ Dual Band rechargeable battery. With up to 12 hours of runtime, the new lithium-Ion SB904 battery can be charged directly on the receiver or via USB-C connector on the handheld microphone or bodypack. A quick charge feature allows for 1.5 hours of use from a 15 minutes charge.
    • Rock-Solid RF Performance for Multiple System Installations: GLX-D+ Dual Band Wireless provides improved RF performance, antenna distribution and automatic frequency management for up to 11 half-rack systems in typical environments (16 under optimal conditions). Separately available Frequency Manager (GLXD+FM) required.
    • License-Free Frequency Range allows you to travel without worrying about licenses, frequency coordination and other technical hurdles.


    GLX-D+ Dual Band Digital Wireless is the perfect solution for musicians and presenters who want to go wireless with confidence, and without complexity. Every aspect of its operation is managed automatically and with total reliability, allowing you to focus on your performance. With new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling the available bandwidth while also intelligently avoiding interference for reliable, dropout-free audio.

    Featuring smart rechargeability with up to 12 hours of runtime (improved from prior generation GLX-D), the included lithium-ion battery can be charged multiple ways and offers quick charge capabilities. Available with multiple legendary microphone options (including the SM58®) in tabletop, half-rack and guitar pedal system configurations. When combined with Frequency Manager and directional antenna accessories (both sold separately), the rack-mount receiver systems are ideal for small and medium installations where a larger number of channels is needed.

    Tuning Bandwidth 2400 - 2483.5 MHz and 5725 - 5850 MHz
    Transmit Mode Shure proprietary digital
    RF Output Power 10 mW E.I.R.P. maximum
    Operating Temperature Range 0¡C (32¡F) to 50¡C (122¡F)
    Polarity Positive voltage applied to the tip of the guitar cable phone plug produces positive voltage at the tip of the high impedance _-inch output
    Audio Frequency Response 20 Hz Ð 20 kHz
    Dynamic Range 120 dB, A-weighted
    RF Sensitivity -88 dBm, typical
    Total Harmonic Distortion 0.02%, typical
    Battery Life Up to 11.5 hours
    Guitar Tuner Tuning Accuracy ±1 cent
    Tuning Range F#0 to C8
    Channel Count Up to 4 typical, 8 optimal
    2.4 GHz only: Up to 4 typical, 5 optimal
    Power Requirements 9 V Ð 15 V, 400 mA (efficiency level VI power supply)
    Antenna Type Dual-band PIFA
    Dimensions 5.4 x 3.7 x 1.89 in. (138 x 95 x 48 mm)
    Weight 19.75 oz (560 g)
    Housing Aluminum alloy
    Spurious Rejection Over 35 dB, typical
    Gain Adjustment Range -20 to 40 dB in 1 dB steps
    Audio Input Modes Tuner or True Bypass
    AUDIO OUTPUT
    Configuration 6.35 mm (1/4") output: Impedance balanced
    Impedance 6.35 mm (1/4") output: 100 ? (50 ?, Unbalanced)
    Maximum Audio Output Level 6.35 mm (1/4") connector (into 3 k? load)
    +8.5 dBV
    Pin Assignments 6.35 mm (1/4") connector
    Tip=audio, Ring=no audio, Sleeve=ground
    RECEIVER ANTENNA INPUT
    Impedance 50 ?
    Maximum Input Level -20 dBm
    GLX1D+ Bodypack Transmitter
    Power Requirements Shure Rechargeable Li-Ion Battery SB904
    USB Power Supply (US/Canada) SBC10-USB15WSUSTWJ
    Antenna Type Dual-band Internal Monopole
    Dimensions 4.5 x 2.6 x 1.1 in. (115 x 66.94 x 28.51 mm), (H x W x D)
    Weight 5.4 oz (153.1 g), without battery
    Housing Aluminum alloy, ABS plastic
    Input Impedance 900 k?
    TX INPUT Connector 4-pin male mini connector (TA4M)
    Maximum Input Level +8.4 dBV (7.5 Vp-p)
    Configuration Unbalanced
    Pin Assignments 1 Ground (cable shield)
    2 + 5 V bias
    3 Audio
    4 Tied through active load to ground (on instrument adapter cable, pin 4 floats)

    The new GLX-D+ Wireless Guitar Pedal System features the WA305 Premium Guitar Cable, the GLXD1+ Digital Wireless Bodypack transmitter, and the GLXD6+ Guitar Pedal receiver. Go wireless without compromising your tone or complicating your rig. The new GLXD6+ Dual Band Guitar Pedal receiver is engineered in a rugged metal design that can be completely integrated into your pedalboard (9V DC power). The included tuner with a new ¼" guitar input makes it easy to go from practice to live performance, whether you choose to plug directly into the pedal or go wireless. Easily switch between two or more transmitters linked to a single receiver.

    Features:

    • Exceptional, Digital Wireless Audio: Always come through clear and captivate the audience with superior, transparent audio. GLX-D+ Dual Band intelligently avoids interference to give you total, reliable wireless freedom. Available in rack-mount, tabletop and guitar pedal receiver options with a wide selection of lavalier, headset and handheld microphone choices - including the legendary SM58®.
    • New Dual Band Wireless Technology provides reliable and consistent signal by automatically scanning both 2.4 and 5.8GHz bands and selecting the cleanest channel. More than double the bandwidth ensures that dropouts won't stop the show.
    • Easy, Worry-free Setup and Management: Transmitters and receivers pair up automatically making setup as simple as possible - plug in and you're ready to go. Smart frequency management continuously monitors the spectrum and seamlessly moves to a clean channel in case any interference appears. Go wireless without complication.
    • Smart Rechargeability: End battery life uncertainty with GLX-D+ Dual Band rechargeable battery. With up to 12 hours of runtime, the new lithium-Ion SB904 battery can be charged directly on the receiver or via USB-C connector on the handheld microphone or bodypack. A quick charge feature allows for 1.5 hours of use from a 15 minutes charge.
    • Rock-Solid RF Performance for Multiple System Installations: GLX-D+ Dual Band Wireless provides improved RF performance, antenna distribution and automatic frequency management for up to 11 half-rack systems in typical environments (16 under optimal conditions). Separately available Frequency Manager (GLXD+FM) required.
    • License-Free Frequency Range allows you to travel without worrying about licenses, frequency coordination and other technical hurdles.


    GLX-D+ Dual Band Digital Wireless is the perfect solution for musicians and presenters who want to go wireless with confidence, and without complexity. Every aspect of its operation is managed automatically and with total reliability, allowing you to focus on your performance. With new Dual Band Wireless Technology, GLX-D+ can operate in both 2.4 and 5.8GHz, more than doubling the available bandwidth while also intelligently avoiding interference for reliable, dropout-free audio.

    Featuring smart rechargeability with up to 12 hours of runtime (improved from prior generation GLX-D), the included lithium-ion battery can be charged multiple ways and offers quick charge capabilities. Available with multiple legendary microphone options (including the SM58®) in tabletop, half-rack and guitar pedal system configurations. When combined with Frequency Manager and directional antenna accessories (both sold separately), the rack-mount receiver systems are ideal for small and medium installations where a larger number of channels is needed.

    Tuning Bandwidth 2400 - 2483.5 MHz and 5725 - 5850 MHz
    Transmit Mode Shure proprietary digital
    RF Output Power 10 mW E.I.R.P. maximum
    Operating Temperature Range 0¡C (32¡F) to 50¡C (122¡F)
    Polarity Positive voltage applied to the tip of the guitar cable phone plug produces positive voltage at the tip of the high impedance _-inch output
    Audio Frequency Response 20 Hz Ð 20 kHz
    Dynamic Range 120 dB, A-weighted
    RF Sensitivity -88 dBm, typical
    Total Harmonic Distortion 0.02%, typical
    Battery Life Up to 11.5 hours
    Guitar Tuner Tuning Accuracy ±1 cent
    Tuning Range F#0 to C8
    Channel Count Up to 4 typical, 8 optimal
    2.4 GHz only: Up to 4 typical, 5 optimal
    Power Requirements 9 V Ð 15 V, 400 mA (efficiency level VI power supply)
    Antenna Type Dual-band PIFA
    Dimensions 5.4 x 3.7 x 1.89 in. (138 x 95 x 48 mm)
    Weight 19.75 oz (560 g)
    Housing Aluminum alloy
    Spurious Rejection Over 35 dB, typical
    Gain Adjustment Range -20 to 40 dB in 1 dB steps
    Audio Input Modes Tuner or True Bypass
    AUDIO OUTPUT
    Configuration 6.35 mm (1/4") output: Impedance balanced
    Impedance 6.35 mm (1/4") output: 100 ? (50 ?, Unbalanced)
    Maximum Audio Output Level 6.35 mm (1/4") connector (into 3 k? load)
    +8.5 dBV
    Pin Assignments 6.35 mm (1/4") connector
    Tip=audio, Ring=no audio, Sleeve=ground
    RECEIVER ANTENNA INPUT
    Impedance 50 ?
    Maximum Input Level -20 dBm
    GLX1D+ Bodypack Transmitter
    Power Requirements Shure Rechargeable Li-Ion Battery SB904
    USB Power Supply (US/Canada) SBC10-USB15WSUSTWJ
    Antenna Type Dual-band Internal Monopole
    Dimensions 4.5 x 2.6 x 1.1 in. (115 x 66.94 x 28.51 mm), (H x W x D)
    Weight 5.4 oz (153.1 g), without battery
    Housing Aluminum alloy, ABS plastic
    Input Impedance 900 k?
    TX INPUT Connector 4-pin male mini connector (TA4M)
    Maximum Input Level +8.4 dBV (7.5 Vp-p)
    Configuration Unbalanced
    Pin Assignments 1 Ground (cable shield)
    2 + 5 V bias
    3 Audio
    4 Tied through active load to ground (on instrument adapter cable, pin 4 floats)
