Description

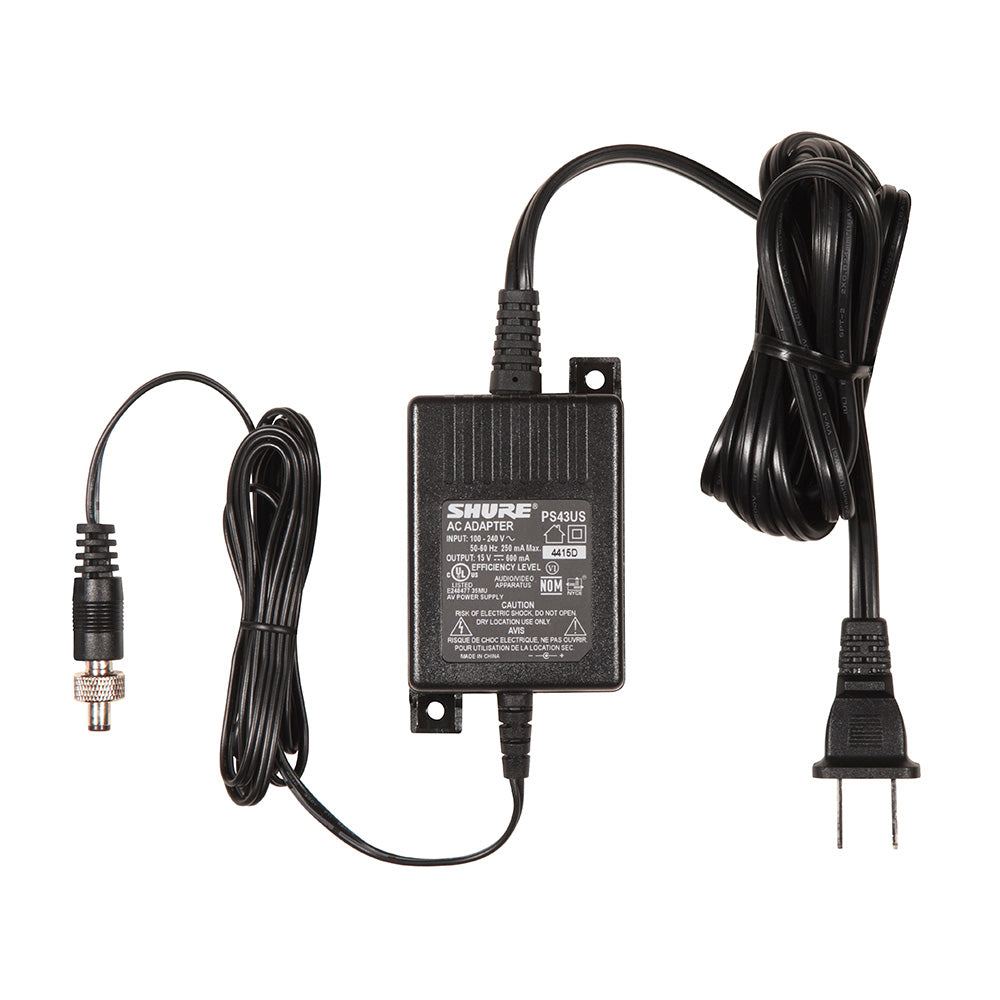

Power supply for many Shure wireless products, replaces PS42US. Rated at 15 volts DC, 600 mA.
Rated input | 100 - 240 VAC, 50-60 Hz, 250 mA maximum |
Rated output | 15 VDC, 600 mA |
Leakage current | less than 30 uA |
Input cable | 72 inches (1.8 meter) long; two-prong plug North American A.C. plug |
Output cable | 72 inches (1.8 meter) long; Locking DC Coax plug |
DC Coaxial Plug | straight female; locking; 2.1 mm inside diameter; 5.5 mm outside diameter; tip/center = positive; sleeve = negative |
Dimensions of power supply plastic enclosure | 2.7" long x 2.1" wide x 1.1" thick; 69 mm x 53 mm x 28 mm; two mounting tabs are provided |
Power supply for many Shure wireless products, replaces PS42US. Rated at 15 volts DC, 600 mA.
Rated input | 100 - 240 VAC, 50-60 Hz, 250 mA maximum |
Rated output | 15 VDC, 600 mA |
Leakage current | less than 30 uA |
Input cable | 72 inches (1.8 meter) long; two-prong plug North American A.C. plug |
Output cable | 72 inches (1.8 meter) long; Locking DC Coax plug |
DC Coaxial Plug | straight female; locking; 2.1 mm inside diameter; 5.5 mm outside diameter; tip/center = positive; sleeve = negative |
Dimensions of power supply plastic enclosure | 2.7" long x 2.1" wide x 1.1" thick; 69 mm x 53 mm x 28 mm; two mounting tabs are provided |
