Shure PS60US Switching Power Supply for Active Antenna Systems
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

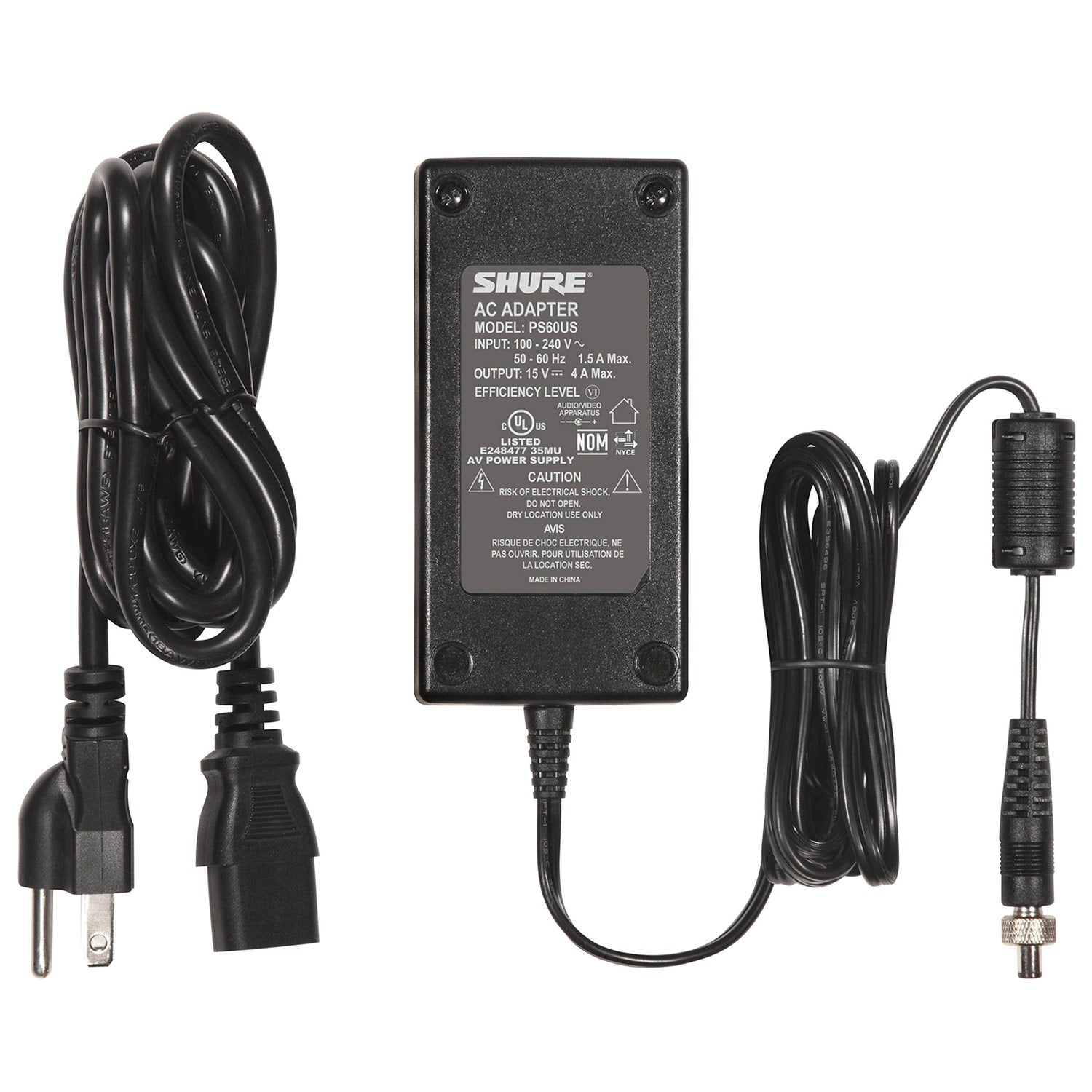

The PS60US is a 15-volt DC power supply with locking coaxial plug, and is for Shure products such as their active antenna distributors. It is also compatible with any Shure product previously requiring a PS45US.
| Rated input | 100 - 240 VAC, 50-60 Hz, 1.3 A maximum |
| Rated output | 15 VDC, 4 A |
| Input cable | Removable, 72 inches (1.8 meter) long; three-prong North American A.C. plug, three prong IEC connector |
| Output cable | 72 inches (1.8 meter) long; Locking DC Coax plug |
| DC Coaxial Plug | straight female; locking; 2.5 mm inside diameter; 5.5 mm outside diameter; tip/center = positive; sleeve = negative |
| Dimensions of power supply plastic enclosure | 4.7" long x 2.4" wide x 1.4" thick; 120 mm x 60 mm x 37 mm |
The PS60US is a 15-volt DC power supply with locking coaxial plug, and is for Shure products such as their active antenna distributors. It is also compatible with any Shure product previously requiring a PS45US.
| Rated input | 100 - 240 VAC, 50-60 Hz, 1.3 A maximum |
| Rated output | 15 VDC, 4 A |
| Input cable | Removable, 72 inches (1.8 meter) long; three-prong North American A.C. plug, three prong IEC connector |
| Output cable | 72 inches (1.8 meter) long; Locking DC Coax plug |
| DC Coaxial Plug | straight female; locking; 2.5 mm inside diameter; 5.5 mm outside diameter; tip/center = positive; sleeve = negative |
| Dimensions of power supply plastic enclosure | 4.7" long x 2.4" wide x 1.4" thick; 120 mm x 60 mm x 37 mm |
