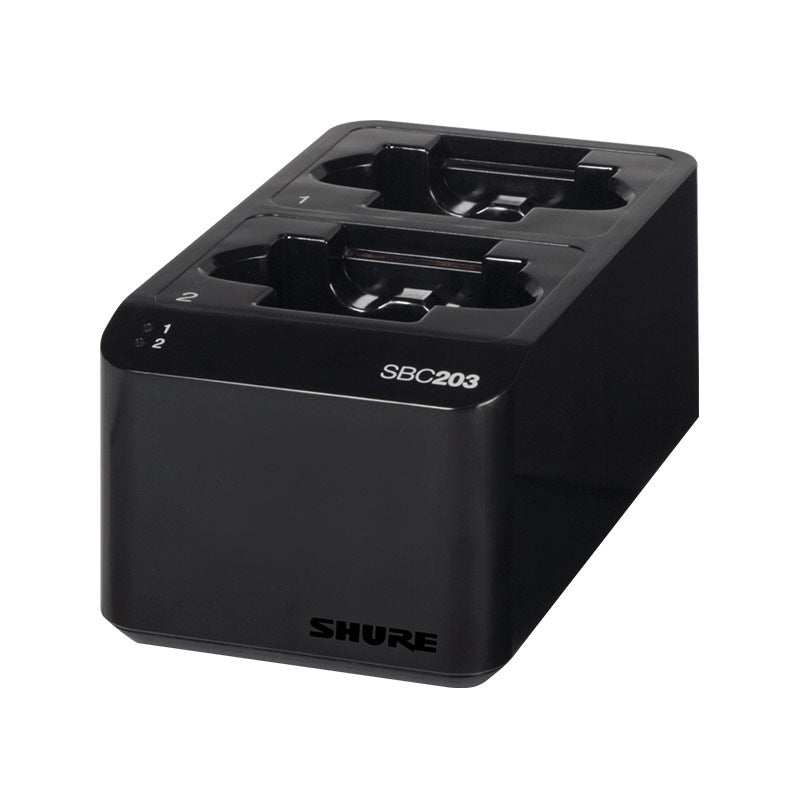

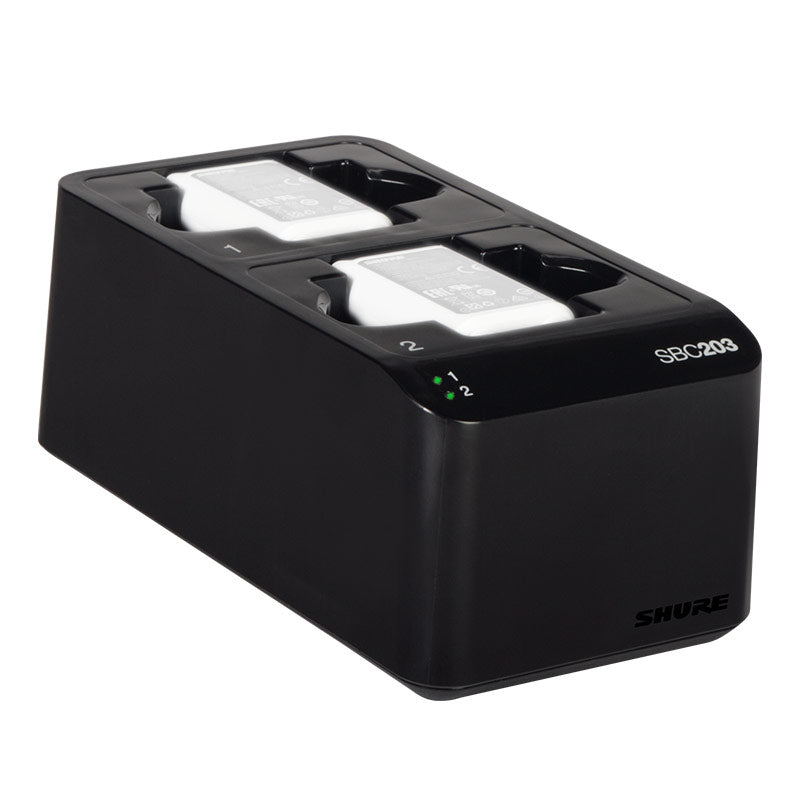

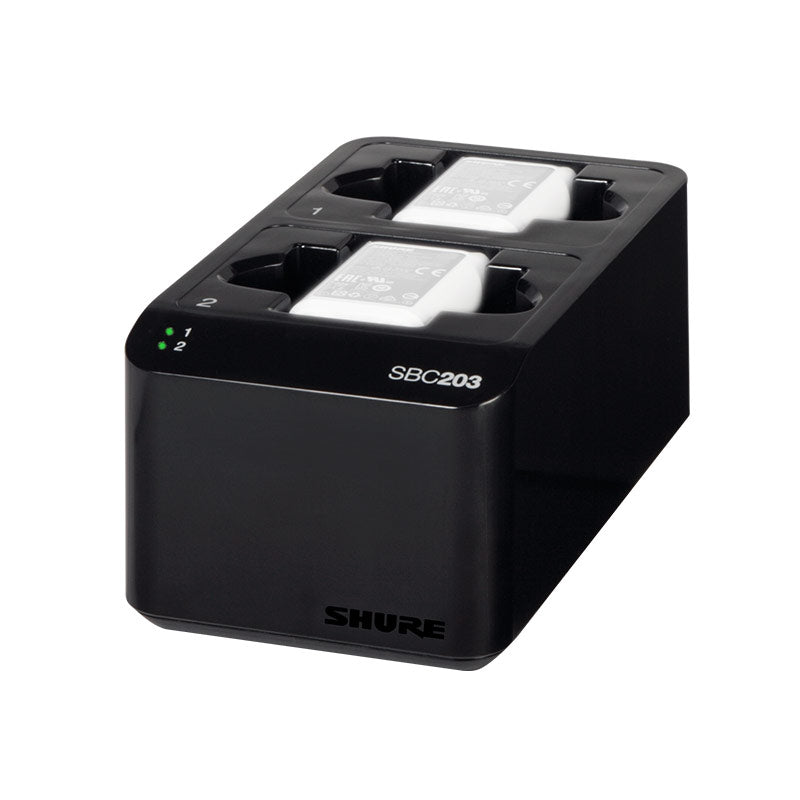

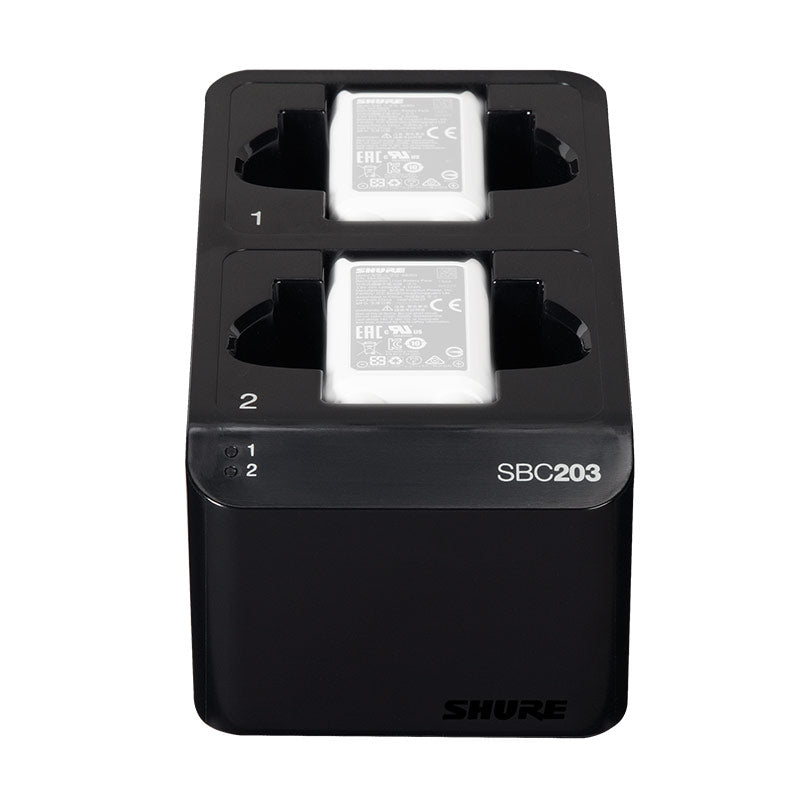

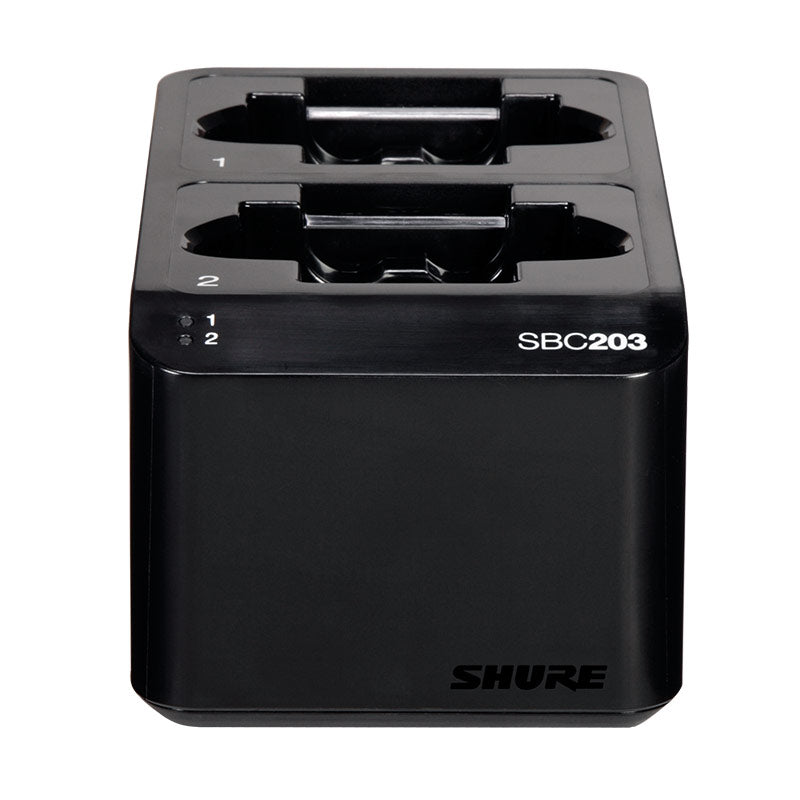

Shure SBC203 Dual-Docking Recharging Station for SB903 Batteries
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
This dual-docking recharging station charges two SB903 lithium-ion batteries in or out of their transmitters. Built to charge two batteries, two body pack transmitters, two handheld transmitters or any pairing of two SLX-D Series transmitters or SB903 batteries.
Features:
- Compatible with all Shure SLX-D Series wireless transmitters as well as the SB903 rechargeable battery.
- Charges 2 batteries from 0% to 50% capacity within 1 hour 15 minutes (providing 4 hours of runtime), or to 100% capacity within 2 hours and 30 minutes (providing a full 8 hours of runtime).
- Automatic RF/Audio mute of docked transmitters
- Secure and tidy installation: Optionally surface-mountable, while the included link plate also allows multiple SBC203 units to be connected together.
- Sleek design with heavy-duty ABS construction.
- Powered via included power supply and/or USB-C cable.
| Charge Current | 625 mA or 250 mA Lower current used when using another power source, or operating between 32 deg. F and 50 deg. F (0 deg. C and 10 deg. C) |
| Charge Time | 50%: 1 hour, 15 minutes 100%: 2 hours, 30 minutes |
| External Power Supply | SBC10-USB15W or SBC10-USB15WS |
| Power Requirements | 5 VDC, 3 A max |
| Charging Temperature Range for Battery | 32 deg. F to 113 deg. F (0 deg. C to 45 deg. C) |
| Dimensions (H x W x L) | 2.6 x 3.9 x6.5 in 66 x 99 x 165 mm |
| Weight | 10.0 oz (284 g) |
| Housing | ABS |
| POWER SUPPLY | |
| Input Voltage Range | 100 to 240 VAC |
| Operating Frequency | 50 to 60 Hz |
| Maximum Input Power | 0.6 A at 100 VAC full load |
| Output Voltage | 4.75 to 5.25 VDC |
| Maximum Output Power | 3.0 A at 5 V |
| Operating Temperature Range | 32 deg. F to 140 deg. F (0 deg. C to 60 deg. C) |
This dual-docking recharging station charges two SB903 lithium-ion batteries in or out of their transmitters. Built to charge two batteries, two body pack transmitters, two handheld transmitters or any pairing of two SLX-D Series transmitters or SB903 batteries.
Features:
- Compatible with all Shure SLX-D Series wireless transmitters as well as the SB903 rechargeable battery.
- Charges 2 batteries from 0% to 50% capacity within 1 hour 15 minutes (providing 4 hours of runtime), or to 100% capacity within 2 hours and 30 minutes (providing a full 8 hours of runtime).
- Automatic RF/Audio mute of docked transmitters
- Secure and tidy installation: Optionally surface-mountable, while the included link plate also allows multiple SBC203 units to be connected together.
- Sleek design with heavy-duty ABS construction.
- Powered via included power supply and/or USB-C cable.
| Charge Current | 625 mA or 250 mA Lower current used when using another power source, or operating between 32 deg. F and 50 deg. F (0 deg. C and 10 deg. C) |
| Charge Time | 50%: 1 hour, 15 minutes 100%: 2 hours, 30 minutes |
| External Power Supply | SBC10-USB15W or SBC10-USB15WS |
| Power Requirements | 5 VDC, 3 A max |
| Charging Temperature Range for Battery | 32 deg. F to 113 deg. F (0 deg. C to 45 deg. C) |
| Dimensions (H x W x L) | 2.6 x 3.9 x6.5 in 66 x 99 x 165 mm |
| Weight | 10.0 oz (284 g) |
| Housing | ABS |
| POWER SUPPLY | |
| Input Voltage Range | 100 to 240 VAC |
| Operating Frequency | 50 to 60 Hz |
| Maximum Input Power | 0.6 A at 100 VAC full load |
| Output Voltage | 4.75 to 5.25 VDC |
| Maximum Output Power | 3.0 A at 5 V |
| Operating Temperature Range | 32 deg. F to 140 deg. F (0 deg. C to 60 deg. C) |
