Shure UA845UWB Ultra Wide Band Antenna Distribution System
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

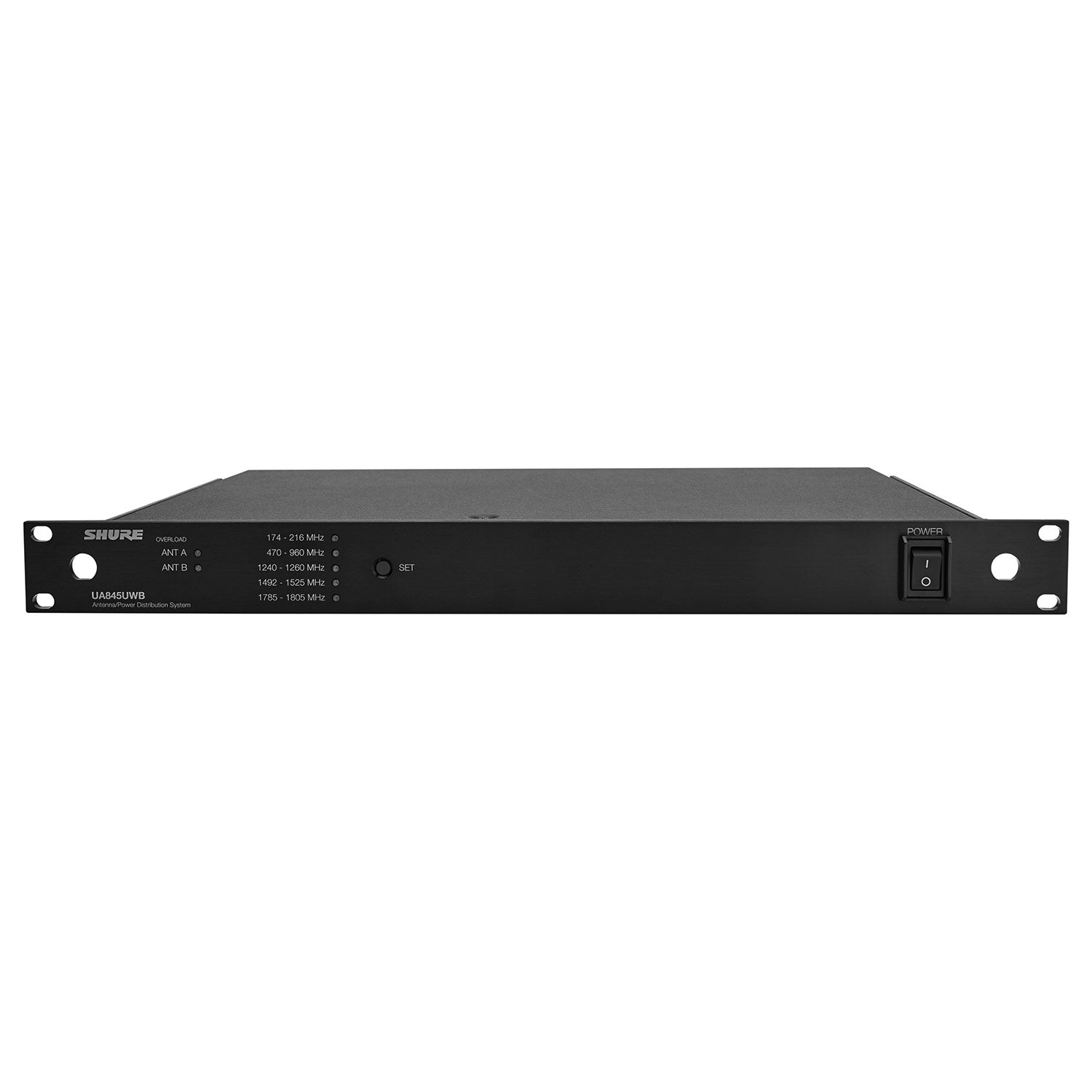

The Shure Model UA845UWB Antenna Distribution System allows four receivers to use the same set of antennas. The cascade connectors allow connections to a fifth receiver or a second UA845UWB. There are also power connectors for distributing power to each receiver. RF signal amplification compensates for insertion loss from splitting the antenna input to multiple outputs. A button on the front panel switches between one of five frequency bands from 174 to 1805MHz.
Features:
- 5 selectable frequency ranges
- Antenna A and B input overload LED indicators
- Five-way RF signal output
- Support Axient Digital, QLX-D®, ULX®, ULX-D®, SLX®, and BLX® (BLX4R only) receivers
- Front-mounting antenna hardware
- Rack-mounting hardware
- Internal power supply
- 4 DC power feeds for receivers (15V, 2.5A max)
- DC outputs for antenna bias (12V, 300mA max)
What's Included:
- 1 UA845UWB Antenna/Power Distribution System
- 4 Locking DC power cables (for ULXD4, ULXP4)
- 4 Non-locking DC power cables (QLXD4, SLX4, BLX4R)
- Ten 22 in. BNC cables
- Two 6 ft. BNC cables
- 2 Bulkhead adaptors
- 1 AC Power Cable (IEC power)
- 1 Pig-tail AC Cable (for the second UA845UWB or UR4, ULXD4D, ULXD4Q, AD4D, AD4Q receiver)
- 1 Rack mount Hardware kit
- 1 Literature Package
Front Panel Band Selections:
- 174 – 216 MHz
- 470 – 960 MHz
- 1240 – 1260 MHz
- 1492 – 1525 MHz
- 1785 – 1805 MHz
| Carrier Frequency Range | Band 1 174 to 216 MHz Band 2 470 to 960 MHz Band 3 1240 to 1260 MHz Band 4 1492 to 1525 MHz Band 5 1785 to 1805 MHz |
| Distributed Output Level (Gain) 0 dB, typical |
Receiver Antenna Input, Output Ports1 to 4 -2 dB to +2 dB Receiver Antenna Input, Cascade Output -1 dB to +1 dB |
| Output Connector Isolation | >25 dB, typical |
| Third-order Overload Intercept Point (OIP3) | 24 dBm, typical |
| Input-Output AC Line Voltage, Switched | 100 to 240 V AC, 50/60 Hz |
| DC Output | 15 V DC, 4 Connectors |
| Output Current, Combined total from all DC outputs | 2.5 A, maximum |
| Impedance | 50 ½ |
| Operating Temperature Range | -18¡C (0¡F) to 63¡C (145¡F) |
| Dimensions | 44.5 x 482.6 x 295.3 mm H x W x D (1.75 x 19 x 11.6in.) |
| Net Weight | 3.32 kg (7.3 lbs) |
| Connector Type | BNC |
| Power Consumption V AC | Typical without powered antenna attached or receivers connected to the DC outputs |
| Wattage Consumption | 14.1 W per unit |
The Shure Model UA845UWB Antenna Distribution System allows four receivers to use the same set of antennas. The cascade connectors allow connections to a fifth receiver or a second UA845UWB. There are also power connectors for distributing power to each receiver. RF signal amplification compensates for insertion loss from splitting the antenna input to multiple outputs. A button on the front panel switches between one of five frequency bands from 174 to 1805MHz.
Features:
- 5 selectable frequency ranges
- Antenna A and B input overload LED indicators
- Five-way RF signal output
- Support Axient Digital, QLX-D®, ULX®, ULX-D®, SLX®, and BLX® (BLX4R only) receivers
- Front-mounting antenna hardware
- Rack-mounting hardware
- Internal power supply
- 4 DC power feeds for receivers (15V, 2.5A max)
- DC outputs for antenna bias (12V, 300mA max)
What's Included:
- 1 UA845UWB Antenna/Power Distribution System
- 4 Locking DC power cables (for ULXD4, ULXP4)
- 4 Non-locking DC power cables (QLXD4, SLX4, BLX4R)
- Ten 22 in. BNC cables
- Two 6 ft. BNC cables
- 2 Bulkhead adaptors
- 1 AC Power Cable (IEC power)
- 1 Pig-tail AC Cable (for the second UA845UWB or UR4, ULXD4D, ULXD4Q, AD4D, AD4Q receiver)
- 1 Rack mount Hardware kit
- 1 Literature Package
Front Panel Band Selections:
- 174 – 216 MHz
- 470 – 960 MHz
- 1240 – 1260 MHz
- 1492 – 1525 MHz
- 1785 – 1805 MHz
| Carrier Frequency Range | Band 1 174 to 216 MHz Band 2 470 to 960 MHz Band 3 1240 to 1260 MHz Band 4 1492 to 1525 MHz Band 5 1785 to 1805 MHz |
| Distributed Output Level (Gain) 0 dB, typical |
Receiver Antenna Input, Output Ports1 to 4 -2 dB to +2 dB Receiver Antenna Input, Cascade Output -1 dB to +1 dB |
| Output Connector Isolation | >25 dB, typical |
| Third-order Overload Intercept Point (OIP3) | 24 dBm, typical |
| Input-Output AC Line Voltage, Switched | 100 to 240 V AC, 50/60 Hz |
| DC Output | 15 V DC, 4 Connectors |
| Output Current, Combined total from all DC outputs | 2.5 A, maximum |
| Impedance | 50 ½ |
| Operating Temperature Range | -18¡C (0¡F) to 63¡C (145¡F) |
| Dimensions | 44.5 x 482.6 x 295.3 mm H x W x D (1.75 x 19 x 11.6in.) |
| Net Weight | 3.32 kg (7.3 lbs) |
| Connector Type | BNC |
| Power Consumption V AC | Typical without powered antenna attached or receivers connected to the DC outputs |
| Wattage Consumption | 14.1 W per unit |
