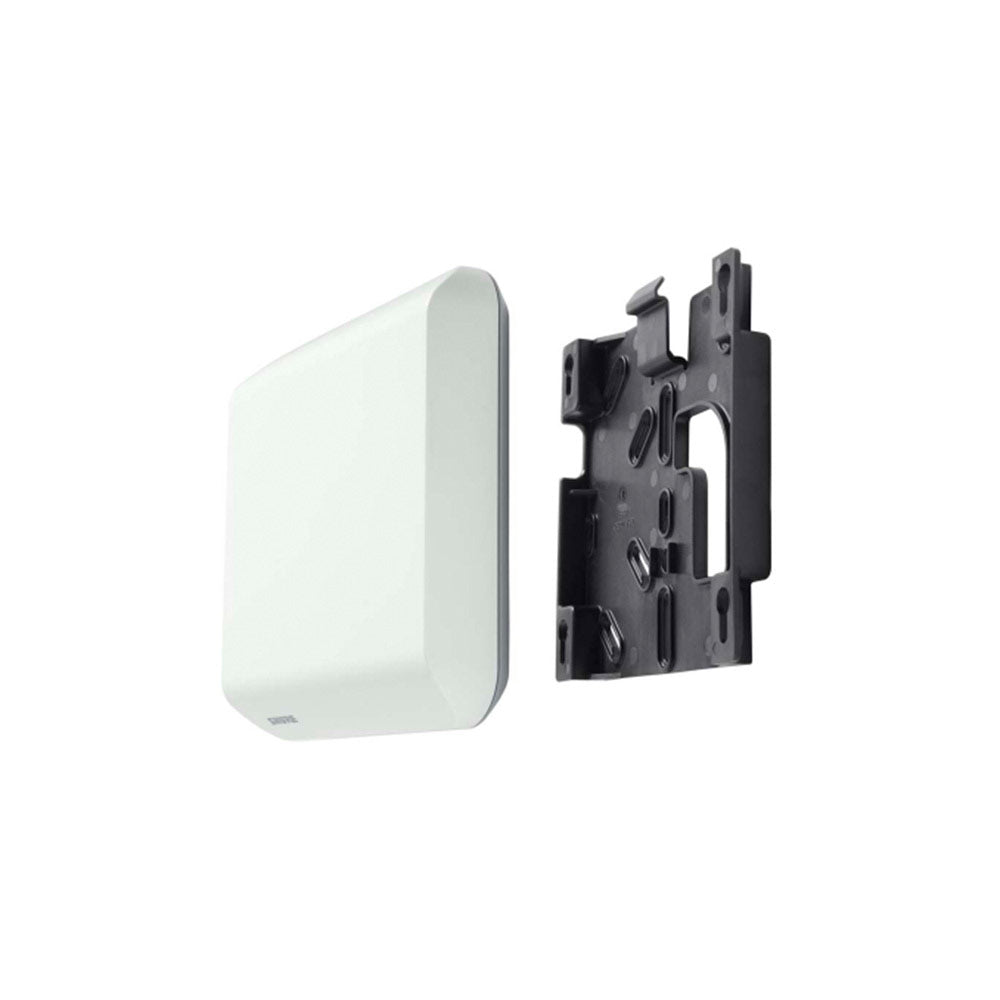

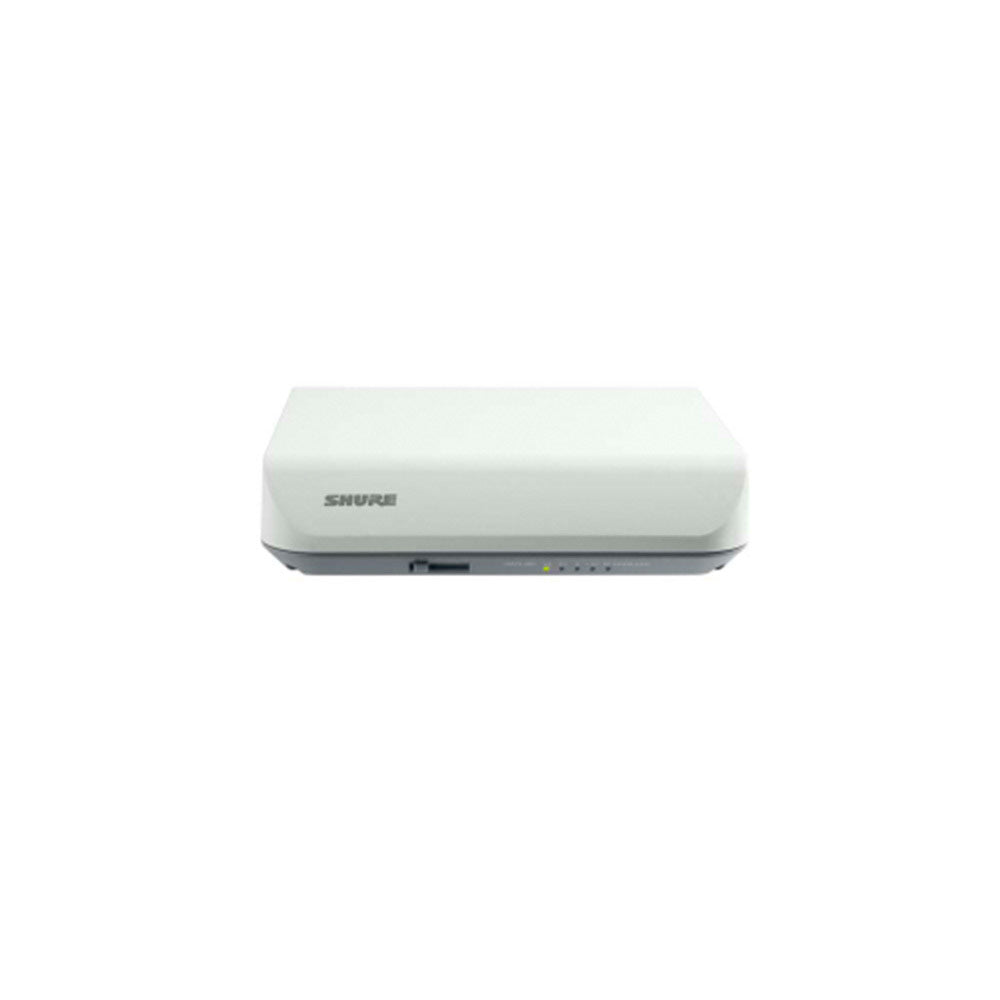

Shure UA864US Wall-mounted Wideband Antenna (470-698 mHz)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The UA864US antenna provides wideband RF coverage in a low-profile enclosure that mounts easily on a wall or ceiling. Works with ULX-D Digital, UHF-R®, and ULX® Wireless Systems, as well as Axient® Wireless Management Network. A neutral white housing allows the antenna to blend into corporate or classroom settings, and can be painted to match interior color schemes. The 4-position selectable gain switch provides attenuation and boost settings to optimize the antenna performance for varying transmitter distances and cable run lengths.
Features:
- Wideband UHF frequency range for compatibility with most receivers
- Up to 100 degrees coverage pattern (3dB beam width, region dependent)

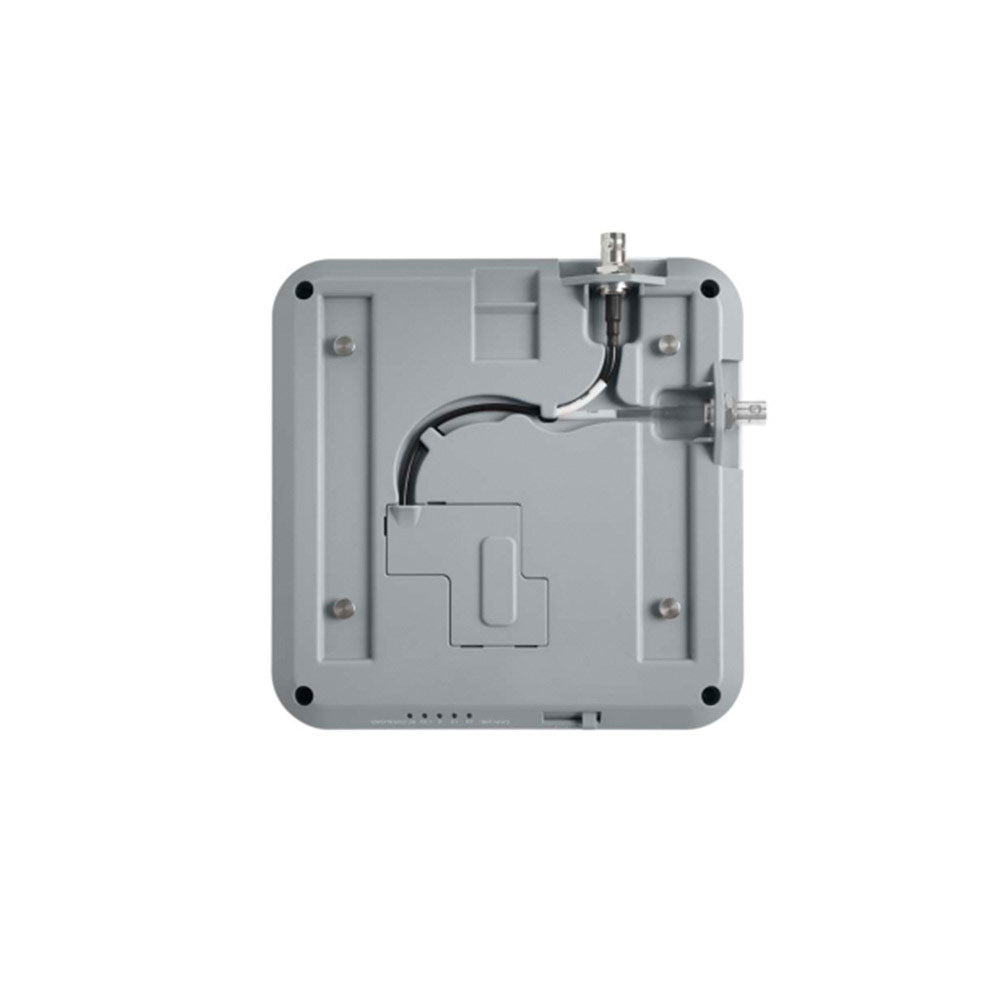

- Attached BNC cable for surface or through-wall cable routing
- Metal surface mounting capability
| Connector Type | BNC, Female |
| Impedance | 50 |
| Power Requirements[1] | 10 to 15 V DC bias from coaxial connection, 75 mA |
| RF Frequency Range | UA864US 470Ð698 MHz UA864LO 470Ð698 MHz UA864HI 530Ð790 MHz UA864A 650Ð952 MHz |
| Reception Pattern - 3 dB Beam Width at center frequency | UA864US 100 degrees UA864LO 100 degrees UA864HI 95 degrees UA864A 90 degrees |
| Third-order Overload Intercept Point (OIP3) | >30 dBm |
| Antenna Gain - On Axis, 0 dB Gain Setting at center frequency | UA864US 2.5 dBi UA864LO 2.5 dBi UA864HI 3.0 dBi UA864A 5.5 dBi |
| Signal Gain ±1 dB, Switchable | +10 dB 0 dB 10 dB 20 dB |
| RF Overload LED Threshold | 15 dBm |
| Dimensions | 176 x 176 x 51 mm (H x W x D) |
| Weight | 487 g (17.2 oz.) |
| Operating Temperature Range | 7¡C (20¡F) to 49¡C (120¡F) |
| Storage Temperature Range | 29¡C (-20¡F) to 74¡C (165¡F) |
| [1] 20, 10, 0 dB settings do not require power |
The UA864US antenna provides wideband RF coverage in a low-profile enclosure that mounts easily on a wall or ceiling. Works with ULX-D Digital, UHF-R®, and ULX® Wireless Systems, as well as Axient® Wireless Management Network. A neutral white housing allows the antenna to blend into corporate or classroom settings, and can be painted to match interior color schemes. The 4-position selectable gain switch provides attenuation and boost settings to optimize the antenna performance for varying transmitter distances and cable run lengths.
Features:
- Wideband UHF frequency range for compatibility with most receivers
- Up to 100 degrees coverage pattern (3dB beam width, region dependent)
- Attached BNC cable for surface or through-wall cable routing
- Metal surface mounting capability
| Connector Type | BNC, Female |
| Impedance | 50 |
| Power Requirements[1] | 10 to 15 V DC bias from coaxial connection, 75 mA |
| RF Frequency Range | UA864US 470Ð698 MHz UA864LO 470Ð698 MHz UA864HI 530Ð790 MHz UA864A 650Ð952 MHz |
| Reception Pattern - 3 dB Beam Width at center frequency | UA864US 100 degrees UA864LO 100 degrees UA864HI 95 degrees UA864A 90 degrees |
| Third-order Overload Intercept Point (OIP3) | >30 dBm |
| Antenna Gain - On Axis, 0 dB Gain Setting at center frequency | UA864US 2.5 dBi UA864LO 2.5 dBi UA864HI 3.0 dBi UA864A 5.5 dBi |
| Signal Gain ±1 dB, Switchable | +10 dB 0 dB 10 dB 20 dB |
| RF Overload LED Threshold | 15 dBm |
| Dimensions | 176 x 176 x 51 mm (H x W x D) |
| Weight | 487 g (17.2 oz.) |
| Operating Temperature Range | 7¡C (20¡F) to 49¡C (120¡F) |
| Storage Temperature Range | 29¡C (-20¡F) to 74¡C (165¡F) |
| [1] 20, 10, 0 dB settings do not require power |
