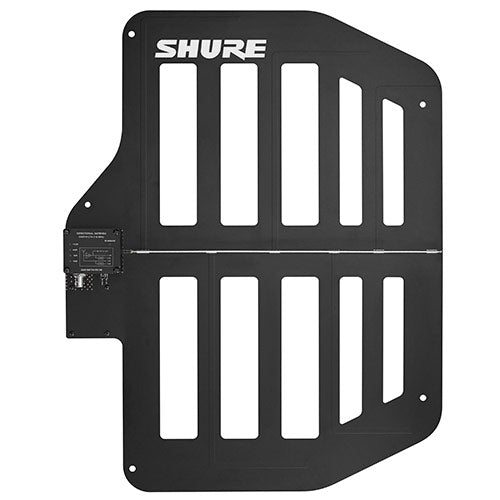

Shure UA874V Active Directional VHF Antenna (174-216 MHz)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
Compatible with all VHF Shure wireless receivers and VHF antenna distribution systems that provide 12 V DC bias. This antenna can also be powered by the UABIAST (an in-line adapter that supplies 12V DC bias power over coaxial BNC cable).
Features:
- Four-position gain selector switch (+12dB,+6dB, 0dB,-6dB)
- RF Overload indicator LED
- Low-noise signal amplifier that compensates for transmission loss in coaxial cable
- Integrated threaded adapter that mounts easily to microphones stands
- Five (5) mounting holes to hang antenna by or to tie down for additional support
| Connector Type | BNC, Female |
| Impedance | 50 ½ |
| Power Requirements | 10 to 15 V DC bias from coaxial connection, 75 mA |
| RF Frequency Range | 174Ð216 MHz |
| Reception Pattern | 3 dB Beam Width |
| Coverage Angle | 120 degrees |
| Third-order Overload Intercept Point (OIP3) | >30 dBm |
| Antenna Gain | On Axis: 3dBi |
| Signal Gain | ±1 dB, Switchable +12 dB +6 dB 0 dB _6 dB |
| RF Overload LED Threshold | _5 dBm RF overload LED does not operate for passive gain settings |
| Dimensions | 559 x 435 x 68 mm (H x W x D) |
| Net Weight | 765 g (27.0 oz.) |
| Operating Temperature Range | _18¡C (0¡F) to 63¡C (145¡F) |
| Storage Temperature Range | _29¡C (-20¡F) to 74¡C (165¡F) |
Compatible with all VHF Shure wireless receivers and VHF antenna distribution systems that provide 12 V DC bias. This antenna can also be powered by the UABIAST (an in-line adapter that supplies 12V DC bias power over coaxial BNC cable).
Features:
- Four-position gain selector switch (+12dB,+6dB, 0dB,-6dB)
- RF Overload indicator LED
- Low-noise signal amplifier that compensates for transmission loss in coaxial cable
- Integrated threaded adapter that mounts easily to microphones stands
- Five (5) mounting holes to hang antenna by or to tie down for additional support
| Connector Type | BNC, Female |
| Impedance | 50 ½ |
| Power Requirements | 10 to 15 V DC bias from coaxial connection, 75 mA |
| RF Frequency Range | 174Ð216 MHz |
| Reception Pattern | 3 dB Beam Width |
| Coverage Angle | 120 degrees |
| Third-order Overload Intercept Point (OIP3) | >30 dBm |
| Antenna Gain | On Axis: 3dBi |
| Signal Gain | ±1 dB, Switchable +12 dB +6 dB 0 dB _6 dB |
| RF Overload LED Threshold | _5 dBm RF overload LED does not operate for passive gain settings |
| Dimensions | 559 x 435 x 68 mm (H x W x D) |
| Net Weight | 765 g (27.0 oz.) |
| Operating Temperature Range | _18¡C (0¡F) to 63¡C (145¡F) |
| Storage Temperature Range | _29¡C (-20¡F) to 74¡C (165¡F) |
