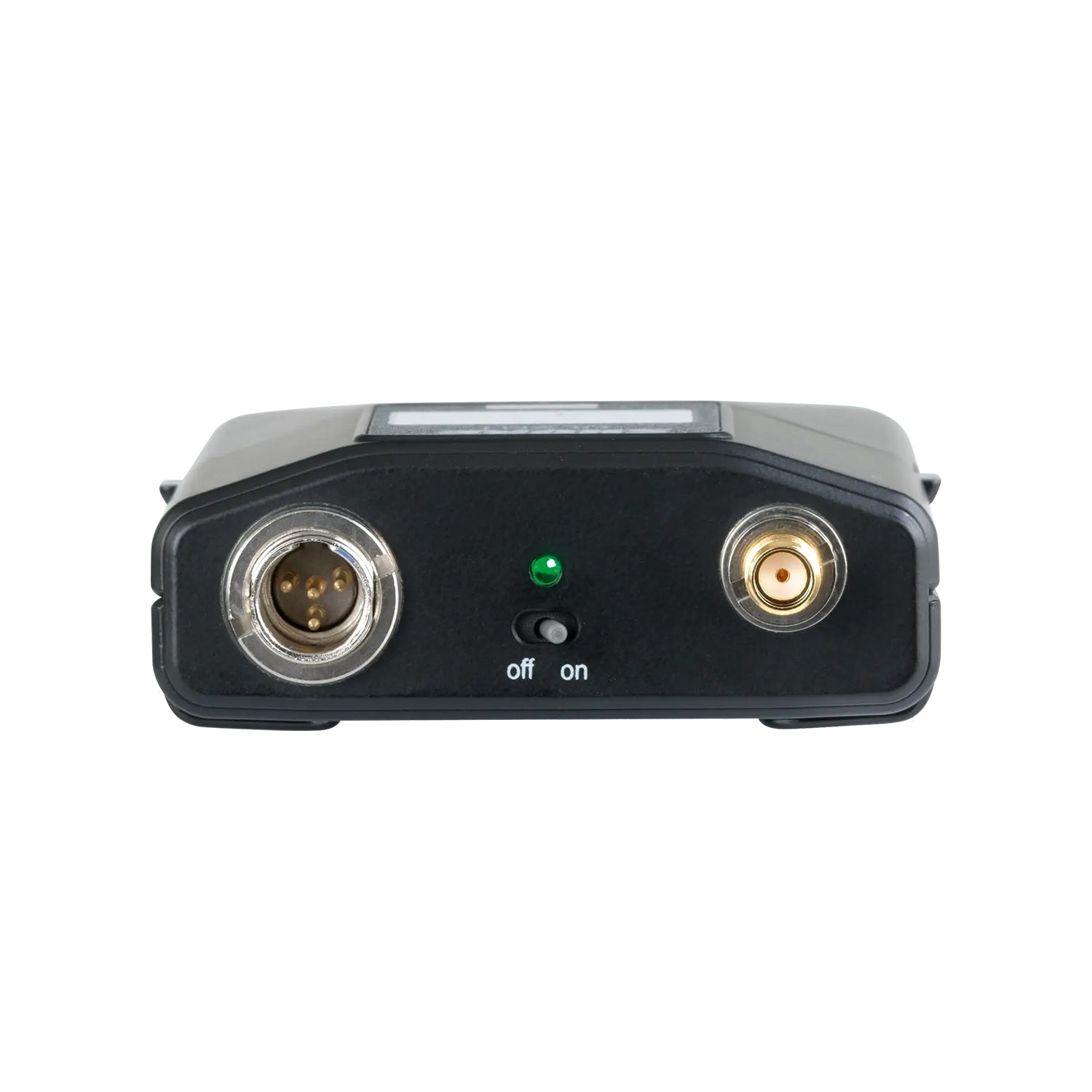

Shure ULXD1 - Wireless Bodypack Transmitter with TQG Connector (G57 Band - 470-608 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Shure ULXD1 - Wireless Bodypack Transmitter with TQG Connector (G57 Band - 470-608 MHz)
Sale price$595.00
Regular price$834.00
Description
The ULXD1 is a wireless bodypack transmitter compatible with ULX-D Wireless Systems. With a rugged yet lightweight aluminum case, the ULXD1 delivers uncompromising audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications.
Features
- AES 256-bit encryption for applications requiring secure data transmission
- Proprietary Shure Gain Ranging optimizes the systemÕs dynamic range for any input source, eliminating the need for transmitter gain adjustments
- Shure SB900 Lithium-Ion rechargeable battery provides up to 12 hours of battery life, precision metering with 5 segment battery fuel gauge, and zero memory effect
- External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
- Backlit LCD with easy to navigate menu and controls
- Rugged metal construction

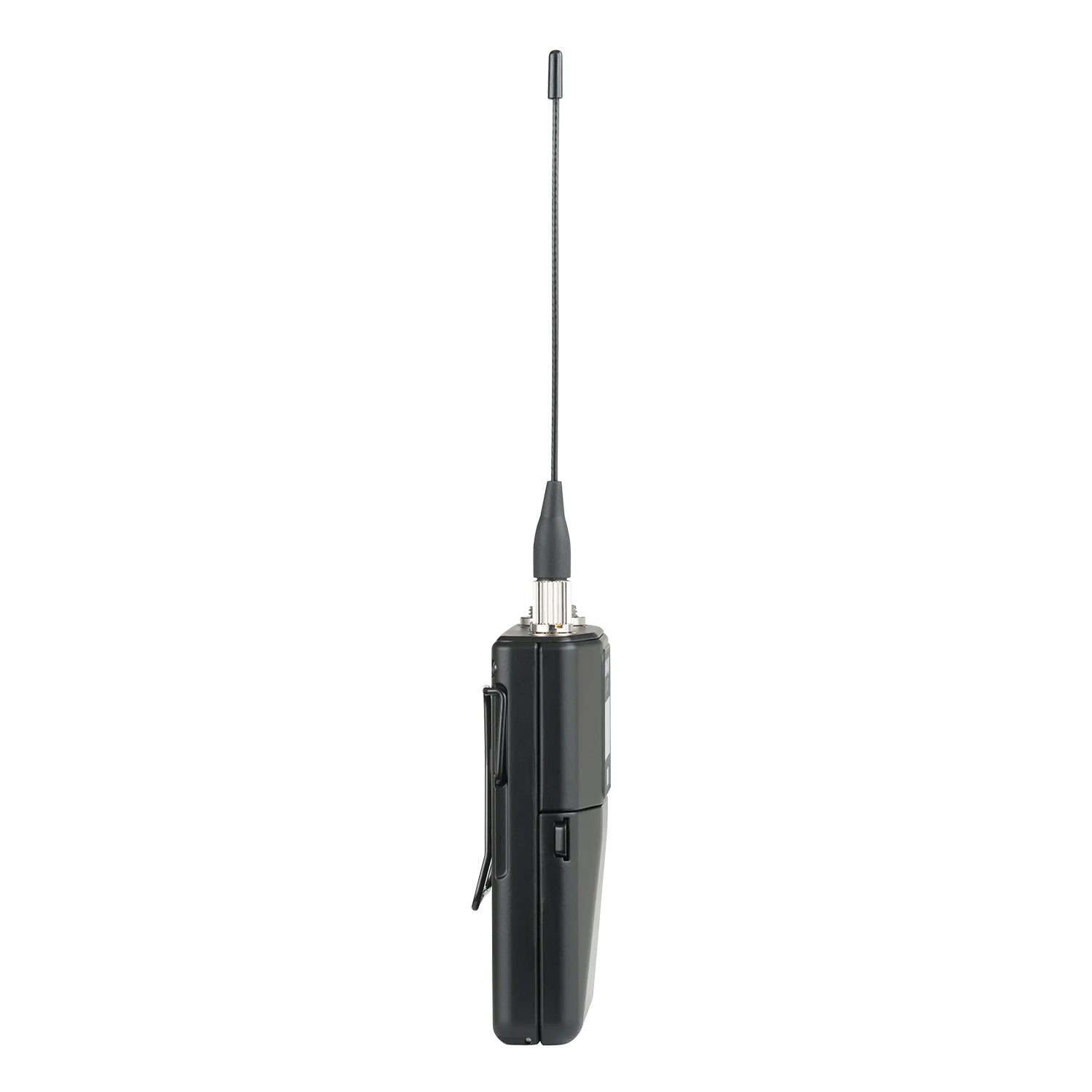

- Detachable 1/4 wave antenna
- Frequency and power lockout
Uncompromising Wireless Audio
- 24-bit/48 kHz audio that delivers incredibly clear and accurate reproduction of the source material
- 20 Hz-20 kHz frequency range with flat response
- Greater than 120 dB dynamic range through the analog outputs
- 130 dB dynamic range (typical) using Dante networked audio
- 60 dB of adjustable system gain easily accessible from the receiver front panel
- No transmitter gain adjustments needed: optimized for any input source
- Wide selection of trusted Shure Microphones
Extremely Efficient and Reliable RF Performance
- Up to 64 MHz overall tuning range (region dependent)
- Up to 17 active transmitters in one 6 MHz TV channel (23 on an 8 MHz TV channel)
- High Density mode enables up to 47 active transmitters in one 6 MHz TV channel (63 in one 8 MHz TV channel), with no audio quality degradation
- Rock-solid signal stability with no audio artifacts over the entire 100 meter line-of-sight range using standard supplied 1/2 wave antennas
- Selectable 1, 10, and 20 mW transmitter RF output power (comparable to 5 times the analog RF output power equivalent)
- Optimized scanning automatically finds, prioritizes, and selects the cleanest frequencies available
Scalable, Intelligent Hardware
- Single (half-rack), Dual, and Quad (full-rack) receiver form factors for any size installation
- AES 256-bit encryption equipped for secure wireless transmission
- Ethernet networking for streamlined setup across multiple receivers
- Wireless Workbench 6 software compatible for advanced frequency coordination, monitoring, and control
- AMX/Crestron control
- AXT600 Axient Spectrum Manager compatibility
- Rugged metal housing on both transmitters and receiver
- Dual and Quad receivers additionally feature:
- RF cascade ports, internal power supply, and dual Ethernet ports
- Dante networked audio over Ethernet
- Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
- Audio summing routes audio signal to multiple outputs
Shure Advanced Power Management
- Adapted from industry-leading Axient rechargeable technology
- Lithium-Ion chemistry and intelligent Shure battery circuitry results in rechargeable batteries with zero memory effect and precision metering
- Provides ULX-D transmitters with unmatched 11+ hours of performance time
- Transmitters and receivers display remaining battery life in hours and minutes accurate to within 15 minutes
- AA backwards compatibility
Uncompromising Wireless Audio
- 24-bit/48 kHz audio that delivers incredibly clear and accurate reproduction of the source material
- 20 Hz-20 kHz frequency range with flat response
- Greater than 120 dB dynamic range through the analog outputs
- 130 dB dynamic range (typical) using Dante networked audio
- 60 dB of adjustable system gain easily accessible from the receiver front panel
- No transmitter gain adjustments needed: optimized for any input source
- Wide selection of trusted Shure Microphones
Extremely Efficient and Reliable RF Performance
- Up to 64 MHz overall tuning range (region dependent)
- Up to 17 active transmitters in one 6 MHz TV channel (23 on an 8 MHz TV channel)
- High Density mode enables up to 47 active transmitters in one 6 MHz TV channel (63 in one 8 MHz TV channel), with no audio quality degradation
- Rock-solid signal stability with no audio artifacts over the entire 100 meter line-of-sight range using standard supplied 1/2 wave antennas
- Selectable 1, 10, and 20 mW transmitter RF output power (comparable to 5 times the analog RF output power equivalent)
- Optimized scanning automatically finds, prioritizes, and selects the cleanest frequencies available
Scalable, Intelligent Hardware
- Single (half-rack), Dual, and Quad (full-rack) receiver form factors for any size installation
- AES 256-bit encryption equipped for secure wireless transmission
- Ethernet networking for streamlined setup across multiple receivers
- Wireless Workbench 6 software compatible for advanced frequency coordination, monitoring, and control
- AMX/Crestron control
- AXT600 Axient Spectrum Manager compatibility
- Rugged metal housing on both transmitters and receiver
- Dual and Quad receivers additionally feature:
- RF cascade ports, internal power supply, and dual Ethernet ports
- Dante networked audio over Ethernet
- Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
- Audio summing routes audio signal to multiple outputs
Shure Advanced Power Management
- Adapted from industry-leading Axient rechargeable technology
- Lithium-Ion chemistry and intelligent Shure battery circuitry results in rechargeable batteries with zero memory effect and precision metering
- Provides ULX-D transmitters with unmatched 11+ hours of performance time
- Transmitters and receivers display remaining battery life in hours and minutes accurate to within 15 minutes
- AA backwards compatibility
| System Specifications | |
| RF Carrier Range | G50 Band (470 to 534 MHz) |
| Working Range | 100 m (328 ft) |
| RF Tuning Step Size | 25 kHz, varies by region |
| Image Rejection | >70 dB, typical |
| RF Sensitivity | -98 dBm at 10-5 BER |
| Latency | < 2.9 ms |
| Audio Frequency Response | ULXD1: 20 Hz - 20 kHz (+/- 1 dB) |
Audio Dynamic Range| XLR Analog Output:>120 dB, A-weighted | |
| Total Harmonic Distortion <-12 dBFS input, System Gain @ +10 | < 0.1% |
| System Audio Polarity | Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output |
| Operating Temperature Range | -18_C (0_F) to 50_C (122_F) |
| Storage Temperature Range | -29_C (-20_F) to 74_C (165_F) |
