Shure WH20XLR Cardioid Dynamic Headset Microphone with XLR Connector
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

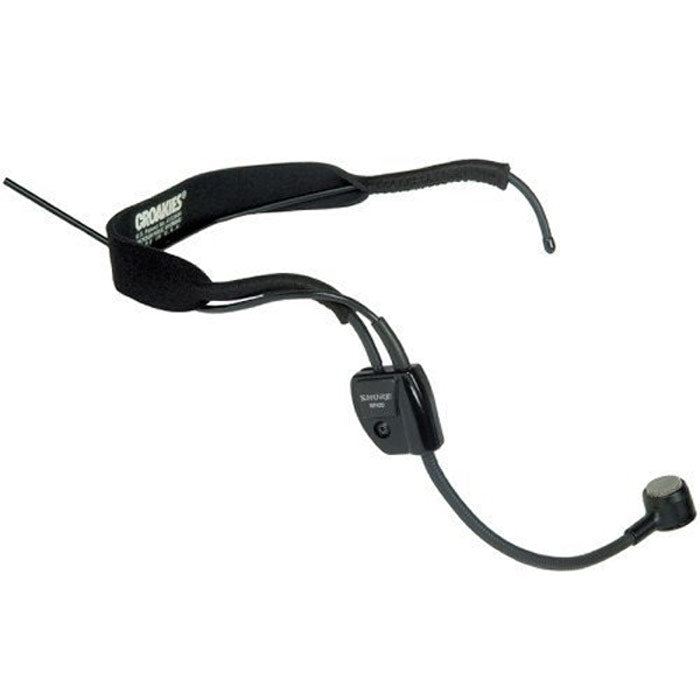

The Shure Model WH20 is a rugged, lightweight, dynamic headset microphone that provides high-quality voice pickup. It fits securely for active microphone users, such as aerobics instructors and musicians, with low visibility for stage appearances. The WH20 is suitable for any voice communications application where comfort and reliability are required.
The WH20 has a cardioid (unidirectional) pickup pattern. This provides greater gain-before-feedback and isolation from ambient noise and other unwanted sound sources, such as air-conditioning, musical instruments and loudspeakers. A carefully shaped frequency response includes a voice-frequency presence peak and a low-frequency rolloff to compensate for the proximity effect inherent in cardioid microphones during close-talk operation. An integrated elastic headband secures the headset comfortably. The headband, wireframe, and gooseneck are adjustable to accommodate any head size or shape. The WH20 is supplied with a foam windscreen and clothing clip.
WH20QTR has a right-angle 1/4 inch phone plug for use with Shure Headset Wireless Microphone Systems, or any unbalanced microphone input.
WH20TQG has a miniature four-pin female 4-pin mini connector for direct connection to Shure wireless body pack transmitters.
WH20XLR has a three-pin male XLR connector with a convenient detachable belt clip.
Rugged, comfortable headsets that provides high-quality voice pickup for active mic users.
| Type | Dynamic, Close-Talking |
| Frequency Response (at 8 mm) | 50 to 15,000 Hz |
| Polar Pattern | Cardioid (unidirectional) response -- uniform with frequency, symmetrical about axis |
| Impedance | Microphone rating impedance is 150 ohms (200 ohms actual) |
| Output Level | close talked (at 12.5 mm (1/2 inch) at 1,000 Hz) |
| Open Circuit Voltage | -67.0 db/Pa (0.45 mV) (1 Pa = 94 dB SPL) |
| Hum Sensitivity | 38.4 dB equivalent SPL in a 1 millioersted field |
| Polarity | Positive sound pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 of microphone output XLR connector. |
| Operating Temperatures | -18 to 60 degrees C (0 to 140 degrees F) |
| Storage Temperatures | -29 to 74 degreesC (-20 to 165 degrees F) |
| Humidity | 0 to 95% |
| Cable | Attached 1.22 m (4 ft), small-diameter, shielded, PVC-jacketed, two-conductor. |
| Cable Connector | Three-pin XLR with detachable belt clip |
| Construction | Black thermoplastic housing; stainless steel grille; black TEFLON-coated stainless steel wireframe; flexible plastic-clad monel gooseneck; rubber/nylon elastic headband |
| Net Weight (including connector) | 98 g (3.5 oz) |
The Shure Model WH20 is a rugged, lightweight, dynamic headset microphone that provides high-quality voice pickup. It fits securely for active microphone users, such as aerobics instructors and musicians, with low visibility for stage appearances. The WH20 is suitable for any voice communications application where comfort and reliability are required.
The WH20 has a cardioid (unidirectional) pickup pattern. This provides greater gain-before-feedback and isolation from ambient noise and other unwanted sound sources, such as air-conditioning, musical instruments and loudspeakers. A carefully shaped frequency response includes a voice-frequency presence peak and a low-frequency rolloff to compensate for the proximity effect inherent in cardioid microphones during close-talk operation. An integrated elastic headband secures the headset comfortably. The headband, wireframe, and gooseneck are adjustable to accommodate any head size or shape. The WH20 is supplied with a foam windscreen and clothing clip.
WH20QTR has a right-angle 1/4 inch phone plug for use with Shure Headset Wireless Microphone Systems, or any unbalanced microphone input.
WH20TQG has a miniature four-pin female 4-pin mini connector for direct connection to Shure wireless body pack transmitters.
WH20XLR has a three-pin male XLR connector with a convenient detachable belt clip.
Rugged, comfortable headsets that provides high-quality voice pickup for active mic users.
| Type | Dynamic, Close-Talking |
| Frequency Response (at 8 mm) | 50 to 15,000 Hz |
| Polar Pattern | Cardioid (unidirectional) response -- uniform with frequency, symmetrical about axis |
| Impedance | Microphone rating impedance is 150 ohms (200 ohms actual) |
| Output Level | close talked (at 12.5 mm (1/2 inch) at 1,000 Hz) |
| Open Circuit Voltage | -67.0 db/Pa (0.45 mV) (1 Pa = 94 dB SPL) |
| Hum Sensitivity | 38.4 dB equivalent SPL in a 1 millioersted field |
| Polarity | Positive sound pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 of microphone output XLR connector. |
| Operating Temperatures | -18 to 60 degrees C (0 to 140 degrees F) |
| Storage Temperatures | -29 to 74 degreesC (-20 to 165 degrees F) |
| Humidity | 0 to 95% |
| Cable | Attached 1.22 m (4 ft), small-diameter, shielded, PVC-jacketed, two-conductor. |
| Cable Connector | Three-pin XLR with detachable belt clip |
| Construction | Black thermoplastic housing; stainless steel grille; black TEFLON-coated stainless steel wireframe; flexible plastic-clad monel gooseneck; rubber/nylon elastic headband |
| Net Weight (including connector) | 98 g (3.5 oz) |
