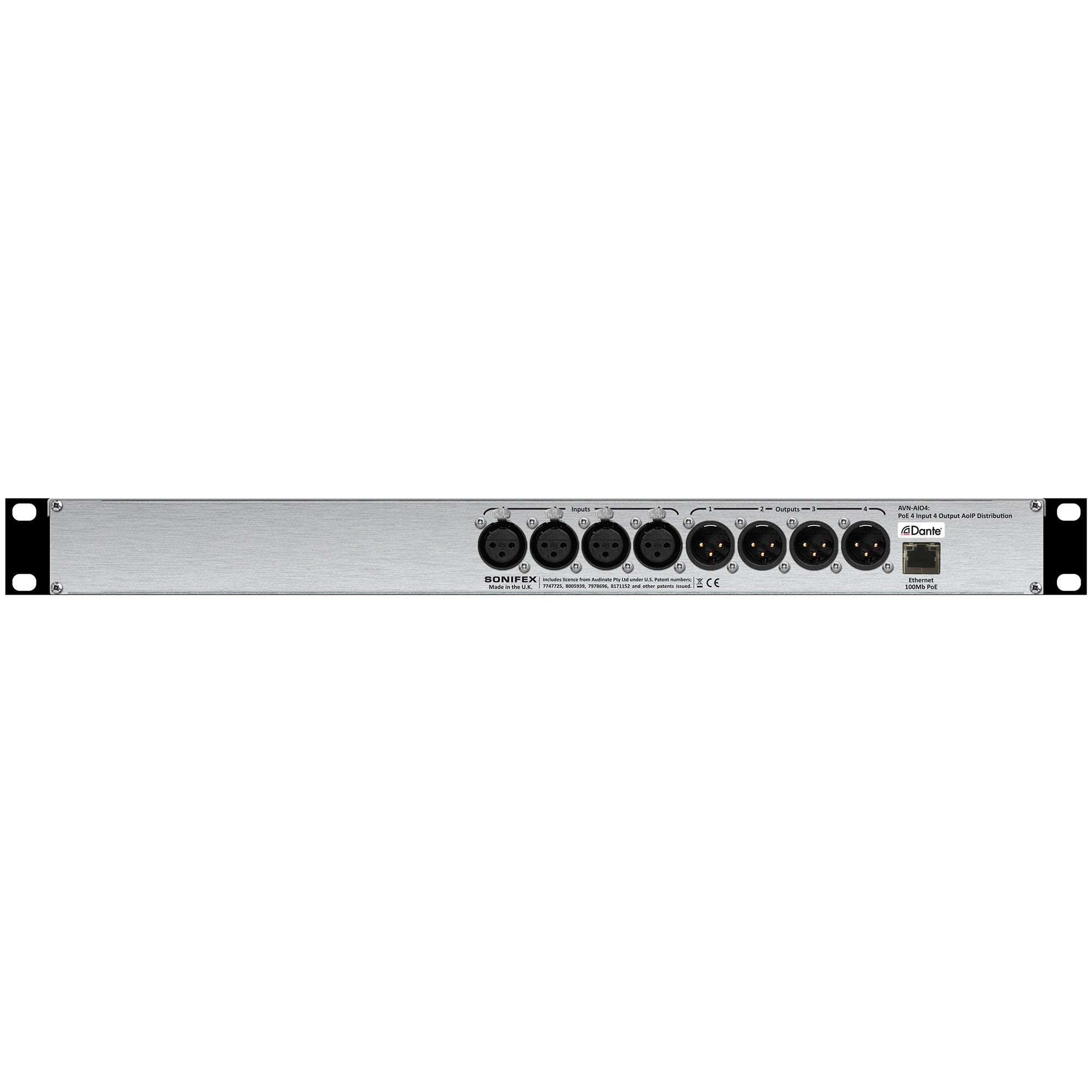

Sonifex AVN-AIO4 - 4-Input 4-Output Dante Interface with PoE



  • Dale #:

    SONF-AVNAIO4

  • Availability:

    Not in Stock - Reserve Yours

  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The AVN-AIO4 audio converter and interface converts up to four analogue inputs and four analogue outputs to and from the Dante Audio-over-IP networking standard. This cost effective 1U rack-mount unit offers an easy solution for AV professionals and system integrators. It is simple to configure a... Read More

Our Price: $1,511.00

affirm logo 3, 6 or 12 monthly payments available.

Learn more

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The AVN-AIO4 audio converter and interface converts up to four analogue inputs and four analogue outputs to and from the Dante Audio-over-IP networking standard. This cost effective 1U rack-mount unit offers an easy solution for AV professionals and system integrators. It is simple to configure and operate, with all set-up, except line-up levels, done via the standard Dante Controller software and power via PoE (Power Over Ethernet).

All analogue inputs and outputs are on high-quality Neutrik XLR connectors and there are front panel status/confidence LEDs for PoE, Link, and Clock. Global 0dBFS line-up can be set to +12dBu, +18dBu or +24dBu to meet your specific requirement via the front panel recessed toggle switch.

Features:

  • 4 x balanced analogue inputs on XLR.
  • 4 x balanced analogue outputs on XLR.
  • Adjustable global 0dBFS line up selection (+12dBu/+18dBu/+24dBu).
  • 1 x RJ45 Dante connector (1Gb/s Ethernet Port).
  • PoE, Link, and Clock LED status indicators.
  • Configuration using Dante Controller.
  • AES67 operation and Dante Domain Manager compliant.
  • Powered by PoE.
  • 1U 19" rack-mount form factor.

More +

Product Specs

Network and AoIP
AoIP Standard: Dante
Number of Channels: 4 receive, 4 transmit
Number of Streams: 2 receive, 2 transmit
Sample Rates: 44.1kHz, 48 kHz, 88.2kHz or 96kHz
(Note: 2 channels I/O only when>48kHz. Either 4 inputs or 4 outputs at 96kHz, can be configured on request with a separate firmware download).
Format: Linear PCM, 16, 24 or 32 bit
AES67 Support: Yes
Connectivity: 1 x RJ45
Speed: 100Mbps
Dante Domain Manager Ready: Yes
Audio Input Performance Specifications
Parameter Line Input
Input Impedance: >20k½ balanced
0dBFS line-up: User Selectable +12dBu/+18dBu/+24dBu balanced
Frequency Response: 20Hz to 20kHz, +0/-0.2dB
THD+N: <-110dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW
Noise: -110dBFS, 20kHz BW, Rs=200½
Crosstalk: <-100 dB
Common Mode Rejection: >60dB @ 1kHz
Audio Output Performance Specifications
Parameter Line Output
Output Impedance: <50½ balanced
0dBFS line-up: User Selectable +12dBu/+18dBu/+24dBu balanced
Frequency Response: 20Hz to 20kHz, +0/-0.5dB
THD+N: <-107dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW
Noise: -107dBFS, 20kHz BW
Crosstalk: <100dB
Balanced Line Input XLR Pinout
Pin Function
1 Chassis Ground/Screen
2 Input Phase/Positive
3 Input Non-Phase/Negative
Balanced Line Output XLR Pinout
Pin Function
1 Chassis Ground/Screen
2 Output Phase/Positive
3 Output Non-Phase/Negative
PoE Power
Standard 802.3af
Class 0
PD Power Range 0.44 W to 12.94 W
Typical PSE Power Usage 4.5 W
Max PSE Power Usage 15.4 W
Equipment Type
AVN-AIO4: 4 Input, 4 Output Dante¨ÊInterface, PoE
Physical Specification
Dimensions (Raw): 48cm (W) x 11cm (D) x 4.3cm (H)(1U)
19" (W) x 4.3" (D) x 1.7" (H)
Weight: Nett: 0.9kg Gross: 1.4kg
Nett: 1.9lbs Gross: 3.1lbs
