Sonifex AVN-DIO01 Dante to Analogue XLR Stereo Output
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

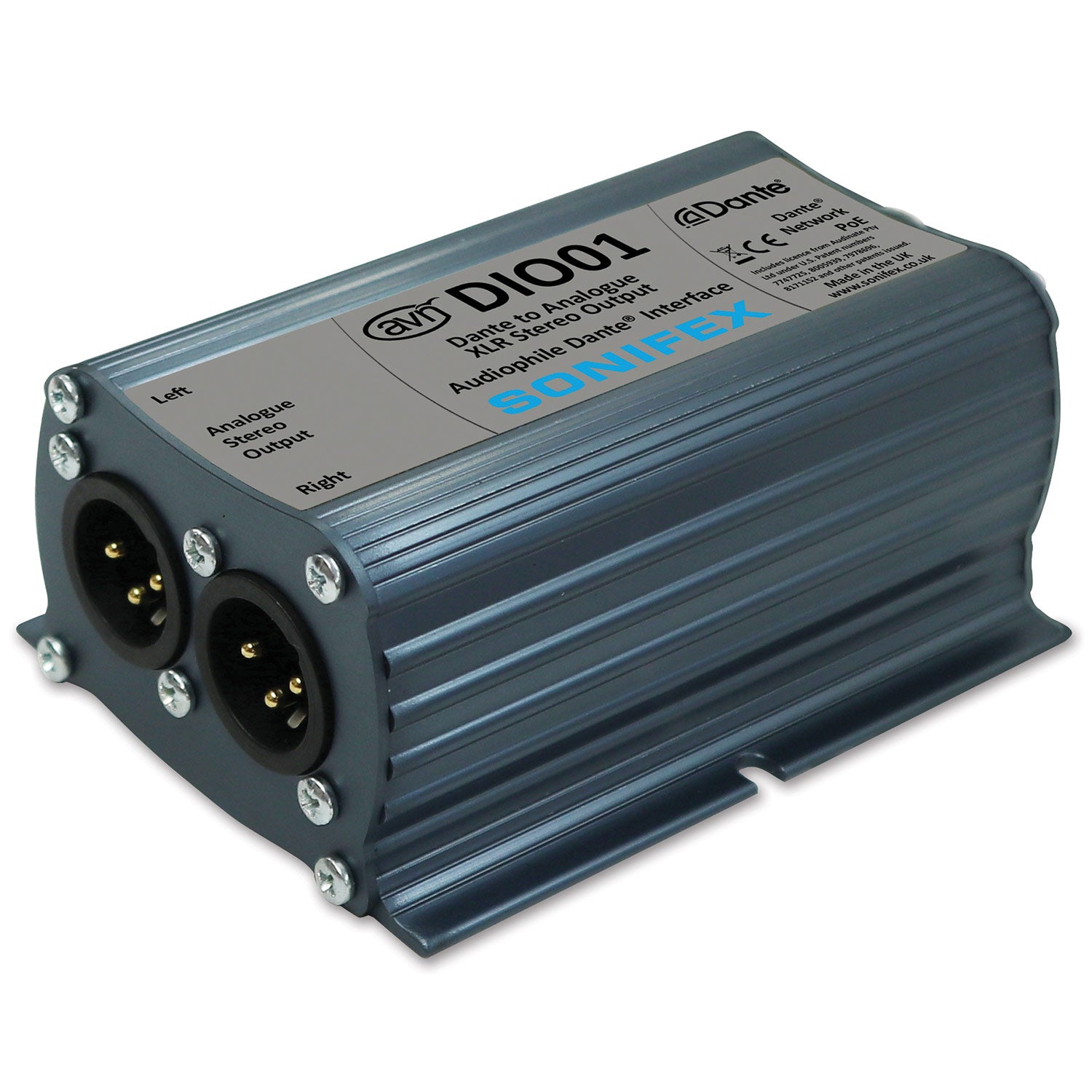

The AVN-DIO01 is a Dante AoIP network to analogue XLR stereo output converter in the Sonifex DIO range of Dante input/output devices. It features two balanced analogue XLR outputs and one Neutrik EtherCon® connector for direct connection to a Dante AoIP network.
Features:
- 2 x balanced XLR analogue outputs.

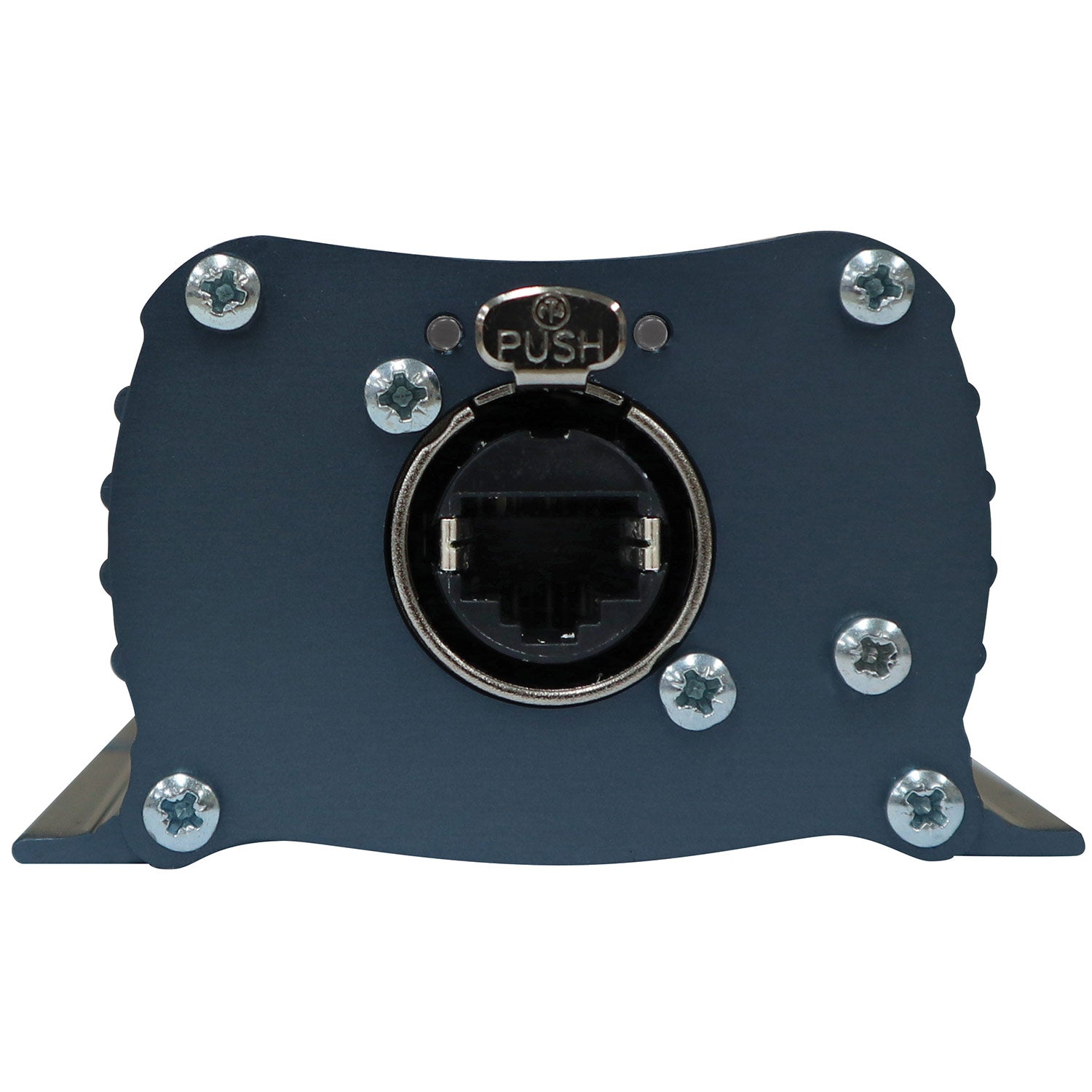

- Neutrik EtherCon® Ethernet connection.
- Fully Dante compliant device.
- AES67 compatible.
- Dante Domain Manager compliant.
- Ultra-high quality, wide dynamic range D/A conversion.
- Powered via PoE (Power over Ethernet).
All Sonifex DIO interfaces provide a simple, convenient, and elegant plug and play method of connecting legacy analogue and digital audio equipment to the Dante AoIP audio network.
The A/D and D/A circuitry offers 120dB of dynamic range - ten times better than similar competing products. All DIO products use Dante Controller for configuration and are powered by PoE (Power over Ethernet). They use rugged aluminium boxes with side slots for screw-mounting and contain superior audio circuitry for optimal audio performance. All feature rugged Neutrik EtherCon® connectors and Neutrik lockable audio connectors for ultra-reliable connectivity.
| Analogue XLR Output Pin-out | Pin | Function |
| 1 | Chassis Ground | |
| 2 | Output Phase | |
| 3 | Output Non Phase | |
| Power Supply - Class 0 802.3af PoE | Device | Power Consumption (Watts) |
| DIO01 | < 6 W | |
| Line Output - XLR/Terminal | ||
| Output Impedance | <200? balanced | |
| 0dBFS Line-Up | +18dBu | |
| Frequency Response | 20Hz to 20kHz, +0/-0.5dB (600? load, ref 1kHz) | |
| THD+N | <-100dBu, -30dBFS, 20Hz to 20kHz, 20kHz BW | |
| Dynamic Range | 120dB, 20kHz BW | |
| Crosstalk | <-110dB | |
| Equipment Type | ||
| AVN-DIO01 | Dante¨ to Analogue XLR Stereo Output | |
| Physical Specification | ||
| Dimensions (Raw) | 10.6cm (W) x 7.3cm (D) x 4.3cm (H) 4.2" (W) x 2.9" (D) x 1.7" (H) | |
| Dimensions (Boxed) | 17.4cm (W) x 9.5cm (D) x 5.6cm (H) 6.9" (W) x 3.7" (D) x 2.2" (H) | |
| Weight | Nett: 0.2kg Gross: 0.3kg Nett: 0.44lbs Gross: 0.66lbs | |
