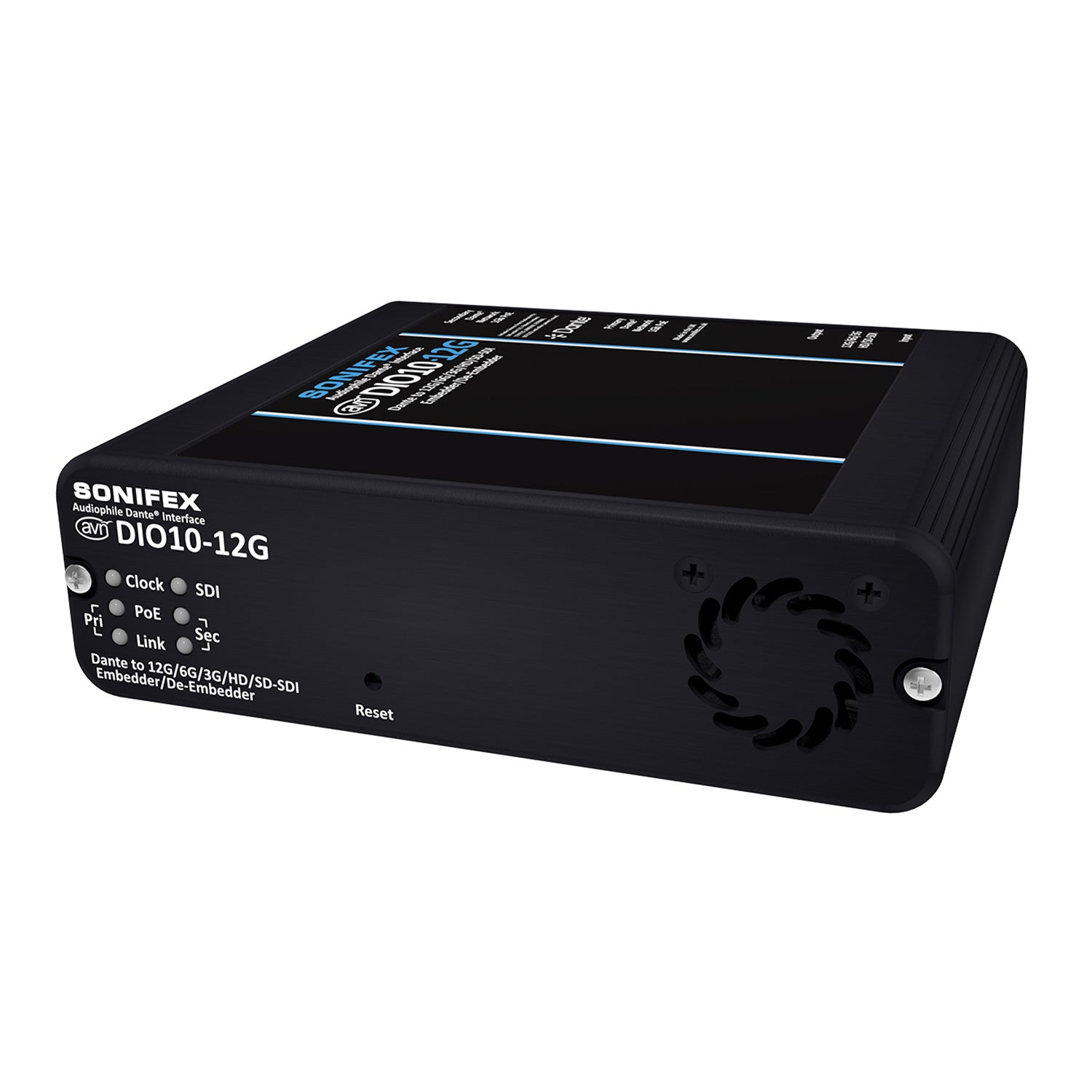

Sonifex AVN-DIO10-12G - Dante to 12G/6G/3G/HD/SD-SDI Embedder/De-Embedder

Sale price$3,470.00
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    An upgrade to the extremely popular AVN-DIO10, the new AVN-DIO10-12G now adds support for the full range of SDI standards from SD-SDI through to 12G-SDI. The AVN-DIO10-12G can be used for simultaneous embedding and de-embedding of up to 64 channels.  This simple plug and play audio/video interface provides a convenient and elegant method of connecting 12G/6G/3G/HD/SD-SDI equipment to the Dante® AoIP audio network.

    Features:

    • 1 x 12G/6G/3G/HD/SD-SDI input.
    • 1 x reclocked 12G/6G/3G/HD/SD-SDI output.
    • 64 channel embedder.
    • 64 channel de-embedder.
    • Dual redundant Primary and Secondary Dante network ports using Neutrik EtherCon® Ethernet connectors.
    • Powered via PoE (Power over Ethernet) with PoE dual redundancy.
    • Fully Dante compliant device.
    • AES67 compatible.
    • Dante Domain Manager compliant.
    • Web interface for configuration.

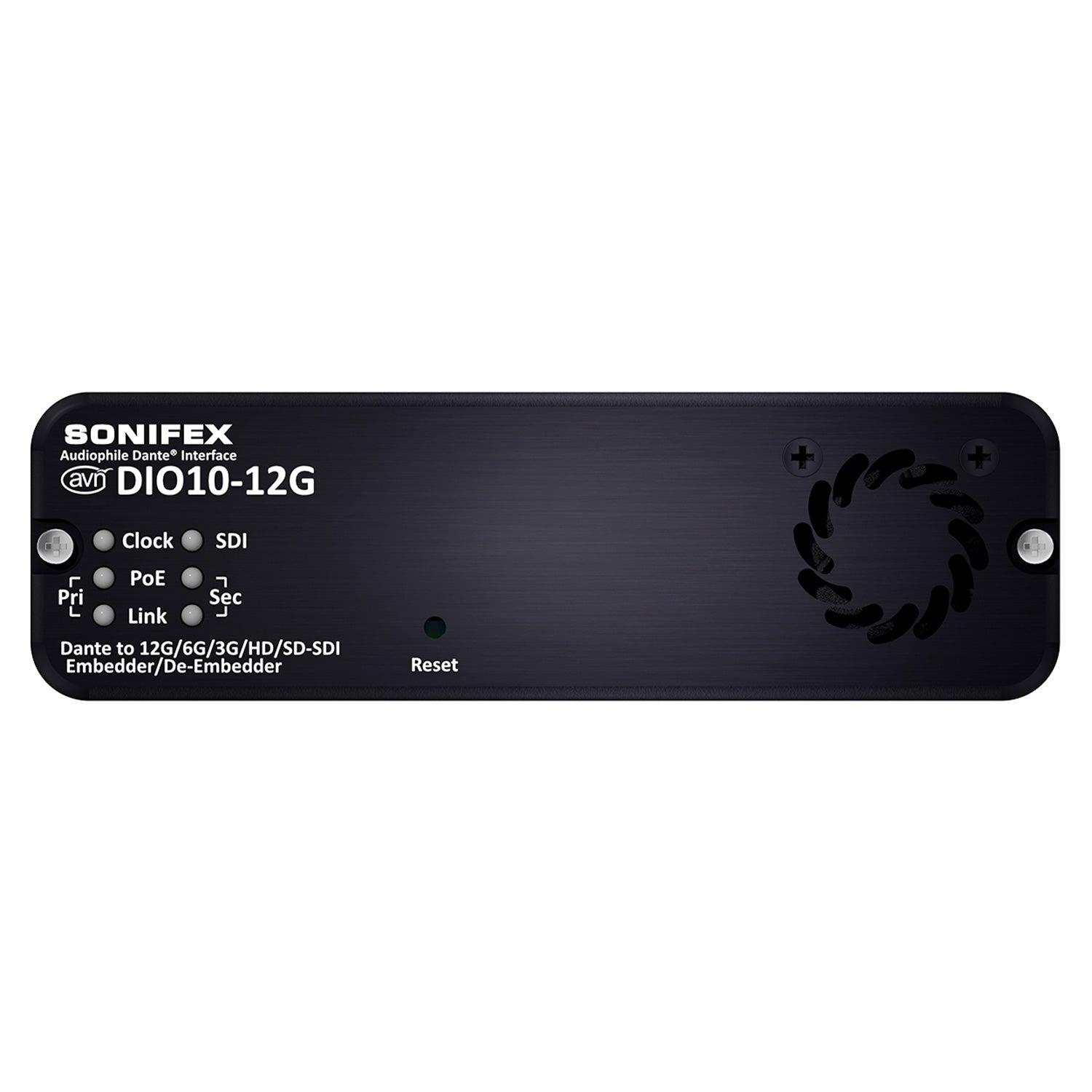

    • Clock, SDI Lock, PoE and Link LEDs.
    • Overwrite or insert into existing SDI audio groups.
    • SDI video generator built in.
    • Independent embed and de-embed paths.
    • Test tones available on both embedder and de- embedder paths.
    • SDI audio sample rate support at 48kHz and 96kHz.
    • All available Dante sample rates supported.
    • Sample rate conversion of audio between Dante and SDI.
    • Dante clock domain can be optionally synchronised from the SDI clock.
    • 3 x units rackmount in the AVN-DIORK.


    The AVN-DIO10-12G takes an SDI feed, de-embeds up to 64 audio channels and places them on channels 1-64 on the Dante network, mapped using Dante Controller. It simultaneously takes the 64 input channels mapped to the device on Dante Controller and re-embeds them onto the SDI output.

    The unit can operate in either loop through mode where the input is fed to the output, or in generator mode where the input and output are completely independent to each other and the SDI output signal is provided by an integrated SDI video generator. This allows the unit to operate as an embedder only, without the need of an existing SDI feed, or as a separate de-embedder and embedder. In this mode, the input and output can be different formats. This is fully configurable through the web UI.

    The unit supports both 48kHz and 96kHz sample rates in the embedded audio allowing for different sample rates in the de-embed and embed paths. When operating at 96kHz sample rate, the number of channels within the SDI signal are halved. A single group carries two channels rather than the four available at 48kHz.

    Other controls provided through the web UI allow embedding of Dante channels onto the SDI output per channel pair and there are two modes of operation: Insert Mode enabled allows embedding to overwrite existing SDI audio selectively per channel pair. Insert Mode disabled clears any incoming audio channels on the SDI output and then allows selective embedding onto the SDI output per channel pair.

    Test Tone mode allows 1kHz, 2kHz, 3kHz and 4kHz signals to be output on channels 1 to 4 respectively, for any group where embedding is enabled. There is also a test tone mode for the de-embedder outputs where a 1KHz tone is placed on the transmitting Dante® channels. This is so that downstream SDI audio outputs and inputs can be tested without the need of Dante® or SDI sources.

    It's powered by Power over Ethernet (PoE), using Neutrik® EtherCON connectors, with primary and secondary ports for power and data redundancy. The AVN-DIO10-12G uses the latest Audinate Dante® chipsets so is AES67 and Dante Domain Manager® compliant. There are front panel LEDs to indicate network clock status, SDI lock status, AoIP Primary and AoIP Secondary link status, PoE Primary power and PoE Secondary power active.

    Up to 3 of the AVN-DIO10-12G units can be rackmounted in the 1U AVN- DIORK.

    SDI Input
    Input Impedance 75½ Unbalanced
    Return Loss

    <15 dB @ 1.5 GHz
    <10 dB @ 3 GHz
    <7 dB @ 6 GHz
    <4 dB @ 12 GHz

    SDI Supported Standards

    270Mbps SMPTE-259M-C (SD)
    1.485 or 1.4835Gbps SMPTE-292M (HD)
    2.97 or 2.967Gbps SMPTE-424M (3G)
    5.94 or 5.934Gbps SMPTE-2081 (6G)
    11.88 or 11.868Gbps SMPTE-2082 (12G)Ê

    Supported Video Formats

    525/59.94 (SMPTE-125M)
    625/50 (ITU-R BT.656)
    1280x720p/23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (SMPTE 296)
    1920x1035i/59.94, 60 (SMPTE 260)
    1920x1080i/50, 59.94, 60 (SMPTE 274)
    1920x1080p/23.98, 24, 25, 50, 59.94, 60 (SMPTE 274)
    1920x1080pSF/23.98, 24, 25, 29.97, 30 (RP-211)
    1080i/50 (SMPTE 295)
    1920x1080p/50 (SMPTE 295)
    2048x1080p/23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 (SMPTE 2048-2)
    2048x1080pSF/23.98, 24, 25, 29.97, 30 (SMPTE 2048-2)
    3840x2160p/23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (SMPTE 2036)
    4096x2160p/23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 (SMPTE 2048-1)

    Embedded Audio

    48kHz and 96kHz, synchronous
    SMPTE 272M-ABCH
    SMPTE 299-1 / 48,96
    SMPTE 299-2 (De-embedding only)

    Supported Image Mapping SMPTE-425M-AB
    SDI Output
    Output Impedance 75½ Unbalanced
    Alignment Jitter <0.2UI
    Output Level 800mV ±10%
    Return Loss

    <15 dB @ 1.5 GHz
    <10 dB @ 3 GHz
    <7 dB @ 6 GHz
    <4 dB @ 12 GHz

    SDI Supported Standards

    270Mbps SMPTE 259M-C (SD)
    1.485 or 1.4835Gbps SMPTE 292M (HD)
    2.97 or 2.967Gbps SMPTE 424M (3G)
    5.94 or 5.934Gbps SMPTE 2081 (6G)
    11.88 or 11.868Gbps SMPTE 2082 (12G)

    Supported Video Formats
    (Loop-Through)
    Output follows input
    Supported Video Formats
    (Generator)

    525/59.94 (SMPTE 125M)
    625/50 (ITU-R BT.656)
    1280x720p/23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (SMPTE 296)
    1920x1080i/50, 59.94, 60 (SMPTE 274)
    1920x1080p/23.98, 24, 25, 50, 59.94, 60 (SMPTE 274)
    1920x1080pSF/23.98, 24, 25, 29.97, 30 (RP-211)
    2048x1080p/23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 (SMPTE 2048-2)
    2048x1080pSF/23.98, 24, 25, 29.97, 30 (SMPTE 2048-2)
    3840x2160p/23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (SMPTE 2036)
    4096x2160p/23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 (SMPTE 2048-1)

    Embedded Audio

    48kHz, synchronous
    SMPTE 272M-ABCH
    SMPTE 299-1 / 48,96

    Latencies
    Video
    SDI Loop-through <1 Line
    Audio

    Example latencies using an AVIOAES and Phabrix SxE with SDI and Dante sample rates at 48kHz and 1ms latency setting.

    Embedding

    AVIOAES to DIO10-12G to Phabrix SxE
    6.8ms / 4.8ms (SRC Bypassed)

    De-embedding

    Phabrix SxE to DIO10-12G to AVIOAES
    4.7ms / 2.8ms (SRC Bypassed)

    Network and AoIP
    AoIP Standard Dante
    Channels

    44.1/48kHz - 64 receive, 64 transmit
    88.2/96kHz - 32 receive, 32 transmit
    176.4/192kHz - 16 receive, 16 transmit

    Flows 32 receive, 32 transmit
    Sample Rates 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    Encoding PCM 16, PCM 24, PCM 32
    AES67 Support Yes

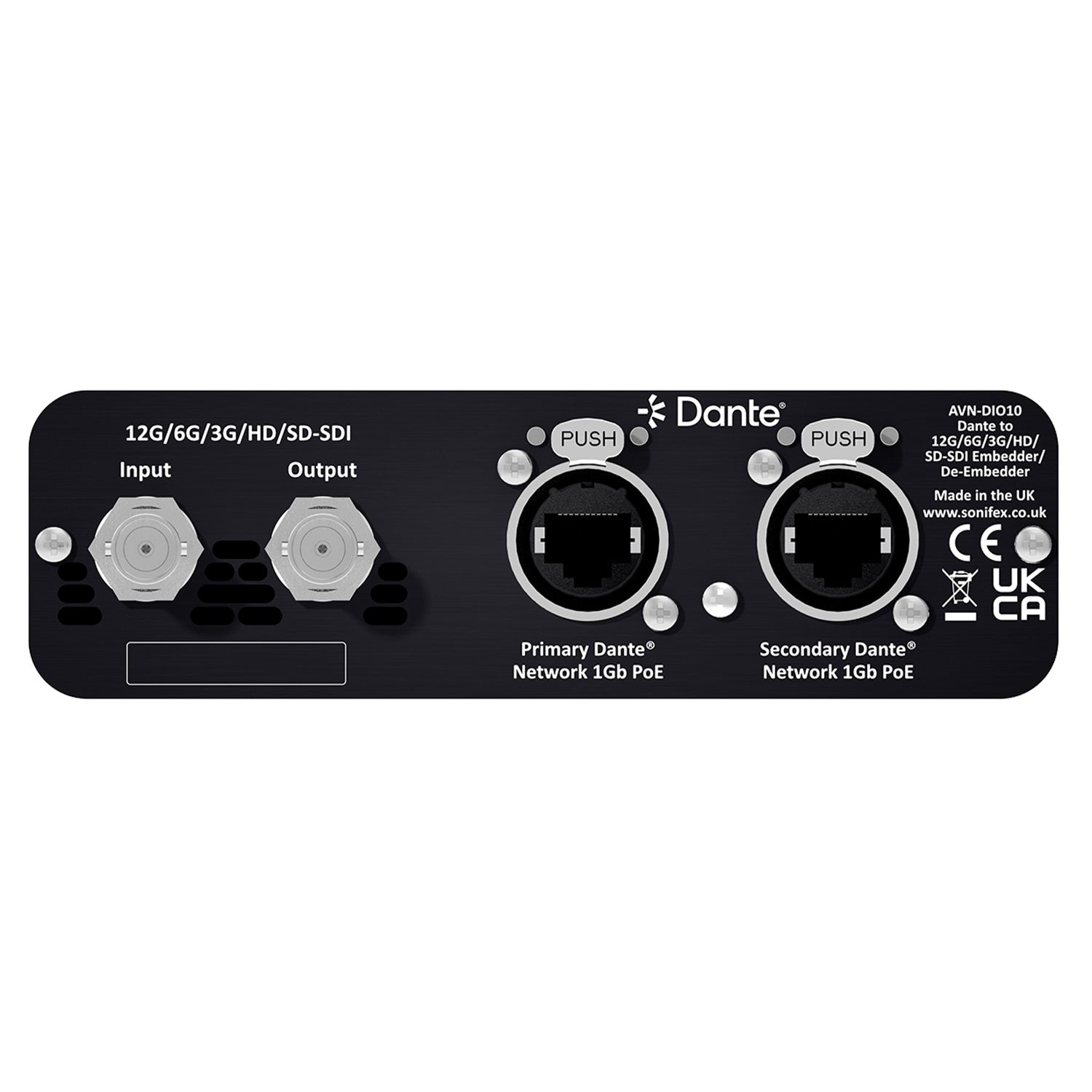

    Connectivity 2 x etherCON (RJ45 compatible)
    Speed 1Gbps or 100Mbps (1Gbps recommended)
    Network Modes Switched or redundant
    Dante Domain Manager Ready Yes
    Clock Source

    Internal (PTP Leader), Network PTP Leader
    SDI input with generator disabled (Sync to External)
    Internal with generator enabled (Sync to External)

    PoE Power
    Standard 802.3af
    Redundancy Yes
    Class 0
    PD Power Range 0.44 W to 12.94 W
    Typical PSE Power Usage 6 W
    Max PSE Usage 15.4 W
    Equipment Type
    AVN-DIO10-12G Dante to 12G/6G/3G/HD/SD-SDI Embedder/De-EmbedderÊ
    Physical Specification
    Dimensions (Raw)

    14.0cm (W) x 13.6cm (D) x 4.2cm (H)
    5.5" (W) x 5.4" (D) x 1.7" (H)

    Dimensions (Boxed)

    17.8cm (W) x 17cm (D) x 5.6cm (H)
    7.0" (W) x 6.7" (D) x 2.2" (H)

    Weight

    Nett: 0.36kg Gross: 0.55kg
    Nett: 0.79lbs Gross: 1.21lbs

    Accessories
    AVN-DIOMT
    AVN-DIORK

    AVN-DIO Large Unit Underdesk Mount
    AVN-DIO 1U 19" Rack Kit (5 x Small DIO or 3 x Large DIO)

    An upgrade to the extremely popular AVN-DIO10, the new AVN-DIO10-12G now adds support for the full range of SDI standards from SD-SDI through to 12G-SDI. The AVN-DIO10-12G can be used for simultaneous embedding and de-embedding of up to 64 channels.  This simple plug and play audio/video interface provides a convenient and elegant method of connecting 12G/6G/3G/HD/SD-SDI equipment to the Dante® AoIP audio network.

    Features:

    • 1 x 12G/6G/3G/HD/SD-SDI input.
    • 1 x reclocked 12G/6G/3G/HD/SD-SDI output.
    • 64 channel embedder.
    • 64 channel de-embedder.
    • Dual redundant Primary and Secondary Dante network ports using Neutrik EtherCon® Ethernet connectors.
    • Powered via PoE (Power over Ethernet) with PoE dual redundancy.
    • Fully Dante compliant device.
    • AES67 compatible.
    • Dante Domain Manager compliant.
    • Web interface for configuration.
    • Clock, SDI Lock, PoE and Link LEDs.
    • Overwrite or insert into existing SDI audio groups.
    • SDI video generator built in.
    • Independent embed and de-embed paths.
    • Test tones available on both embedder and de- embedder paths.
    • SDI audio sample rate support at 48kHz and 96kHz.
    • All available Dante sample rates supported.
    • Sample rate conversion of audio between Dante and SDI.
    • Dante clock domain can be optionally synchronised from the SDI clock.
    • 3 x units rackmount in the AVN-DIORK.


    The AVN-DIO10-12G takes an SDI feed, de-embeds up to 64 audio channels and places them on channels 1-64 on the Dante network, mapped using Dante Controller. It simultaneously takes the 64 input channels mapped to the device on Dante Controller and re-embeds them onto the SDI output.

    The unit can operate in either loop through mode where the input is fed to the output, or in generator mode where the input and output are completely independent to each other and the SDI output signal is provided by an integrated SDI video generator. This allows the unit to operate as an embedder only, without the need of an existing SDI feed, or as a separate de-embedder and embedder. In this mode, the input and output can be different formats. This is fully configurable through the web UI.

    The unit supports both 48kHz and 96kHz sample rates in the embedded audio allowing for different sample rates in the de-embed and embed paths. When operating at 96kHz sample rate, the number of channels within the SDI signal are halved. A single group carries two channels rather than the four available at 48kHz.

    Other controls provided through the web UI allow embedding of Dante channels onto the SDI output per channel pair and there are two modes of operation: Insert Mode enabled allows embedding to overwrite existing SDI audio selectively per channel pair. Insert Mode disabled clears any incoming audio channels on the SDI output and then allows selective embedding onto the SDI output per channel pair.

    Test Tone mode allows 1kHz, 2kHz, 3kHz and 4kHz signals to be output on channels 1 to 4 respectively, for any group where embedding is enabled. There is also a test tone mode for the de-embedder outputs where a 1KHz tone is placed on the transmitting Dante® channels. This is so that downstream SDI audio outputs and inputs can be tested without the need of Dante® or SDI sources.

    It's powered by Power over Ethernet (PoE), using Neutrik® EtherCON connectors, with primary and secondary ports for power and data redundancy. The AVN-DIO10-12G uses the latest Audinate Dante® chipsets so is AES67 and Dante Domain Manager® compliant. There are front panel LEDs to indicate network clock status, SDI lock status, AoIP Primary and AoIP Secondary link status, PoE Primary power and PoE Secondary power active.

    Up to 3 of the AVN-DIO10-12G units can be rackmounted in the 1U AVN- DIORK.

    SDI Input
    Input Impedance 75½ Unbalanced
    Return Loss

    <15 dB @ 1.5 GHz
    <10 dB @ 3 GHz
    <7 dB @ 6 GHz
    <4 dB @ 12 GHz

    SDI Supported Standards

    270Mbps SMPTE-259M-C (SD)
    1.485 or 1.4835Gbps SMPTE-292M (HD)
    2.97 or 2.967Gbps SMPTE-424M (3G)
    5.94 or 5.934Gbps SMPTE-2081 (6G)
    11.88 or 11.868Gbps SMPTE-2082 (12G)Ê

    Supported Video Formats

    525/59.94 (SMPTE-125M)
    625/50 (ITU-R BT.656)
    1280x720p/23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (SMPTE 296)
    1920x1035i/59.94, 60 (SMPTE 260)
    1920x1080i/50, 59.94, 60 (SMPTE 274)
    1920x1080p/23.98, 24, 25, 50, 59.94, 60 (SMPTE 274)
    1920x1080pSF/23.98, 24, 25, 29.97, 30 (RP-211)
    1080i/50 (SMPTE 295)
    1920x1080p/50 (SMPTE 295)
    2048x1080p/23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 (SMPTE 2048-2)
    2048x1080pSF/23.98, 24, 25, 29.97, 30 (SMPTE 2048-2)
    3840x2160p/23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (SMPTE 2036)
    4096x2160p/23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 (SMPTE 2048-1)

    Embedded Audio

    48kHz and 96kHz, synchronous
    SMPTE 272M-ABCH
    SMPTE 299-1 / 48,96
    SMPTE 299-2 (De-embedding only)

    Supported Image Mapping SMPTE-425M-AB
    SDI Output
    Output Impedance 75½ Unbalanced
    Alignment Jitter <0.2UI
    Output Level 800mV ±10%
    Return Loss

    <15 dB @ 1.5 GHz
    <10 dB @ 3 GHz
    <7 dB @ 6 GHz
    <4 dB @ 12 GHz

    SDI Supported Standards

    270Mbps SMPTE 259M-C (SD)
    1.485 or 1.4835Gbps SMPTE 292M (HD)
    2.97 or 2.967Gbps SMPTE 424M (3G)
    5.94 or 5.934Gbps SMPTE 2081 (6G)
    11.88 or 11.868Gbps SMPTE 2082 (12G)

    Supported Video Formats
    (Loop-Through)
    Output follows input
    Supported Video Formats
    (Generator)

    525/59.94 (SMPTE 125M)
    625/50 (ITU-R BT.656)
    1280x720p/23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (SMPTE 296)
    1920x1080i/50, 59.94, 60 (SMPTE 274)
    1920x1080p/23.98, 24, 25, 50, 59.94, 60 (SMPTE 274)
    1920x1080pSF/23.98, 24, 25, 29.97, 30 (RP-211)
    2048x1080p/23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 (SMPTE 2048-2)
    2048x1080pSF/23.98, 24, 25, 29.97, 30 (SMPTE 2048-2)
    3840x2160p/23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (SMPTE 2036)
    4096x2160p/23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 (SMPTE 2048-1)

    Embedded Audio

    48kHz, synchronous
    SMPTE 272M-ABCH
    SMPTE 299-1 / 48,96

    Latencies
    Video
    SDI Loop-through <1 Line
    Audio

    Example latencies using an AVIOAES and Phabrix SxE with SDI and Dante sample rates at 48kHz and 1ms latency setting.

    Embedding

    AVIOAES to DIO10-12G to Phabrix SxE
    6.8ms / 4.8ms (SRC Bypassed)

    De-embedding

    Phabrix SxE to DIO10-12G to AVIOAES
    4.7ms / 2.8ms (SRC Bypassed)

    Network and AoIP
    AoIP Standard Dante
    Channels

    44.1/48kHz - 64 receive, 64 transmit
    88.2/96kHz - 32 receive, 32 transmit
    176.4/192kHz - 16 receive, 16 transmit

    Flows 32 receive, 32 transmit
    Sample Rates 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    Encoding PCM 16, PCM 24, PCM 32
    AES67 Support Yes
    Connectivity 2 x etherCON (RJ45 compatible)
    Speed 1Gbps or 100Mbps (1Gbps recommended)
    Network Modes Switched or redundant
    Dante Domain Manager Ready Yes
    Clock Source

    Internal (PTP Leader), Network PTP Leader
    SDI input with generator disabled (Sync to External)
    Internal with generator enabled (Sync to External)

    PoE Power
    Standard 802.3af
    Redundancy Yes
    Class 0
    PD Power Range 0.44 W to 12.94 W
    Typical PSE Power Usage 6 W
    Max PSE Usage 15.4 W
    Equipment Type
    AVN-DIO10-12G Dante to 12G/6G/3G/HD/SD-SDI Embedder/De-EmbedderÊ
    Physical Specification
    Dimensions (Raw)

    14.0cm (W) x 13.6cm (D) x 4.2cm (H)
    5.5" (W) x 5.4" (D) x 1.7" (H)

    Dimensions (Boxed)

    17.8cm (W) x 17cm (D) x 5.6cm (H)
    7.0" (W) x 6.7" (D) x 2.2" (H)

    Weight

    Nett: 0.36kg Gross: 0.55kg
    Nett: 0.79lbs Gross: 1.21lbs

    Accessories
    AVN-DIOMT
    AVN-DIORK

    AVN-DIO Large Unit Underdesk Mount
    AVN-DIO 1U 19" Rack Kit (5 x Small DIO or 3 x Large DIO)
