Sonifex AVN-DIO16 - Dante to 4 Analog XLR Output Interface
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

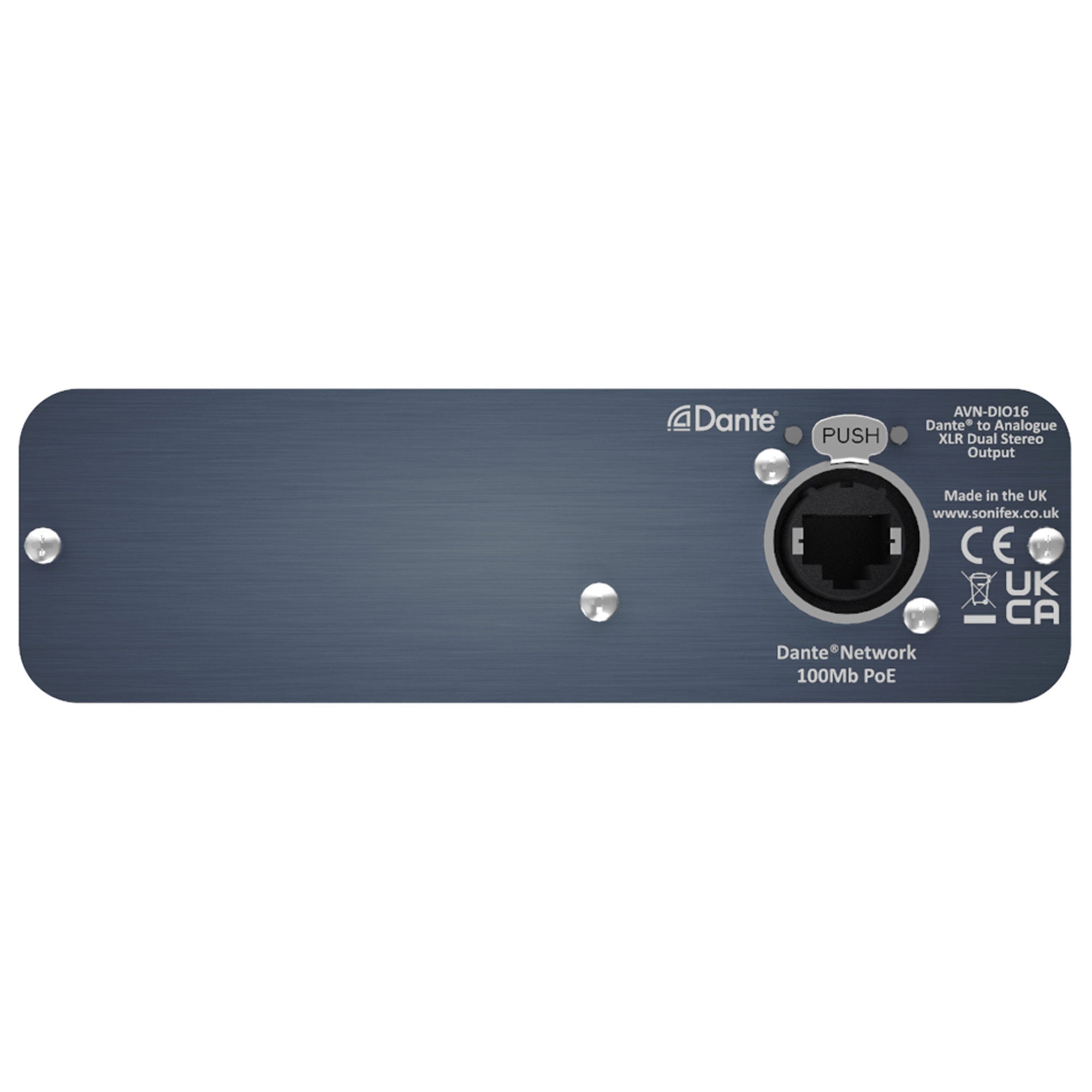

The AVN-DIO16 is a 4 analogue XLR output to Dante converter in the Sonifex DIO range of Dante input/output devices. It features four balanced analogue XLR outputs and one Neutrik etherCON connector for direct connection to a Dante AoIP network.

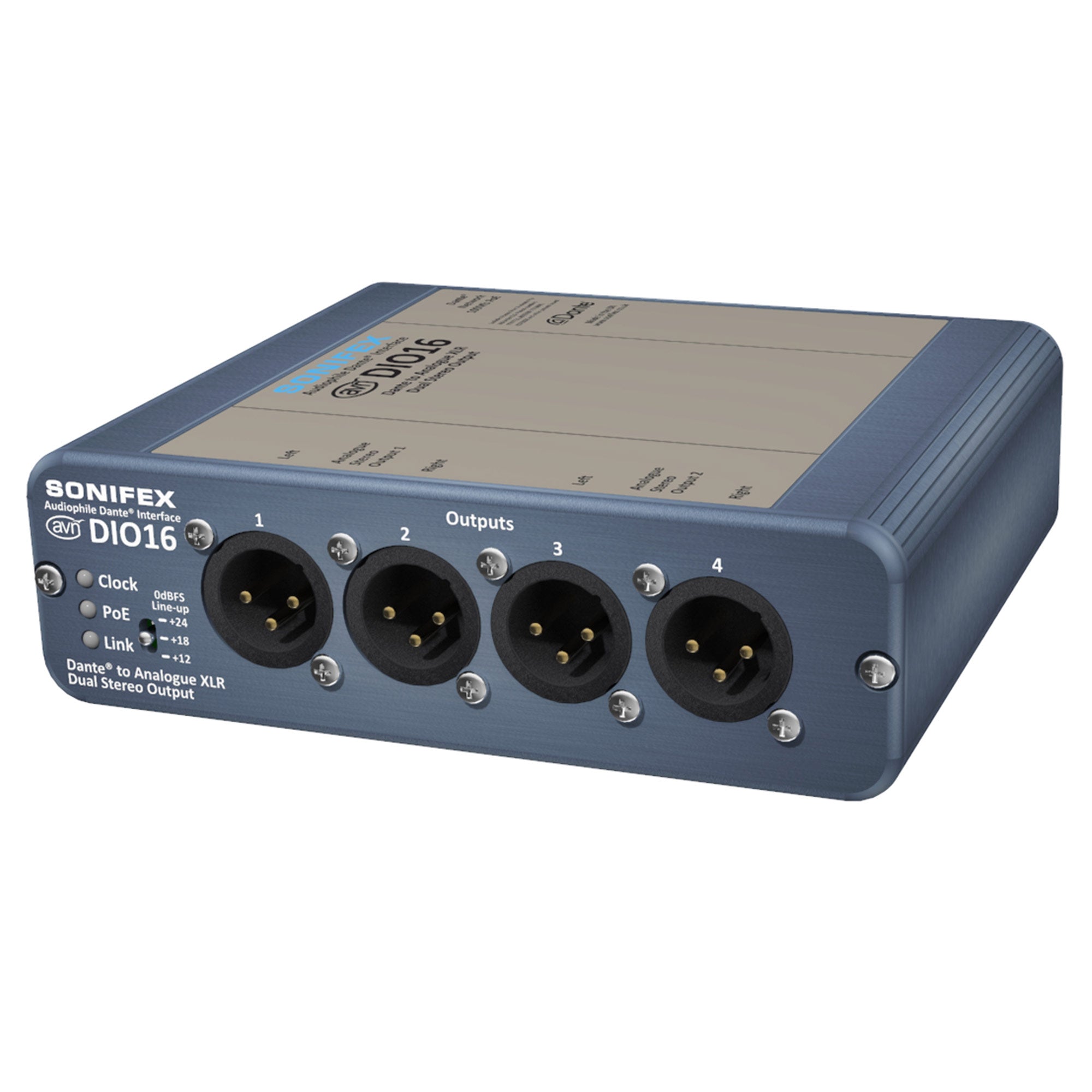

The front panel provides a global 0dBFS line-up which can be set to +12dBu, +18dBu or +24dBu to meet your specific requirement via the front panel recessed toggle switch. There are also front panel LEDs to indicate network clock status, AoIP link status and PoE power active.

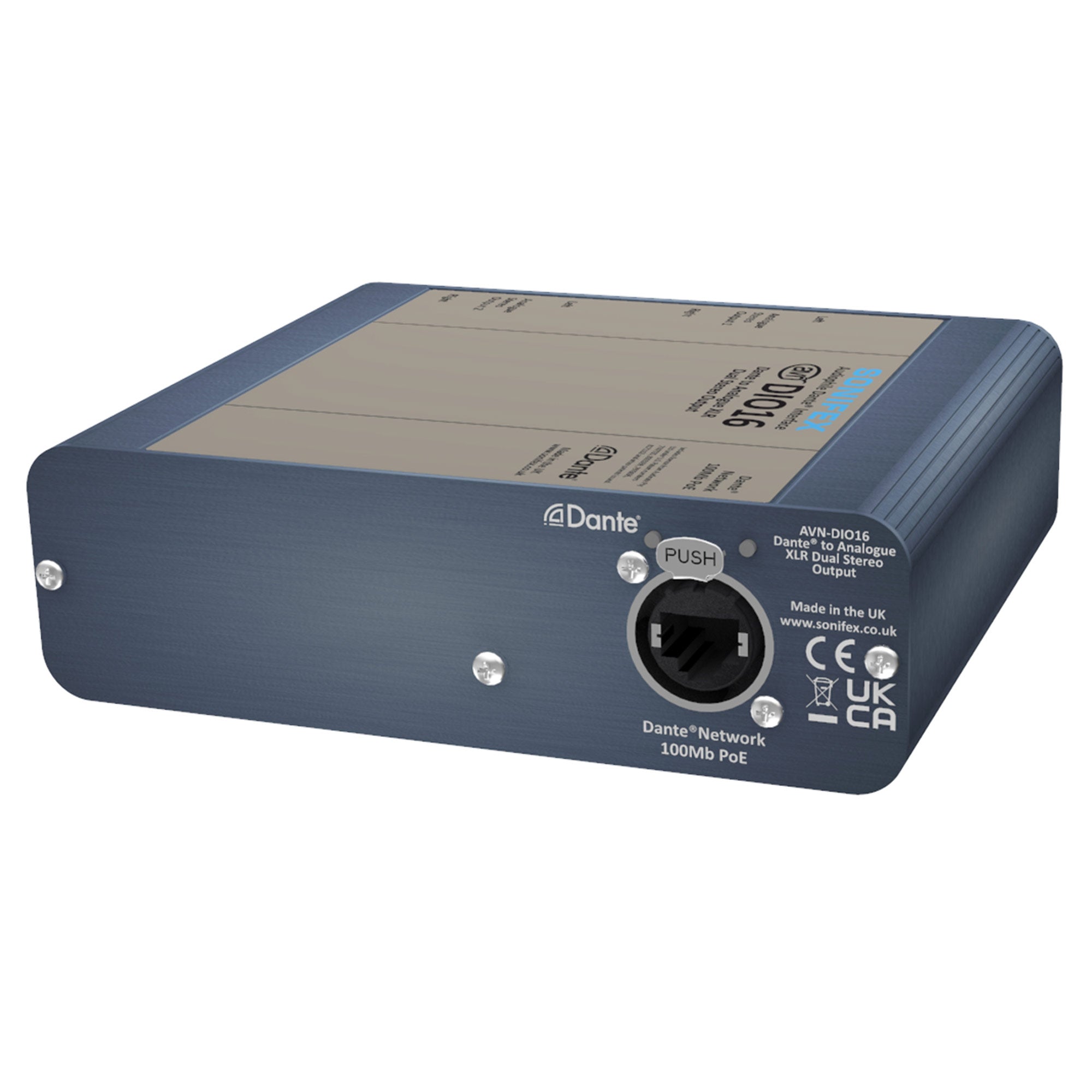

It's powered using Power over Ethernet (PoE), using a Neutrik etherCON connector. The AVN-DIO16 uses the latest Audinate Dante chipset so is AES67 and Dante Domain Manager compliant.
| Analogue XLR Output Pin-out | |
| Pin | Function |
| 1 | Chassis Ground |
| 2 | Phase |
| 3 | Non Phase |
| Line Outputs - XLR | |
| Output Impedance: | <200½ balanced |
| 0dBFS Line-Up: | Selectable +12/+18/+24dBu |
| Frequency Response: | 20Hz to 20kHz, +0/-0.5dB (ref 1kHz) |
| THD+N: |
<-100dBu, -30dBFS, 20Hz to 20kHz, 20kHz BW |
| Dynamic Range | 120dB, 20kHz BW |
| Cross Talk | <-110dB |
| Network and AoIP | |
| AoIP Standard: | Dante |
| Channels: | 4 receive |
| Flows: | 2 receive |
| Sample Rates: | 44.1kHz, 48kHz, 88.2kHz, 96kHz |
| Encoding: | PCM 16, PCM 24, PCM 32 |
| AES67 Support | Yes |
| Connectivity: | etherCON (RJ45 compatible) |
| Speed: | 100Mbps |
| Dante Domain Manager Ready: | Yes |
| Clock Source: | Internal (PTP Leader) or Network PTP Leader |
| PoE Power | |
| Standard | 802.3af |
| Class | 0 |
| PD Power Range | 0.44 W to 12.94 W |
| Typical PSE Power Usage | 6 W |
| Max PSE Usage | 15.4 W |
| Equipment Type | |
| AVN-DIO16: | Dante¨Êto 4 Analogue XLR Outputs |
| Physical Specification | |
| Dimensions (Raw): | 14.0cm (W) x 13.6cm (D) x 4.2cm (H) 5.5" (W) x 5.4" (D) x 1.7" (H) |
| Dimensions (Boxed): | 17.8cm (W) x 17cm (D) x 5.6cm (H) 7.0" (W) x 6.7" (D) x 2.2" (H) |
| Weight: | Nett: 0.42kgÊGross: 0.56kg Nett: 0.95lbs Gross: 1.25lbs |
| Accessories | |
| AVN-DIOBT AVN-DIOMT AVN-DIORK |
AVN-DIO Large Unit Belt Clip Kit AVN-DIO Large Unit Underdesk Mount AVN-DIO 1U 19" Rack Kit (5 x Small DIO or 3 x Large DIO) |
The AVN-DIO16 is a 4 analogue XLR output to Dante converter in the Sonifex DIO range of Dante input/output devices. It features four balanced analogue XLR outputs and one Neutrik etherCON connector for direct connection to a Dante AoIP network.
The front panel provides a global 0dBFS line-up which can be set to +12dBu, +18dBu or +24dBu to meet your specific requirement via the front panel recessed toggle switch. There are also front panel LEDs to indicate network clock status, AoIP link status and PoE power active.
It's powered using Power over Ethernet (PoE), using a Neutrik etherCON connector. The AVN-DIO16 uses the latest Audinate Dante chipset so is AES67 and Dante Domain Manager compliant.
| Analogue XLR Output Pin-out | |
| Pin | Function |
| 1 | Chassis Ground |
| 2 | Phase |
| 3 | Non Phase |
| Line Outputs - XLR | |
| Output Impedance: | <200½ balanced |
| 0dBFS Line-Up: | Selectable +12/+18/+24dBu |
| Frequency Response: | 20Hz to 20kHz, +0/-0.5dB (ref 1kHz) |
| THD+N: |
<-100dBu, -30dBFS, 20Hz to 20kHz, 20kHz BW |
| Dynamic Range | 120dB, 20kHz BW |
| Cross Talk | <-110dB |
| Network and AoIP | |
| AoIP Standard: | Dante |
| Channels: | 4 receive |
| Flows: | 2 receive |
| Sample Rates: | 44.1kHz, 48kHz, 88.2kHz, 96kHz |
| Encoding: | PCM 16, PCM 24, PCM 32 |
| AES67 Support | Yes |
| Connectivity: | etherCON (RJ45 compatible) |
| Speed: | 100Mbps |
| Dante Domain Manager Ready: | Yes |
| Clock Source: | Internal (PTP Leader) or Network PTP Leader |
| PoE Power | |
| Standard | 802.3af |
| Class | 0 |
| PD Power Range | 0.44 W to 12.94 W |
| Typical PSE Power Usage | 6 W |
| Max PSE Usage | 15.4 W |
| Equipment Type | |
| AVN-DIO16: | Dante¨Êto 4 Analogue XLR Outputs |
| Physical Specification | |
| Dimensions (Raw): | 14.0cm (W) x 13.6cm (D) x 4.2cm (H) 5.5" (W) x 5.4" (D) x 1.7" (H) |
| Dimensions (Boxed): | 17.8cm (W) x 17cm (D) x 5.6cm (H) 7.0" (W) x 6.7" (D) x 2.2" (H) |
| Weight: | Nett: 0.42kgÊGross: 0.56kg Nett: 0.95lbs Gross: 1.25lbs |
| Accessories | |
| AVN-DIOBT AVN-DIOMT AVN-DIORK |
AVN-DIO Large Unit Belt Clip Kit AVN-DIO Large Unit Underdesk Mount AVN-DIO 1U 19" Rack Kit (5 x Small DIO or 3 x Large DIO) |
