Sonifex AVN-GPS5 GPS Receiver Antenna and Lead
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

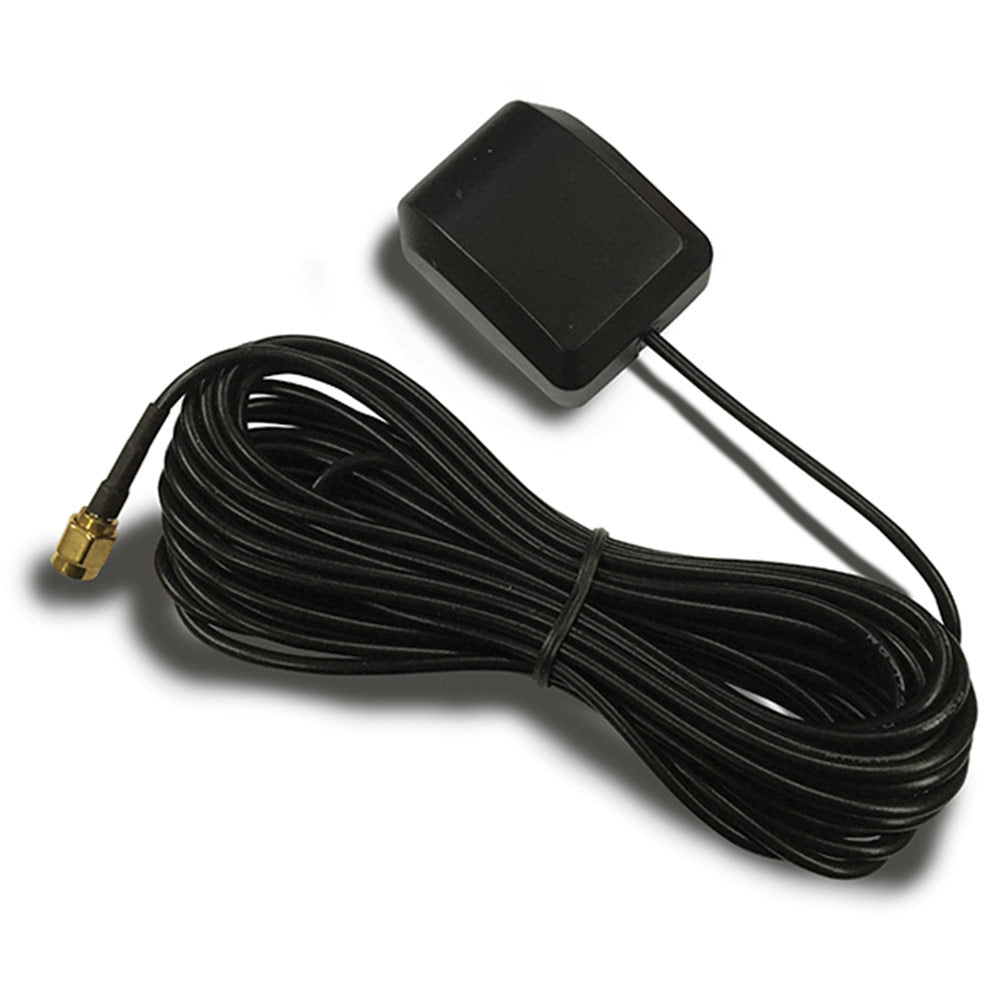

The AVN-GPS5 is a GPS receiver antenna with a 5m lead and is supplied with an adhesive pad. It is ideal for use with the Sonifex AVN-GMCS.
Features:
- 28dB LNA gain
- IP67 protection
- Ground plane independent
- RoHS compliant
- Improves signal to noise ratio for mobile applications
- Extended mounting - choose from magnetic or adhesive pad
- Can be mounted on wide ranging surfaces
- Meets all EU compliance criteria for electronic goods
It is embedded with the latest generation, two stage, pre-amplifier circuit offering 28dB LNA gain. Capable at operating within 3-5V. Its low current draw of just 10mA at 3V helps to keep the operating voltage to a minimum making it suitable for applications where power saving is important.
| Electrical | |
| Temperature range | -40 to +85¡C |
| Impedance | 50 ohm |
| Gain | 28dB |
| VSWR | 2.0 max |
| Voltage / supply current and example | 3 - 5V DC / 8023mA (3V @ 10mA) |
| Centre frequency | 1.575.42MHz ± 1.023MHz (covered with random and measured on ground plane) |
| Polarization | RHCP |
| Bandwidth | 10Mhz (10dB return loss) |
| Amplifier | 2 stage LNA with SAW filter for out of band attenuation |
| Noise figure | 1.4dB typical |
| Axial ratio | 1.0dB typical |
| Equipment Type | |
| AVN-GPS5 | GPS Receiver Antenna / Lead |
| Physcial Specification | |
| Dimensions | 47mm x 35mm x 17mm ± 1mm (without cable) |
| Cable | 5m |
| Connector | SMAm, SMBm plug, MCXm, MMCXm |
| IP rating | IP67 (magnetic mount only) |
| Mounting method | Magnetic or adhesive (3M pad supplied loose in bag) |
The AVN-GPS5 is a GPS receiver antenna with a 5m lead and is supplied with an adhesive pad. It is ideal for use with the Sonifex AVN-GMCS.
Features:
- 28dB LNA gain
- IP67 protection
- Ground plane independent
- RoHS compliant
- Improves signal to noise ratio for mobile applications
- Extended mounting - choose from magnetic or adhesive pad
- Can be mounted on wide ranging surfaces
- Meets all EU compliance criteria for electronic goods
It is embedded with the latest generation, two stage, pre-amplifier circuit offering 28dB LNA gain. Capable at operating within 3-5V. Its low current draw of just 10mA at 3V helps to keep the operating voltage to a minimum making it suitable for applications where power saving is important.
| Electrical | |
| Temperature range | -40 to +85¡C |
| Impedance | 50 ohm |
| Gain | 28dB |
| VSWR | 2.0 max |
| Voltage / supply current and example | 3 - 5V DC / 8023mA (3V @ 10mA) |
| Centre frequency | 1.575.42MHz ± 1.023MHz (covered with random and measured on ground plane) |
| Polarization | RHCP |
| Bandwidth | 10Mhz (10dB return loss) |
| Amplifier | 2 stage LNA with SAW filter for out of band attenuation |
| Noise figure | 1.4dB typical |
| Axial ratio | 1.0dB typical |
| Equipment Type | |
| AVN-GPS5 | GPS Receiver Antenna / Lead |
| Physcial Specification | |
| Dimensions | 47mm x 35mm x 17mm ± 1mm (without cable) |
| Cable | 5m |
| Connector | SMAm, SMBm plug, MCXm, MMCXm |
| IP rating | IP67 (magnetic mount only) |
| Mounting method | Magnetic or adhesive (3M pad supplied loose in bag) |
