Sonifex AVN-HD1 Digital Headphone Amp for AVN-PD8/D Portal
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The AVN-PD8/D Portal can be combined with multiple AVN-HD1 headphone amplifiers to provide a headphone distribution system - the portal output connections can supply analogue power to satellite headphone amplifiers and the unit can be mounted using the CM-MNT1 desk mount panel.
Features:

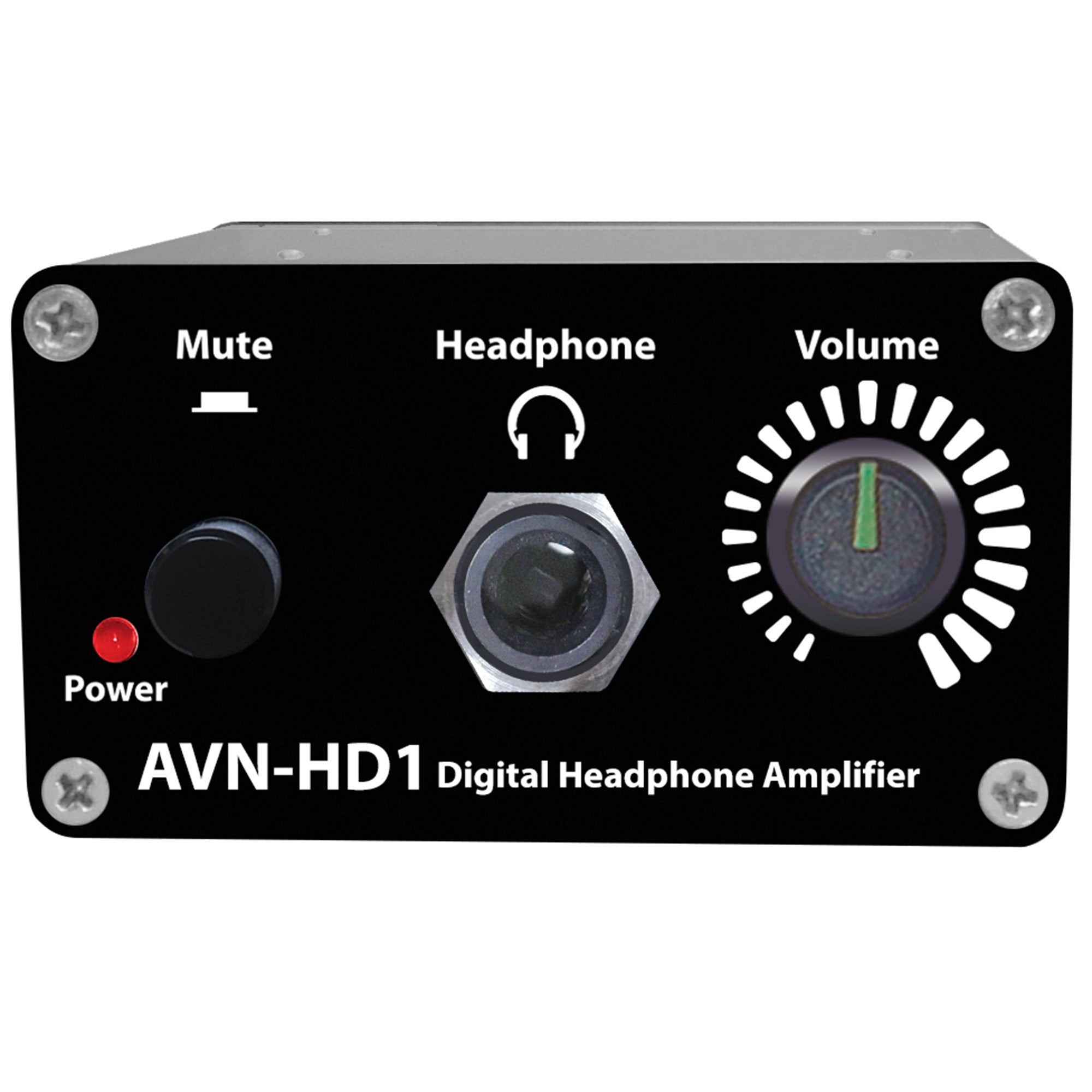

- Front panel 6.35mm (1/4") headphone socket and volume control knob.
- Front panel Mute/GPO push button.

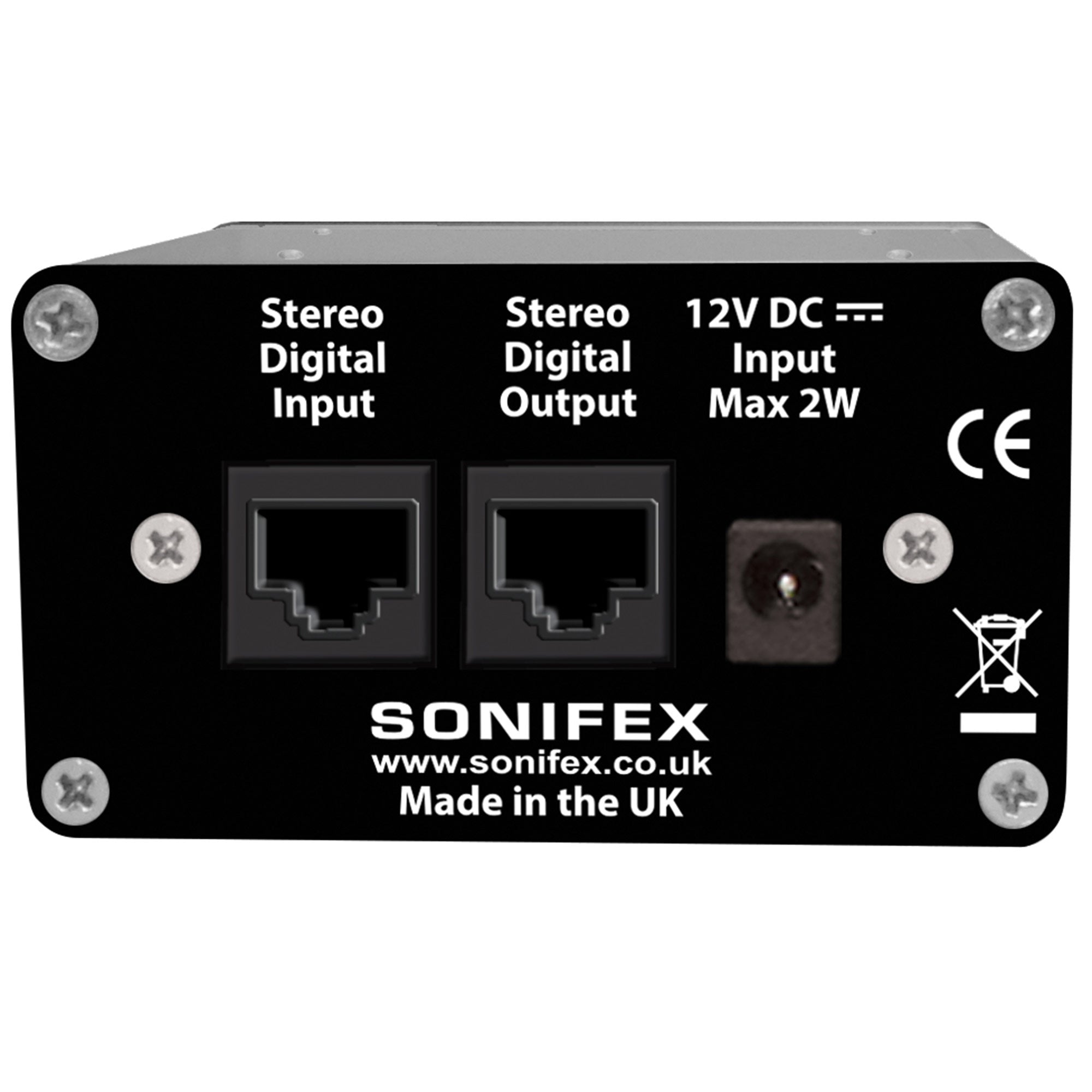

- AES3 digital input on RJ45 (the connector provides power to the unit and a GPO back to the portal).
- AES3 digital output on RJ45 (power and GPO signal are not connected).
- Locking DC power connector if a portal is not being used to supply the unit with power.
The AVN-PD8/D can be combined with multiple Sonifex AVN-HD1 headphone amplifiers to provide 8 separate headphone signals where each headphone amplifier can be sent a separate feed, mixed from any physical or stream inputs.
Note: The AVN-HD1 is an AES3 digital input product taking an AES3 audio feed from the AVN portals. It can be used independently of the portals by using the separate DC input for power and a separate AES3 audio input.
| Output Impedance | Drives 150mW into 32? to 600? headphones |
| D to A Line-up | -6dBFS = +18dBu |
| Frequency Response | 20Hz to 20kHz, +0/-0.2dB |
| THD+N | <-90dBu, -30dBFS, 20Hz to 20kHz, unity gain, 20kHz BW |
| Noise | -92dBu, A weighted |
| Crosstalk | -90dB, 1kHz, +14dBFS |
| Cable | Cat5/Cat5e/Cat6, Maximum length of 20m between Portal and AVN-HD1 if no external PSU is used |
| Physical Specification | |
| Dimensions (Raw) | 7.7cm (W) x 8.3cm (D) x 4.2cm (H) 3.0Ó (W) x 3.3Ó (D) x 1.7Ó (H) |
| Dimensions (Boxed) | 12.7cm (W) x 22.9cm (D) x 7.6cm (H) 5Ó (W) x 9Ó (D) x 3Ó (H) |
| Weight | Nett: 0.22kg Gross: 0.33kg Nett: 0.49lbs Gross: 0.73lbs |
| Accessories | |
| CM-MNTI | Desk Mount Panel |
The AVN-PD8/D Portal can be combined with multiple AVN-HD1 headphone amplifiers to provide a headphone distribution system - the portal output connections can supply analogue power to satellite headphone amplifiers and the unit can be mounted using the CM-MNT1 desk mount panel.
Features:
- Front panel 6.35mm (1/4") headphone socket and volume control knob.
- Front panel Mute/GPO push button.
- AES3 digital input on RJ45 (the connector provides power to the unit and a GPO back to the portal).
- AES3 digital output on RJ45 (power and GPO signal are not connected).
- Locking DC power connector if a portal is not being used to supply the unit with power.
The AVN-PD8/D can be combined with multiple Sonifex AVN-HD1 headphone amplifiers to provide 8 separate headphone signals where each headphone amplifier can be sent a separate feed, mixed from any physical or stream inputs.
Note: The AVN-HD1 is an AES3 digital input product taking an AES3 audio feed from the AVN portals. It can be used independently of the portals by using the separate DC input for power and a separate AES3 audio input.
| Output Impedance | Drives 150mW into 32? to 600? headphones |
| D to A Line-up | -6dBFS = +18dBu |
| Frequency Response | 20Hz to 20kHz, +0/-0.2dB |
| THD+N | <-90dBu, -30dBFS, 20Hz to 20kHz, unity gain, 20kHz BW |
| Noise | -92dBu, A weighted |
| Crosstalk | -90dB, 1kHz, +14dBFS |
| Cable | Cat5/Cat5e/Cat6, Maximum length of 20m between Portal and AVN-HD1 if no external PSU is used |
| Physical Specification | |
| Dimensions (Raw) | 7.7cm (W) x 8.3cm (D) x 4.2cm (H) 3.0Ó (W) x 3.3Ó (D) x 1.7Ó (H) |
| Dimensions (Boxed) | 12.7cm (W) x 22.9cm (D) x 7.6cm (H) 5Ó (W) x 9Ó (D) x 3Ó (H) |
| Weight | Nett: 0.22kg Gross: 0.33kg Nett: 0.49lbs Gross: 0.73lbs |
| Accessories | |
| CM-MNTI | Desk Mount Panel |
