Sonifex AVN-TB20AR 20 Button Advanced Talkback Intercom, AoIP Portal


  • Dale #:

    SONF-AVNTB20AR
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The AVN-TB20AR is a 2U rackmount 20 button version of the AVN-TB10AR with the same specification, but more station buttons allowing greater communication for larger facilities. It also has ‘GPI/O’ and ‘Phone’ buttons for remote control of external equipment and Sonifex DHY-04 telephone hybrids, u... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The AVN-TB20AR is a 2U rackmount 20 button version of the AVN-TB10AR with the same specification, but more station buttons allowing greater communication for larger facilities. It also has ‘GPI/O’ and ‘Phone’ buttons for remote control of external equipment and Sonifex DHY-04 telephone hybrids, useful in an OB truck or production gallery.

Features:

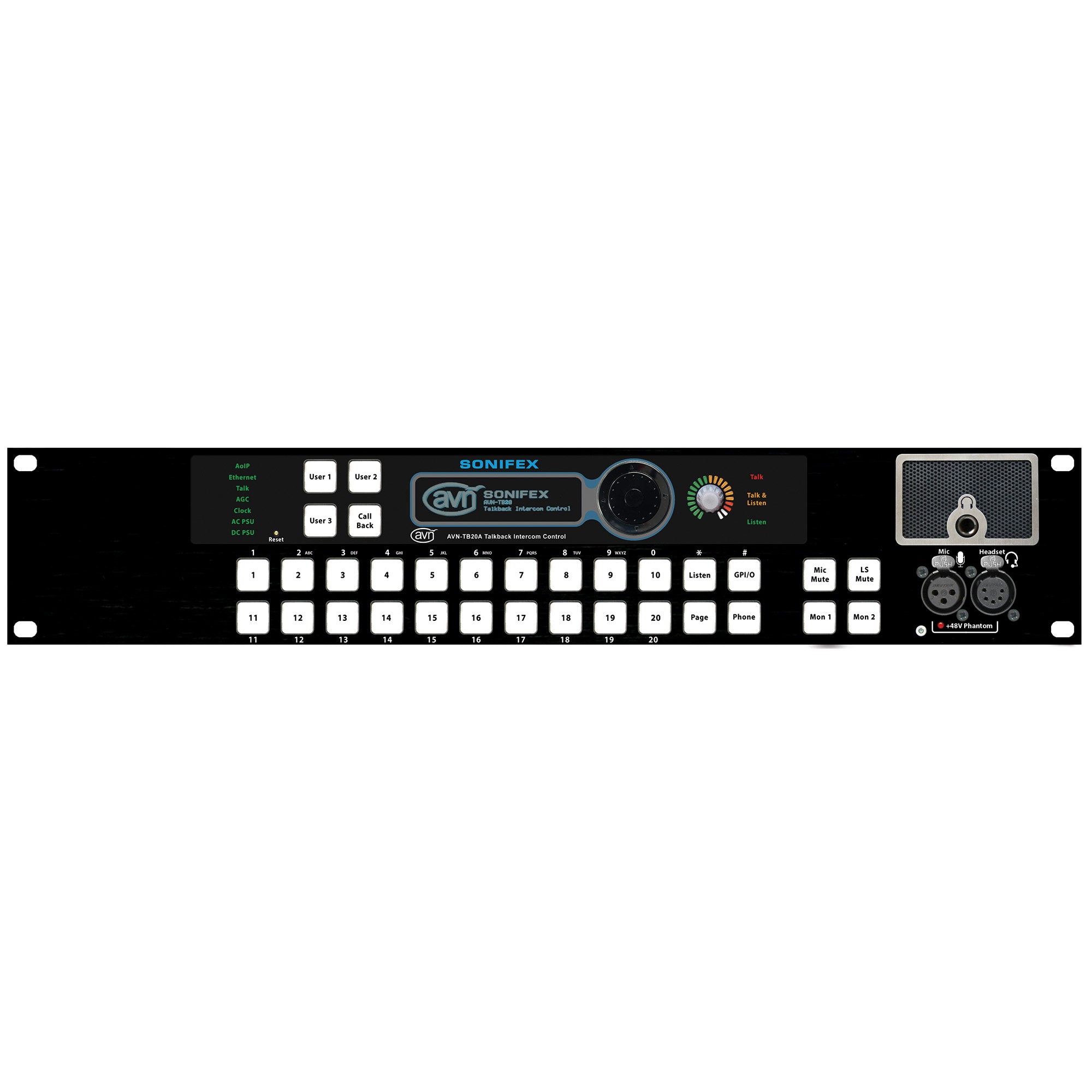

  • 20 illuminated key-cap Talk buttons plus Listen & Page buttons.
  • Phone button for remote dialling and control of an external telephone hybrid.
  • Page button and Group Talk facilities.
  • Callback button with callback source display.
  • Three user definable buttons.
  • Speaker & microphone mute buttons.
  • Mic & headset inputs (front & rear panel headset connection), headphone & speaker outputs.
  • Front panel volume control which operates on speaker/headphone outputs and incoming source levels.
  • +48V phantom power for the mic inputs.
  • Ethernet webserver and front panel control & configuration.
  • Front panel display providing source & destination information.
  • Sources from AoIP, 1 x balanced, 2 x unbalanced or S/PDIF digital inputs.
  • Destinations to AoIP or rear panel balanced & unbalanced outputs.
  • Advanced echo cancellation & mic AGC to prevent acoustic feedback.
  • Dual 1Gb lan ports & 1Gb SFP fibre port.
  • 10 user assignable GPIO ports.
  • GPI/O button for triggering external events, via physical GPIO or network commands.
  • Front panel LEDs for network audio presence, Talk activity, AGC activity, clock sync and power supply activity.
  • Two front panel monitor buttons for routing audio directly to the speaker e.g. to take an IFB feed or off-air transmission signal.
  • Ducking or mixing of inputs to speaker/headphones.
  • Dual AC & DC power supply inputs.

Talkback Intercoms Using Audio Over IP, RAVENNA/AES 67
The new range of AVN (Audio/Video/Network) talkback/listening/paging intercoms aid communication between studios, stages, theatres, offices and different areas in a facility or building complex. They have both 4-wire and AoIP sources and destinations, and use RAVENNA/AES67 as the audio transport mechanism, allowing simple CAT 5 cabling and expansion.

Webserver Software
Each AVN-TB talkback unit has a built-in webserver for setup and configuration. The webserver is responsive, and resizes depending on the size of your screen, meaning that it can be used on large monitors or small handheld devices such as smart-phones. Help information is shown on the right hand side of the screen so it’s a good place to go to find out how the unit operates.

More +

Product Specs

Audio-Over-IP Specification
Open StandardsRAVENNA, AES67
Device DiscoveryBonjour (mDNS / DNS-SD)
Audio DeliveryRTP/UDP over IPv4 multicast
QoSDiffServ
Stream ManagementRTSP/SDP
ControlEmber+/webserver
FormatLinear PCM 24-bit (L24)
Channels Per Stream2
Frames Per Packet48
Maximum StreamsRX 25, TX 5 (fixed)
Sample Rate48 kHz
Timing Synchronisation
Profile SupportDefault, media & custom profiles
Timing ProtocolPTPv2, IEEE1588-2008
Microphone and Headset Input
Input Impedance>2.5k? balanced
Gain Range0dB to +60dB
0dBFS Line-UpAdjustable in steps of 3dB from -58dBu to +2dBu
Frequency Response20Hz to 20kHz, +0/-0.2dB
Noise-127dBu, 20kHz BW, Rs=200? ref. 76dB gain
Unbalanced Line Inputs
Input Impedance>20k?
0dBFS Line-Up+12dBu
Frequency Response20Hz to 20kHz, +0/-0.2dB
THD+N<-97dBFS, -30dBFS, 20Hz to 20kHz, unity gain, 20kHz BW
Noise-100dBFS, 20kHz BW, Rs=200?
Crosstalk<-97dB
Balanced Line Inputs
Input Impedance>20k? balanced
0dBFS Line-UpAdjustable +15/+18/+20/+22/ +24dBu
Frequency Response20Hz to 20kHz, +0/-0.2dB
THD+N<-110dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW
Noise-110dBFS, 20kHz BW, Rs=200?
Crosstalk<-100dB
Common Mode Rejection>70dB @ 1kHz
Headphone Output
Output ImpedanceDrives 150mW into 32? to 600? headphones
0dBFS Line-Up+20dBu
Frequency Response20Hz to 20kHz, +0/-0.2dB
THD+N<-108dBFS, -30dBFS, 20Hz to 20kHz, unity gain, 20kHz BW
Noise-110dBFS, 20kHz BW
Unbalanced Line Outputs
Output Impedance<50?
0dBFS Line-Up+12dBu
Frequency Response20Hz to 20kHz, +0/-0.2dB
THD+N<-95dBFS, -30dBFS, 20Hz to 20kHz, unity gain, 20kHz BW
Noise-100dBFS, 20kHz BW
Balanced Line Outputs
Output Impedance<50? balanced
0dBFS Line-UpAdjustable +15/+18/+20/+22/ +24dBu
Frequency Response20Hz to 20kHz, +0/-0.2dB
THD+N<-110dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW
Noise-110dBFS, 20kHz BW, Rs=200?
Loudspeaker
Power Output4W
VolumeMute to full volume via front panel control

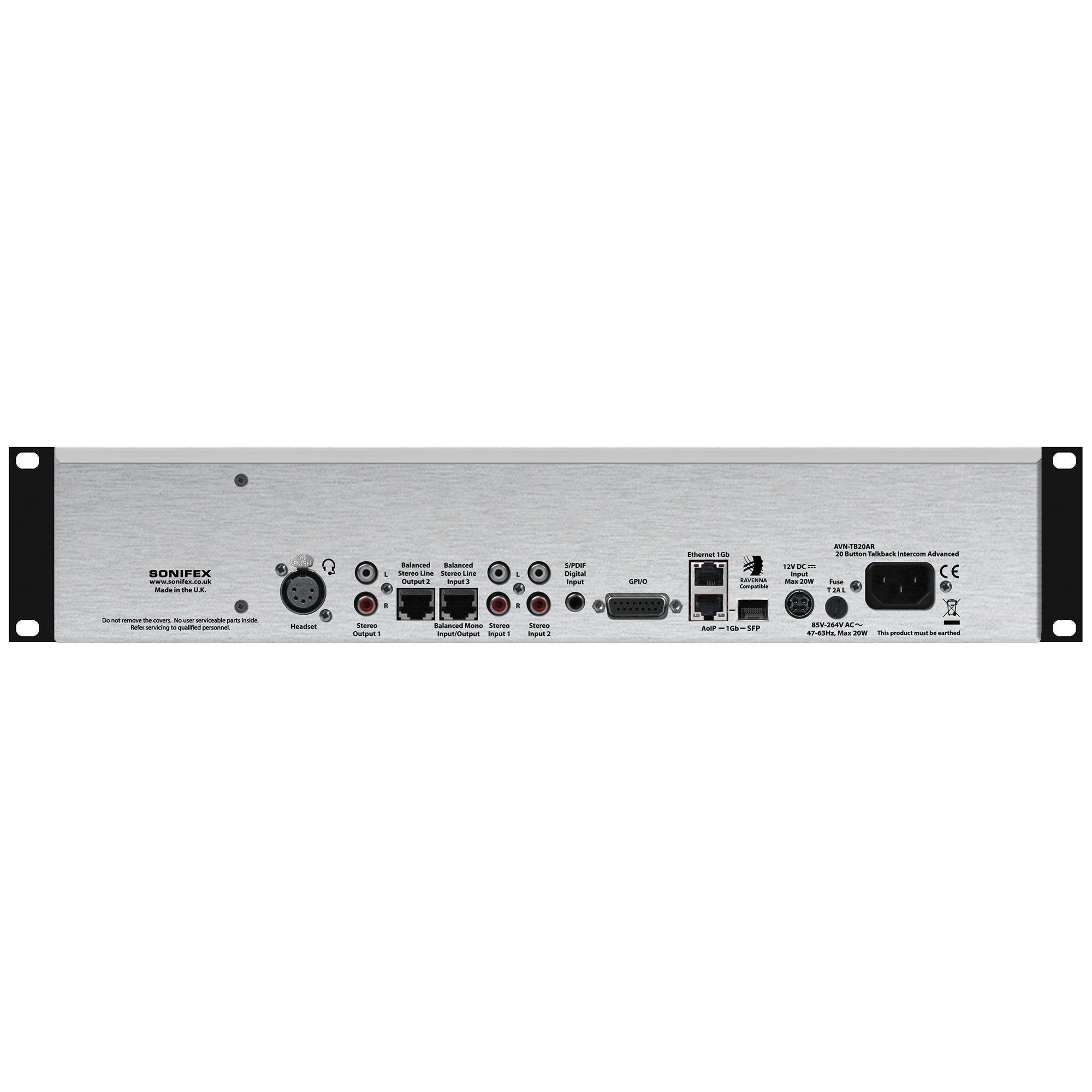

Connections
MicrophoneXLR-3 pin female (electronically balanced)
Headphone¼ inch (6.35mm) stereo jack socket
Headset2 x XLR-5 pin female (front/rear electronically balanced input)
Audio Inputs2 x unbalanced stereo, RCA phono
1 x S/PDIF, RCA phono
Audio Outputs1 x balanced stereo, RJ45
1 x unbalanced stereo, 2 x RCA phono
1 x loudspeaker output
Audio Input/Output1 x balanced stereo input or mono input/output, RJ45
GPIO15-way ‘D’-type socket
Network2 x gigabit Ethernet, RJ45
1 x SFP fibre
Mains AC InputUniversal filtered IEC, continuously rated 85-264VAC, 47-63Hz, 20W
DC Input4 pin 7.5A power jack socket, 9.5-14VDC
Fuse RatingAnti-surge fuse 2A 20mm x 5mm
Physical Specification
Dimensions (Raw)48.3cm (W) x 17.5cm (D) x 4.4cm (H) (1U)
19” (W) x 6.9” (D) x 1.8” (H) (1U)
Dimensions (Boxed)59cm (W) x 28cm (D) x 11cm (H)
23” (W) x 11” (D) x 4.3” (H)
WeightNett: 2.4kg Gross: 3.1kg
Nett: 5.3lbs Gross: 6.8lbs
Accessories
AVN-DC06060W DC power supply for AVN range with KPJX-4S plug
CM-GM2Professional Gooseneck Condenser Microphone

More +
