Description
The CM-BH4WX is a version of the CM-BH4W with a 4 pin XLR headset connection instead of a stereo jack connector. In all other respects it is the same as the CM-BH4W.Transformer Balanced I/OThe CM-BH4W uses audio transformers at its input and output, providing galvanic isolation from outside inter... Read MoreOur Price: $564.00
Free Shipping (Continental US)
Suggested Accessories
Description
The CM-BH4WX is a version of the CM-BH4W with a 4 pin XLR headset connection instead of a stereo jack connector. In all other respects it is the same as the CM-BH4W.
Transformer Balanced I/O
The CM-BH4W uses audio transformers at its input and output, providing galvanic isolation from outside interference, ensuring your communications are loud and clear, every time.
4-Wire And IFB Modes
In 4-wire mode, the unit acts as a 2-way intercom, with input audio routed to the headset earpiece, and microphone audio is routed to the output upon pressing the talk button. The output level is maintained at +2dBu peak level by a built-in AGC. In IFB mode, the input audio is routed to the output, and is interrupted by the microphone signal when the talk switch is pressed. The talk switch can easily be converted from momentary to latching operation to suit your application.
Low Battery Warning
A low battery warning LED flashes when the 9V PP3 battery has depleted to 6V, giving plenty of notice to swap the battery. In addition, the CM-BH4W automatically switches off when the headset jack is removed, and the low power circuitry gives up to 150 hours use from a single alkaline 9V PP3 battery.
More +
Product Specs
Mic In to Line Out | |
Mic Input Impedance | 1k5? Unbalanced for 200? dynamic microphone |
Limiter Input Threshold | -60dBu |
Line Output Level | +2dBu |
Line Output Impedance | 150? Transformer balanced |
Line In to Headphone Out | |
Line Input Impedance | >10k? Transformer balanced |
Input Gain/Volume | Adjustable off to +10dB |
Maximum Input Level | +24dBu |
Maximum HP Output Level | +7dBu (ref 9V battery voltage, <1% THD, 100? load) |
Minimum HP Impedance | 100? |
Connections | |

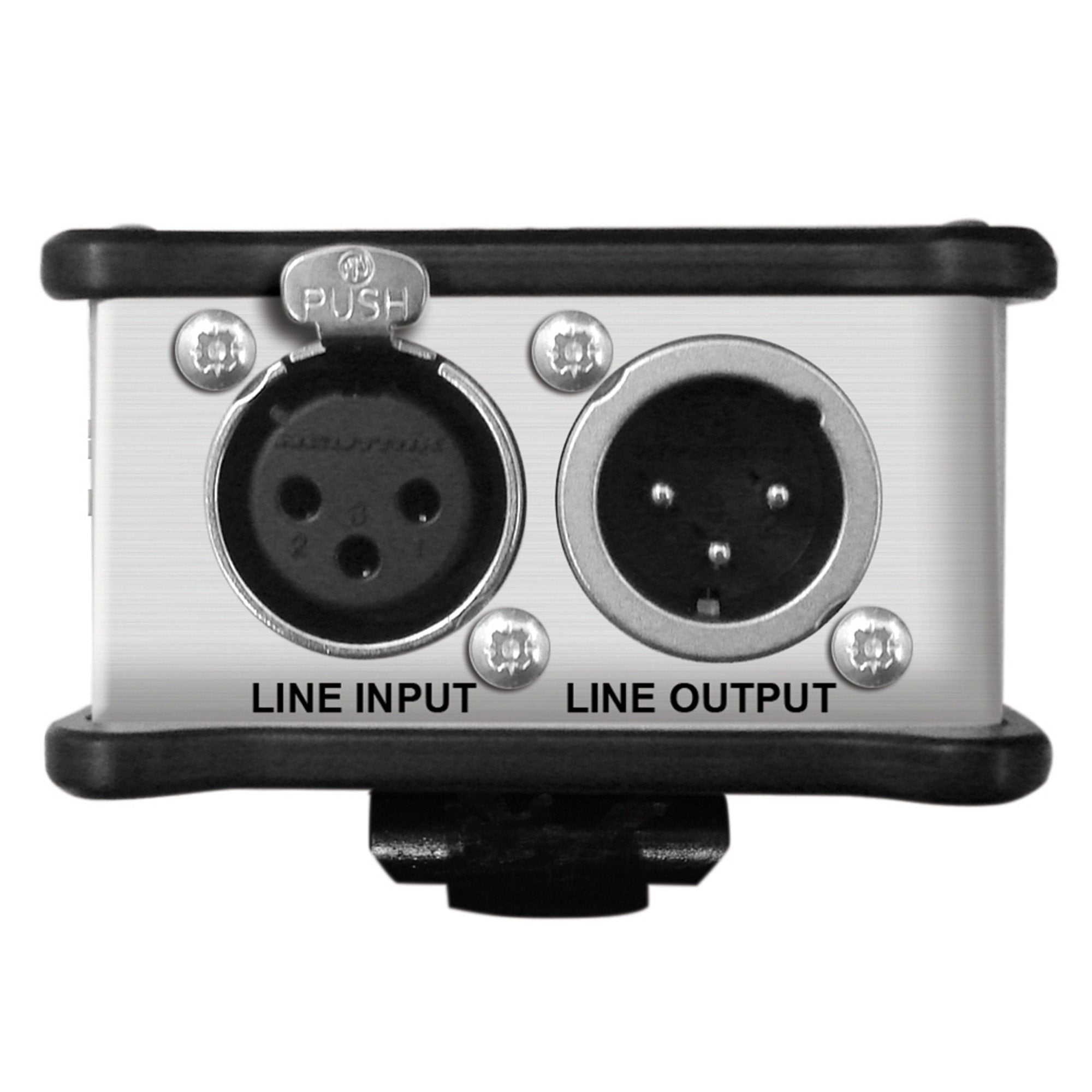

Line Input | 1 x XLR 3 pin female socket (balanced) |
Line Output | 1 x XLR 3 pin male plug (balanced) |
Headset (CM-BH4W) | 1 x ¼” (6.35mm) mono unbalanced jack socket |

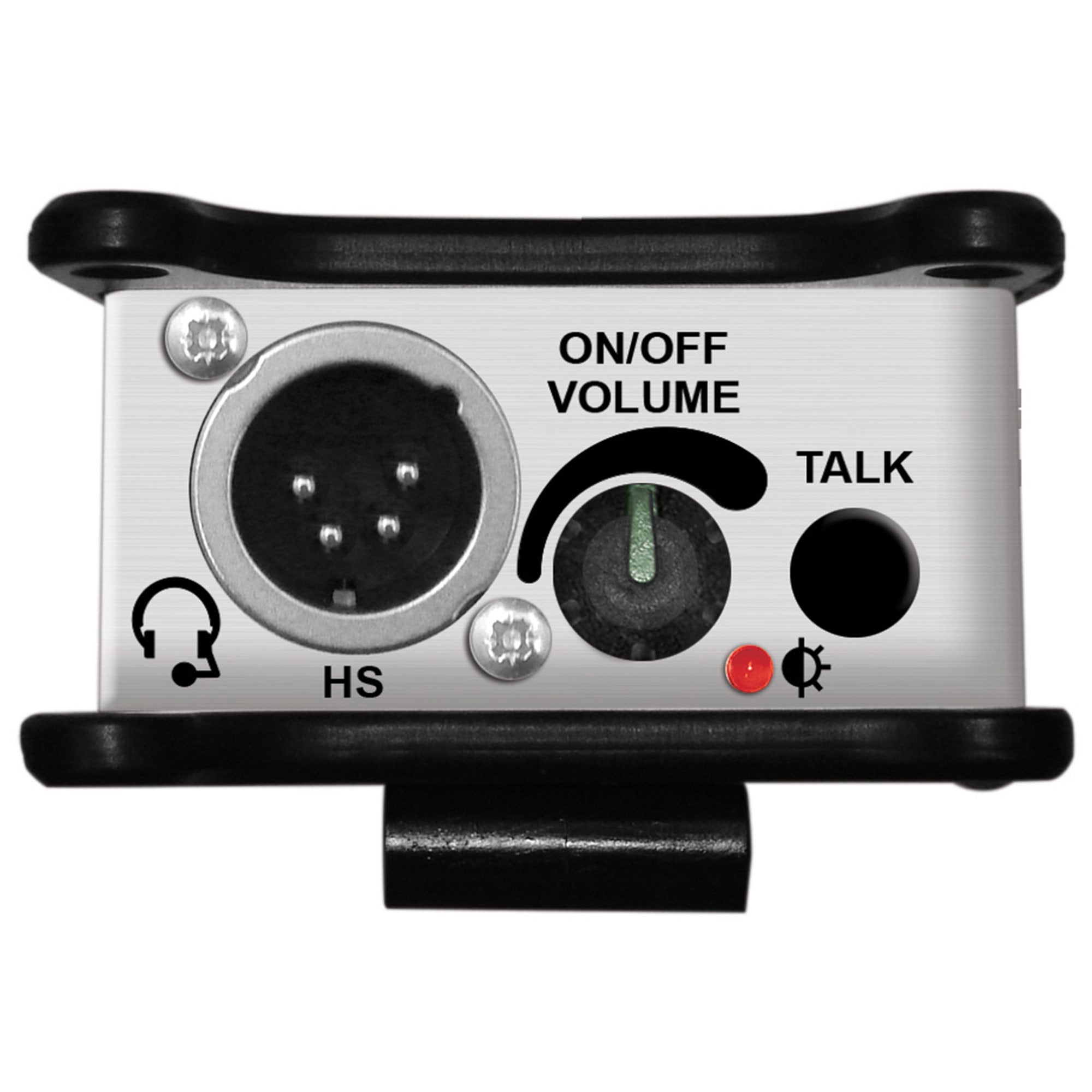

Headset (CM-BH4WX) | 1 x XLR 4 pin male plug (balanced) |
Equipment Type | |
CM-BH4W | Belt-pack 4-wire headphone amplifier |
CM-BH4WX | Belt-pack 4-wire headphone amplifier with 4 pin XLR headset connector |
Physical Specification | |
Dimensions (Raw) | 12.5cm (W) x 6.7cm (D) x 4.8cm (H) 4.9” (W) x 2.6” (D) x 1.9” (H) |
Dimensions (Boxed) | 23cm (W) x 13cm (D) x 8cm (H) 9.1” (W) x 5.1” (D) x 3.1” (H) |
Weight | Nett: 0.3kg Gross: 0.4kg Nett: 0.6lbs Gross: 1.0lbs |
