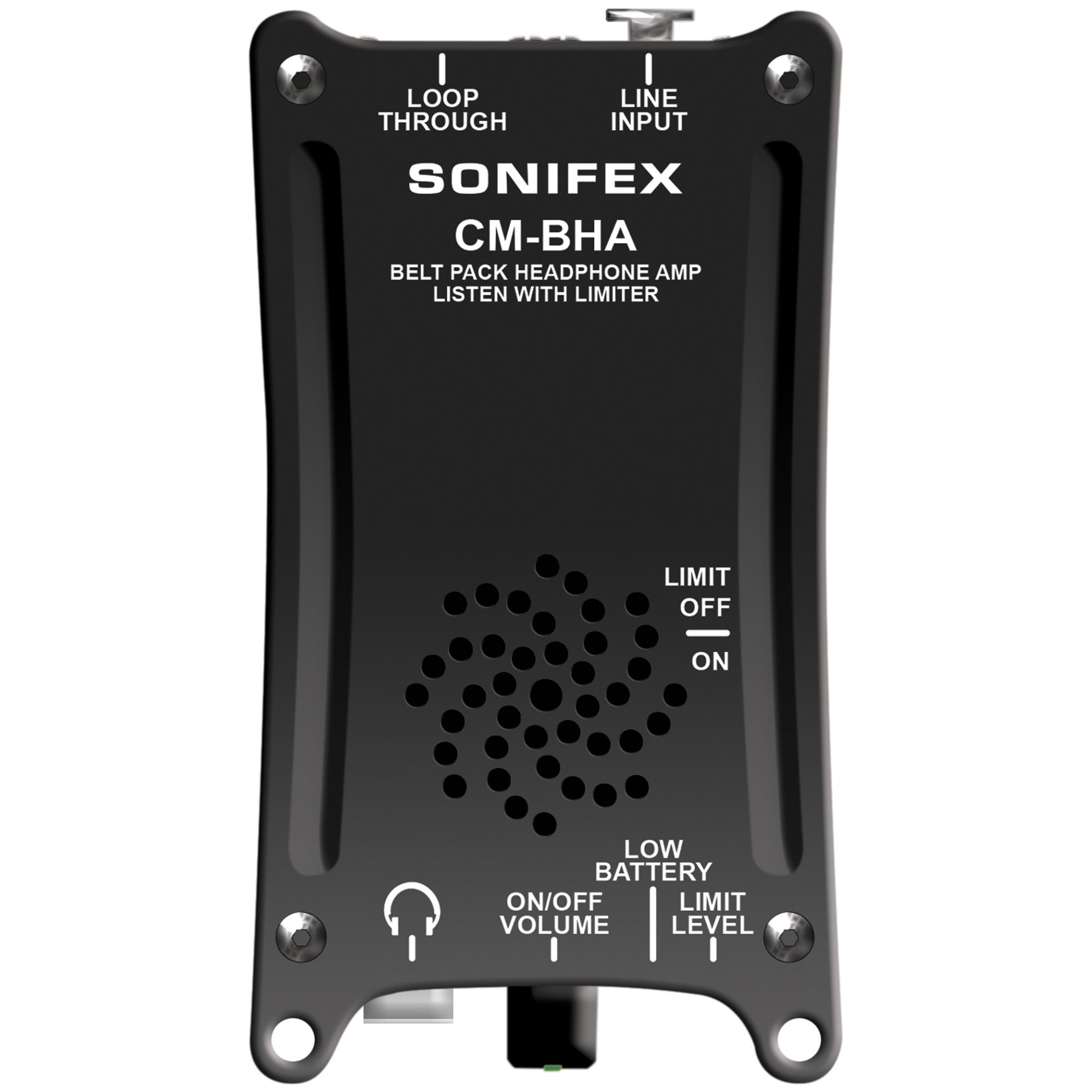

Sonifex CM-BHA Belt Pack Headphone Amplifier with Limiter & Loudspeaker
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The CM-BHA is a portable, battery powered headphone amplifier for use in live applications such as in-the-field news reports.
Wide Signal Range Capability
The CM-BHA can apply gain of up to +30dB to the incoming signal. The volume control simultaneously modifies the output volume and the input gain, allowing input signals op up to +18dBu be reproduced without distortion.
Adjustable Limiter Protects Listeners

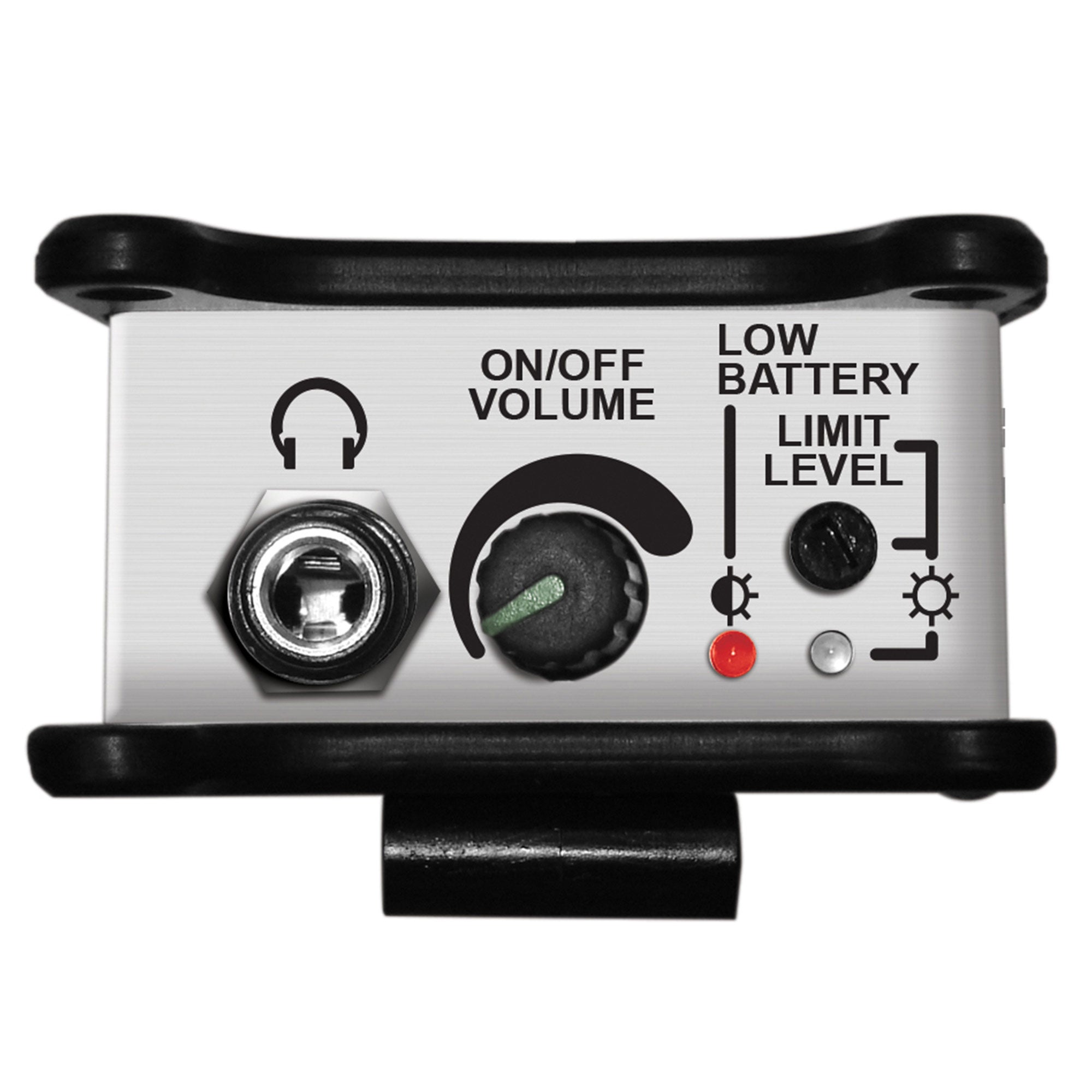

The CM-BHA has an adjustable limiter to protect the listener from excessive levels indicated by a blue LED. The limiter is only enabled when an earpiece or headphones are used, and when it is activated by the toggle switch. It is disabled when no jack is inserted, allowing a higher volume to be passed to the speaker for "squawk mode" use..
Low Battery Warning
Losing a cue feed due to batteries running out is not an option. With the CM-BHA, a low battery warning LED flashes when the 9V PP3 battery has depleted to 6V, giving plenty of notice to swap the battery. The low power circuitry of the CM-BHA gives up to 200 hours use from a single alkaline 9V PP3 battery.
| Input Impedance | 200k? electronically balanced |
| Input Limiter Threshold | Adjustable -6dBu to +16dBu |
| Maximum Input Level | +18dBu |
| Input Gain/Volume | Adjustable -60dB to +30dB |
| Frequency Response | 20Hz Ð 20kHz ±0.5 (ref 0dBu 1kHz) |
| Distortion | <0.015% (ref +8dBu input, 0dB gain,10k? load) |
| Maximum HP Output Level | +16dBu (ref 9V battery voltage, <1% THD, 2k? load) +12dBu (ref 6V battery voltage, <1% THD , 2k? load) |
| Minimum HP Impedance | 32? |
| Maximum Speaker Level | +12dBu (ref 9V battery voltage, <1% THD) +6dBu (ref 6V battery voltage, <1% THD) |
| Physical Specification | |
| Dimensions (Raw) | 12.5cm (W) x 6.7cm (D) x 4.8cm (H) 4.9Ó (W) x 2.6Ó (D) x 1.9Ó (H) |
| Dimensions (Boxed) | 23cm (W) x 13cm (D) x 8cm (H) 9.1 Ó (W) x 5.1Ó (D) x 3.1Ó (H) |
| Weight | Nett: 0.3kg Gross: 0.4kg Nett: 0.7lbs Gross: 0.9lbs |
The CM-BHA is a portable, battery powered headphone amplifier for use in live applications such as in-the-field news reports.
Wide Signal Range Capability
The CM-BHA can apply gain of up to +30dB to the incoming signal. The volume control simultaneously modifies the output volume and the input gain, allowing input signals op up to +18dBu be reproduced without distortion.
Adjustable Limiter Protects Listeners
The CM-BHA has an adjustable limiter to protect the listener from excessive levels indicated by a blue LED. The limiter is only enabled when an earpiece or headphones are used, and when it is activated by the toggle switch. It is disabled when no jack is inserted, allowing a higher volume to be passed to the speaker for "squawk mode" use..
Low Battery Warning
Losing a cue feed due to batteries running out is not an option. With the CM-BHA, a low battery warning LED flashes when the 9V PP3 battery has depleted to 6V, giving plenty of notice to swap the battery. The low power circuitry of the CM-BHA gives up to 200 hours use from a single alkaline 9V PP3 battery.
| Input Impedance | 200k? electronically balanced |
| Input Limiter Threshold | Adjustable -6dBu to +16dBu |
| Maximum Input Level | +18dBu |
| Input Gain/Volume | Adjustable -60dB to +30dB |
| Frequency Response | 20Hz Ð 20kHz ±0.5 (ref 0dBu 1kHz) |
| Distortion | <0.015% (ref +8dBu input, 0dB gain,10k? load) |
| Maximum HP Output Level | +16dBu (ref 9V battery voltage, <1% THD, 2k? load) +12dBu (ref 6V battery voltage, <1% THD , 2k? load) |
| Minimum HP Impedance | 32? |
| Maximum Speaker Level | +12dBu (ref 9V battery voltage, <1% THD) +6dBu (ref 6V battery voltage, <1% THD) |
| Physical Specification | |
| Dimensions (Raw) | 12.5cm (W) x 6.7cm (D) x 4.8cm (H) 4.9Ó (W) x 2.6Ó (D) x 1.9Ó (H) |
| Dimensions (Boxed) | 23cm (W) x 13cm (D) x 8cm (H) 9.1 Ó (W) x 5.1Ó (D) x 3.1Ó (H) |
| Weight | Nett: 0.3kg Gross: 0.4kg Nett: 0.7lbs Gross: 0.9lbs |
