Description

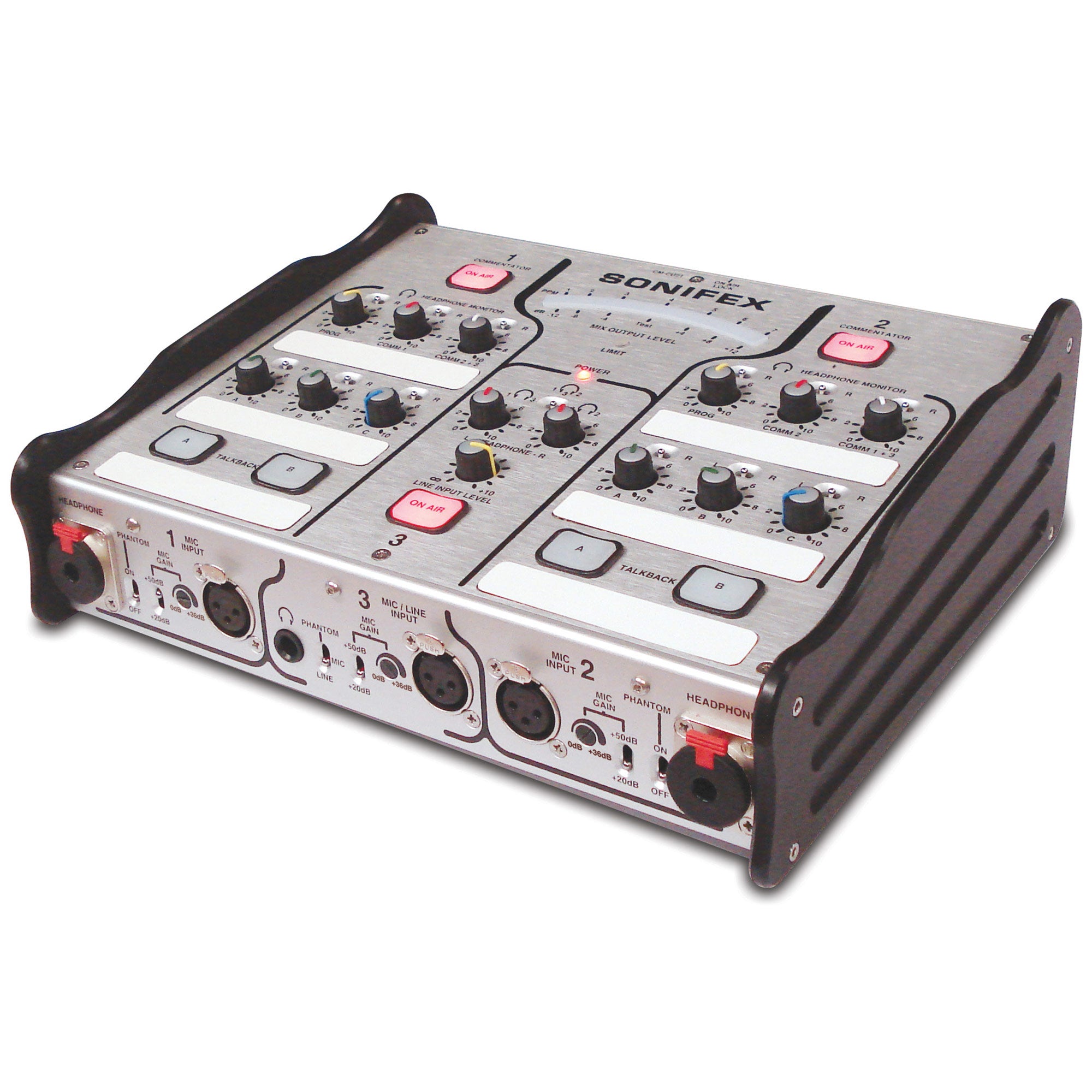

The CM-CU21 is a high quality, portable Commentator Unit. Its sturdy construction and flexibility of features make it suitable for use in a wide variety of environments.
Features:
It provides two fully featured commentator positions and a third guest position that can alternatively be used as a line-level input. Each position has an individual output, with two additional outputs providing a mix of all active commentary channels. A limit indicator on the main panel shows when the adjustable limiter on the mix outputs is active, and a bright 21 segment LED PPM meter, which can be disabled, shows the main output level.
Two talkback output channels, with a built in limiter, are available to each of the two main commentators and they can be linked to provide simultaneous operation.
A wide input gain range and switchable phantom power on each commentary position allows support of a variety of microphone types including low output ribbon, headsets and high output phantom powered microphones. There are 4 transformer balanced return audio inputs which, along with the commentator inputs, are routed to the headphone monitor controls. With these headphone controls, any monitor input can be adjusted and sent to either the left, right or both ears.
A GPIO port gives an open-collector driven output indication of any active On-Air or talkback channel and four remote inputs provide an external call/alert to each of the talkback controls.
The unit has a built in line-up tone generator for easy channel identification and cabling checks. When enabled the test-tone is routed to the required output simply by pressing the corresponding on air or talkback button.
An On-Air lock switch prevents the On-Air buttons from being accidentally deactivated and a T/B Gang switch links the operation of talkbacks A & B.
A flexible range of options allow the Commentator Unit to be customised to better suit the operational and user’s personal requirements. These include options for momentary or latching operation of the talkback buttons, permanently enabling or disabling any of the commentator inputs, default headphone signal routing and main panel indicator illumination levels.
The CM-CU21 Commentator Unit can be powered from a universal mains input between 85-264V AC at 47-63Hz, or from a 12-24V DC input.
More +
Product Specs
Microphone Input | |
Gain Range | +20dB to +86dB |
Maximum Input Level | -6dBu |
Equivalent Input Noise | 130dB Ref. 80dB gain with150? termination |
Equivalent Input Noise | 128dB Ref. 50dB gain with 150? termination |
C.M.R.R. | >60dB |
Frequency Response | ±0.5dB 20Hz to 22kHz Ref 50dB gain @ 1kHz |
Electronically Balanced Line Input | |
Gain Range | -83dB to +10dB |
Maximum Input Level | +25dBu |
C.M.R.R. | >70dB |
Frequency Response | ±0.2dB 20Hz to 22kHz Ref 0dBu @ 1kHz |
Transformer Balanced Monitor Inputs | |
Gain Range | -66dB to +11dB measured @ Headphone output |
Maximum Input Level | +25dBu |
C.M.R.R. | >60dB |
Frequency Response | ±0.5dB 20Hz to 22kHz Ref 0dBu @ 1kHz |
Transformer Balanced Mix Output | |
Maximum Output Level (Limiter Off) | +24dBu |
Frequency Response | ±0.5dB 20Hz to 22kHz Ref 0dBu @ 1kHz |
Noise | -94dB Average weighting Ref +8dBu |
THD & N | <0.02% Ref. 1kHz @ +8dBu |
THD & N | <0.065% Ref. 1kHz @ +18dBu |
1% Distortion Point | +18dBu @ 24Hz |
Transformer Balanced Talkback Outputs | |
Maximum Output Level Limited | +8dBu |
Frequency Response | ±0.5dB 20Hz to 22kHz Ref 0dBu @ 1kHz |
Noise | -94dB Average weighting Ref +8dBu |
THD & N | <0.02% Ref. 1kHz @ +8dBu |
Gain Adjustment | 0dB to +12dB |
Electronically Balanced Comm Output | |
Maximum Output Level | +25dBu |
Frequency Response | ±0.2dB 20Hz to 22kHz Ref 0dBu @ 1kHz |
Noise | -98dB Average weighting Ref+8dBu |
THD & N | <0.002% Ref. 1kHz @ +8dBu |
Headphone Output | |
Gain Range | -66dB to +11dB |
Maximum Output Level | +19dBu |
Frequency Response | ±0.5dB 20Hz to 22kHz Ref 0dBu @ 1kHz |
Noise | -85dB Average weighting Ref +8dBu |
THD & N | <0.005% Ref. 1kHz @ +8dBu |

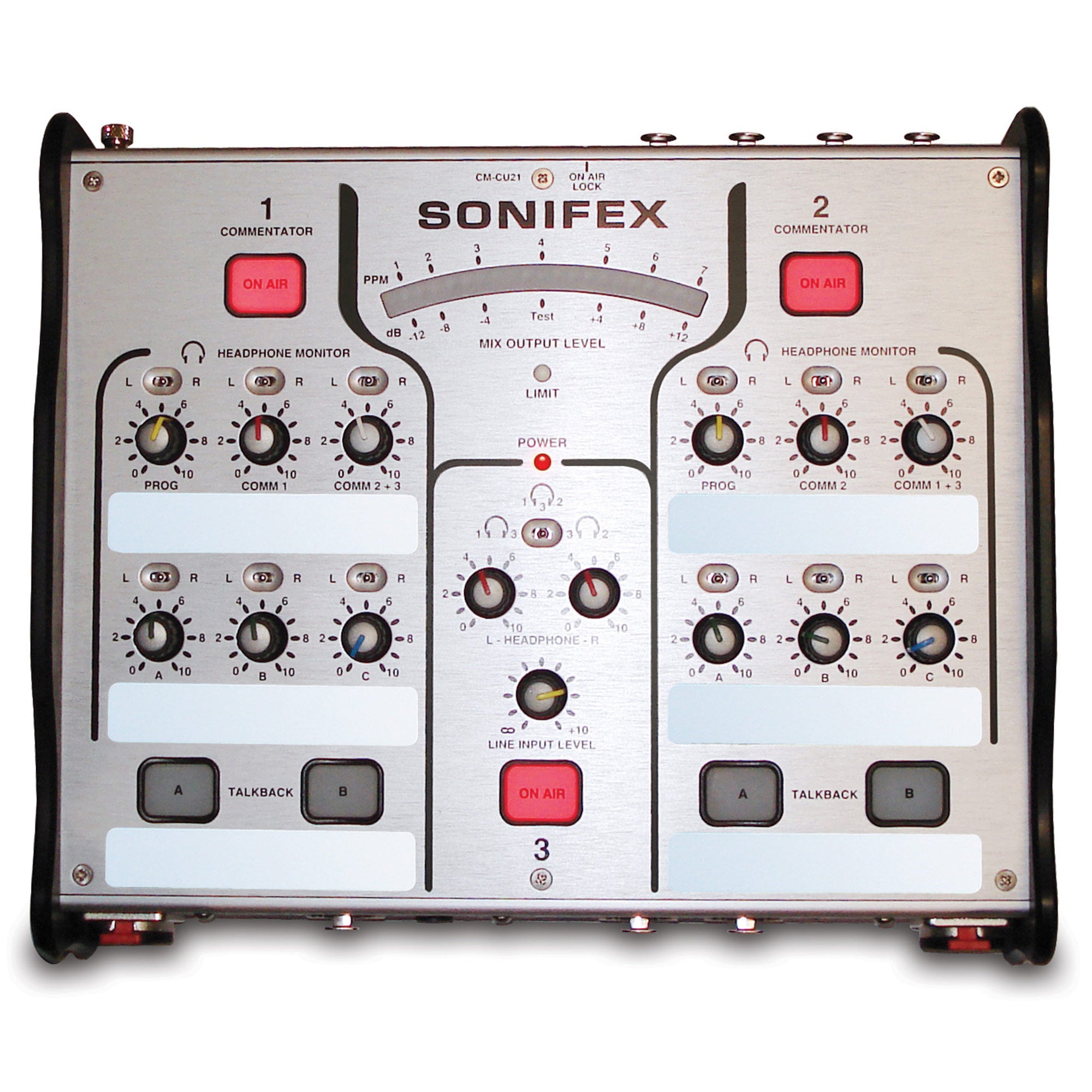

Main Panel Operational Controls & Indicators | |
On-Air Button | Illuminated button with latching action |
Talkback A, B, C & D Buttons | Illuminated buttons with selectable momentary and/or latching action |
Headphone Monitor Controls | Input source level adjustment potentiometers Headphone channel selection switches |
Line Input Level | Guest position line input mode level potentiometer |
PPM Meter | 21 segment display showing mix output level, brightness level Is selectable |
Limit LED | Indicates main output limiter is active, colour & brightness level is selectable |
Power LED | Indicates operating mode; normal or setup |
Front Panel Operational Controls | |
Phantom | Switch to enable 48V microphone phantom power for positions 1 & 2 |
Mic Gain | Microphone gain potentiometer and range select switch selects +20dB to +56dB or +50 to +86dB |
Rear Panel Operational Controls | |
On Air Lock | Switch to prevent On Air control from being deactivated Momentary push-button to override on air lock |
T/B Gang | Switch to link operation of talkbacks A & B |
T/B Gain | 0dB to +12dB |
Limiter | Switch to enable limiter on mix output Limit level adjustment potentiometer |
Test Tone | Switch to enable 1 kHz line-up tone |
Configuration Options – Accessible via Setup Mode | |
On Air Control Mode | Disabled, normal or permanently on |
Talkback Button Action | Momentary, latching or both |
Headphone Routing | Position 3 line mode input routed/ not routed to positions 1 & 2 headphones Position 1-3 inputs permanently routed/not routed to headphone monitors |
Display Preferences | Limit LED colour and brightness Button LED brightness PPM meter LED brightness/disable |
Permanent Option Backup | Save/load options to/from Permanent backup or return to factory defaults |

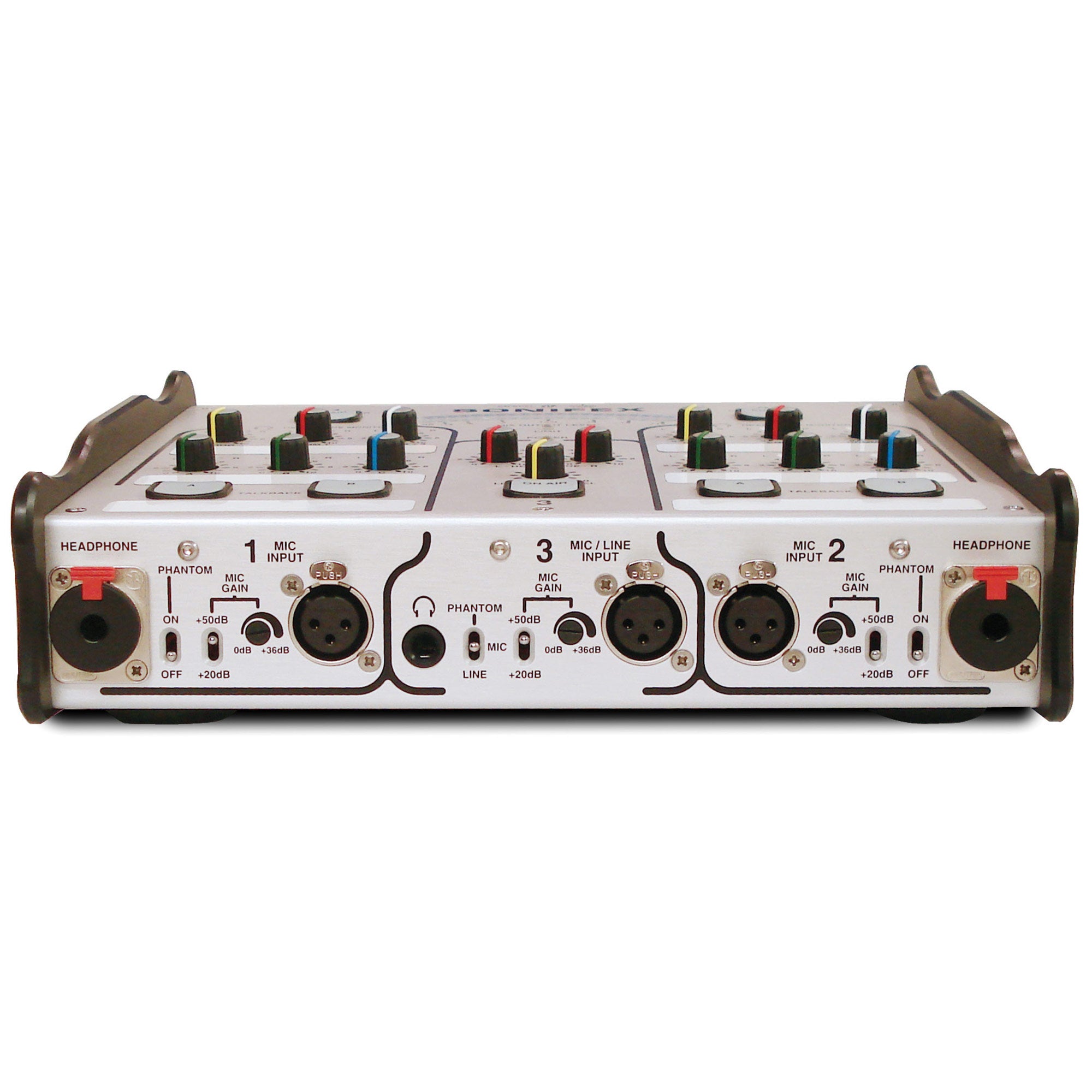

Front Panel Connections | |
Headphone Output | 2 x locking headphone jack socket for positions 1 & 2 1 x headphone jack socket for position 3 |
Microphone Input | 2 x XLR-3 pin latching female for positions 1 & 2 |
Line Input | 1 x XLR-3 pin latching female for position 3 |

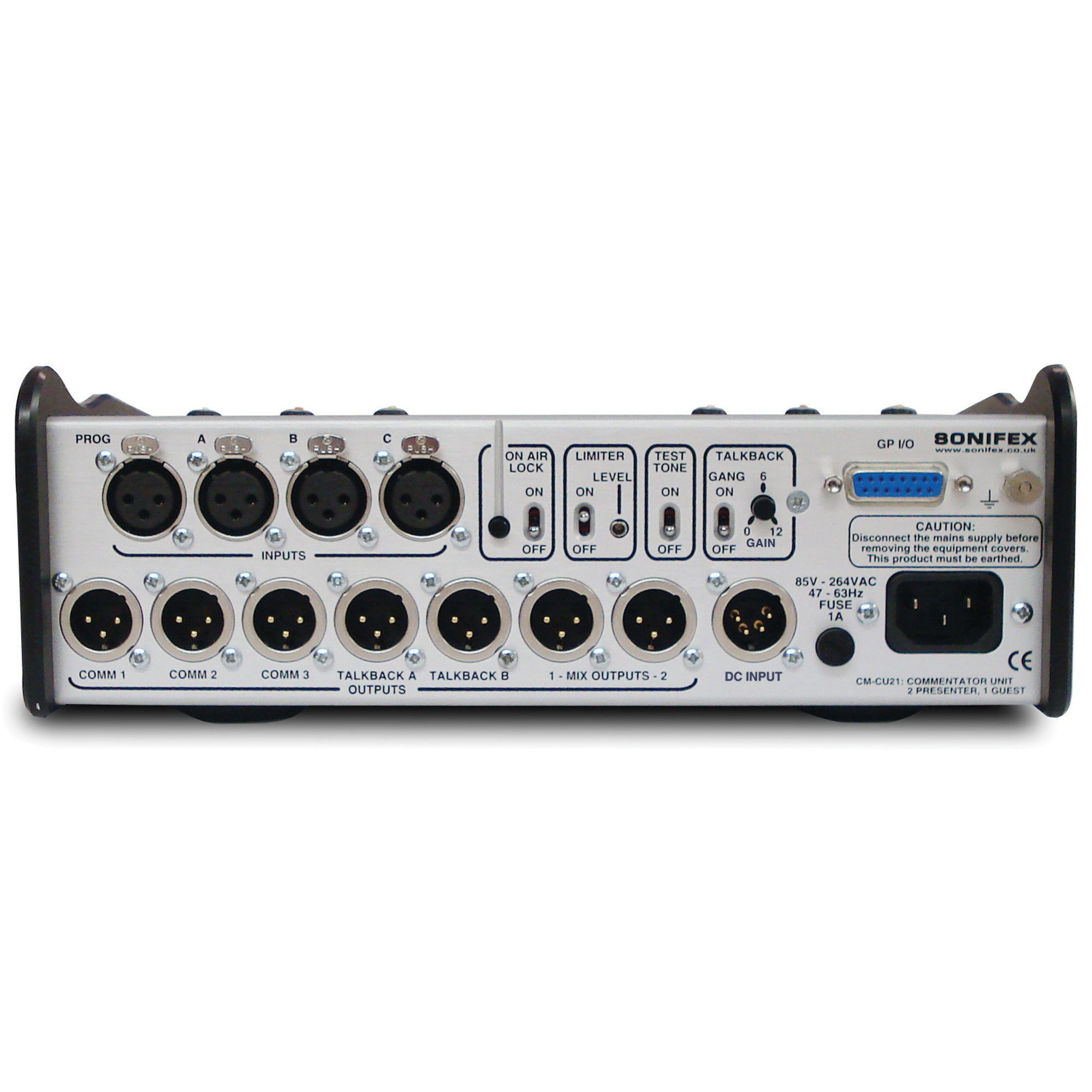

Rear Panel Connections | |
Prog, A, B, C & D Inputs | 4 x XLR-3 pin female (transformer balanced) |
Comm Output | 3 x XLR-3 pin male (electronic balanced) |
Talkback A, B, C & D Outputs | 2 x XLR-3 pin male (transformer balanced) |
Mix Output | 2 x XLR-3 pin male (transformer balanced) |
GPIO Port | 15-way ‘D’-type socket |
Mains Input | Universal filtered IEC, continuously rated 85-264VAC, 47-63Hz, 10W |
Fuse Rating | Anti-surge fuse 1A 20 x 5mm |
DC Input | XLR-4 pin male 12V DC, 650mA Typical, 850mA Maximum 24V DC, 325mA Typical, 425mA Maximum |
Earth Point | M4 stud. |
Physical Specification | |
Dimensions (Raw) | 270mm (W) x 230mm (D) x 70mm (H - front) x 95mm (H - rear) 10.6” (W) x 9” (D) x 2.8” (H - front) x 3.7” (H - rear) |
Dimensions (Boxed) | 380mm (W) x 350mm (D) x 200mm (H) 15” (W) x 13.8” (D) x 7.8” (H) |
Weight | Nett: 3.3kg Gross: 4.3kg Nett: 7.3lbs Gross: 9.4lbs |
Accessories | |

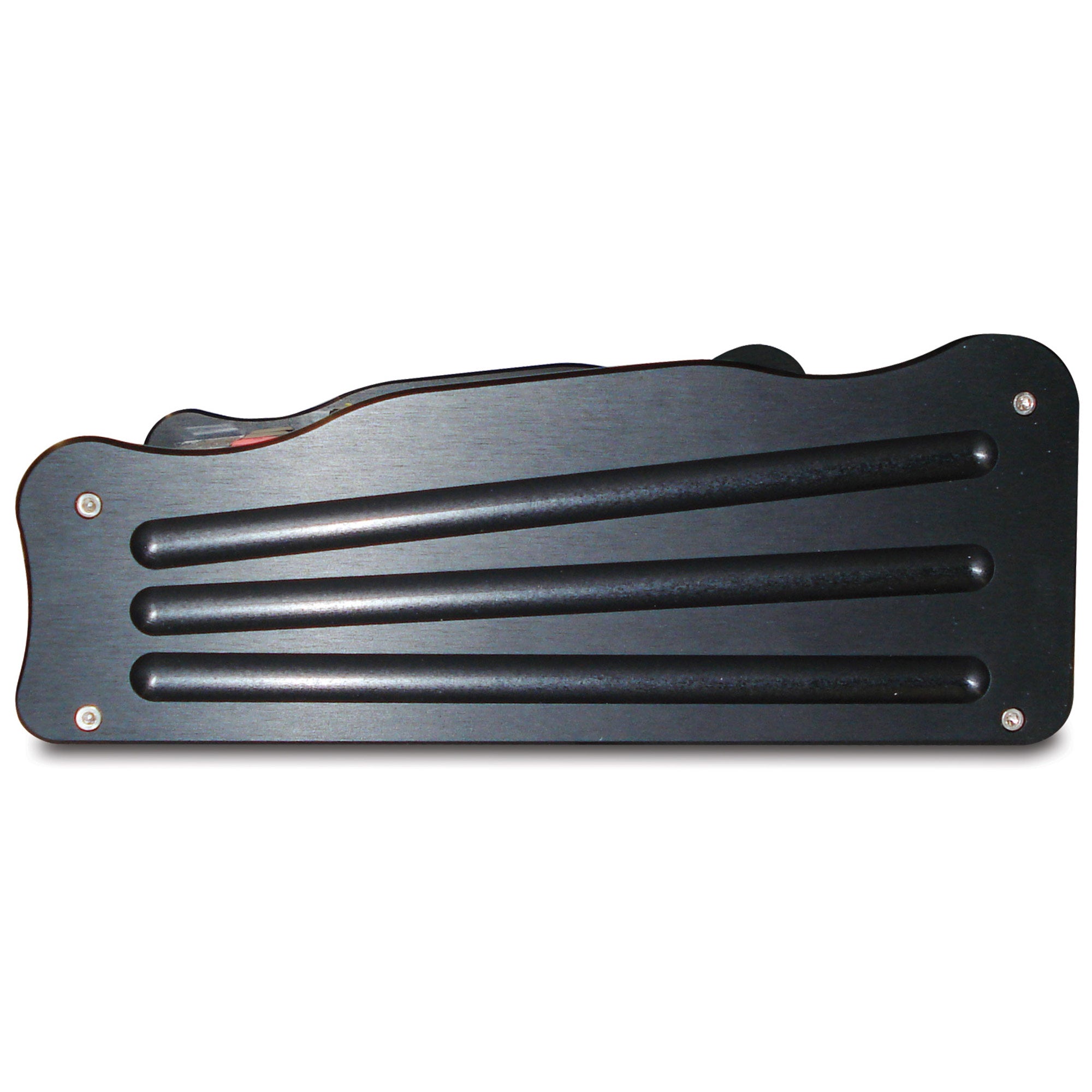

CM-CU21CP | Commentator Unit Front Cover Plate |
CM-TC1 - Commentator Transport Case | |
Dimensions(Raw) | (CM-TC1) 46.5cm (W) x 36cm (D) x 17.6cm (H) 18.3” (W) x 14.2” (D) x 6.9” (H) |
Dimensions (Boxed) | (CM-TC1) 52cm (W) x 21.5cm (D) x 43cm (H) 20.5” (W) x 8.5” (D) x 16.9” (H) |
Weight | Net: 3.0kg Gross: 3.5kg Net: 6.6lbs Gross: 7.7lbs |
CM-TC2 - Commentator Transport Case | |
Dimensions(Raw) | (CM-TC2) 46.5cm (W) x 36cm (D) x 17.6cm (H) 18.3” (W) x 14.2” (D) x 6.9” (H) |
Dimensions (Boxed) | (CM-TC2) 52cm (W) x 21.5cm (D) x 43cm (H) 20.5” (W) x 8.5” (D) x 16.9” (H) |
Weight | Net: 3.0kg Gross: 3.5kg Net: 6.6lbs Gross: 7.7lbs |
CM-GM2 | Professional Gooseneck Condenser Microphone |
