Description
The CM-TLL provides a low-loss interface to receive audio from a telephone line. The line-powered unit is compatible with all analogue direct exchange lines and includes an LED indication of incoming calls. The unit is intended to be used with an earpiece amplifier to receive an audio feed by tel... Read MoreOur Price: $480.00
Free Shipping (Continental US)
Suggested Accessories
Description
The CM-TLL provides a low-loss interface to receive audio from a telephone line. The line-powered unit is compatible with all analogue direct exchange lines and includes an LED indication of incoming calls. The unit is intended to be used with an earpiece amplifier to receive an audio feed by telephone from a studio.
Features:

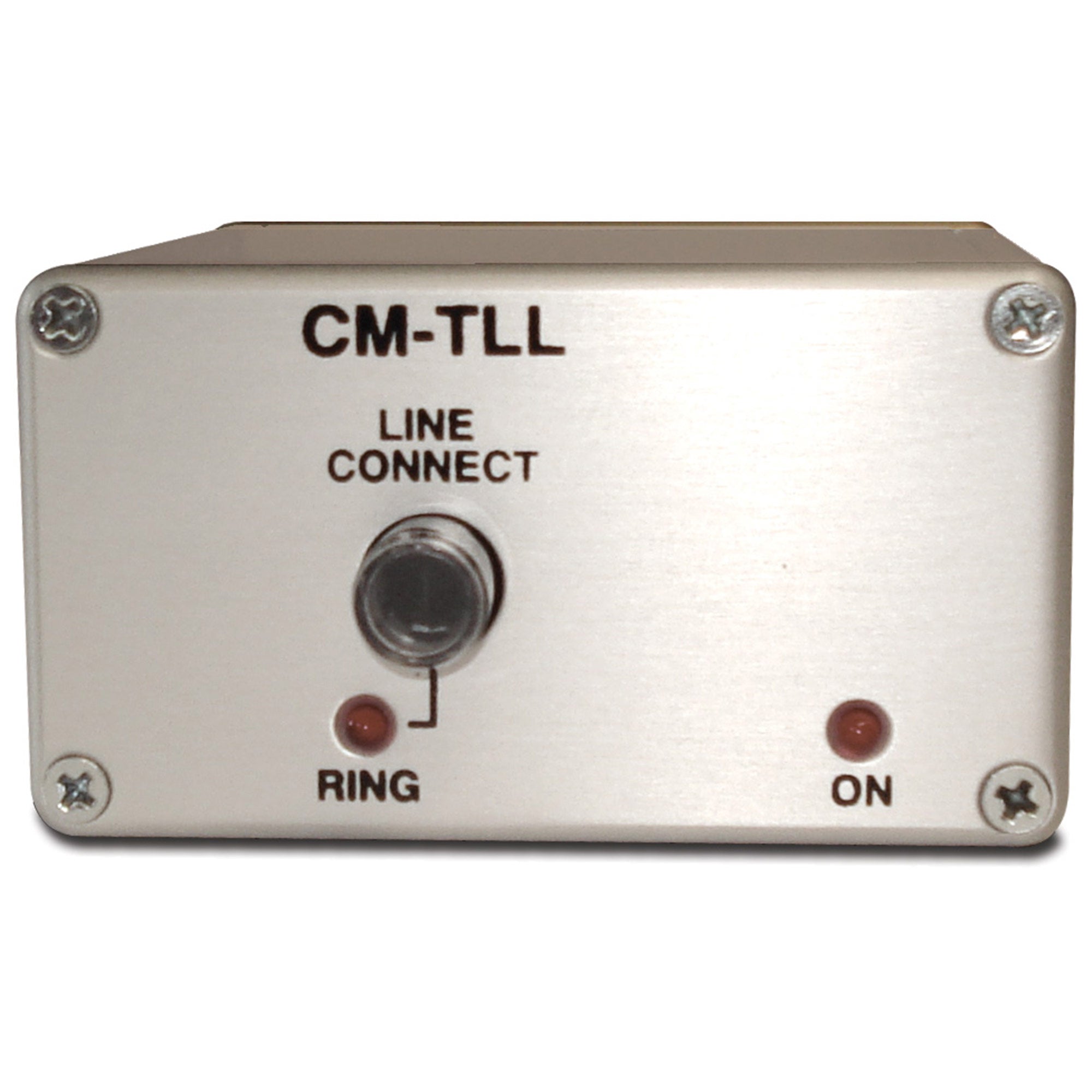

The line and telephone set are connected to the unit via the RJ11 connectors in order to make an outgoing call. A telephone may not be required if calls are only incoming, because telephone line ringing is indicated by a flashing LED built into the unit. In either case, the ‘LINE CONNECT’ switch is pressed to make the line connection. The ‘ON’ LED indicates that the unit is powered and that audio is routed from the line to the XLR plug.
More +
Product Specs
4-Wire Output | |
Input Impedance | 150k?, transformer coupled |
Input Connector | 3 pin XLR female connector |
Input Level Range | Typically 0dBU for average line level |
2-Wire | |
Off Hook Voltage | 6V minimum |
2 Wire Connectors | RJ11 socket - line RJ11 socket - handset |
Front Panel Operational Controls | |
Line Connect | Push button with indicator |
Ring LED | Indicates incoming ringing |
On LED | Indicates connection to the telephone line |
Physical Specification | |
Dimensions | 77mm (W) x 83mm (D) x 42mm (H) 3.0” (W) x 3.3” (D) x 1.7” (H) |
Weight | Nett: 0.20kg Gross: 0.70kg Nett: 0.50lbs Gross: 1.6lbs |
