Sonifex PC-FLS8 - Flashlog 8 Multi-Channel Broadcast Logging Software


  • Dale #:

    SONF-PCFL8S
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Flashlog 8 is configurable, ultra powerful multi-channel logging software. It makes use of separate Sonifex hardware (sound and radio capture cards) to provide a host of logging features on a single PC platform. It can record from analogue and digital line inputs, IP based line inputs (Axia™, Whe... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Flashlog 8 is configurable, ultra powerful multi-channel logging software. It makes use of separate Sonifex hardware (sound and radio capture cards) to provide a host of logging features on a single PC platform. It can record from analogue and digital line inputs, IP based line inputs (Axia™, Wheatstone™ or Dante™), from the Sonifex radio capture cards and internet radio streams. Up to 2 years of radio broadcasts or audio can be logged, depending on available hardware.

When also using the Sonifex PC-DAB DAB+ multi-ensemble PCIe Radcap card, the software records the entire contents of up to four ensembles. Decoding occurs during playback, showing DLS text, MOT slide shows and electronic programme guides along with the audio.

But DAB+ isn't all you get with Flashlog 8. By using suitable hardware, Flashlog 8 has the ability to record up to 64 stereo line channels, 32 stereo FM stations, 32 AM stations, 4 DAB+ ensembles and 32 internet radio streams, limited only by the number of PCIe slots on the motherboard that you use. (See later for the PC-RACK units that can be used with Flashlog 8 software).

The number of HDD logging days can be independently set for each line, AM or FM channel, and for each DAB+ ensemble. Archiving also allows parallel recording of selected channels to a permanent archive location on the network, either continuously or on selected days and time ranges. All text fields are Unicode-based, allowing multilingual display and entry. Playback on both the logger and through Flashback 8 supports saving log extracts as MP3 as well as WAV, WMA and AVI files.

Features:

  • Analogue, AES-3, Axia Livewire™, Wheatstone Wheatnet™ and Audinate Dante™ IP line inputs supported (Note separate proprietary drivers needed from the IP audio suppliers).
  • Up to 64 stereo inputs supported, each reconfigurable as a pair of mono inputs.
  • Up to four assignable line sub-categories for grouping channels.
  • Selectable audio compression rates ranging from 80kbps to lossless.
  • Adjustable no. of logging days per input.
  • Recording time of up to two years, settable on each channel or ensemble (dependent on no. of channels, audio compression rate or HDD size).
  • Operates on 64-bit Microsoft Windows™ 7/8.1/10 Professional operating system.

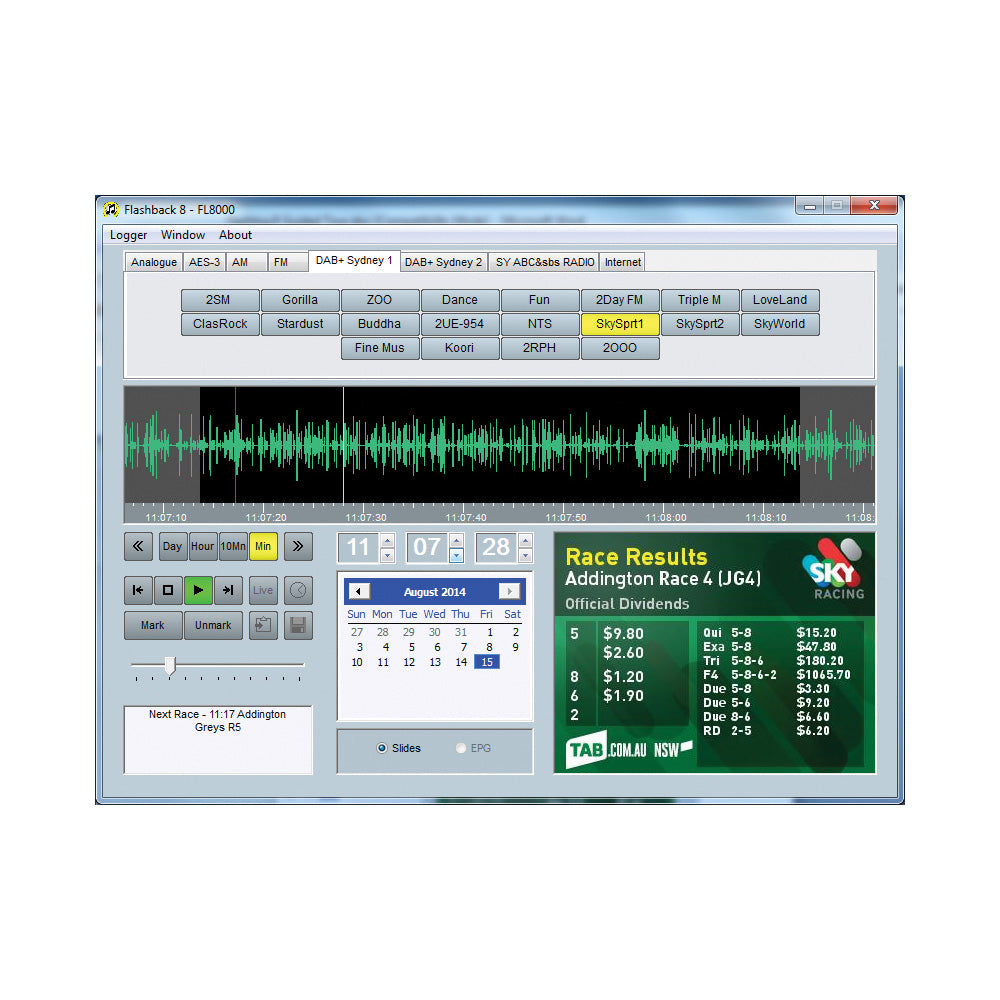

  • Network playback using free Flashback 8 application (also compatible with Flashlog 5, 6 and 7 recorders).
  • SNMP monitoring and alarms, including RDS / DLS text.
  • Optional skimming control inputs supported.
  • Live input monitoring on logger unit.
  • Selectable audio failure alarms.

AM / FM Radio Capture Using PC-AM / PC-FM Cards

  • Up to 32 AM stations and 32 FM stations.
  • Adjustable number of logging days on each station.
  • All FM logging in stereo.
  • Received signal strength, FM stereo pilot and RDS indicators.
  • Live monitoring on logger unit.
  • FM RDS radiotext logging.
  • Selectable carrier and audio failure alarms.

DAB+ Radio Capture Using PC-DAB Card

  • Up to four DAB+ ensembles.
  • Adjustable no. of logging days per ensemble.
  • Entire MSC (main service channel) contents recorded.
  • Receiver spectrum display, signal strength and quality indicators, and uncorrected error counter.
  • Decodes legacy MP2 as well as HE-AAC v2 audio compression.
  • Displays DLS text, MOT slides and electronic programme guide.
  • Live monitoring of audio and data.
  • Selectable ensemble, stream and audio failure alarms.

Internet Stream Capture

  • Up to 32 internet radio streams.
  • HLS, Shoutcast, Icecast or RTMP protocols.
  • MP3 and HE-AAC audio encoding.
  • Metadata recording.

More +

Product Specs

Recording Time: 7, 14, 28, 42, 60, 90, 100, 120, 180 days, 1 year or 2 years (individually settable on each channel or ensemble)
Analogue Line Inputs: 80kbps / 128kbps / 256kbps / lossless compression (selectable per channel).
AES-3 Line Inputs: 32kHz – 96kHz 24-bit sampling 80kbps / 128kbps /256kbps / lossless compression (selectable per channel)
Axia Livewire: Optional software driver supporting up to sixteen stereo inputs and playback output.
Wheatstone WheatNet: Optional software driver supporting up to sixteen stereo inputs and playback output.
Internet Streams: RTMP, Shoutcast, Icecast, HLS stream logging. MP3 and HE-AAC encoding. Maximum 32 streams.
Skimming Option: Daily event list display linked to audio log. Sequential playing and archiving of multiple events. (Needs separate hardware).
AM Capture: 500kHz – 1710kHz tuning range (1kHz steps). 22.05kHz sampling. 32kbps compression. Maximum 32 stations
FM Capture: 87.5 – 108.5MHz tuning range (50kHz steps). 48kHz sampling. 64kbps compression. Maximum 32 stations. RDS radiotext logging.
DAB+ Capture: Band III (174 – 240MHz) DAB Mode 1.
Maximum 4 ensembles. Maximum 32 services per ensemble.
Dynamic reconfiguration.
DAB+ and Legacy DAB supported.
Decoding for MP2 / HE-AAC v2 audio, DLS, JPEG / PNG images, EPG.
Internet Streams: Shoutcast, Icecast & RTMP protocols.
SNMP: Input audio / carrier / DAB status
/RDS-DLS text monitoring.
Selectable trap generation.

More +
