Sonifex PS-AMPS - IP to Speakers Streaming Decoder

  • Dale #:

    SONF-PSAMPS
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Same feature set as the PS-AMP, but with an integrated 1RU rack faceplate. The PS-AMP is a freestanding unit which converts an IP audio stream directly to speaker outputs. It is also available in a 1U rack-mount as the PS-AMPS. The PS-AMP has the same feature-set as the PS-PLAY except that there... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

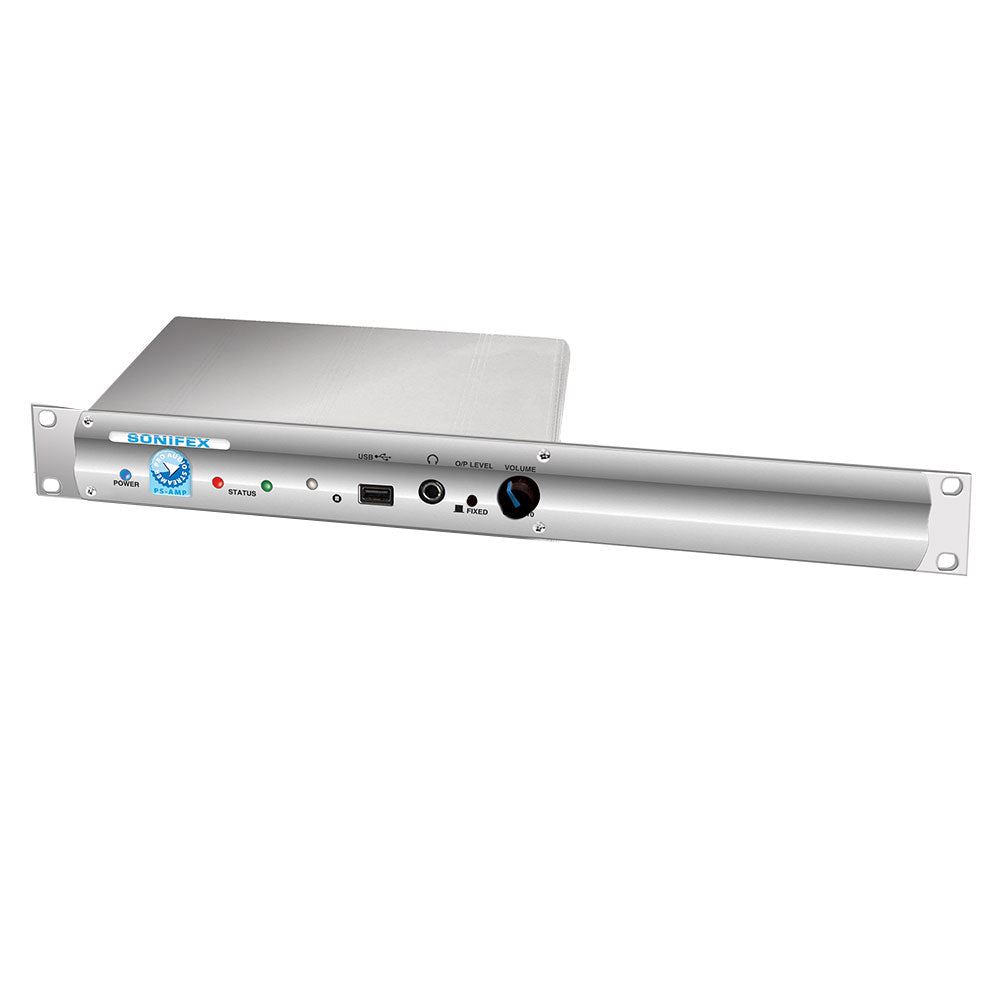

Same feature set as the PS-AMP, but with an integrated 1RU rack faceplate.

The PS-AMP is a freestanding unit which converts an IP audio stream directly to speaker outputs. It is also available in a 1U rack-mount as the PS-AMPS. The PS-AMP has the same feature-set as the PS-PLAY except that there are no individual audio outputs other than the speaker terminals. The PS-AMP uses an integrated 2 x 15W D-class amplifier to deliver audio directly to a pair of connected speakers.

All the configuration settings for the unit are accessed via a local web-server built into it. The unit can decode one of a number of audio streams, such as those generated by the PS-SEND (MP3, G.711 and PCM) and including Ogg Vorbis audio files from external USB as well as from sources such as Shoutcast, Icecast (Internet radio), VLC and from RTP servers. The unit can receive streams from HTTP (TCP/IP) and RTP (UDP) protocols, as well as raw TCP and UDP packets. The unit can also configure its own IP address using DHCP/BOOTP, IPzator or AutoIP. A readout of the set IP address can be heard on every reset using SONICIP technology, if selected.

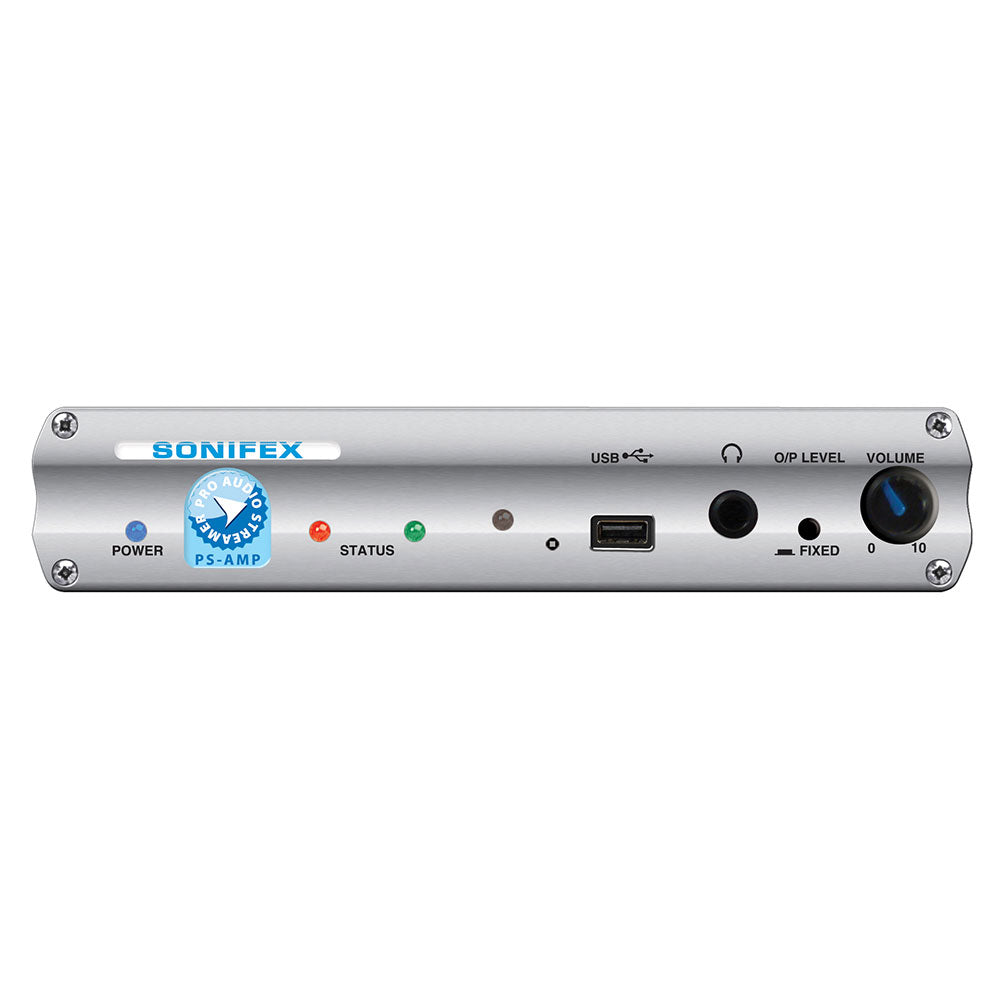

Two red and green front panel LEDs indicate what state the unit is currently in, be it normal operational mode or bootstrap mode, and also indicates the current network connection status. A blue LED denotes power to the unit. The audio output can be monitored on the front panel ¼" (6.35mm) stereo jack socket in combination with a headphone volume knob. The analogue audio outputs can be switched to be either a fixed level output or to be controlled by the front panel volume knob. The volume can also be adjusted, as well as many other features, using an infra-red remote control (included).

The PS-AMP can be configured with up to 3 sources. The sources are prioritized in number order. If one has failed, the next one will attempt to play. If all fail, an external USB drive will be used as a back-up source. The external USB plugs into the USB socket on the front of the unit. This enables the PS-AMP to act as a USB audio player, playing any of the audio formats previously mentioned.

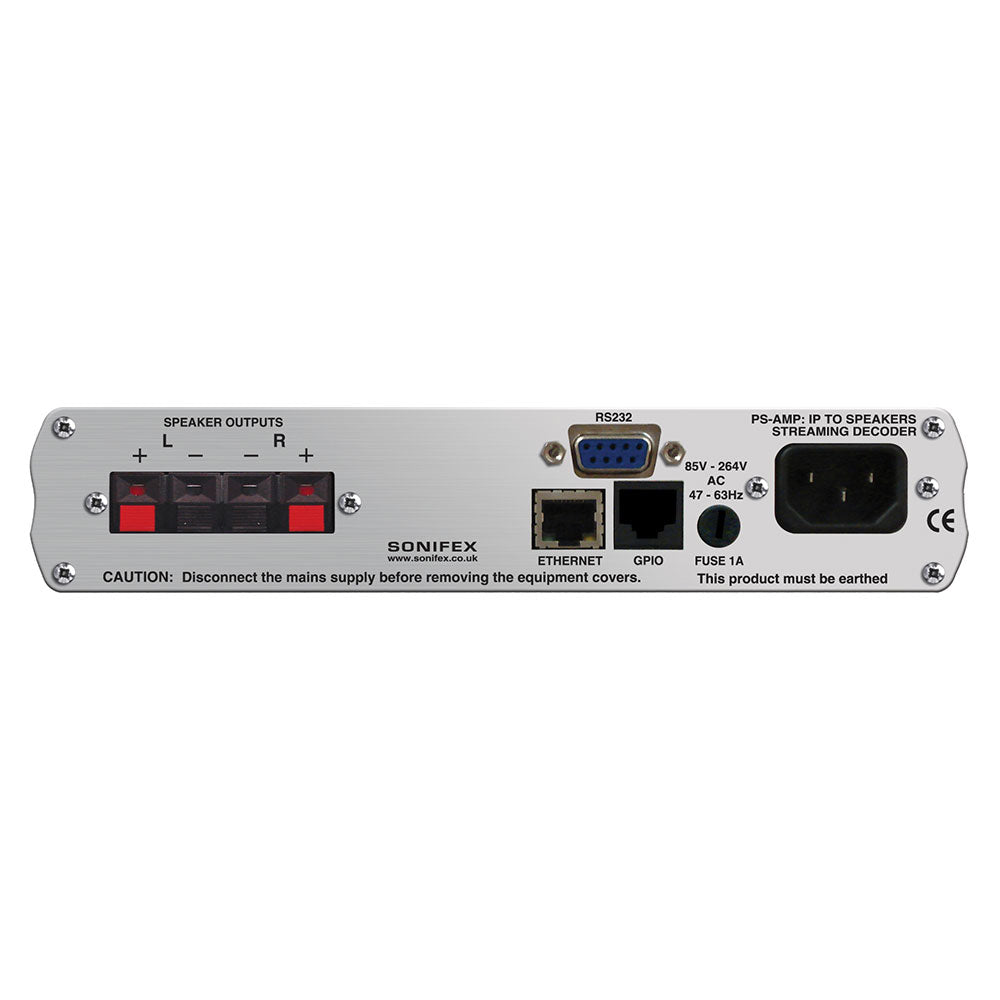

The rear panel has 2 x RJ45 connectors, one for the 10/100Mbit Ethernet interface and one for GPIO connections. The PS-AMP has 2 output relay contacts which can triggered remotely over IP from a connected PS-SEND unit. There is a 9 way D-type RS232 serial connection for control of the unit by automation systems and for firmware updates. The unit can be remote controlled via serial connection, TCP or UDP and remote management of the unit is also possible using SNMP traps.

More +

Product Specs

Analogue Outputs: 2 x speaker connectors (2 each black and red terminals)
1 x ¼ inch (6.35mm) stereo jack headphone socket
Headphones Output: Drives 150mW into 32Ω to 600Ω stereo headphones
Headphone Level  Range: -60dB – 18dB via front panel control knob or optional IR controller
USB Port: 1 x USB A socket
Frequency Response: 20Hz - 20kHz using MP3 at a bit rate of 192kbps and above
GPOs (General Purpose Outputs): 2 x switchable relay contacts (simultaneously switched) controlled from PS-SEND
Serial Port: 1 x 9 way D-type socket, used to send control commands and update firmware
Ethernet Port: 1 x RJ45 socket. Remote control commands can be sent via TCP or UDP as well as firmware updates.
IR Remote Receiver: Remote commands can be sent using optional remote control via built in IR sensor
Speaker Power: 15W per channel into 8ohm @ 10% THD+N
Mains Input: Filtered IEC, 85 - 264VAC, 47 - 63 Hz, 60W max
Fuse Rating: Anti-surge fuse 1A 20 x 5mm
Audio Codec Specifications Decoder G.711 (U Law/A Law 8kHz to 48kHz sampling rate)
WAV (IMA ADPCM+ 16bit PCM uncompressed: 8kHz to 48kHz)
MP3 MPEGv1 Layer 3 (32, 44.1 and 48kHz, CBR +VBR +ABR)
MP3 MPEGv2 Layer 3 (16, 22.05 and 24kHz, CBR +VBR +ABR)
Ogg Vorbis (floor 1)
Supported Network Transport Protocols RTP - UDP
HTTP - TCP
Raw UDP
Raw TCP
SNMP - traps for remote management
DHCP, BOOTP, IPZator or AUTOIP - Dynamic IP address resolution
SonicIP IP Address readout
Dimensions (Raw): 48.3cm (W) x 13.7cm (D) x 4.3cm (H)
19" (W) x 5.39" (D) x 1.7" (H)

(Boxed):
58.8cm (W) x 27cm (D) x 6.8cm (H)
23" (W) x 10.6" (D) x 2.7" (H)

Weight:
Nett: 1.34kg Gross: 2.14kg
Nett: 2.95lbs Gross: 4.7lbs
