Sonifex RB-AES4X3 Quad 3 Way AES/EBU Splitter XLR Connectors
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

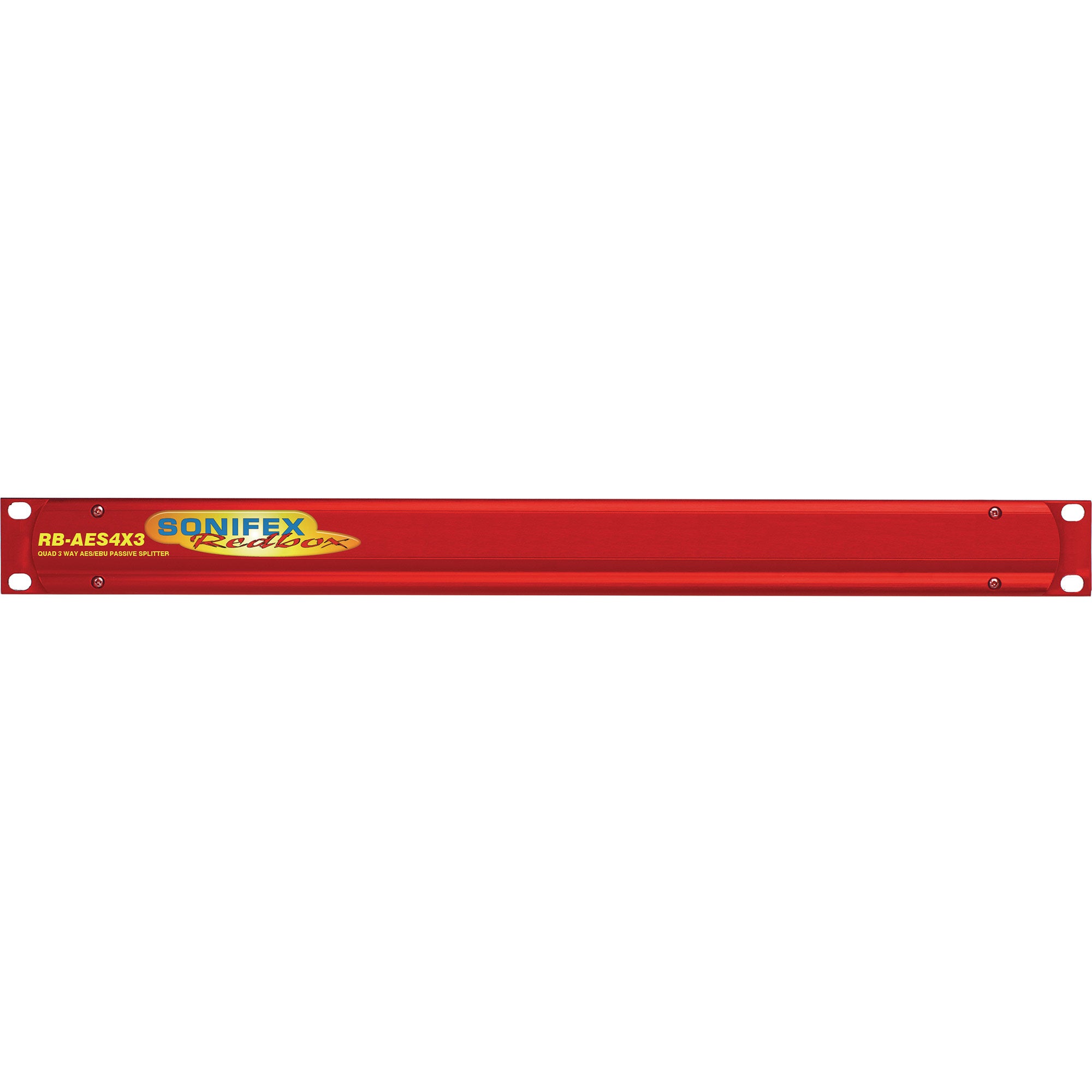

The RB-AES4X3 is a passive, quad "one-to-three" splitter housed in a 19" rack. Each bank is designed to split a single AES3 digital audio source to up to three destinations, using Neutrik XLR connectors.
The RB-AES4X3 provides solutions to a range of digital signal distribution problems, where correct termination is essential to maintain signal integrity. The input signal is split through high quality transformers, and 110? termination can be applied, if desired, to unconnected outputs.
The RB-AES4X3 requires no power to operate, ensuring your audio remains connected from source to destination(s) without interruption from power failures.
| Cable drive capability | |
| The table below sets out the minimum signal amplitude required to drive 100m (cumulative) of 110? twisted pair cable, based on the sample rate of the digital audio: | |
| Sample Rate | Minimum Signal Amplitude |
| 32kHz | *2Vpk-pk |
| 44.1kHz | *2Vpk-pk |
| 48kHz | *2Vpk-pk |
| 88.2kHz | 5Vpk-pk |
| 96kHz | 5Vpk-pk |
| * Minimum of 2Vpk-pk is defined by the AES3 format specification. | |
| The table below sets out the minimum signal amplitude required to drive 30m (cumulative) of 110? twisted pair cable, based on the sample rate of the digital audio: | |
| Sample Rate | Minimum Signal Amplitude |
| 176.4kHz | 3Vpk-pk |
| 192kHz | 3Vpk-pk |
| Audio Specification | |
| Input / Output Impedances | 110? |
| Insertion Loss | 0.17dB 1:1, 1.3dB 1:3 |
| Impedance Match | +/- 2% |
| Max Signal 10 V P-P | Up to 96kHz |
| Attenuation Loss | 0.17dB 1:1, 6.2dB 1:3 |
| Connections | |
| Inputs | 4 x XLR 3 pin female |
| Outputs | 12 x XLR 3 pin male |
| Physical Specification | |
| Dimensions (Raw) | 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U) 19Ó (W) x 4.3Ó (D) x 1.7Ó (H) (1U) |
| (Boxed) | 58.5cm (W) x 22.5cm (D) x 7cm (H) 23Ó (W) x 8.9Ó (D) x 2.8Ó (H) |
| Weight | Nett: 1.0kg Gross: 1.4kg Nett: 2.25lbs Gross: 3.0lbs |
The RB-AES4X3 is a passive, quad "one-to-three" splitter housed in a 19" rack. Each bank is designed to split a single AES3 digital audio source to up to three destinations, using Neutrik XLR connectors.
The RB-AES4X3 provides solutions to a range of digital signal distribution problems, where correct termination is essential to maintain signal integrity. The input signal is split through high quality transformers, and 110? termination can be applied, if desired, to unconnected outputs.
The RB-AES4X3 requires no power to operate, ensuring your audio remains connected from source to destination(s) without interruption from power failures.
| Cable drive capability | |
| The table below sets out the minimum signal amplitude required to drive 100m (cumulative) of 110? twisted pair cable, based on the sample rate of the digital audio: | |
| Sample Rate | Minimum Signal Amplitude |
| 32kHz | *2Vpk-pk |
| 44.1kHz | *2Vpk-pk |
| 48kHz | *2Vpk-pk |
| 88.2kHz | 5Vpk-pk |
| 96kHz | 5Vpk-pk |
| * Minimum of 2Vpk-pk is defined by the AES3 format specification. | |
| The table below sets out the minimum signal amplitude required to drive 30m (cumulative) of 110? twisted pair cable, based on the sample rate of the digital audio: | |
| Sample Rate | Minimum Signal Amplitude |
| 176.4kHz | 3Vpk-pk |
| 192kHz | 3Vpk-pk |
| Audio Specification | |
| Input / Output Impedances | 110? |
| Insertion Loss | 0.17dB 1:1, 1.3dB 1:3 |
| Impedance Match | +/- 2% |
| Max Signal 10 V P-P | Up to 96kHz |
| Attenuation Loss | 0.17dB 1:1, 6.2dB 1:3 |
| Connections | |
| Inputs | 4 x XLR 3 pin female |
| Outputs | 12 x XLR 3 pin male |
| Physical Specification | |
| Dimensions (Raw) | 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U) 19Ó (W) x 4.3Ó (D) x 1.7Ó (H) (1U) |
| (Boxed) | 58.5cm (W) x 22.5cm (D) x 7cm (H) 23Ó (W) x 8.9Ó (D) x 2.8Ó (H) |
| Weight | Nett: 1.0kg Gross: 1.4kg Nett: 2.25lbs Gross: 3.0lbs |
