Sonifex RB-DA6G 6 Way Stereo Distribution Amplifier with Output Gain Control
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The RB-DA6G is a 1U rack-mount high performance 6 way stereo distribution amplifier for splitting a source into a number of different outputs. It is identical to the RB-DA6 with the addition of individual output gain adjustment, instead of global stereo gain adjustment.

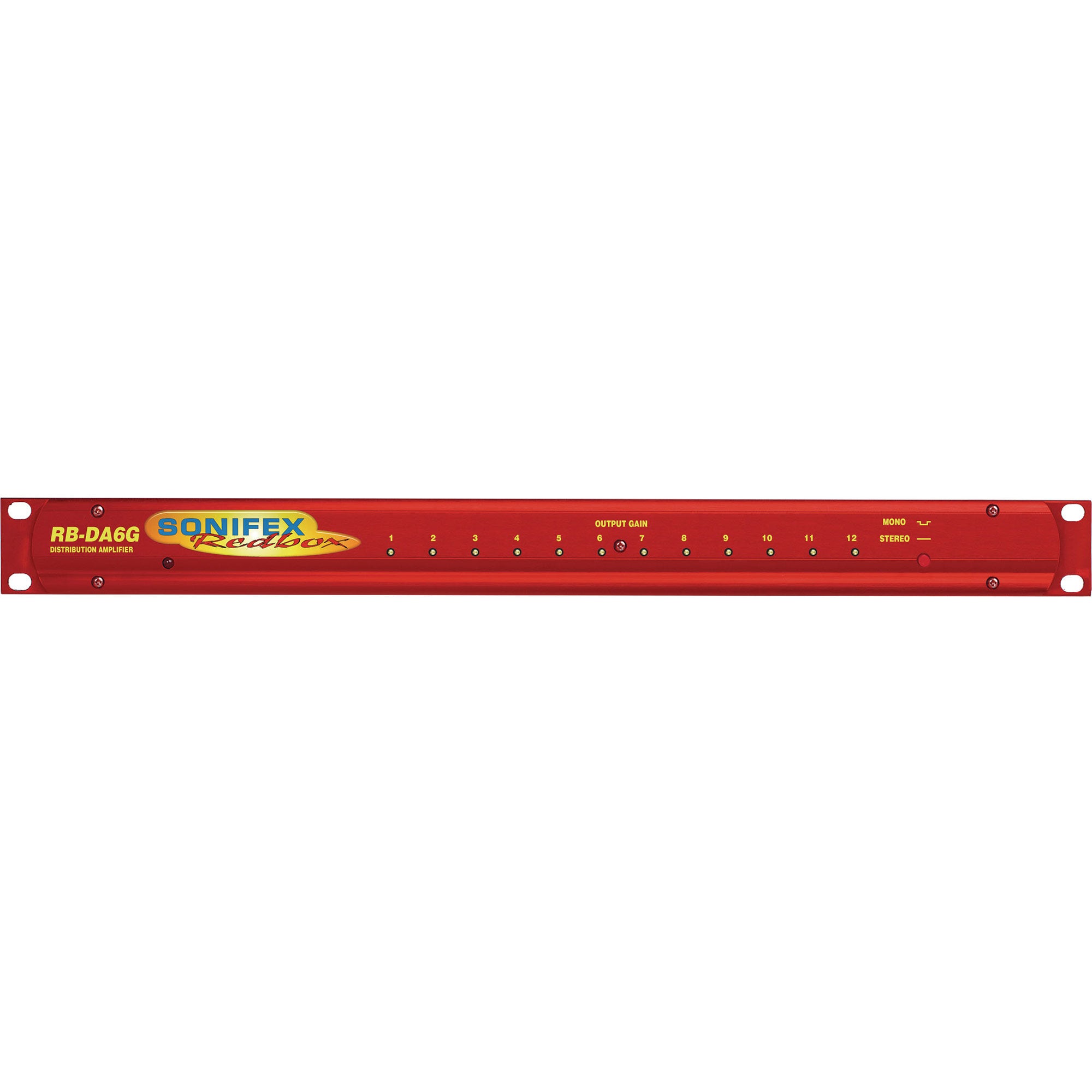

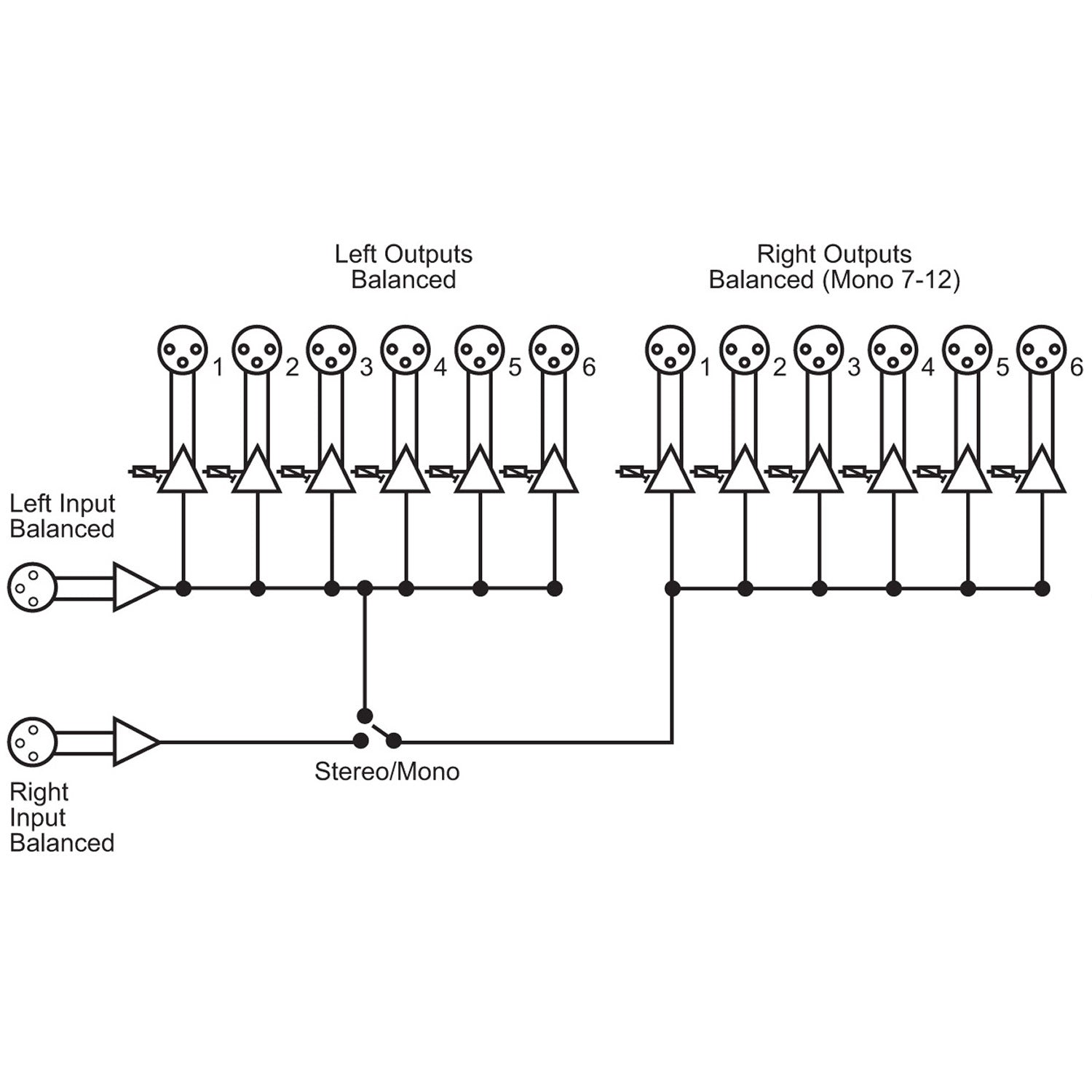

The RB-DA6 has 1 stereo input and 6 stereo outputs. It can also be configured so that 1 mono input can be distributed to 12 outputs by use of a switch which is recessed on the front panel to prevent it being accidentally knocked.
The XLR-3 inputs and outputs are electronically balanced and can be wired unbalanced. Each output is individually buffered so that a short circuit on one output won’t affect the others.The left and right input gain controls (normalising) are pre-set potentiometers accessible through the front panel.
The output gain may be varied from -8dB to 18dB which is useful for normalising consumer and professional signals to give outputs of -15dBu and 0dBu respectively.
| Audio Specification | |
| Maximum Input Level | +28dBu |
| Maximum Output Level | +28dBu |
| Frequency Response | 20Hz to 20kHz ±0.1dB (600? load, ref 1kHz) |
| Gain Range | Adjustable 8dB loss to 18dB gain (L / R adjust) |
| Common Mode Rejection | >66dB typically |
| Input impedance | >20k? bridging |
| Output impedance | <50? |
| Distortion | 0.01% THD @ 1kHz, ref +8dBu output |
| Noise | -88dB unity gain, ref +8dBu output |
| Connections | |

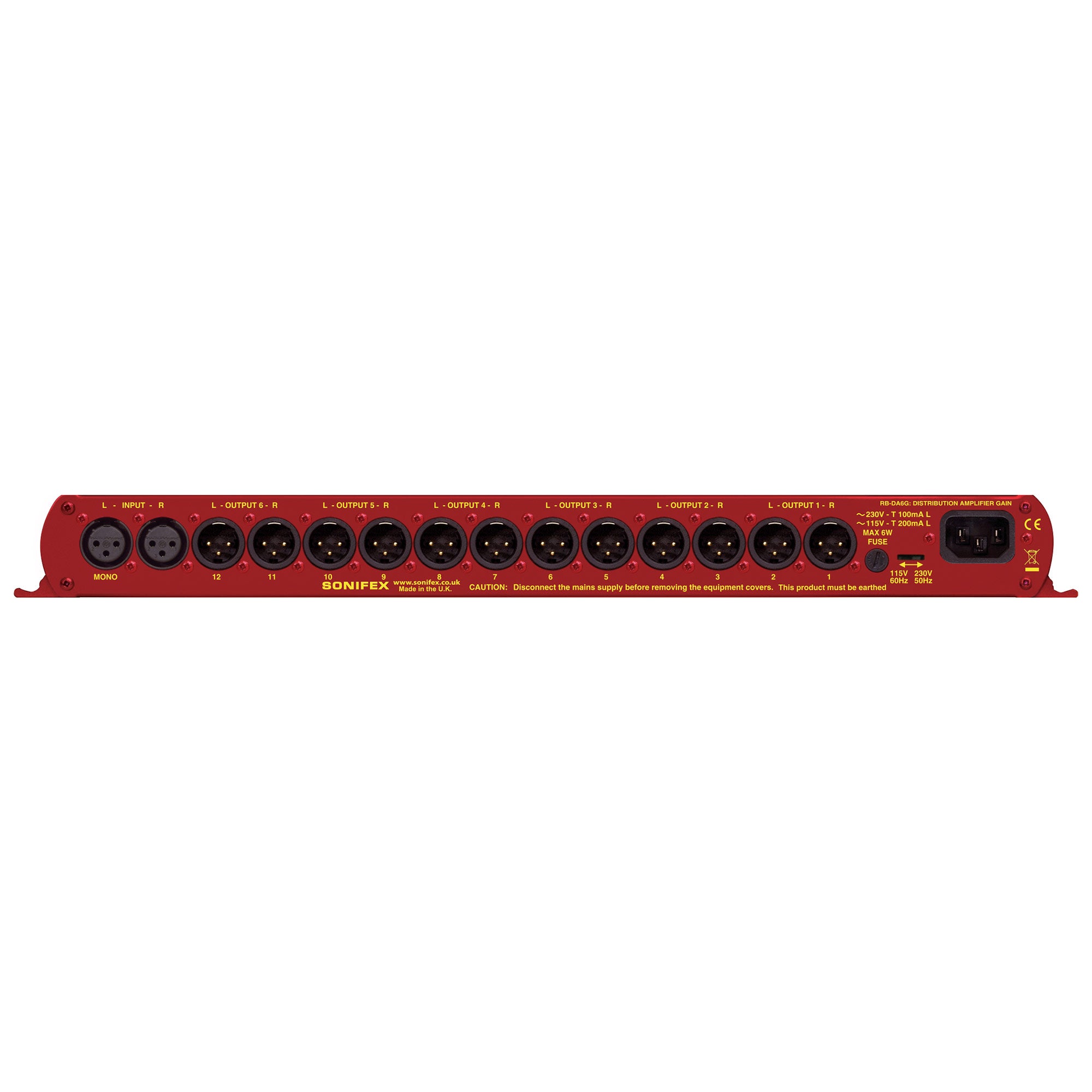

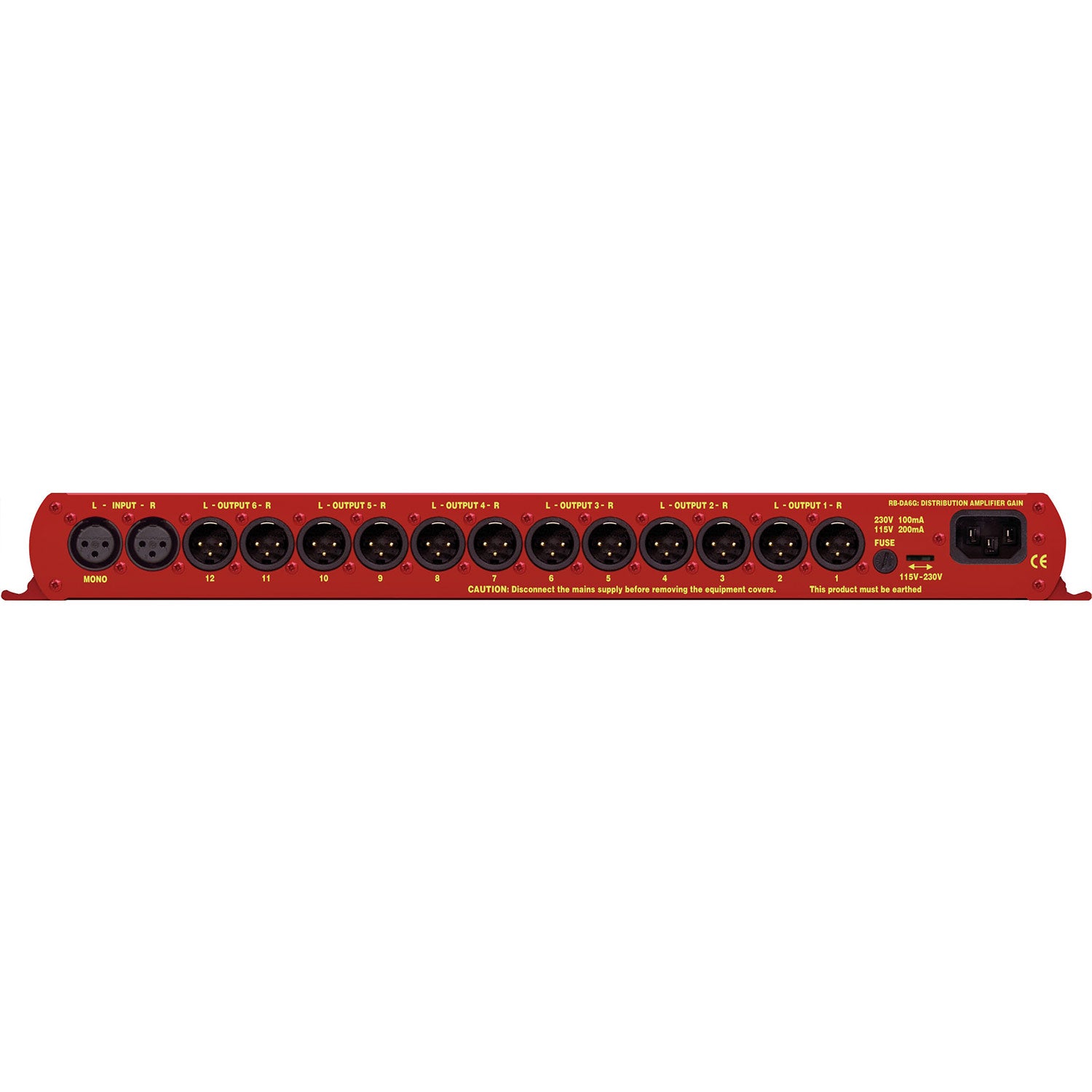

| Inputs | 2 x XLR 3 pin female (balanced, can be unbalanced) |
| Outputs | 12 x XLR 3 pin male (balanced, can be unbalanced) |
| Mains Input | Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W max |
| Fuse Rating | Anti-surge fuse 100mA 20 x 5mm (230VAC) Anti-surge fuse 250mA 20 x 5mm (115VAC) |
| Physical Specification | |
| Dimensions (Raw) | 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U) 19Ó (W) x 4.3Ó (D) x 1.7Ó (H) (1U) |
| Dimensions (Boxed) | 58.5cm (W) x 22.5cm (D) x 7cm (H) 23Ó (W) x 8.9Ó (D) x 2.8Ó (H) |
| Weight | Nett: 1.3kg Gross: 1.9kg Nett: 2.9lbs Gross: 4.2lbs |
The RB-DA6G is a 1U rack-mount high performance 6 way stereo distribution amplifier for splitting a source into a number of different outputs. It is identical to the RB-DA6 with the addition of individual output gain adjustment, instead of global stereo gain adjustment.
The RB-DA6 has 1 stereo input and 6 stereo outputs. It can also be configured so that 1 mono input can be distributed to 12 outputs by use of a switch which is recessed on the front panel to prevent it being accidentally knocked.
The XLR-3 inputs and outputs are electronically balanced and can be wired unbalanced. Each output is individually buffered so that a short circuit on one output won’t affect the others.The left and right input gain controls (normalising) are pre-set potentiometers accessible through the front panel.
The output gain may be varied from -8dB to 18dB which is useful for normalising consumer and professional signals to give outputs of -15dBu and 0dBu respectively.
| Audio Specification | |
| Maximum Input Level | +28dBu |
| Maximum Output Level | +28dBu |
| Frequency Response | 20Hz to 20kHz ±0.1dB (600? load, ref 1kHz) |
| Gain Range | Adjustable 8dB loss to 18dB gain (L / R adjust) |
| Common Mode Rejection | >66dB typically |
| Input impedance | >20k? bridging |
| Output impedance | <50? |
| Distortion | 0.01% THD @ 1kHz, ref +8dBu output |
| Noise | -88dB unity gain, ref +8dBu output |
| Connections | |
| Inputs | 2 x XLR 3 pin female (balanced, can be unbalanced) |
| Outputs | 12 x XLR 3 pin male (balanced, can be unbalanced) |
| Mains Input | Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W max |
| Fuse Rating | Anti-surge fuse 100mA 20 x 5mm (230VAC) Anti-surge fuse 250mA 20 x 5mm (115VAC) |
| Physical Specification | |
| Dimensions (Raw) | 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U) 19Ó (W) x 4.3Ó (D) x 1.7Ó (H) (1U) |
| Dimensions (Boxed) | 58.5cm (W) x 22.5cm (D) x 7cm (H) 23Ó (W) x 8.9Ó (D) x 2.8Ó (H) |
| Weight | Nett: 1.3kg Gross: 1.9kg Nett: 2.9lbs Gross: 4.2lbs |
