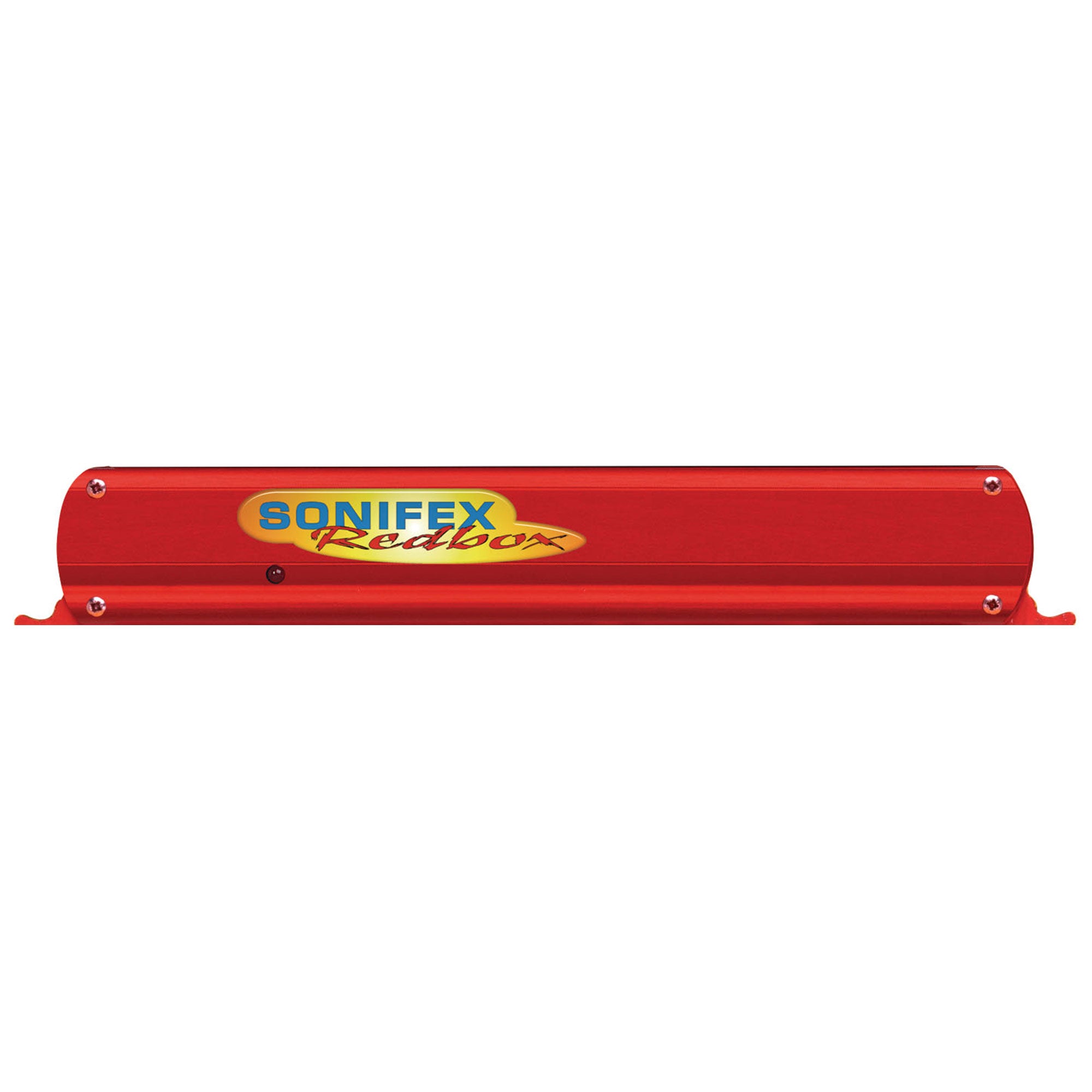

Sonifex RB-DDA6S 6 Way S/PDIF Digital Distribution Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The RB-DDA6S digital distribution amplifier is similar to the RB-DDA6A except that it is used for distributing digital audio data in S/PDIF format.
It has a single S/PDIF audio input which is distributed to 6 x S/PDIF audio outputs at the same level and condition as the input signal. It can accept input sample rates in the range of 30kHz - 100kHz, and bit rates of 16, 20 and 24 bit.
Uses include audio distribution at 16 bit 44.1kHz from a consumer CD player to multiple digital recorders, distribution of high quality 24 bit 96kHz signals from digital mixing desks to recorders and connection of the output of, say, a DVD player to multiple studios.
| Audio Specification | |
| Input impedance | 75? ±5% unbalanced |
| Output impedance | 75? ±5% unbalanced |
| Sample Freq Range | 30-100kHz (i.e. including 32kHz, 44.1kHz, 48kHz, 64kHz, 88.2kHz / 96kHz) |
| Signal Level | Balanced min 0.5V ±20% peak to peak |
| Connections | |
| Inputs | 1 x AES/EBU XLR 3 pin female (Balanced) |
| Outputs | 6 x AES/EBU XLR 3 pin male (Balanced) |
| Mains Input | Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W max |
| Fuse Rating | Anti-surge fuse 100mA 20 x 5mm (230VAC) Anti-surge fuse 250mA 20 x 5mm (115VAC) |
| Physical Specification | |
| Dimensions (Raw) | 28cm (W) x 10.8cm (D) x 4.2cm (H) (1U) 11Ó (W) x 4.3Ó (D) x 1.7Ó (H) (1U) |
| Dimensions (Boxed) | 36cm (W) x 20.5cm (D) x 6cm (H) 14.2Ó (W) x 8Ó (D) x 2.4Ó (H) |
| Weight | Nett: 0.9kg Gross: 1.35kg Nett: 2lbs Gross: 3lbs |
The RB-DDA6S digital distribution amplifier is similar to the RB-DDA6A except that it is used for distributing digital audio data in S/PDIF format.
It has a single S/PDIF audio input which is distributed to 6 x S/PDIF audio outputs at the same level and condition as the input signal. It can accept input sample rates in the range of 30kHz - 100kHz, and bit rates of 16, 20 and 24 bit.
Uses include audio distribution at 16 bit 44.1kHz from a consumer CD player to multiple digital recorders, distribution of high quality 24 bit 96kHz signals from digital mixing desks to recorders and connection of the output of, say, a DVD player to multiple studios.
| Audio Specification | |
| Input impedance | 75? ±5% unbalanced |
| Output impedance | 75? ±5% unbalanced |
| Sample Freq Range | 30-100kHz (i.e. including 32kHz, 44.1kHz, 48kHz, 64kHz, 88.2kHz / 96kHz) |
| Signal Level | Balanced min 0.5V ±20% peak to peak |
| Connections | |
| Inputs | 1 x AES/EBU XLR 3 pin female (Balanced) |
| Outputs | 6 x AES/EBU XLR 3 pin male (Balanced) |
| Mains Input | Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W max |
| Fuse Rating | Anti-surge fuse 100mA 20 x 5mm (230VAC) Anti-surge fuse 250mA 20 x 5mm (115VAC) |
| Physical Specification | |
| Dimensions (Raw) | 28cm (W) x 10.8cm (D) x 4.2cm (H) (1U) 11Ó (W) x 4.3Ó (D) x 1.7Ó (H) (1U) |
| Dimensions (Boxed) | 36cm (W) x 20.5cm (D) x 6cm (H) 14.2Ó (W) x 8Ó (D) x 2.4Ó (H) |
| Weight | Nett: 0.9kg Gross: 1.35kg Nett: 2lbs Gross: 3lbs |
