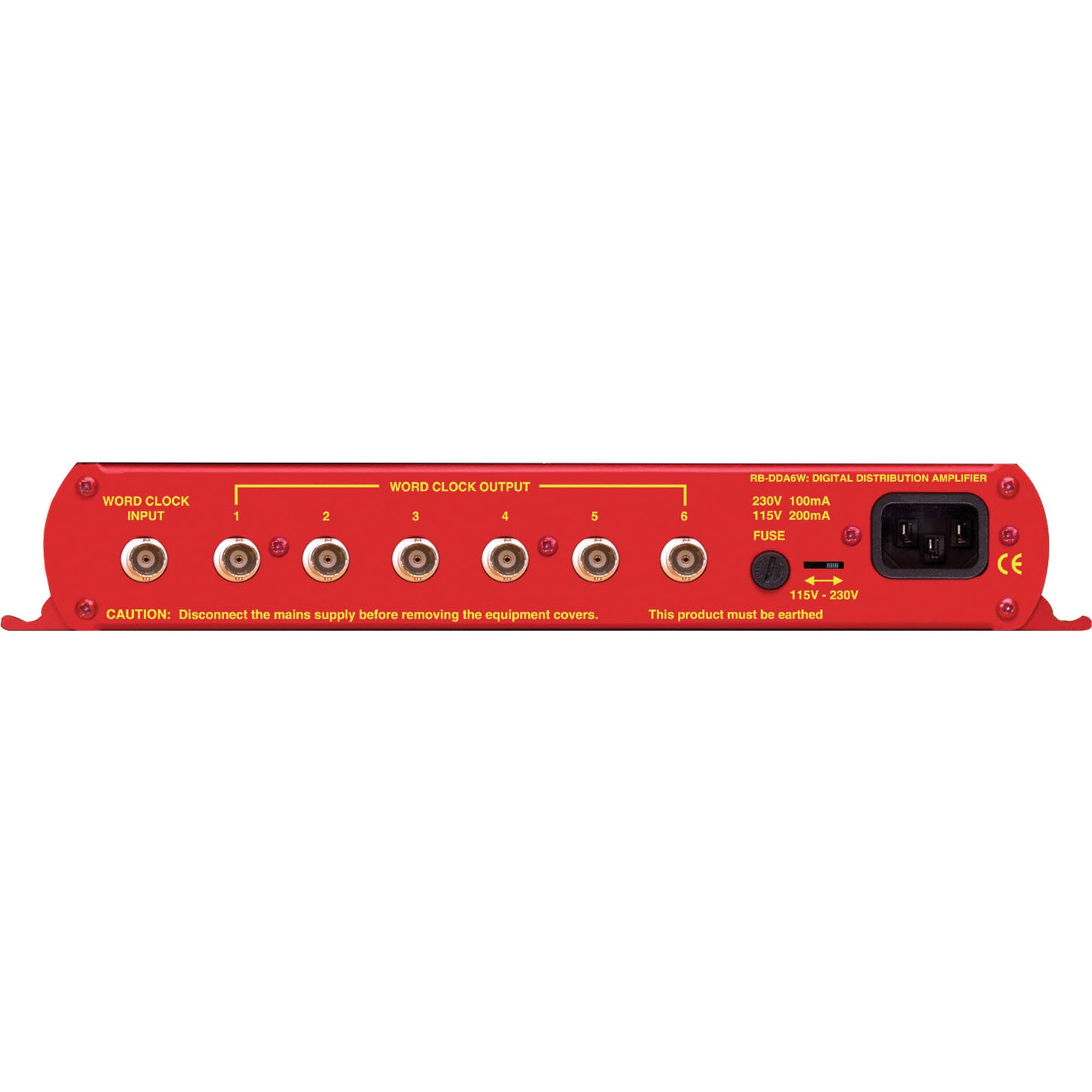

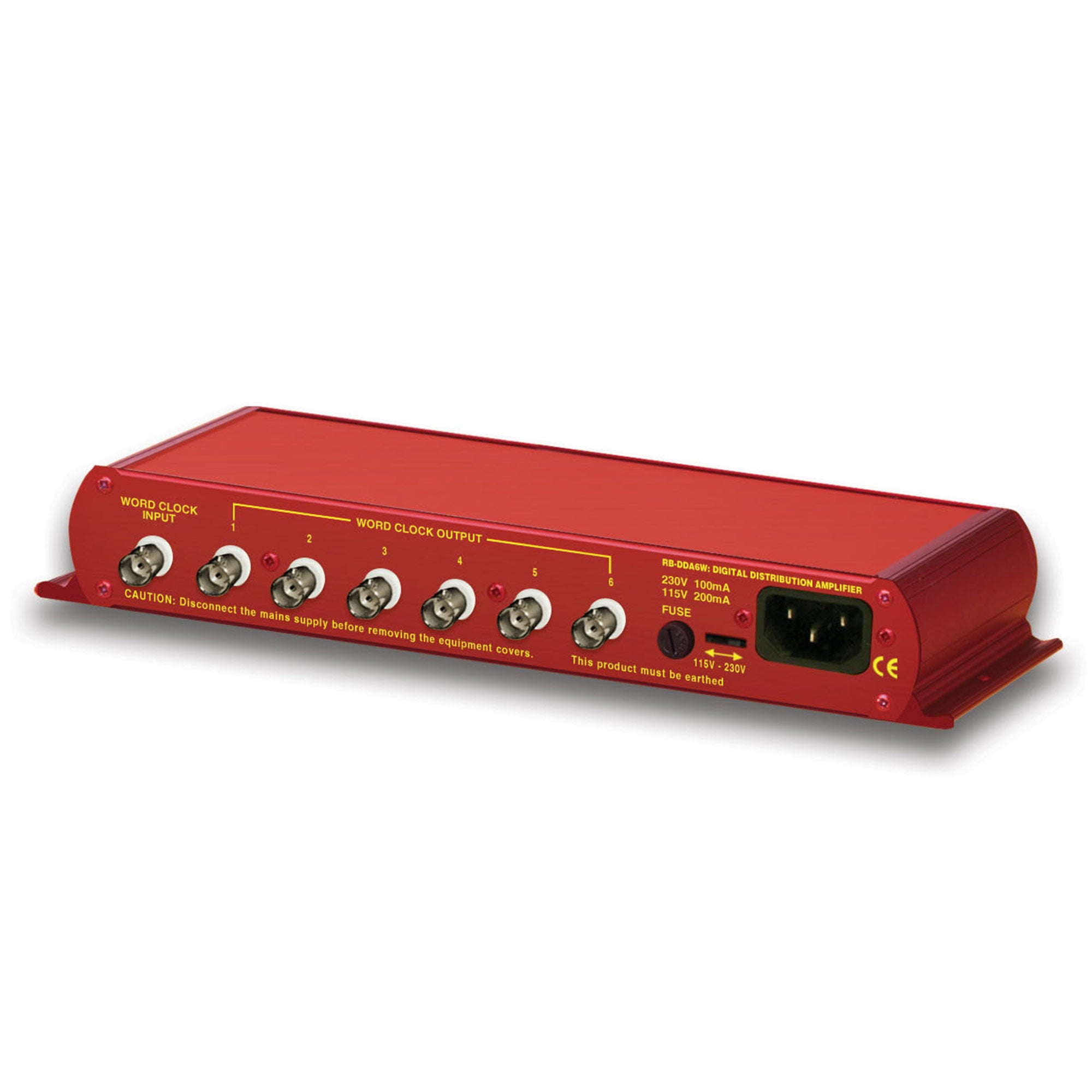

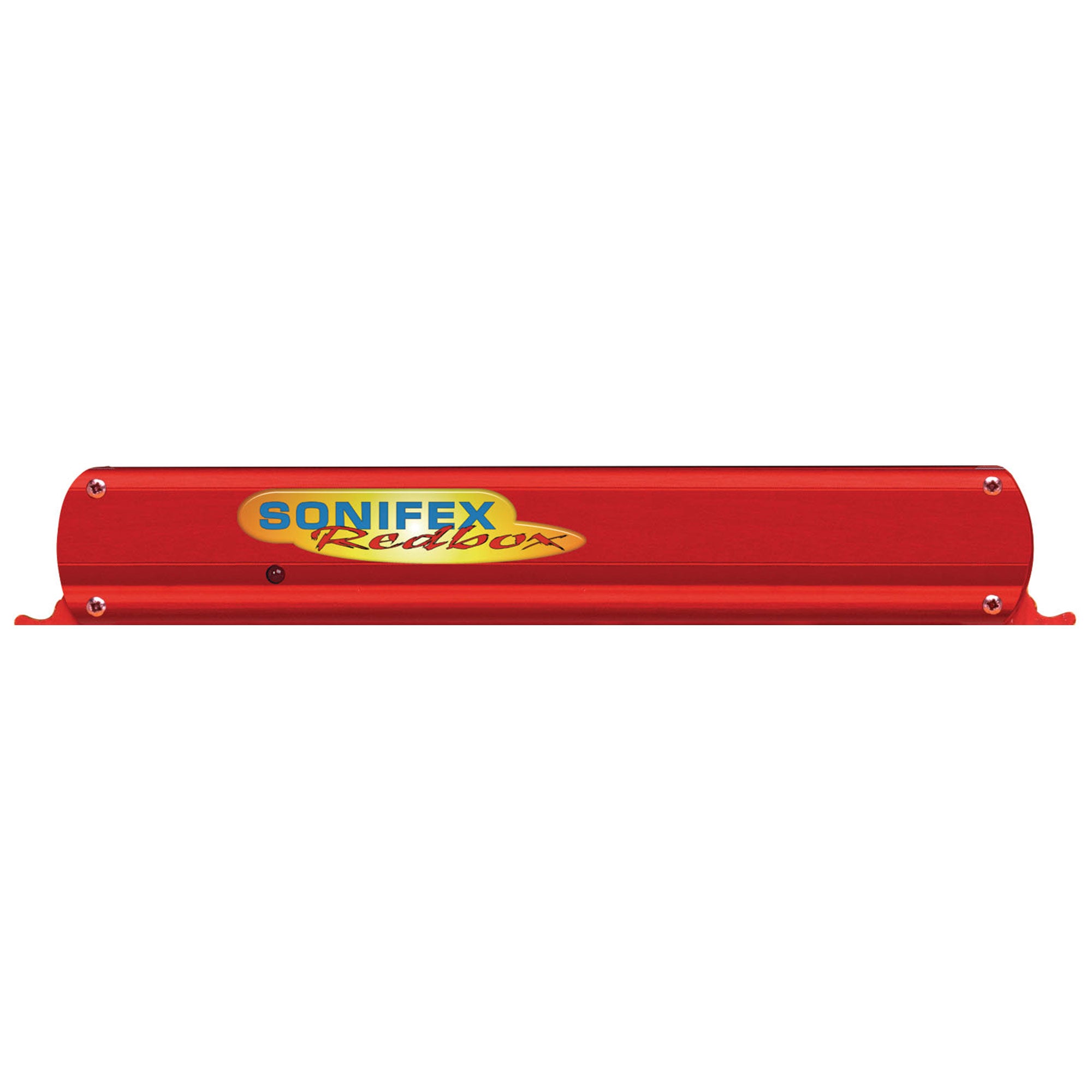

Sonifex RB-DDA6W 6 Way Word Clock Distribution Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The RB-DDA6W word clock distribution amplifier distributes a word clock BNC input signal to 6 word clock BNC outputs re-conditioned. It is used to distribute reference clocks for digital audio systems.
It has a single female BNC audio input which is distributed to 6 female BNC outputs. The units primary application is to distribute a master TTL word clock source to multiple pieces of equipment that need to be synchronised from the master.
| Audio Specification | |
| Input impedance | 75? |
| Output impedance | <75? |
| Connections | |
| Inputs | 1 x BNC female |
| Outputs | 6 x BNC female |
| Mains Input | Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W max |
| Fuse Rating | Anti-surge fuse 100mA 20 x 5mm (230VAC) Anti-surge fuse 250mA 20 x 5mm (115VAC) |
| Physical Specification | |
| Dimensions (Raw) | 28cm (W) x 10.8cm (D) x 4.2cm (H) (1U) 11Ó (W) x 4.3Ó (D) x 1.7Ó (H) (1U) |
| Dimensions (Boxed) | 36cm (W) x 20.5cm (D) x 6cm (H) 14.2Ó (W) x 8Ó (D) x 2.4Ó (H) |
| Weight | Nett: 0.9kg Gross: 1.35kg Nett: 2lbs Gross: 3lbs |
The RB-DDA6W word clock distribution amplifier distributes a word clock BNC input signal to 6 word clock BNC outputs re-conditioned. It is used to distribute reference clocks for digital audio systems.
It has a single female BNC audio input which is distributed to 6 female BNC outputs. The units primary application is to distribute a master TTL word clock source to multiple pieces of equipment that need to be synchronised from the master.
| Audio Specification | |
| Input impedance | 75? |
| Output impedance | <75? |
| Connections | |
| Inputs | 1 x BNC female |
| Outputs | 6 x BNC female |
| Mains Input | Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W max |
| Fuse Rating | Anti-surge fuse 100mA 20 x 5mm (230VAC) Anti-surge fuse 250mA 20 x 5mm (115VAC) |
| Physical Specification | |
| Dimensions (Raw) | 28cm (W) x 10.8cm (D) x 4.2cm (H) (1U) 11Ó (W) x 4.3Ó (D) x 1.7Ó (H) (1U) |
| Dimensions (Boxed) | 36cm (W) x 20.5cm (D) x 6cm (H) 14.2Ó (W) x 8Ó (D) x 2.4Ó (H) |
| Weight | Nett: 0.9kg Gross: 1.35kg Nett: 2lbs Gross: 3lbs |
